Pure water treatment plant system with price for pharmaceutical

Product details
Minimum Water Inflow:2.0-40 (m3 /h );Product name:Pure water treatment plant system with price for pharmaceutical;
Place of Origin:Shanghai China;Water Yield:0.5-30(m3 /h );
Power:60KW;Desalted Water:98%;
Size:pure water treatment plant;After-sales Service Provided:Field maintenance and repair service,Online support;
Working Water Tempterature:5-35;Packaging Detail:Pure water treatment plant system with price for pharmaceutical packing for wooden cases. Suitable for sea transportation.;
Package:Wooden crate;Brand Name:IVEN;
Payment Terms:L/C,T/T;Type:FST0.5-A--FST30-A;
Material:Woodencase;Port:SHANGHAI;
Warranty:1 year;Supply Ability:1 Set/Sets per Month Pure water treatment plant system with price for pharmaceutical;
Weight:pure water treatment plant;Brand:IVEN;
Certification:GMP,CE;



Product Description



Pure water treatment plant system  with price for pharmaceutical



Introduction:

1.Pure water treatment plant system  with price for pharmaceutical is a kind of membrane separation technology developed since the 1980s.

2.Pure water treatment plant system  with price for pharmaceutical mainly uses the osmosis principle if semi-transparent membrane. A pressure that is called reverse osmosis.

3.The device that is composed of reverse osmosis components is called reverse osmosis device.



Primary and secondary reverse osmosis+EDI

1.Applied in areas where the salinity of raw water is high;

2.Good electric conductivity of water produced;

3.Low investment;

4.Low operating cose;

5.Good stability.

Technical characteristics

1. Pure water treatment plant system  with price for pharmaceutical Modularity design, compact structure.

2. System can choose thermal disinfection RO membrane and thermal disinfection EDI; the whole system can realize on-line hot water disinfection.

3. Double softener can achieve series connections by using the valve group and generation alternatively.

4. Feed water pump.1st stage high pressure pump and 2nd stage high pressure pump are all controlled by frequency.

5. System terminal water production uses a dual supply mode

6. Pharmaceutical automatic water ro system using the middle water storage tank as the buffer tank to realize cleaning on-line, dispensing with separate cleaning system.

7. Making stainless steel tube directly tensile bending in the pipeline as far as possible, avoid welding.

8. For the connection of the pipeline and the spare parts, it adopts the arc to protect the automatic welding track, and to ensure the welding quality

9. Control system: PLC automatic control technology

10. Recording mode: You can choose the paperless recorder for paperless records and also the paper record the key parameters in real time

             Item

Water Yield (m3 /h )

Minimum Water Inflow       (m3 /h )

Desalted Water             (%)

Working Water   Tempterature (°C)

FST0.5-A

0.5

2.0

98

5-35

FST1-A

1.0

2.5

98

5-35

FST2-A

2.0

3.6

98

5-35

FST3-A

3.0

5.0

98

5-35

FST4-A

4.0

6.5

98

5-35

FST6-A

6.0

8.5

98

5-35

FST8-A

8.0

11.0

98

5-35

FST10-A

10.0

13.5

98

5-35

FST15-A

15.0

20.0

98

5-35

FST20-A

20.0

26.0

98

5-35

FST25-A

25.0

35.0

98

5-35

FST30-A

30.0

40

98

5-35





Related products



Company Information



Packaging & Shipping

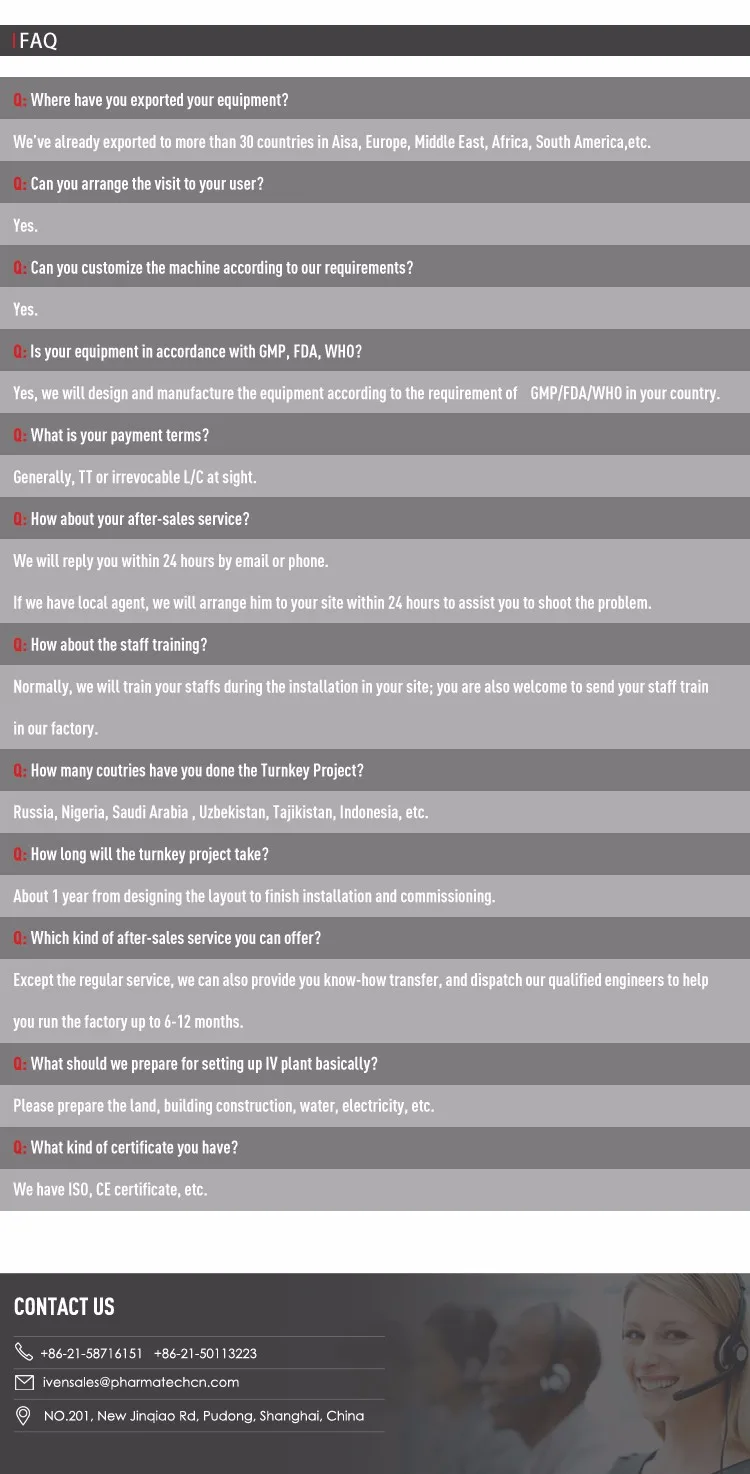

FAQ
