After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; | Reference Workshop Dimension: | 5.2*4.1*2.4m---11*6.5*2.6m; |
Video outgoing-inspection: | Provided; | Type: | Packaging Line; |
Payment Terms: | L/C,T/T; | Local Service Location: | Egypt,Turkey,Germany,Viet Nam,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Russia,Thailand,Kenya,Argentina,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan; |
Supply Ability: | 5.0 Set/Sets per Month normal saline iv solution manufacturing plant; | Port: | SHANGHAI; |
Showroom Location: | Egypt,Turkey,Germany,Viet Nam,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Russia,Thailand,Kenya,Argentina,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Uzbekistan,Tajikistan; | Machinery Test Report: | Provided; |
Power: | 8-60KW; | Place of Origin: | Shanghai China; |
Bag-making Form: | Single port, Heat insulation sealing; | Capacity: | 5800~6500 bags/ hour; |
Packaging Material: | Wood; | Voltage: | 380V 50HZ; |
Warranty of core components: | 1 YEAR; | Packaging Type: | case; |
Driven Type: | Electric; | Certification: | GMP/CE; |
Condition: | New; | Application: | MEDICAL,Machinery & Hardware,Pharmaceutical; |
Turnkey Project: | 10 turnkey projects under construction in 2017; | After Warranty Service: | Video technical support,Online support,Field maintenance and repair service; |
Marketing Type: | New Product 2020; | Core Components: | Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox; |
Warranty: | 1 YEAR; | Dimension(L*W*H): | 9.6m*2.4m*2.2m(L*W*H); |
Packaging Detail: | Soft Bag Normal Saline IV Solution Filling Machine Manufacturing Plant with adopts wooden cases for packaging ,which is worthy of sea transportation .; | Bag-making Film: | NON-PVC Film; |
Weight: | 3.5---14T,3.5---14T; | Brand Name: | IVEN; |
Product name: | Soft Bag Normal Saline IV Solution Filling Machine Manufacturing Plant; | Applicable Industries: | Pharmaceutical; |
Auxiliary Equipments: | Leak Detector,Lamp Checking Machine etc; | Key Selling Points: | Automatic; |
Specification: | 100ml,250ml, 500ml.1000ML; | Automatic Grade: | Automatic; |

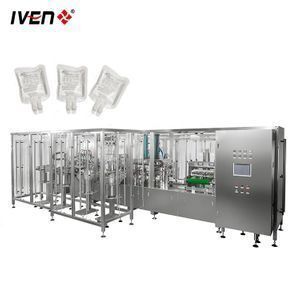

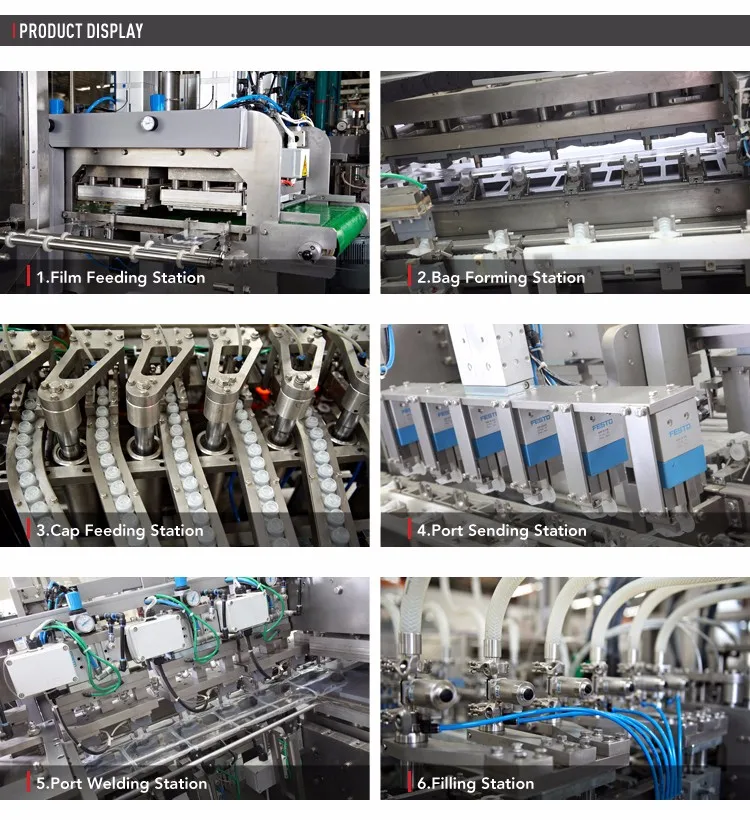

Non Pvc Soft Bag IV Solution Pharmaceutical Production Line is the latest production line with most advanced technology. It can automatically finish film feeding, printing, bag making, filling and sealing in one machine.
This LVP FFS line can be used to automatically fill 50-5000ml general solution, special solution, dialysis solution, Parenteral nutrition, Antibiotics, Irrigation and Disinfectant solution etc.
IVEN can supply you different PP bag design with single boat type port, single/double hard ports, double soft tube ports etc.
Technical Parameter:
Item | Main Content | |||||
---|---|---|---|---|---|---|
Model | SRD1A | SRD2A | SRD3A | SRD4A | SRD6A | SRD12A |
Max. ACTUAL Production Capacity | 1000BPH | 2200BPH | 3200BPH | 4000BPH | 5500BPH | 10000BPH |
Bag Size | 100ml, 250ml, 500ml, 1000ml (other specifications can be customized.) | |||||
Power Supply | 3P/380V/50Hz | |||||
Power | 8KW | 22KW | 26KW | 32KW | 32KW | 60KW |
Nitrogen | According to special requirements, nitrogen protection is applicable | |||||
Overall Size | 3.26x2.0 x2.1M |
4.72x2.6 x2.1M |
5.52x2.7 x2.1M |
6.92x2.6 x2.25M |
8.97x2.7 x2.25M |
8.97x4.65 x2.25M |
Weight | 3T | 4T | 5T | 6T | 8T | 12T |
Main features:
1.100% film utilization: No waste edge between bags, reducing both material and energy consumption.
2.Special IV bag design: each bag saves 10mm film than others.
3.Reliable heating and welding system: Leakage rate less than 0.03%.
4.Quick changeover: 0.5-1 hour to switch from one size to another.
5.Stable transmission system: only needs 1 control system, 1 HMI and 1 operator.
6.Safe filling nozzle: No solution overflows, no particles generation.
7.Auto faulty rejection system detected by the machine.
8.Production line length is reduced by 1/3, both workshop and air conditioning and cleaning area are reduced by 1/3, greatly reducing the initial investment and future running cost.
9.Simple structure, more stable and reliable performance.
IVEN Can Do!
• Project Design
• Pharmaceutical Water Treatment
• Solution Preparation
• IV Solution Production Line
• Sterilization
• Inspections Packing
• Clean Room & HVAC
• Stability Chamber
• Laboratory Instruments
• Utilities
• Documentation & Qualification
• Installation, Commissioning, Training
• Service
