A full set of automatic filling and sealing pure drinking sachet water packaging line

Supplier: Guangdong First Intelligent Drinking Water Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Tina Huang
Price: $1550.00 / 1 - 4 sets
$1500.00 / 5 - 9 sets
$1450.00 / 10 - 29 sets
$1350.00 / >=30 sets
Min. Order: 1 set

Click here to contact

Product details

Packing speed:	30-35 bags/min	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Cash
weight:	400 kg	membrane thickness:	0.08mm
Package width:	40-150mm	Package preview:
port:	Guangzhou Jiangmen Waihai	Supply capacity:	150 sets per year
type of packaging:	Bags, films, clutches	brand:	Forstrim
Materials used for packaging:	plastic	Additional wearing parts:	free
Packaging film width:	240-320mm	Film material:	polyethylene
Video shipment inspection:	if	State of health:	new
application:	Beverages, hardware machinery, water	Filling liquid:	Purified water, milk, soy milk, fruit juice
Bag length:	50-150mm	Machine material:	Stainless steel SUS304
Driver type:	electrical	Warranty:	1 year
Types of:	Packaging line	Showroom location:	Kenya
Core component warranty:	1 year	Dimensions (LWH):	10008002000mm
Automatic level:	automatic	Core components:	Water pump, PLC
Mechanical test report:	if	Marketing Type:	New Products 2022
Packaging Details:	Packed in a new strong wooden box, suitable for long-distance sea transportation.	Voltage:	220V
Packing capacity:	200-600ml	Main selling points:	easy to operate
place of origin; place of origin:	Guangdong, China	Applicable industries:	Manufacturing plants, food and beverage plants

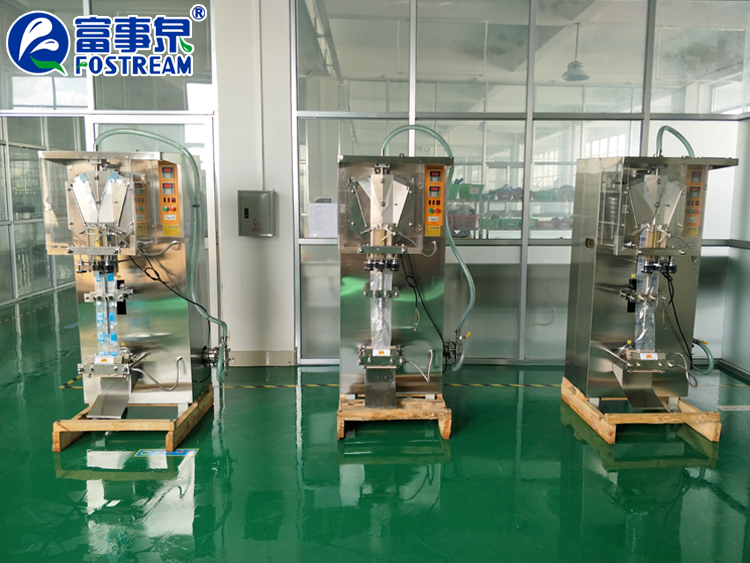

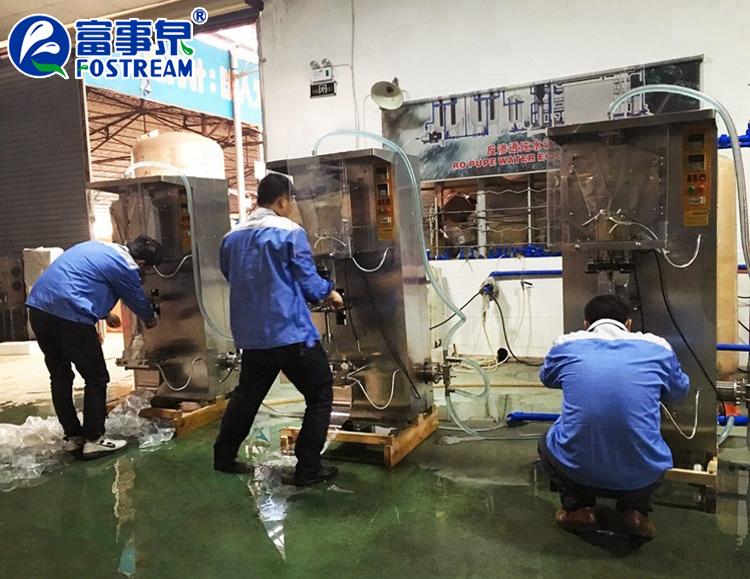

Live shooting

Jiangmen No.1 Drinking Water Equipment Co., Ltd.

Alibaba NO.1 water production line

Alibaba Gold Supplier for 16 years
18 years of professional experience
12500 square meters standard workshop
$257,000 Alibaba Trade Assurance
1.08 billion RMB registered capital

CE, SGS, BV product quality certification
ISO 9001:2008 Quality Management System

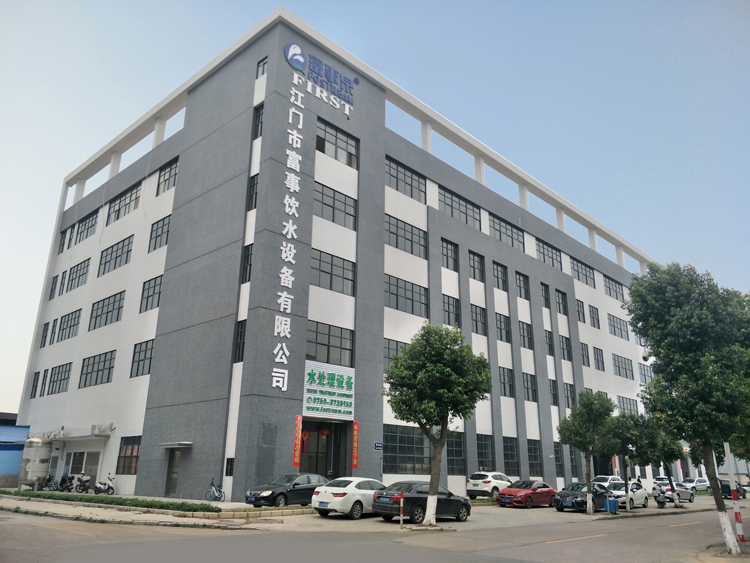

Address: No. 141 Roadside Industrial Zone, Chaolian Town, Pengjiang District, Jiangmen City, Guangdong Province (factory)

welcome to China! Welcome to our factory!

Product Description

Automatic Plastic Bag Liquid Bag Water Filling MachineSuitable for packaging of pure water, mineral water, fruit juice, milk, soybean milk, coconut milk and other liquids.

1) Basic features of small bag filling packaging machine:

Automatic film feeding+vertical sealing+horizontal sealing+quantitative filling+ultraviolet system+coding/counting

2) Mechanical structure: basic type: SJY-1000 series technical parameters
01. Frame and wetted parts are S.S304. Equipped with water pump for water injection, motor and reducer control unit for speed control of film distribution system.
02. Film output unit: It is composed of film release system, film guiding SS304 steel column, vertical heat sealing glue and copper system, and horizontal heat sealing and cutting system. The film will be
Form according to the fixed film process, so that the bag is ready for watering.
03. Filling unit: It consists of water pump and inlet control valve, the quantity depends on the piston filling machine.
04. Automatic sealing system: It consists of film feeding guide pillars, wheels, heating modules, heating tubes, temperature controllers, and pressure regulating spring valves.
05. Film output system: It is composed of SS304 slide rail board.
06. Electrical control system: It is composed of control panel, wiring and AC contactor system.
07. The machine is equipped with UV sterilizer and date coder
08. The front panel is equipped with a data counting unit.
09.SJY-ZF1000 series is equipped with speed control photoelectric sensor and mark position correction system

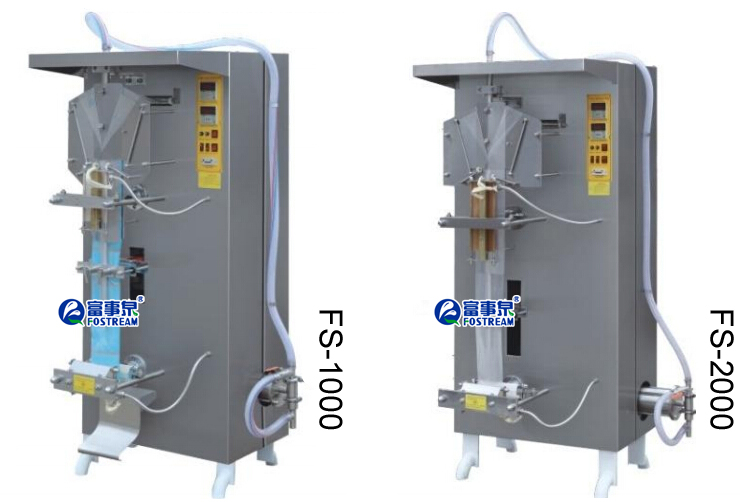

Basic Model: FS-1000 and FS-2000 Series Specifications

Model	FS-1000	FS-2000
Bag length	50-150mm	50-250mm
Bag width	40-150mm	40-175mm
Packaging Film Width	100-320mm	100-380mm
package volume	50-550ml	200-1000ml
packing speed	1800-2200 bags/hour	1000-1300 bags/hour
total power	1.6KW	2.5KW
size	8807601800mm	10508502050mm
weight	275KGS	380KGS
film release type	gear movement mechanical control
monitoring sensor	No
option solution	Ribbon date coding available: additional $40
option solution	Dust cover provided: $30 extra

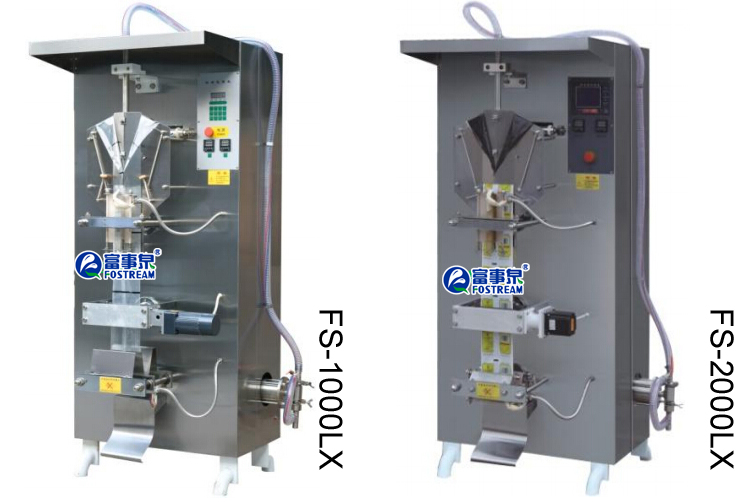

Deluxe: FS-1000LX & FS-2000LX Series Specifications

(with photocell)

Model	FS-1000LX	FS-2000ZFLX
Bag length	50-150mm	50-250mm
Bag width	40-150mm	40-175mm
Packaging Film Width	100-320mm	100-380mm
package volume	50-550ml	200-1000ml
packing speed	1800-2200 bags/hour	1000-1300 bags/hour
total power	2.1KW	2.5KW
size	10508501800mm	10508502050mm
weight	375KGS	380KGS
film release type	Motor control according to different pouch sizes, the film feeding length is precise
monitoring sensor	Photocell Sensor : Can be pre-cut and sealed according to movie logos and advertisements 100% elegant
option solution	Touch screen function: additional $480
	Ribbon date coding available: additional $40
	Dust cover provided: $30 extra

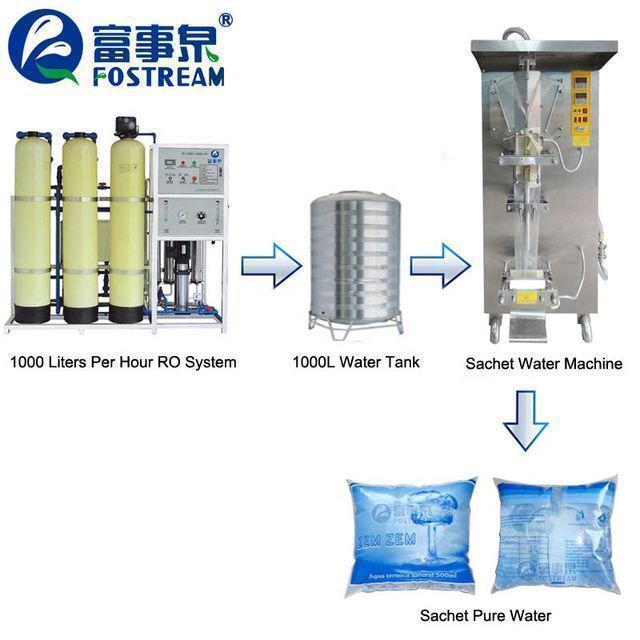

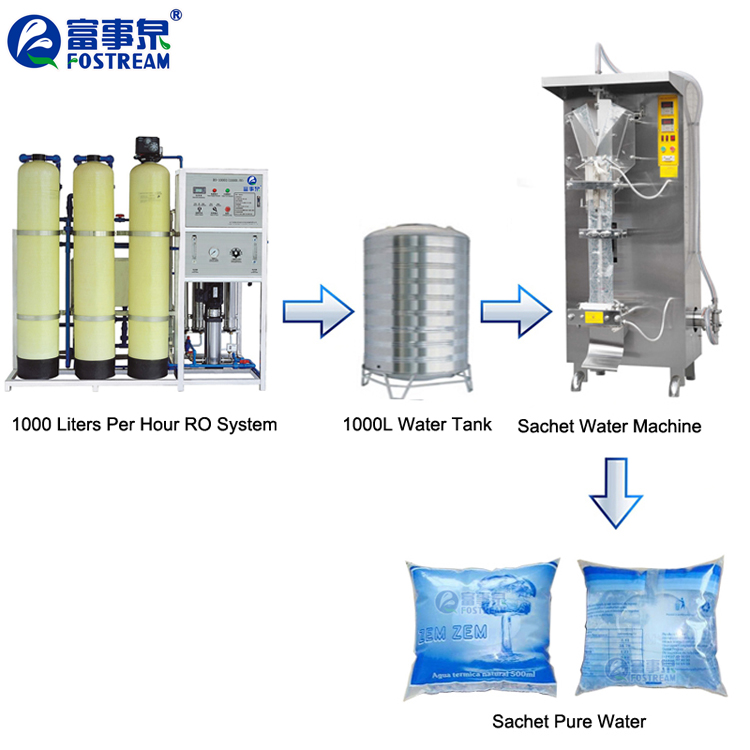

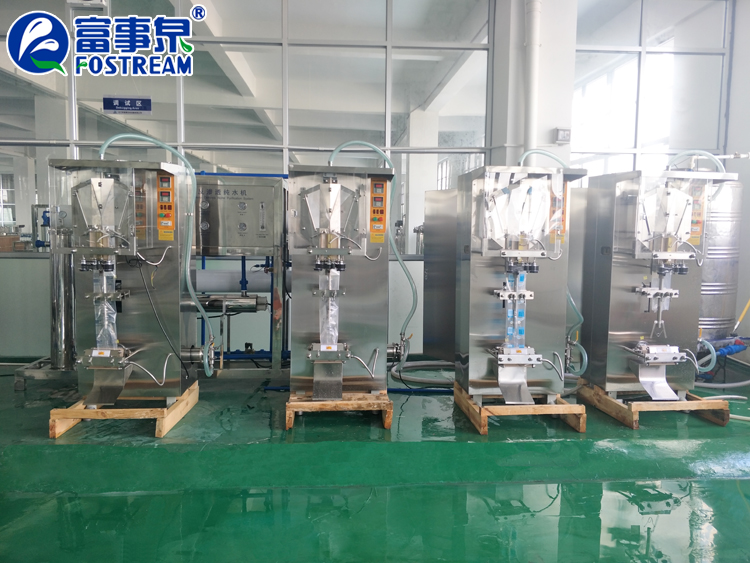

Small bag water filling production line

--Sachet machine

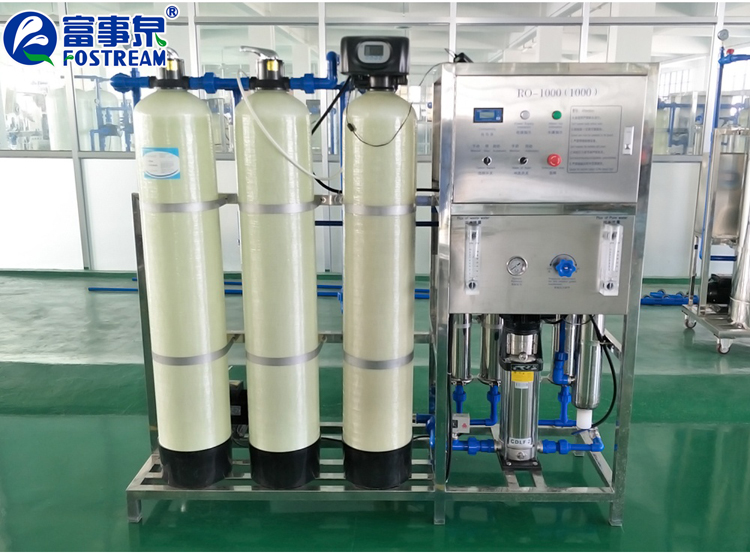

--RO pure water machine

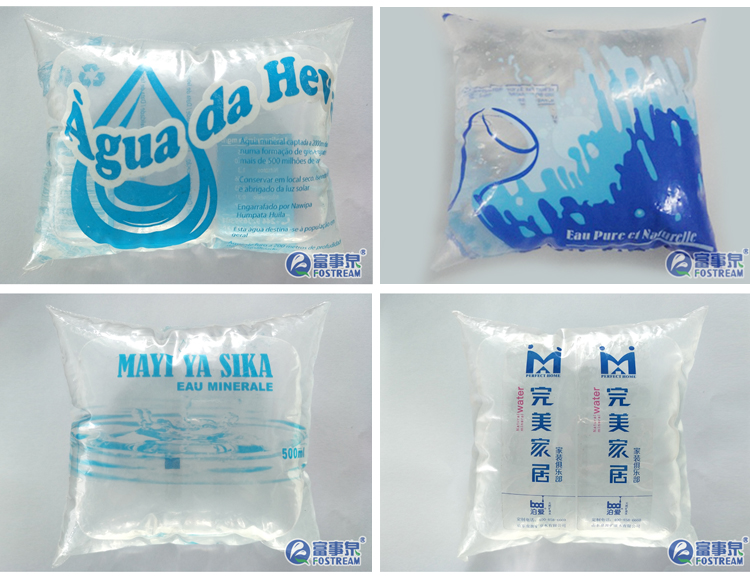

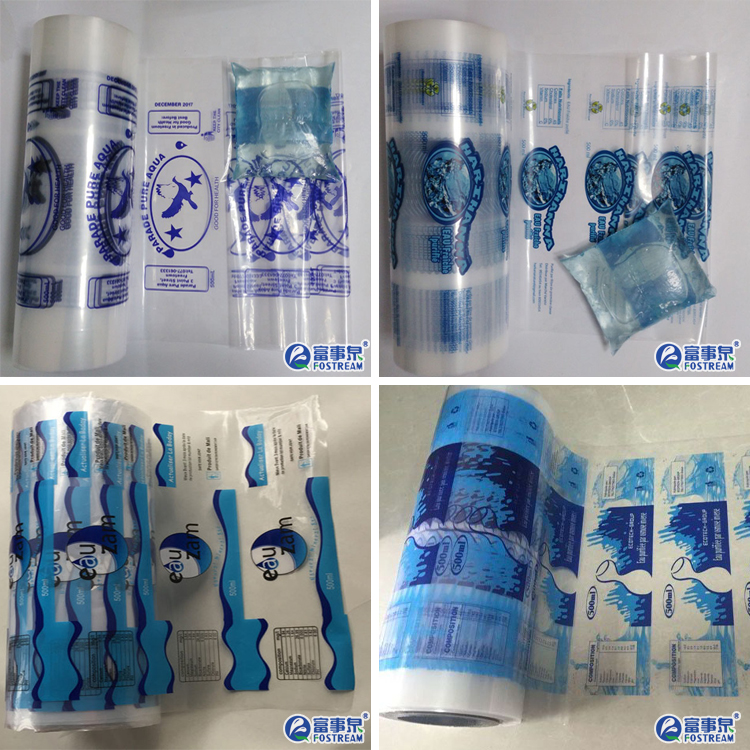

free packaging design

manufactures

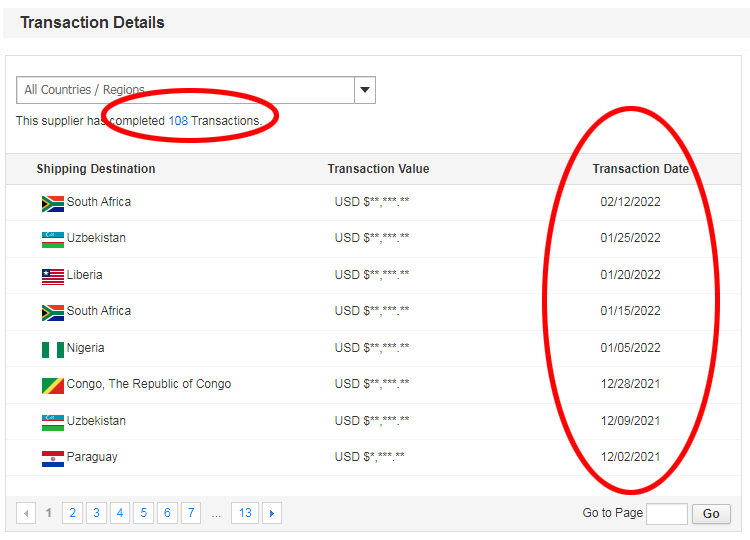

Transaction Record

Our products not only sell well in China, but also exported to Chile, Venezuela, Egypt, Peru, Maldives, the United States, Brunei Darussalam, Saudi Arabia, Kenya, Panama, Cambodia, Bhutan, Bolivia, Bulgaria, Nicaragua, Dominican Republic , Somalia, Australia, Switzerland, Mozambique and other countries.

If you want to know more about our transaction history. Please click

FAQ

Q1. Are you a factory or trading company?
A1. We are a professional water treatment and filling equipment manufactory, established in17 years.We have been paying attention to the development of the industry! We can give discounts according to the quantity of machines you buy.
B1. At the same time, we take effective measures to control the production process and ensure product quality.
Our products are certified. we can supplySGS, BV, TUV, ISO9001, ISO14001, OHSAS18001, CEcertified.

C1, URL:http://www.fostream.comAlibaba website:https://jmangel.en.alibaba.com

Q2. Where is your factory? How can I get there?

A2: Our factory is located inFactory Building No. 141 Qingnian Road, Chaolian TownPengjiang District, Jiangmen City, Guangdong Province, China,We warmly welcome all customers at home and abroad to visit us!

Q3. What products does your company provide by itself?

A3: We specialize inreverse osmosis water treatment machine,Small bag water production line, small bottle filling production lineand5 gallon filling production lineetc.

Q4: How do I know your machine works normally?
A4: Before delivery, we will test the working condition of the machine for you.

Q5: Do you have technical support after we purchase your machines?
A5: We will arrange our professional technicians to come on board to your factory, they will help you and teach you how to install and maintain the machines you purchased. Or help you repair the machine when there is a problem with the machine.
