High-speed automatic carton cartoon box folding gluing machine corrugated carton carton gluing machine

Supplier: Zhengzhou Allraise Imp & Exp Co., Ltd.
Region: Henan, China
Contact: Mr jackallraise zheng
Price: $27132.00 / 1 - 2 sets
$26132.00 / 3 - 4 sets
$25632.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	1 year	Packaging Details:	wooden box
Health status:	new	Required power supply:	14KW
weight:	6500 kg	Applicable industries:	Apparel stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, retail, other
Application products:	carton	Machine weight:	About 6.5T
brand:	full chip	Min cardboard size:	170*430mm
After-sales service:	one year	Materials used for packaging:	Paper
Average gluing speed:	160 pieces/min	port:	Any major port in China
Supply capacity:	50 sets per year	Core components:	engine
Mechanical test report:	if	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance, Payapl
Warranty:	1 year	Driver type:	electrical
maximum. Cardboard size:	1200*2600mm	type of packaging:	carton
Automatic level:	automatic	Model:	ORYL-2600
Installation area:	3800*15500mm	type:	Packaging line
Marketing Type:	New Products 2020	Origin:	Henan, China
maximum. Gluing speed:	220 pieces/minute	Main selling points:	automatic
Showroom location:	not any	application:	Food, Beverage, Commodity, Medical, Chemical, Machinery and Hardware, Garment, Textile, Tobacco
Video shipment inspection:	if

Product Description

High-speed automatic carton gluing machineCarton folding gluing machineCarton folding machine

product name	High-speed automatic gluing machine carton gluing machine
Model	ORYL-2600
maximum. cardboard size	1200*2600mm
min cardboard size	170*430mm
Average gluing speed	160 pieces/min
maximum. Gluing speed	220 pieces/minute
required power	14KW
machine weight	About 6.5T
Installation area	Installation area

Production introduction

1. Fully automatic high-speed gluing machine, with excellent automation technology, realizes the digital control of the computer program of the adjustment board position and feeding part, and the optimized program cooperates with the positioning ruler or remote control to change the carton size more accurately and quickly.
2. This machine is composed of three parts: feeding part, gluing and folding forming part, and counting and stacking output part. PLC digital display speed, touch screen display amplitude modulation, and the control method is simple and accurate. Automatic feeding (gluing), automatic folding and forming, automatic counting, palletizing output. The average gluing speed is 160 sheets/minute, and the maximum speed is 220 sheets/minute. High efficiency, energy saving and environmental protection are our highest pursuit.

1	The control of the whole machine can be adjusted in four directions: the front feeding part, the rear deviation correcting part, the middle folding part, the left folding forming part, and the right end. It is humanized and convenient for surgery.
2	The folding and forming part is equipped with a two-way indentation correction device, which can effectively correct the deviation of the cardboard alignment, so that the entire carton can be folded most accurately.
3	The deviation correcting part is equipped with a stepless speed change device, which can effectively correct the deviation of the cardboard forming by using the speed difference between the active conveying and the passive conveying, so that the formed carton can achieve a perfect effect.
4	The distance adjustment of the finished product in the stacking output part is electric.
5	The transmission of important parts of this machine adopts full gear transmission, which makes the transmission of the whole machine more precise and stable. This machine adopts an extended body (6600mm in the middle section) to ensure accurate cardboard folding without scissors difference and bonding process.
6	This machine can be designed according to the customer's actual order requirements, left and right double-station gluing system, left gluing or right gluing. At the same time, it is suitable for different types of carton gluing positions, increasing the strength of carton gluing and forming, and improving the versatility and precision of machines and products produced by high-end customers.
7	The carton has a wide range of applications, and the size of the carton is easy to adjust.
8	Simple operation and convenient maintenance.

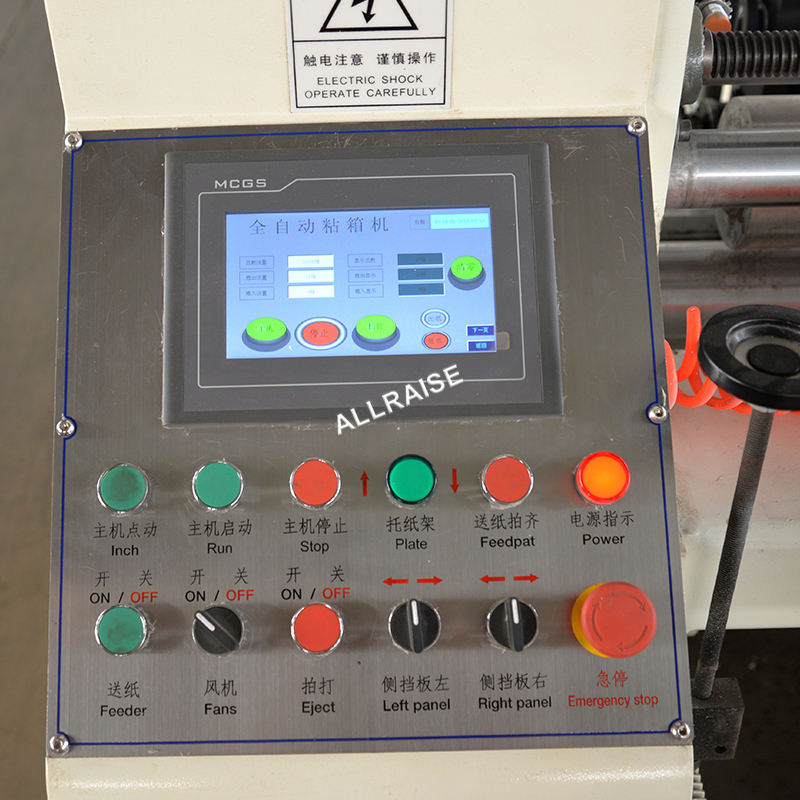

Control instrument department:

Simple touch screen operation, this machine adopts PLC to input computer programmable controller, digital operation, touch screen input data, can realize infinitely variable data, production speed, etc.; has order memory storage function, baffle feeding part, positioning plate one key adjustment in place , The adjustment is simple and fast; automatic feeding, automatic folding and forming, automatic counting, automatic stacking output, gluing speed 150 pieces/minute, the highest speed 220 pieces/minute.

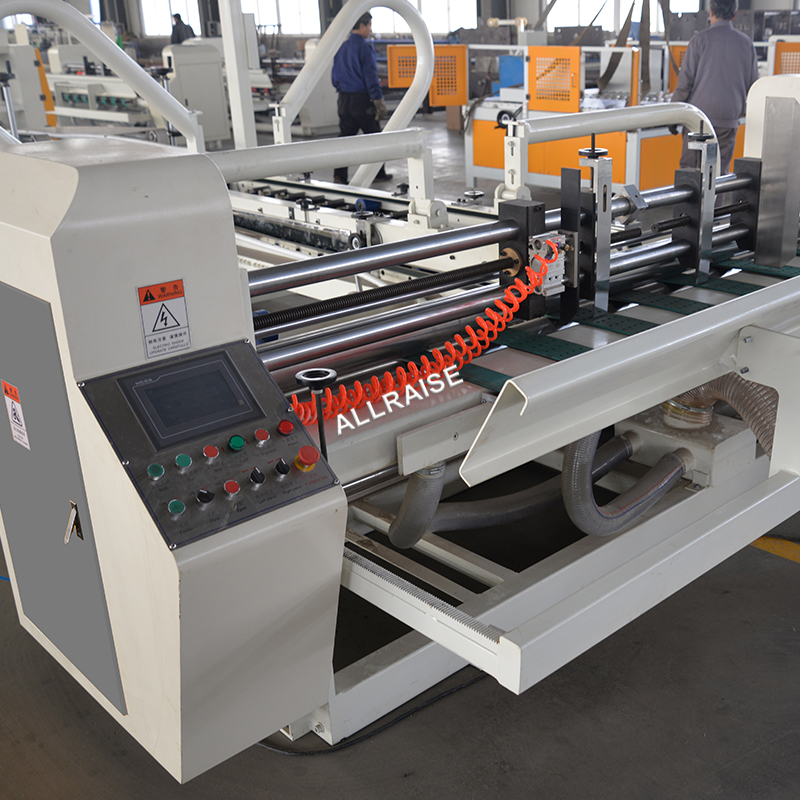

Paper feeding department:

1. The board height adjustment structure is made of high-quality steel, which can quickly adjust the height and board length of different specifications and sizes.

2. The suction paper belt is made of high-tech materials, and the seamless docking ring belt ensures that the machine has no worries during use.

3.The suction motor and the main rotating motor of the paper feeding part are all made of high-quality and high-stability motors from Taiwan.

4. Select high-grade electromagnetic clutch and electromagnetic braking system, so that the paper supply part can run single machine or continuously, effectively control the waste of cardboard and output cardboard
accurate.

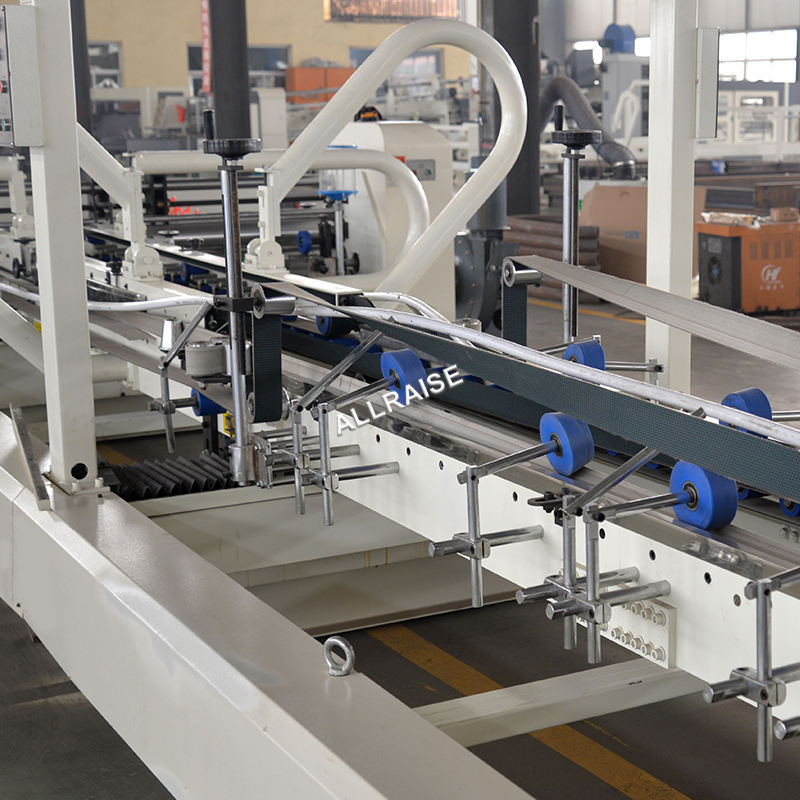

Gluing and folding forming department:

1. The motor adopts Taiwan brand, with stable performance, convenient speed regulation and no noise pollution.

2.The folding and forming part adopts the seamless butt joint ring belt made of imported special materials, which has high friction and wear resistance, and can accurately complete the automatic folding and forming of cardboard.

3.The gluing part adopts high-quality stainless steel wheels, which are uniform, glue-saving and efficient.

4. The folding and forming part is equipped with a two-way indentation correction device, which can effectively correct the deviation of the cardboard alignment, so that the entire carton can be folded most accurately.

Correction and palletizing output department:

1. The automatic deviation correction and palletizing output section has automatic counting, stacking and sorting, and palletizing output, and the output volume of finished boxes can be set according to customer requirements.

2.The stepless transmission correction device is added to effectively adjust the slight deviation of the cardboard during the forming process, so that the formed carton can achieve a perfect effect.

3.The distance adjustment of the finished product in the stacking output part is electric.

4. The stacking part adopts the straight flap design, which has good effect and low noise. The finished products are stacked neatly and enter the output part to prepare for baling.
