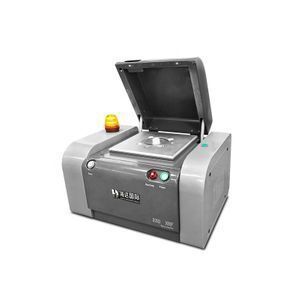

xrf Analyzer x-ray machine

Supplier: Dongguan Haida Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Lisa Zhong
Price: $12000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Focal Length:	Contat;
Model Number:	hd;	Supply Ability:	10 Set/Sets per Month xrf Analyzer x-ray machine;
Port:	Shenzhen&HK&Shanghai;	Name:	xrf machine;
Filter sheet:	8 compound filter sheet switch automatically;	Wavelength Range:	0.001-10nm;
Brand Name:	hd;	Packaging Detail:	Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.;
Sample cavity size:	30030080mm;	Size:	138.5mm81mm23mm;
Sample type:	Solid, powder and liquid;	Element range:	S-U;
CCD observation:	1.30 Million pixel HD CCD;	Rated power:	Rated power 350W;
Measurement Range:	380nm~780nm;	Measuring time:	120-400s ( software auto adjustment );
Measuring scope:	1ppm-99.99%;	Sample micro scope:	XY8mm;
Weight:	28kg;	Place of Origin:	China;

xrf Analyzer x-ray machine

XRF MACHINE'S MACHINE DESCRIPTION

This machine has advantages of triple radiation protection system, humanized operation interface; comprehensive application of empirical coefficient method & fundamental parameter method V8.0 analysis software. Element measuring range is from Na to U, which can test Pb, Cd, Hg and PBB in the RoHS regulations; Br in PBDE; Cr in Cr6+; Cl and Br in the Halogen-free regulations. It can completely meet the control demand of RoHS/WEEE/Halogen-free. Our machine with spectrum comparison function is used for real time tracing material change and warning in time. It has the incomparable advantage for RoHS/Halogen-free control.

XRF MACHINE'S APPLICATION

RoHS Directive Control Products: Household Appliance/ Information Technology and Communications Equipment / Electric Tool /Toys and other equipment.

Halogen-free Directive Control Products: Products which use flame retardant containing Cl, Br and other elements as raw material.

XRF MACHINE'S STANDARD FEATURES

Item	Description
Sample cavity size	30030080mm
Element range	S-U
Measuring scope	1ppm-99.99%
RoHS test limit	Pb≤5ppm,Cd/Cr/Hg/Br≤2ppm,Cl≤50ppm
Sample type	Solid, powder and liquid
Measuring time	120-400s ( software auto adjustment )
Collimator	Φ2mm,Φ5mm
Filter sheet	8 compound filter sheet switch automatically
CCD observation	1.30 Million pixel HD CCD
Sample micro scope	XY8mm
Stability	Repeatability error<0.1% for multi-measurement
Input power	1-PH, AC220V~240V,50/60Hz
Rated power	350W
Weight	approx 48Kg
Instrument size	640(W)x450(D)x412(H)mm

XRF MACHINE'S INSTRUMENT FEATURES

1. Triple radiation protection system (software, hardware, Labyrinth design) protect operator from radiation harm;

2. Adapting new design with optical path, which maximally solves negative effect of air optical path for Cl element measurement to guarantee Cl element stability;

3. The new optimized V8.0 analysis software can auto set the ray tube power according to the sample material, shape and size. It can prolong the life time of ray tube and also fully play detector’s function and increase measurement precision greatly;

4. Combined with series of advanced spectrum processing method including FFT, precise background deductive method, automatic peak search and Quasi-Newton optimize calculation etc;

5. International advanced XRF analysis software which combines with several traditional analysis method such as empirical coefficient method and the fundamental parameter method (FP method), theoretical α coefficient method and so on, guarantees the precision of measuring data;

6. Software can issue report by format Excel, PDF;

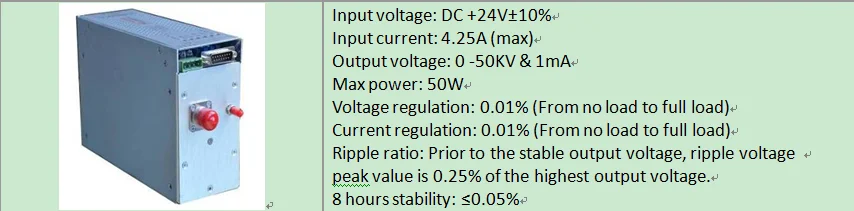

XRF MACHINE'S MAIN CONFIGURATION OF INSTRUMENT

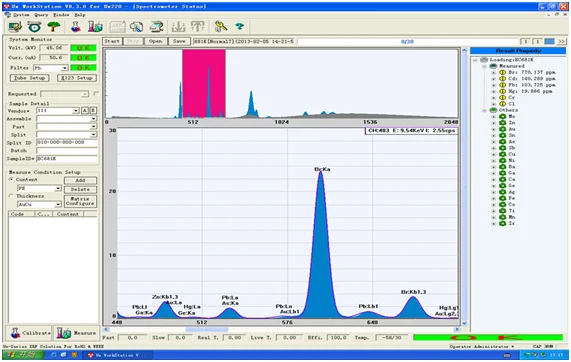

XRF MACHINE'S Sofaware

XRF MACHINE'S QUALITY ASSURANCE

1. The guarantee period with FOC within 2 years (not including expendable parts cost and transport & travel fees)

1.1 During the guarantee period, Haida shall supply free maintenance or replacement for the damaged part (just for non-expendable part) caused by non-human reasons;

1.2 If any quality problems occur within the guarantee period, and Haida must provide on-site service, the transport and travel expense shall be borne by buyer;

1.3 If any big quality problems occurs out of the guarantee period, Haida will provide a maintain service, the transport and travel expense shall be borne by buyer, also charge for a favorable price for new parts;

1.4 Haida will provide a lifetime favorable price to the buyer for expendable & non-expendable parts used in system operation, equipment maintenance;

2. The following conditions need to be paid reasonably even in the guarantee period:

2.1 Natural disaster

2.2 Operating mistakes

2.3 Voltage is not fit for our manual

2.4 Uninstall without our guides

2.5 Damaged for borrowing to others

2.6 Damaged for without authorized machine modification

2.7 Damaged for without authorized calibration

2.8 Without authorized transshipment mistake

3. XRF MACHINE'S Attentions: the machine cannot be used following situations:

3.1 Vibration, rocking place.

3.2 Direct sunlight.

3.3 Hot, dusty, damp places.

3.4 To ensure safe, AC supply of the machine should be well grounded.

3.5 Do not use strong solvents (such as: benzene, nitro oil) washing machine.

3.6 Do not inject water and debris into the machine to prevent damage to electrical components and electrical shock.

3.7 Machine’s disassembly and debugging can only be measured by the State Department approved the units and the company, other people not allowed to overhaul.
