DW-AA320N Double Beam Atomic Absorption Spectrophotometer AAS Flaka Price Spectrometer

Supplier: Shanghai Drawell Scientific Instrument Co., Ltd.
Region: Shanghai, China
Contact: Ms Cathy Zhang
Price: $5900.00 /set
Min. Order: 1 set

Click here to contact

Product details

solve:	<40%	Acceptance:	≤0.3nm (unidirectional)
Wavelength range:	190-900nm,190~900nm	Intrinsic viscosity:	0.04 g/ml/1%
Spectrum Bandwidth:	0.2nm, 0.4nm, 0.7nm, 1.4nm, 2.4nm, 5.0nm	Copper detection limit:	0.008 g/ml
accuracy:	±0.5nm	size:	1.5 cubic meters
RS232:	include	Packaging Details:	Standard export packaging (safe and pure English), especially beautiful and protective packaging box.
Background Calibration Capabilities:	More than 30 times	Origin:	China Shanghai
Warranty:	1 year	payment terms:	Western Union, T/T, MoneyGram
Supply capacity:	10000 pieces per year	model:	DW-AA320N
brand:	Ravel	power supply:	220V 3A, 50Hz
port:	Shanghai, Guangzhou, Shenzhen, Ningbo, Qingdao	weight:	205 kg
focal length:	-	Customization support:	Processing

Atomic Absorption Spectrophotometer DW-AA320N

feature:

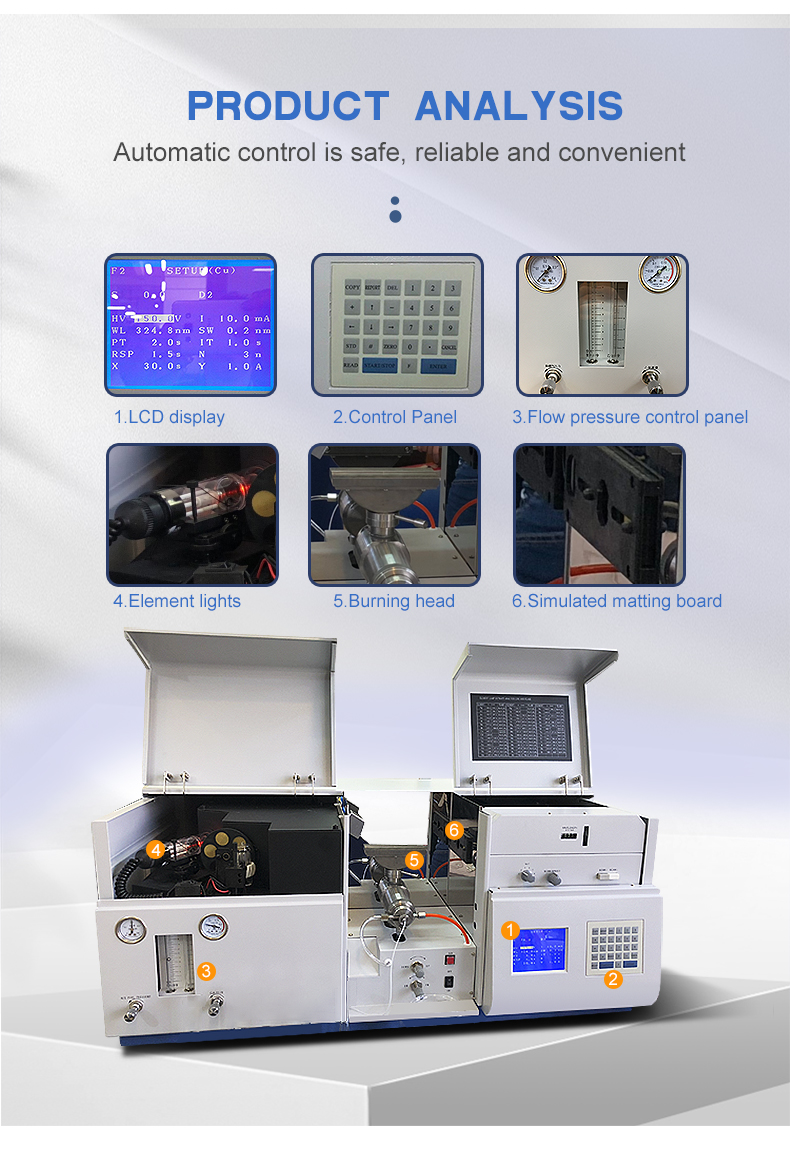

1. Built-in computer data processing and liquid crystal display: stable and reliable, with integral hold, peak height, peak area, automatic zero adjustment, deuterium lamp background correction, multi-linear and nonlinear curve fitting and other functions, a variety of parameters and working curve display For screen, report printing, etc. Equipped with an external PC interface.
2. Stability: The double-beam system can automatically compensate the light source drift and wavelength drift caused by temperature changes (with the function of eliminating the influence of wavelength drift on baseline stability) and electronic circuit drift, so as to achieve good baseline stability.
3. Fast: The cathode lamp does not need to be warmed up for a long time, and the sample can be analyzed immediately. It is the first choice for users to perform multi-element analysis and rapid analysis of samples.

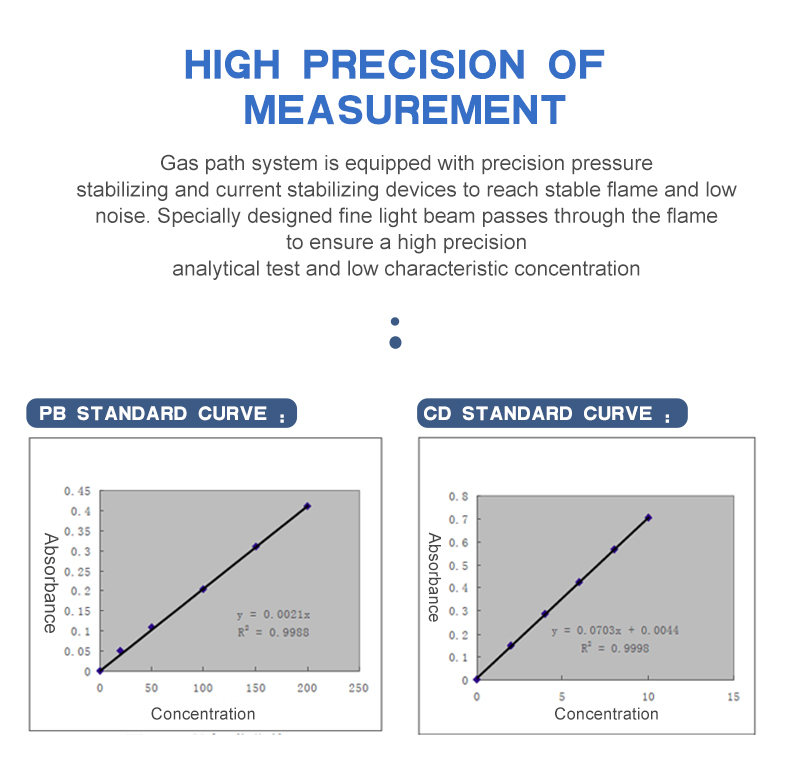

4. High measurement accuracy: the air circuit system is equipped with precise voltage and flow stabilization devices, with stable flame and low noise. The specially designed thin beam passes through the flame to ensure the high precision and low characteristic concentration of the analytical test

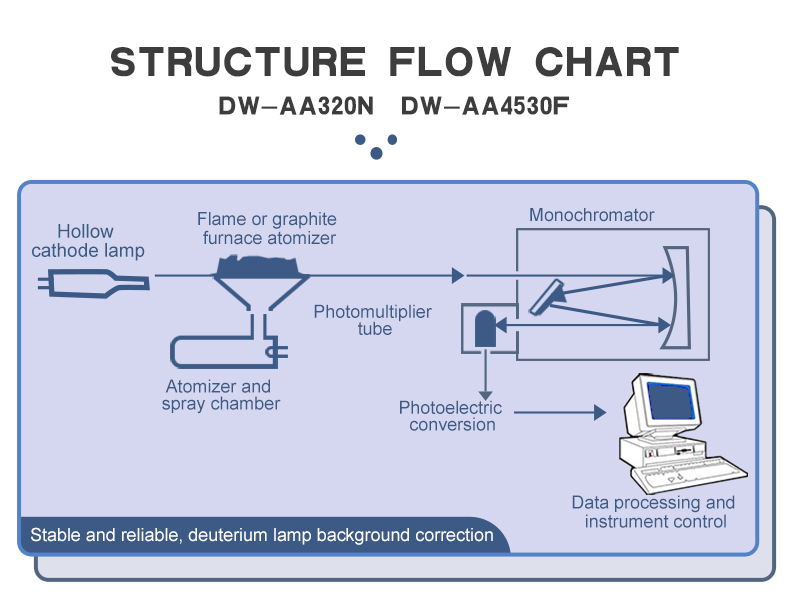

5. High-energy optical path: the total reflection system is adopted to eliminate chromatic aberration in the whole range. Through chemical conversion, the circular light spot of the light source becomes a long light spot and enters the slit. Therefore, the luminous flux of the double beam is enhanced.
6. Long-life, corrosion-resistant atomization system: The burner is made of new titanium alloy material, which is corrosion-resistant and fast in heat balance. Measurement sensitivity requirements can be met without water cooling.
7. Multi-function analysis mode: flame absorption, flame emission, graphite furnace atomic absorption, hydride generation and other methods.
8. Safe and reliable gas system: It can be analyzed by special devices for rapid gas conversion and safety protection.
Air-acetylene flame and nitrous oxide-acetylene flame, and expand the analysis elements to more than 60.

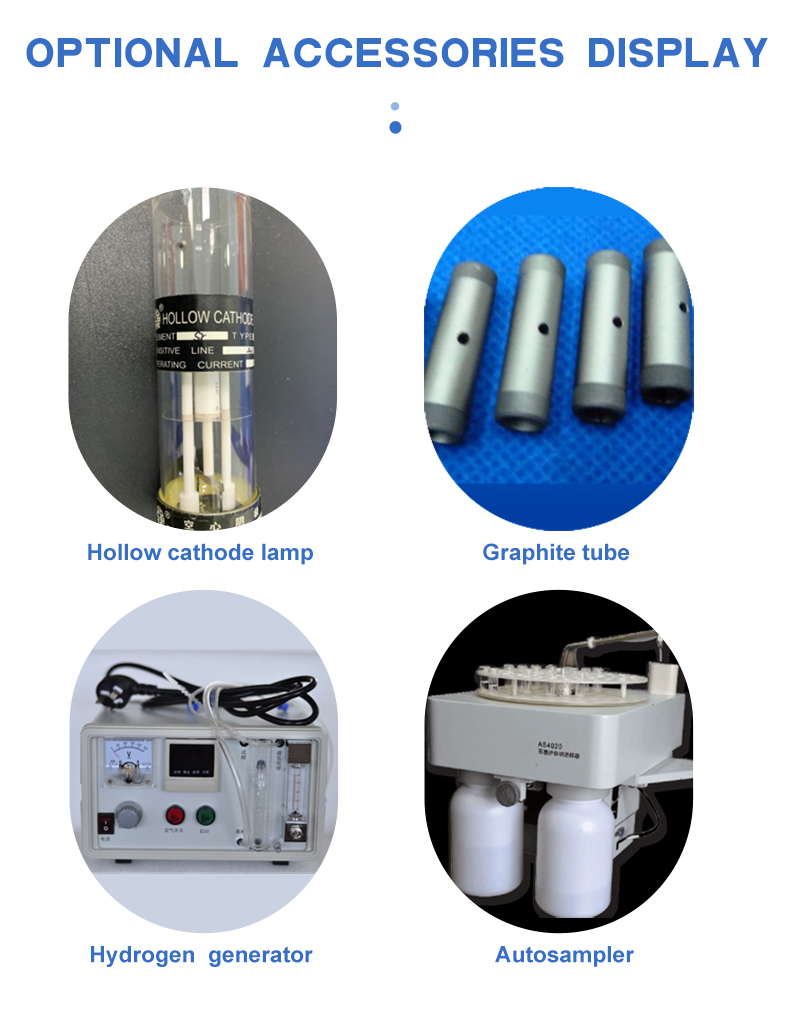

9. A full set of accessories: it comes with the instrument and can be used after purchase.

Wavelength range (nm)	190-900
Circumferential accuracy	±0.5nm
work line repeatability	£ 0.3nm (unidirectional)
Spectrum bandwidth	0.2nm, 0.4nm, 0.7nm, 1.4nm, 2.4nm, 5.0nm
solve	<40%
baseline stability	±0.004Abs/30 minutes
The characteristic concentration of copper	£ 0.04mg/ml/1%
Copper detection limit	£0.008mg/ml
Background Calibration Capabilities	More than 30 times
RS232	include
printer	Elective
power supply	220V 3A, 50Hz
GW	160 kg 65 kg
Package Size	1220x770x730mm (host) 800x400x900mm (accessories)
