DU-8200 UV/VIS Cheap Portable Spectrophotometer Model

Supplier: Shanghai Drawell Scientific Instrument Co., Ltd.
Region: Shanghai, China
Contact: Ms Cathy Zhang
Price: $818.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Weight:	13kg;	Single gross weight:	15.0 KG;
Display:	Graphic LCD (128x64 Dots);	Size:	431x318x195mm;
Wavelength Repeatability:	≤0.2nm;	Wavelength Accuracy:	±0.8nm;
Stability:	±0.002A/h (500nm,0A);	Scan Speed:	High, Medium, Low. Max.1000nm/minute;
Focal Length:	2.0nm or 4.0nm optional;	Place of Origin:	China;
Noise:	≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T);	Brand Name:	Drawell;
Packaging Detail:	Standard export package with pure English;	Wavelength Range:	190-1100nm;
Wavelength Setting:	Auto, Resolution 0.1nm;	Model Number:	DU-8200;
Selling Units:	Single item;	Power Requirements:	AC 90-250V,50/60Hz;
Single package size:	60X50X40 cm;

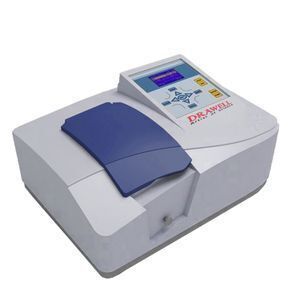

DV-8200 / DU-8200 UV/VIS Spectrophotometer

8200 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard. They are widely used in colleges and quantitative analysis lab.

Features

Small fine design, space saving

The excellent optical and electric system

Low noise and Low stray light

Large LCD display (128*64 Dots), can display curve

High quality grating, detector and lamps

Data and Curve can be stored in real-time

Auto setting WL, auto Blank

Easy to change Pri-aligned lamps

Reinforced baseboard and bracket assures durability

Function:

Photometric: T%, Abs

Quantitative: Standard Curve

System Utility

WL Scan (Spectrum Scan) (PC)

Time Scan (Kinetics) (PC)

DNA/Protein Test (PC)

Multi-WL Test (PC)

Model	DV-8200	DU-8200
Wavelength Range	320-1100nm	190-1100nm
Spectral Bandwidth	2.0nm or 4.0nm optional
Optical System	Single Beam, Blazed Holographic Grating (1200 lines/mm)
Wavelength Accuracy	±0.8nm
Wavelength Repeatability	≤0.2nm
Wavelength Setting	Auto, Resolution 0.1nm
Photometric Range	0~200%T, -0.3~3A, 0~9999C
Photometric Accuracy	±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T)
Photometric Repeatability	≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
Stray Light	≤0.1%T(220/360nm)
Scan Speed	High, Medium, Low. Max.1000nm/minute
Baseline Flatness	±0.003A
Stability	±0.002A/h (500nm,0A)
Noise	≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)
Sample Compartment	Accommodate 5-100mm Pathlength Cuvette
Detector	Silicon Photodiode
Lamps	Tungsten Lamp & Deuterium Lamp (Pre-aligned)
Display	Graphic LCD (128x64 Dots)
Keypad	11-key Membrance Keypad
Output Port	USB Port & RS232 Port
Printer	Mini Serial Printer; PC Printer
PC Software	Optional PC Scanning Software
Power Requirements	AC 90-250V,50/60Hz
Dimension	431x318x195mm
Net Weight / Gross Weight	8.2kgs / 12kgs	9kgs / 13kgs
