-86 Upright Ultra Low Temperature Refrigerator Medical Storage Deep Vaccine Freezer

Click here to contact

Product details

Model Number:	MDF-86V50;	Brand Name:	Drawell;
Internal size:	361429406(mm);	Temperature Range:	-40℃~-86℃;
Packaging Detail:	Standard Export Packaging(Safe and Pure English);	Warranty:	1 Year,1 years;
Customized support:	OEM,ODM,OBM;	Cooling:	-86℃(Ambient temp.35℃);
Rated Power:	450W(220V,50Hz);	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Certificate:	CE ISO;	Net Weight:	75kg;
Supply Ability:	300 Piece/Pieces per Month;	Place of Origin:	Shanghai China;
Port:	Shanghai/Chongqing/Guangzhou/Shenzhen;	Packing Dimension(mm):	13007352110;
Effect Capacity:	50L;	External Size:	5406201115(mm);
Classification:	Laboratory Refrigeration Equipments;	Certification:	CSA,pcoc,Reach,IECEE,scoc,UL,EPA,GS,ISO,CE;

Product Description

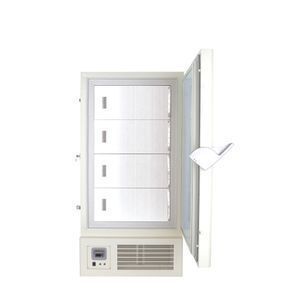

-86℃ Upright Ultra-Low Temperature Medical Deep Freezer

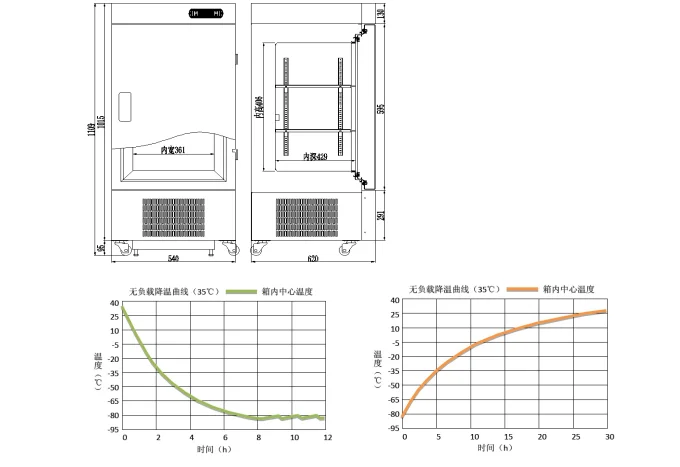

MDF-86V50

To store virus, germs, blood plasma, vaccine, blood, skin, bone marrow, , biological products, pelagic products and others.

Suitable for research institute, chemical, military, electronics, piscatorial industries, university labs, pelagic fishery industries and other areas

Temperature Control:

Microprocessor-based temperature controller, -40℃~-86℃ can be set freely, digital temperature display.

High and low temperature alarms, set as needed

Platinum resistance temperature sensor, temperature sensing accuracy

Safety

Alarms: high and low temperature alarms, sensor failure alarm.

Two alarm styles: buzzing, flashing

Keyboard lock, password protection function to avoid set parameter randomly

Operation parameters display, real-time monitoring, ensure the equipment safety stability

Refrigerating System

Imported branded compressor,low noise CFC-free, efficient environmental protection refrigerants

Thick and high density foam layer for thermal insulation

Using single cascade refrigeration system with optimized design, cooling speed, low power consumption, big refrigerating capacity

Humanized Design

Safety lock design prevents any abnormal door status

Wide voltage range, from 187V to 242V

Silent design, suitable for quite environment

Big screen display, easy to read

Double door seal design, lock the air conditioning, strengthen heat preservation effect

Mobile, fixed castor, convenience for the user

Parameter

Model	MDF-86V50
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	540×620×1115(mm)
Internal size(W×D×H)	361×429×406(mm)
Effect Capacity	50L
Net Weight	75kg
Rated Power	450W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Shelves	1layer,adjustable,SUS
Outer door	1
Inner door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

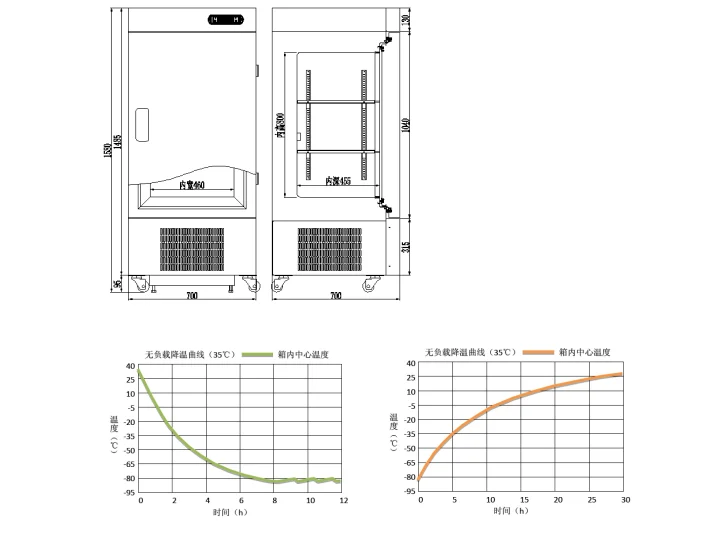

MDF-86V158

Parameter

Model	MDF-86V158
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	700×700×1580(mm)
Internal size(W×D×H)	460×455×800(mm)
Effect Capacity	158L
Net Weight	130kg
Rated Power	630W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Shelves	2layers,adjustable,SUS
Outer door	1
Inner door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

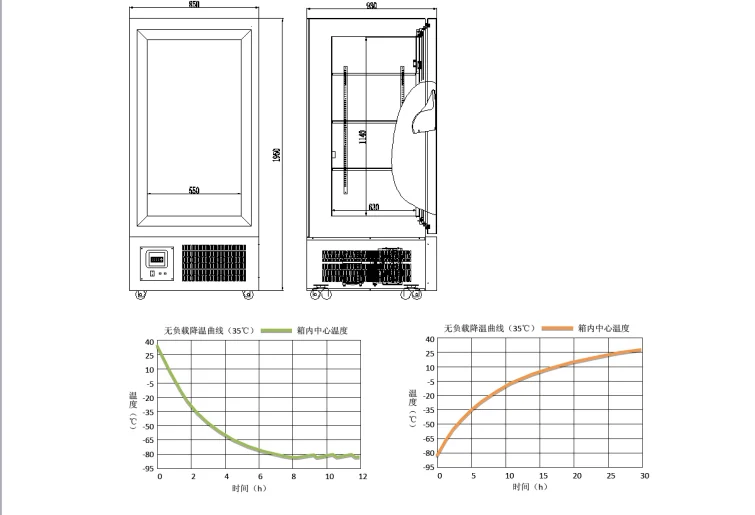

MDF-86V398

Parameter

Model	MDF-86V398
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	850×930×1950(mm)
Internal size(W×D×H)	550×630×1140(mm)
Effect Capacity	398L
Net Weight	218kg
Rated Power	720W(220V,50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Shelves	3 layers,adjustable,SUS
Outer door	1
Inner door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys

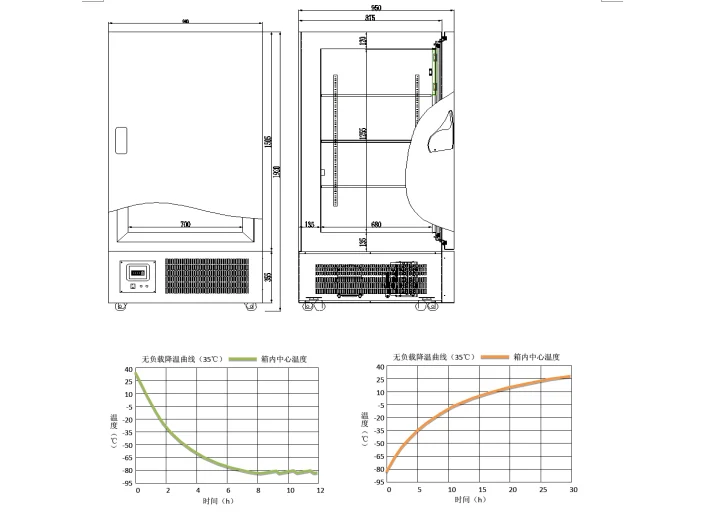

MDF-86V598

Parameter

Model	MDF-86V598
Temperature Range	–40℃~–86℃
Cooling	–86℃(Ambient temp.35℃)
External Size(W×D×H)	940×950×1920(mm)
Internal size(W×D×H)	700×680×1255(mm)
Effect Capacity	598L
Net Weight	280kg
Rated Power	990W(220V/50Hz)
Insulation Layers	PU whole foamed
External Material	Color sprayed steel
Internal Material	SUS
Shelves	3 layers,adjustable,SUS
Outer door	1
Inner door	1
Lock	1
Test Hole	1,diameter 18mm
Compressor	1,all enclosed
Refrigerant	HFC
Alarm System	Temperature higher/lower alarm,filter inspection alarm,ambient temperature alarm
Accessory	Keys
