Drawell Manufacturer Uv Visible Spectrophotometer For Laboratory

Supplier: Shanghai Drawell Scientific Instrument Co., Ltd.
Region: Shanghai, China
Contact: Ms Cathy Zhang
Price: $510.00 / 1 - 4 pieces
$496.00 / >=5 pieces
Min. Order: 1 piece

Click here to contact

Product details

Wavelength Accuracy:	±0.8nm;	Place of Origin:	Shanghai China;
Weight:	Gross Weight:12kgs;	Brand Name:	Drawell;
Port:	Shanghai;	Wavelength Repeatability:	≤0.2nm;
Size:	431x318x195mm;	Warranty:	1 year;
Optical System:	Single Beam, Blazed Holographic Grating (1200 lines/mm);	Supply Ability:	500 Piece/Pieces per Month;
Model Number:	DV-8200;	Customized support:	OEM;
Packaging Detail:	Standard packaging with pure English.;	Lamps:	Tungsten Lamp & Deuterium Lamp (Pre-aligned);
Wavelength Range:	320-1100nm;	Detector:	Silicon Photodiode;
Scan Speed:	High, Medium, Low. Max.1000nm/minute;	Sample Compartment:	Accommodate 5-100mm Pathlength Cuvette;
Baseline Flatness:	±0.003A;	Focal Length:	2.0nm or 4.0nm optional;
Noise:	±0.2%T(0%T);±0.5%T(100%T);±0.001A (500nm);	Payment Terms:	L/C,Western Union,T/T,PayPal;
Stability:	±0.002A/h (500nm,0A);

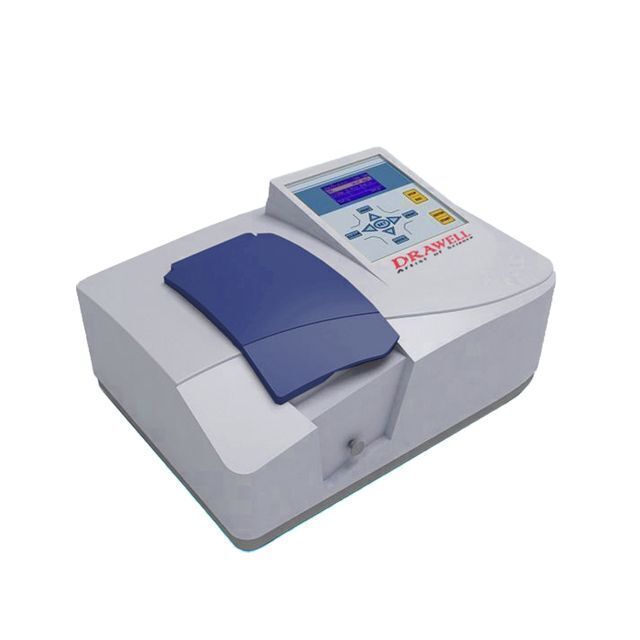

DV-8200 / DU-8200 UV/VIS Spectrophotometer

8200 series spectrophotometer is the ideal instrument for education and QC laboratories. They are simple to fit a curve by using your standard. They are widely used in colleges and quantitative analysis lab.

Features： Small fine design, space saving The excellent optical and electric system Low noise and Low stray light Large LCD display (128*64 Dots), can display curve High quality grating, detector and lamps Data and Curve can be stored in real-time Auto setting WL, auto Blank Easy to change Pri-aligned lamps Reinforced baseboard and bracket assures durability

Function: Photometric: T%, Abs Quantitative: Standard Curve System Utility * WL Scan (Spectrum Scan) (PC) * Time Scan (Kinetics) (PC) * DNA/Protein Test (PC) * Multi-WL Test (PC)

Specifications:

Model	DV-8200	DU-8200
Wavelength Range	320-1100nm	190-1100nm
Spectral Bandwidth	2.0nm or 4.0nm optional
Optical System	Single Beam, Blazed Holographic Grating (1200 lines/mm)
Wavelength Accuracy	±0.8nm
Wavelength Repeatability	≤0.2nm
Wavelength Setting	Auto, Resolution 0.1nm
Photometric Range	0~200%T, -0.3~3A, 0~9999C
Photometric Accuracy	±0.002A (0~0.5A), ±0.004A (0.5~1A), ±0.3%T (0~100%T)
Photometric Repeatability	≤0.001A (0~0.5A), ≤0.002A (0.5~1A), ≤0.2%T (0~100%T)
Stray Light	≤0.1%T(220/360nm)
Scan Speed	High, Medium, Low. Max.1000nm/minute
Baseline Flatness	±0.003A
Stability	±0.002A/h (500nm,0A)
Noise	≤0.2%T/3min (250/500nm,0%T); ≤0.5%T/3min (250/500nm,100%T)
Sample Compartment	Accommodate 5-100mm Pathlength Cuvette
Detector	Silicon Photodiode
Lamps	Tungsten Lamp & Deuterium Lamp (Pre-aligned)
Display	Graphic LCD (128x64 Dots)
Keypad	11-key Membrance Keypad
Output Port	USB Port & RS232 Port
Printer	Mini Serial Printer; PC Printer
PC Software	Optional PC Scanning Software
Power Requirements	AC 90-250V，50/60Hz
Dimension	431x318x195mm
Net Weight / Gross Weight	8.2kgs / 12kgs	9kgs / 13kgs

Products Description

Application Field

Certifications

Company Profile

Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014. DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in Pharmaceutical &food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .

Exhibition

Evaluation

Shipment & Payment

FAQ

Q1. Are you factory or trading company?
We are a factory.

Q2. What's the MOQ ?
(1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.
The quantity is according to the clients requires.
(2). If there is no stock,the general MOQ are in big difference due to the different
products. But the quantity still can be negotiated.

Q3. What is your principle for the samples ?
We do not provide free sample.

Q4.Which payment can be acceptable ?
We could accept the payment by L/C, T/T, Paypal, Western Union,etc.

Q5. How about your delivery time?
Generally, it will take 7 to 15 working days after receiving your advance payment.
Depend on the quantity.

Q6. Certificate & Quality.
CE and ISO certified for most products. Good quality firstly to avoid any defective
products, Protective packaging to avoid destroy during delivery.

Q7.Language.
Pure English operation panel, display , manuals ; installation & operation videos will
be provided to you as a guidance

Q8.Service
We could provide Online instruction; Real-time support by video-call or voice-chat,
During warranty time, we can send product accessories when you need for free;
Technical guidance is free and ready forever.

Q9.Training
Your technicians can come to our factory for training , Drawell engineers can go
your place for local support( installation , training, debugging, maintenance );
Products can be customized according to your requirements; OEM service is
available with customers' brand.
