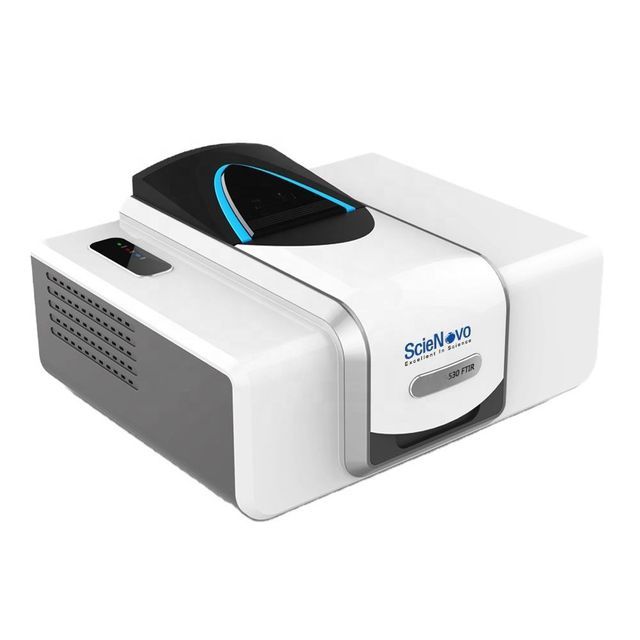

Scienovo SN-FTIR-530A Fourier Transform Infrared Spectrometer

Product details
Certification:International Organization for StandardizationCustomization support:OEM production
weight:45 kgPackage preview:
size:67*58*63cmOrigin:China Shanghai
focal length:0.85 cm-1Beam splitter:Multilayer Germanium Coated Potassium Bromide
product name:infrared spectrometerGross weight per piece:45.000 kg
software:MainFTOS Suite Software WorkstationWarranty:3 years
model:SN-FTIR-530APackaging Details:Scienovo SN-FTIR-530A FTIR spectrometer 1. Standard wooden box export package 2. Package size: wooden box-1: 70 x 60 x 65 cm 3. Package weight: 45kg
detector:Room temperature DLATGS module (standard)SNR:Better than 20,000:1
Interferometer:Cube Corner Michelson InterferometerWavelength Accuracy:±0.01 cm-1
Sales unit:single productInfrared source:High-intensity, long-life, air-cooled infrared light source
Scan speed:Microprocessor control, different scan speed optionsSingle package size:70X60X65 cm
Wavelength range:7800cm-1~350cm-1brand:Senovo
product description


Scienovo SN-FTIR-530A Fourier Transform Infrared Spectrometer

notes:Please confirm the configuration you need.
Product parameters
feature
Fourier transform infrared spectrometer SN-FTIR-530A with completely independent intellectual property rights. Adhering to the consistent excellent quality and
Superior performance, the new model has achieved the best balance between intelligence and convenient operation, and the performance has been improved to a higher level
Low operation and maintenance costs. It is the best choice for basic scientific research analysis and production quality
Control, testing and inspection in various fields.

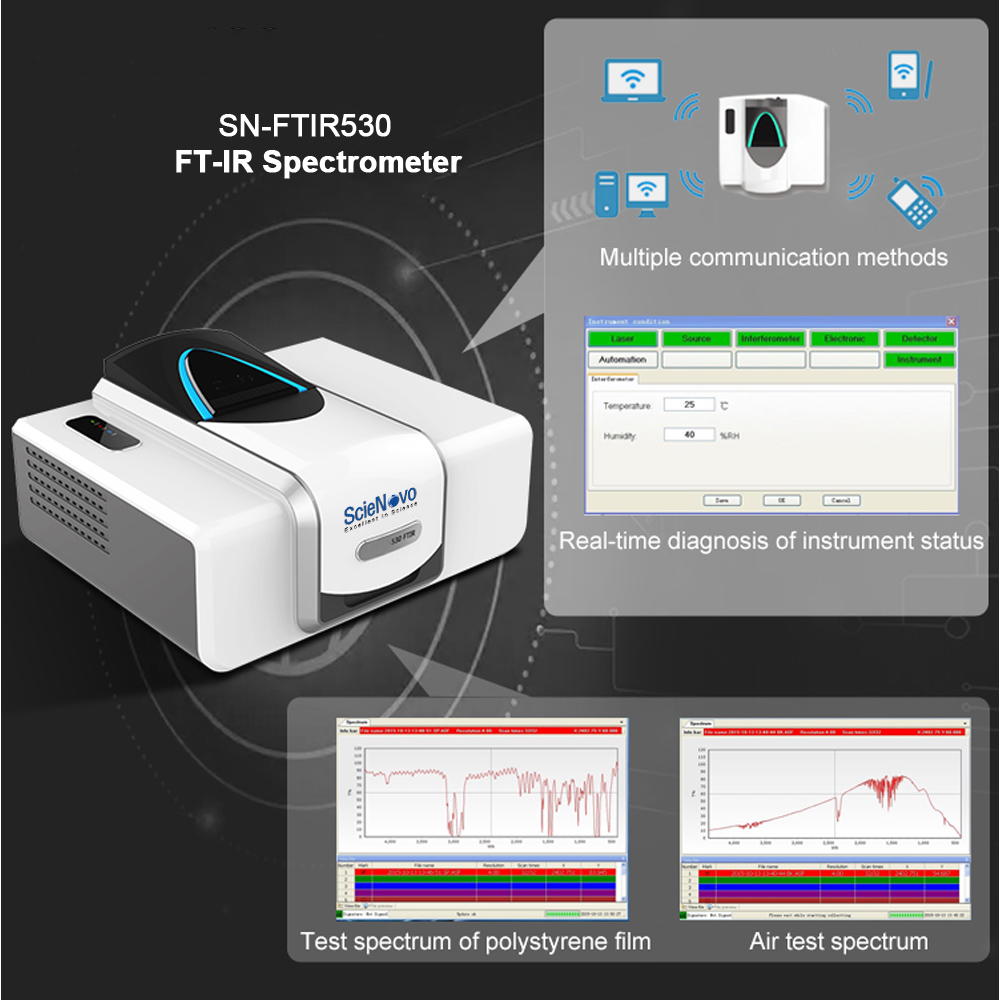

High Sensitivity Optical System: Cube-Corner Michelson Interferometer Combined with Patented Fixed Mirror Alignment
technology (utility model ZL 2013 2 0099730.2: fixed mirror alignment assembly), ensuring long-term stability without
Dynamic alignment requires additional complex electronic circuitry. The reflector is coated with gold to provide
The maximum luminous flux ensures the detection sensitivity.
High stability modular partition design: compact modular design, cast aluminum base layout, overall balance
Mechanical robustness and bulkhead heat dissipation provide higher resistance to deformation, insensitivity to vibration and thermal changes, greatly improving the mechanical stability and long-term working stability of the instrument.
Intelligent multi-seal moisture-proof design: multi-seal interferometer, large-capacity desiccant cartridge with visible window and easy-to-replace structure, real-time monitoring of temperature and humidity inside the interferometer, and get rid of high temperature, high humidity, and chemical influences that corrode the optical system in many aspects.
Innovative integrated electronic system: high-sensitivity integrated DLATGS detector preamplifier technology, dynamic gain amplification technology, high-precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filtering and network communication technology to ensure high-quality real-time data Acquisition and high-speed transmission.
Good anti-electromagnetic interference ability: the electronic system design complies with CE certification and electromagnetic interference
Compatibility requirements, minimize electromagnetic radiation in design and process, in line with the concept of green instrument design.
High-intensity infrared light source module: high-intensity, long-life infrared light source module, the highest energy distribution in the fingerprint area, using a reflective ball design to obtain uniform and stable infrared radiation. The external isolated infrared light source module and the large-space heat dissipation cavity design provide higher thermal stability and stable light interference.
Sampling chamber, accessories mounting holes are reserved on the bottom plate, wide enough to place various accessories, such as
Dissociation/specular reflection, ATR, liquid cell, gas cell, IR microscopy, etc.
Specification
Product number
SN-FTIR-530A
product name
infrared spectrometer
Interferometer
Cube Corner Michelson Interferometer

beam splitter
Multilayer Germanium Coated Potassium Bromide

detector
Room temperature DLATGS module (standard)
Temperature-stabilized, high-sensitivity DLATGS module (optional)
infrared source
High-intensity, long-life, air-cooled infrared light source

wavelength range
7800cm-1~350cm-1

solve
0.85 cm-1

SNR
Better than 20000:1 (root mean square value, at 2100cm-1~2000cm-1 or 2100cm-1~2200cm-1, resolution: 4cm-1, detector: DLATGS, 1 minute
data collection​)

Wavelength Accuracy
±0.01 cm-1

scanning speed
Microprocessor control, different scan speeds are optional.

software
MainFTOS Suite software workstation, compatible with all versions of Windows operating systems
Various dedicated function software modules (optional)
communicate
Ethernet interface (standard)
WIFI wireless communication (optional)
data output
Standard data formats, report generation and output

status diagnosis
Power-on self-check, real-time temperature and humidity monitoring reminder

certified

21 CFR Part11 compliance, IQ/OQ/PQ (optional)
environmental conditions
Temperature: 10°C~30°C,
Humidity: less than 70%

power supply
AC220V±22V, 50Hz±1Hz
AC110V (optional)
size and weight
520 x 435 x 255mm, 24kg

Accessories
Transmission Sample Holder (Standard)
Optional accessories such as air chamber, liquid chamber, ablation/mirror reflection, single/multi-reflection ATR, etc.
Optional accessories
Single Reflex ATRCapable of withstanding higher pressures and harder samples. Capable of analyzing a wide variety of samples, including rigid solids and hard powders that are difficult to achieve with multi-reflection ATR. Alao It is ideal for the analysis of relatively strongly absorbing substances (e.g. polymers, rubber, paint chips, fibers, etc.)

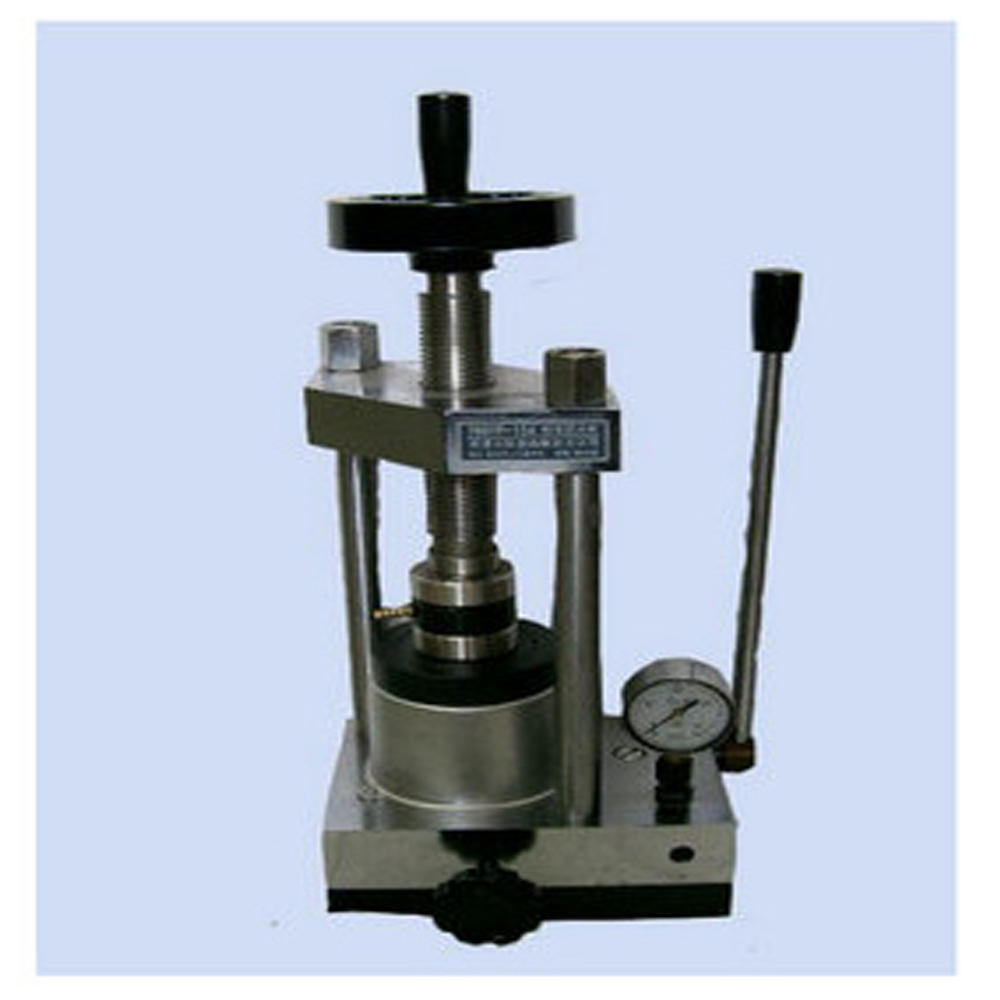

Potassium Bromide Granules for SolidsSolid samples were mixed with dry KBr powder. The sample required is very small, about 1 to 2 mg of sample and about 200 mg of KBr. Put the mixed powder into the mold and pressurize 8-10Mpa for one minute. Samples and KBr must be dry to avoid the influence of water. Particle diameter must be less than -.2um to avoid scattering effects.

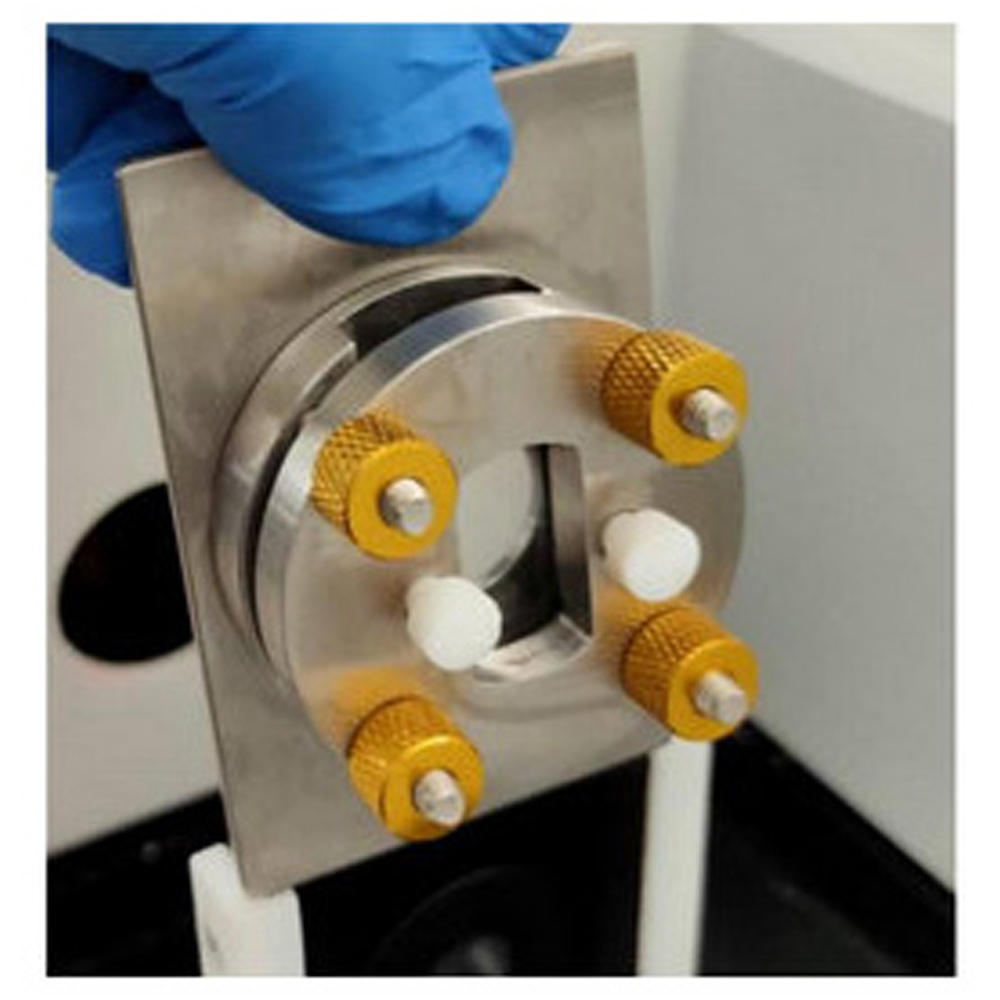

Fix liquid cells.Fixative cells, that is, the thickness of the cells is fixed. For qualitative or quantitative analysis of volatile liquids and solutions. Commonly used materials for windows are NaCl, KBr, Csl, KRS-5, etc. The filler between the windows is aluminum, lead or Teflon. Commonly used thicknesses are 0.025, 0.05, 01, 0.2, 0.5, 1.0mm.

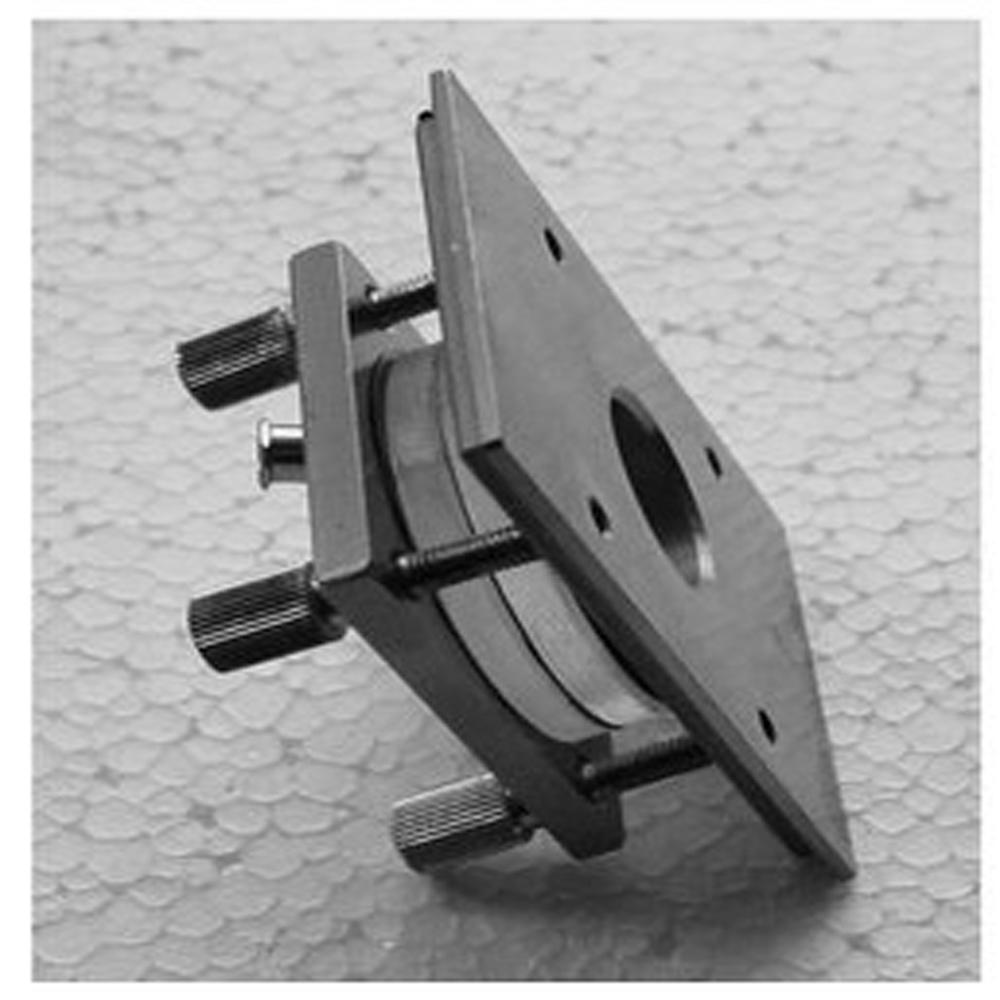

removable liquid batteryWhen analyzing non-volatile liquid samples, a detachable sample cell can be selected. It consists of a metal bracket and two windows with suitable neoprene or PTFE padding between them. When measuring, use a syringe to inject liquid into the cuvette. When the measurement is finished or the sample is changed, please open the cuvette for cleaning.

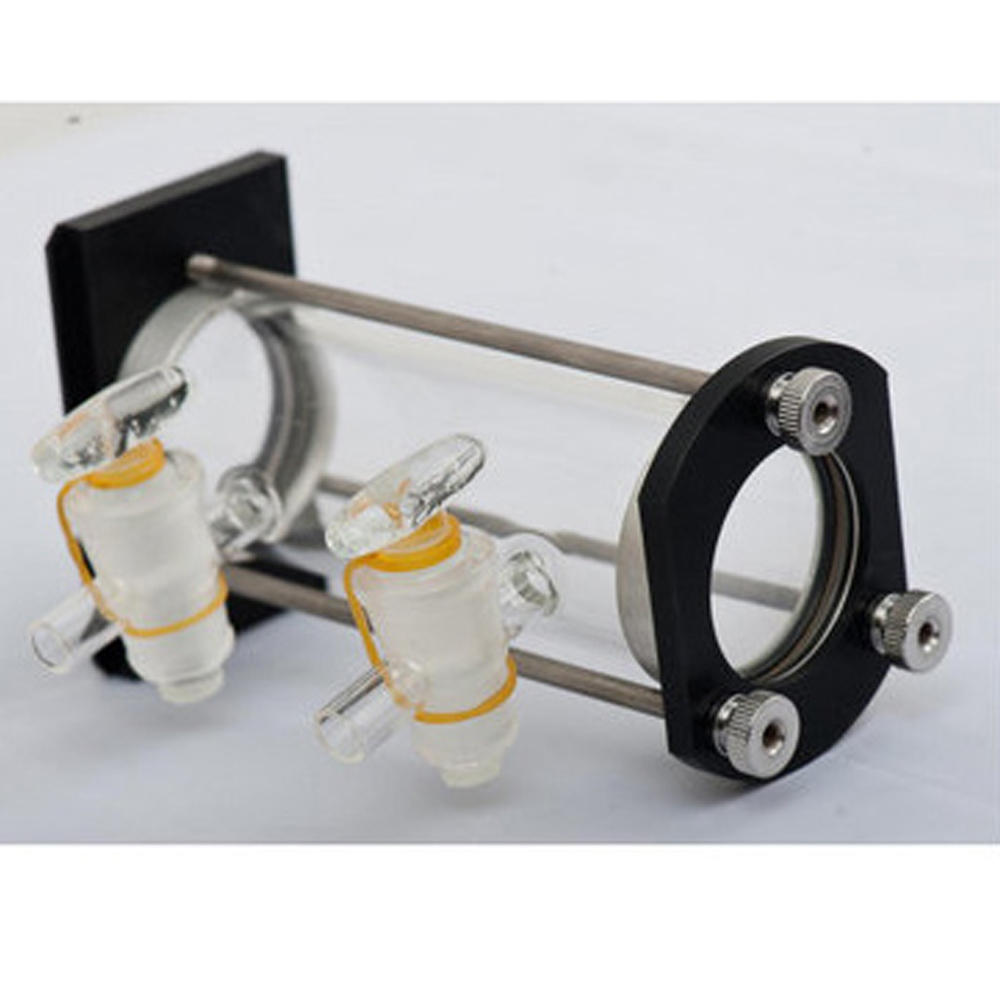

Air chamberIt generally consists of a glass cylinder, two pistons for entering and exiting gas, and two infrared windows. Available in 50mm or 100mm length. The diameter is 30-40mm. When sampling, the steel cylinder must be evacuated first, and then the gas sample should be blown. Volatile liquid samples can also be placed in the cell to measure their vapor spectra.
Horizontal ATRWhen the angle of incidence at the interface between the sample and the crystal is greater than the critical angle, the radiation beam entering the crystal will undergo total internal refraction, where the latter is a function of the refractive indices of the two surfaces, and the beam penetrates a fraction of a wavelength beyond the reflecting surface, when a material that selectively absorbs radiation is in close contact with the reflecting surface, the beam loses energy at the wavelength where the material absorbs.
