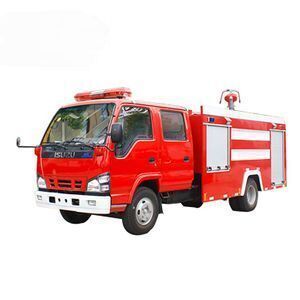

Japan brand Luxury water jet fire engine fighting pump truck

Product details
Payment Terms:T/T;Transmission Type:Manual;
Drive type:4*2;Horsepower:150 - 250hp;
Type:Rescue;Emission Standard:EURO 5;
Tire:7.00-16;Brand Name:XDR;
Tank Capacity:3001 - 5000L;Tank Volume:3ton;
Condition:New;Place of Origin:Hubei China;
Speed:95;Chassis brand:ISUZU;
Drive Wheel:4x2;Cab:2+3;
Fuel Type:Diesel;Wheelbase:3360mm;
Product Name:Japan brand fire fighting truck;Tank material:Carbon Steel. Stainless Steel;
Port:Shanghai,China port;Engine:88kw;
Product Description

Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pump truck, Ladder truck, and other trucks with some special equipment. The fire truck is usually kept in fire bureau, and is driven to the accident location by the fire fighter. Most fire trucks are painted in red, but still some rare places that is painted in yellow. The siren is usually taken as the standard device for the truck. In fact, fire truck is the common name for the truck that is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

Name

 Japan truck mounted Fire Engine Truck

Item

Specifications

Item

Specifications

Truck Parameter

Model

YZR5072GXFSG20/Q

Chassis Model

QL1070A5HWY

Gross Weight (kg)

6530

Overall dimensions  (mm)

6360×2000×2740

Payload Weight (kg)

1980

Tank Volume(mm)

water 2.5ton

Curb Weight (kg)

4170

Wheelbase (mm)

3360

Engine Parameter

Model

4KH1CN5HS  diesel

Brand

Japan brand

Power/Displacement (kw/ml)

88/2999

Emission Level

Euro 5

Specification

Max speed (km/h)

95

Front Track (mm)

1504

Cab

2+3

Rear Track (mm)

1425

Leaf Spring

8/6+5

Front/Rear Overhang (mm)

1015/1890

Number of Tyres

6

Approach /  DepartureAngle(°)

24/12

Tyre Specification

7.00-16 14PR

Axle Load (kg)

2080/4620

Number of axles

2





Special Function

Tank Capacity (L)

water 2500L

Fire Monitor

Model:PS20    rate of flow:20L/S/1MPa,water range:≥50m

Fire Pump(Normal Pressure)

1. Normal pressure model::CB10/20,rate of flow:20L/s, pressure:1.0MPa



2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO
