Application: | microwave oven; | Package Type: | Through Hole; |
MOQ: | 500; | Product name: | high voltage diode; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Supplier Type: | Original manufacturer; |
Media Available: | Datasheet; | Max. Reverse Voltage: | 16kv; |
Max. Reverse Current: | 10μA; | Packaging Detail: | normal packing of high voltage high frequency rectifier diode, bulk in bag, 500 pcs /bag; |
Port: | ningbo/shanghai; | Type: | Rectifier Diode; |
Trr: | 100ns; | Brand Name: | MOCO/OEM; |
Place of Origin: | Zhejiang China; | Type: | high voltage high frequency rectifier diode; |
Max. Forward Current: | 5ma; | Certification: | CE ISO9001 ROHS; |
Cross Reference: | 202002271652; | Model Number: | MCMD-014; |
Voltage: | 16kv; | Current: | 5mA; |
packing: | bulk in bag; | Supply Ability: | 100000 Piece/Pieces per Month; |
IFSM: | 0.5A; | Max. Forward Voltage: | 200kv; |
Tstg: | -40°c - +120°c; |

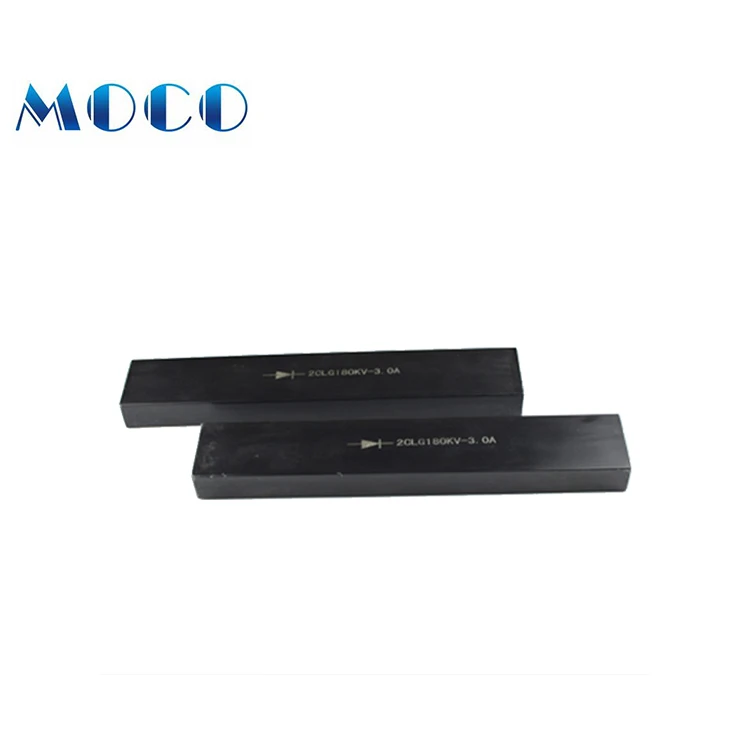

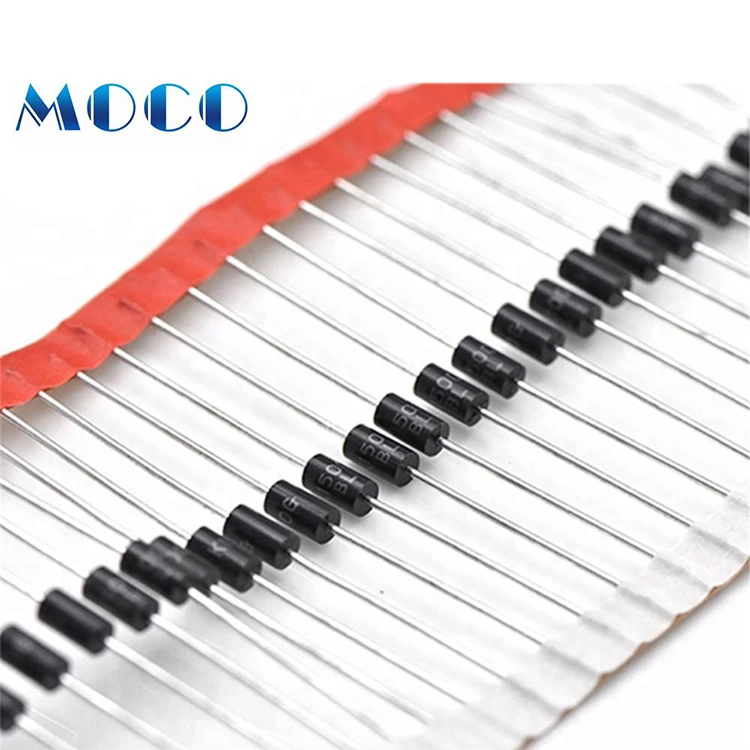

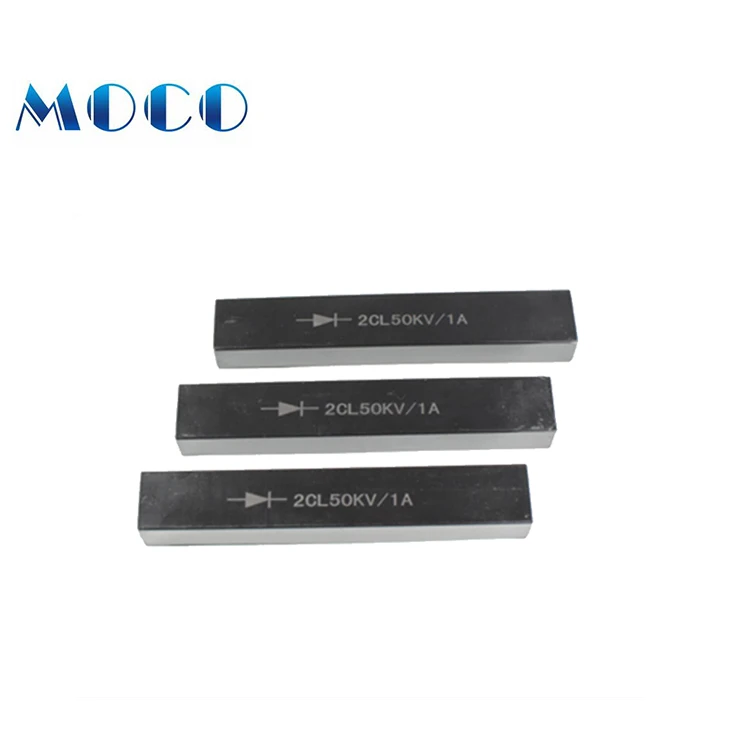

3kv, 10kv,12kv, 16kv, 20kv,50kv, 100kv CL04-12 t3509 high voltage high frequency rectifier diode
With strong R&D capabilities,advanced production equipment and perfect measurement devices, we supply qualified products and service in accordance with ISO9001 quality management system. All products have passed hazardous substance test,met standards of EU and USA.And we are confident we can meet your OEM/ODM requirements.
Type | Vrpm (KV) | If (mA) | Irm (A) | Vfm (V) | Irm (μA) | Trr (ns) | Cj (pf) | Tstg (℃) | |
Ta=25℃ | Ta=100℃ | ||||||||
2CL69 | 4 | 5.0 | 0.5 | 20.0 | 2.0 | 5.0 | 100 | 1.0 | -40℃-120℃ |
2CL70 | 6 | 23.0 | |||||||
2CL71 | 8 | 25.0 | |||||||
2CL72 | 10 | 30.0 | |||||||
2CL73 | 12 | 37.5 | |||||||
2CL74 | 14 | 5.0 | 0.5 | 42.5 | 2.0 | 5.0 | 100 | 1.0 | -40℃-120℃ |
2CL75 | 16 | 50.0 | |||||||
2CL76 | 18 | 55.0 | |||||||
2CL77 | 20 | 62.5 | |||||||
2CL78 | 12 | 10 | 0.5 | 37.5 | 2.0 | 5.0 | 100 | 1.0 | -40℃-120℃ |
2CL70A | 6 | 5.0 | 0.5 | 20.0 | 2.0 | 5.0 | 100 | 1.0 | -40℃-120℃ |
2CL70B | 6 | 22.4 | 80 | ||||||
2CL71A | 8 | 25.0 | 100 | ||||||
2CL71B | 8 | 28.0 | 80 |
Ningbo MOCO Home Appliance Co.,Ltd is located in a famous coastal city in China—Ningbo. MOCO is a trading company with independent import and export right.
MOCO focuses on manufacturing and selling a wide range of home appliance spare parts such as air conditioner, refrigerator, washing machine, oven, water dispenser, air cooler, water heater and so on. The products are sold all over the world every year.
MOCO focuses on the quality all the time. MOCO is equipped with several international standard manufacturing lines. All products are manufactured by high performance equipment and overall tested by precise instruments. The quality of all our products can be examined by the market.
MOCO has a good reputation oversees with the excellent quality, considerate service and competitive products. Up to now, we have gained certification of CE, CB, SASO, UL, ROHS, SAA and so on.
With the professional spare parts supply and service, MOCO is on the way with you.
Q: Can I get some samples?
A: Yes, Sample Orders Welcomed.
Q: Have high voltage high frequency rectifier diode 100% assembled well in stock?
A: Yes, all high voltage high frequency rectifier diode are assembled in stock.
Q: Could I use my own LOGO or design on goods?
A: Customized logo and design on mass production are available.
Q: Can I choose the color?
A: Yes, customized color is available.
Q: What is the delivery time?
A: One week for sample, 15 to 20 days for mass production.
Q: What is the patment?
A: TT,L/C at sight. Western Union, Paypal, etc.
Q: Can I trust you?
A: Absolutely YES. We are "Alibaba" verified supplier.
Q: Can I visit your factory?
A: Sure, welcome any time. We can also pick you up at air port and station.
