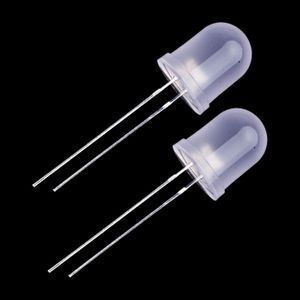

Red Yellow White Green Blue Amber White 8mm Round Dip Led Chip Diode

Supplier: Shenzhen Lianxinrui Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sara Yang
Price: $0.03 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Chip size:	12mil;	Max. Reverse Current:	10uA;
Voltage:	3.0-3.4v;	Max. Forward Current:	20mA;
Brand Name:	Lianxinrui;	Package Type:	Through Hole;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Visa,Trade Assurance;	Current:	20ma;
Chip Brand:	SANAN/Epileds/epistar;	Max. Forward Voltage:	3.6V;
Place of Origin:	Guangdong China;	Supply Ability:	10000000 Piece/Pieces per Month Free samples if you send inquiry;
Goldwire:	99.99% golden wire;	Warranty:	2years;
Model Number:	CP-F8ROLDGC;	Max. Reverse Voltage:	5V;
Shape:	Round;	Lifetime:	1,000,000hours;
Type:	LED;	Port:	shenzhen;
Led size:	8mm;	Name:	White Dip Led Chip Diode;
Packaging Detail:	Anti-static Inner packing,500pcs per bag, Outside packing by carton;

Red Yellow White Green Blue Amber White 8mm Round Dip Led Chip Diode

Feature:

High intensity, good consistency, low decay .

Available in various colors and view angl

Meet the Rvironmental certification

Type: Illumination diode
Lighting source type: Cold light source
Color:Green, white,red, bluie,
Size: 8mm
Shape: round
Lens: clear or diffused
Lighting source power: 0.06W
Voltage: 3.0-3.4V
Forword current: 20mA
Viewing angle: 45

why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

Production Flow

Static Electricity

• Static electricity or surge voltage damages the High Power LED. It is recommended that a wrist band or an anti-electrostatic glove be used when handing the LEDs.

• A tip soldering iron is requested to be grounded, An ionizer should also be installed where risk of static.

• All devices, equipment and machinery must be properly grounded, It is recommended that measures be taken against surge voltage to the equipment that mounts the High Power LED.

Heat generation

• When the LEDs are illuminating, operating current should be decided after be considering the ambient maximum temperature.

• Please consider the heat generation of the LED when it is designed the PCB.

• The LEDs must be mounted on metal core PCB or heat sink or applied thermal pad.

Handing LED

Lianxinrui recommends the following at all times when handing LEDs or assemblies containing the these LEDs:

• When handing the LED with tools like Tweezer or Nipper, do not apply Mechanical Forces directly on LED's Surface.

• Do not touch with hand LED Lens surface directly. It may contaminate the Lens surface and affect on optical characteristics.

• LED should be handled from side because LED's molding material may be damaged with scratching on surface, piercing molding material and broking wire.

(The picture below just for reference)

Application
