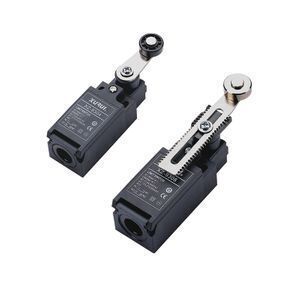

Honeywell Limit Switch / Safety Limit Switch EN60947-5-1 standard

Product details
Model Number:XZ-9304, XZ-9308;Port:Ningbo or Shanghai;
Place of Origin:Zhejiang China;Body Material:Plastic;
Operating Temperature:-10-70C;Brand Name:XURUI;
Payment Terms:L/C,T/T,paypal;Certifications:TUV and CE( EMC & LVD);
Supply Ability:1000 Piece/Pieces per Day;Packaging Detail:100 pcs/carton;
Protection Level:IP65;Max. Voltage:250VAC;
Max. Current:10A;Cable Gland:M20*1.5;

Property & Application
  • Economic plastic outer shell,strong structure and high mechanical strength;
  • Preventing oil,water and pressure;
  • Double-circuit form,quick action slow motion optional,line with direct opening action operation structure;
  • Variety of levers;
  • Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.

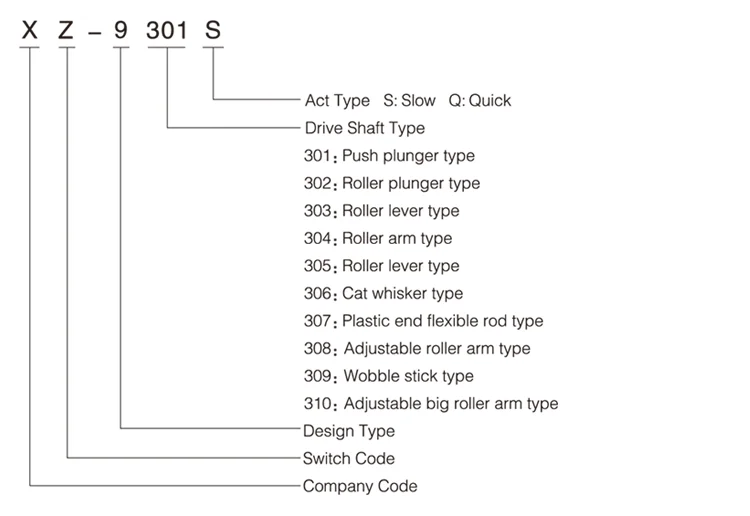

Model & Meanings





Contact Form & Mounting Hole Dimension



Click here for one-on-one professional services

Specification

Item

Data

Rating load

AC-15 3A/240VAC   0.27A/250VDC

Operation speed

1mm-1m/s

Operation frequency

Mechanical 120times/min

Electrical 30 times/min

Contact resistance

≤25mΩ

Insulation resistance

≥100mΩ DC500V

Withstand voltage

Non-connection wire 1000VAC

Every terminal 1500VAC

Vibration

Misoperation 10-55Hz Amplitude 1.5mm

Impact

Durable 1000m/s²

Misoperation 300m/s²

Operating life

Electrical 100,000 above

Mechanical 1000,000 above

Protection degree

IP65

Operating temperature

-10°C ∼ +70°C

Operating humidity

<85%

Product Structure

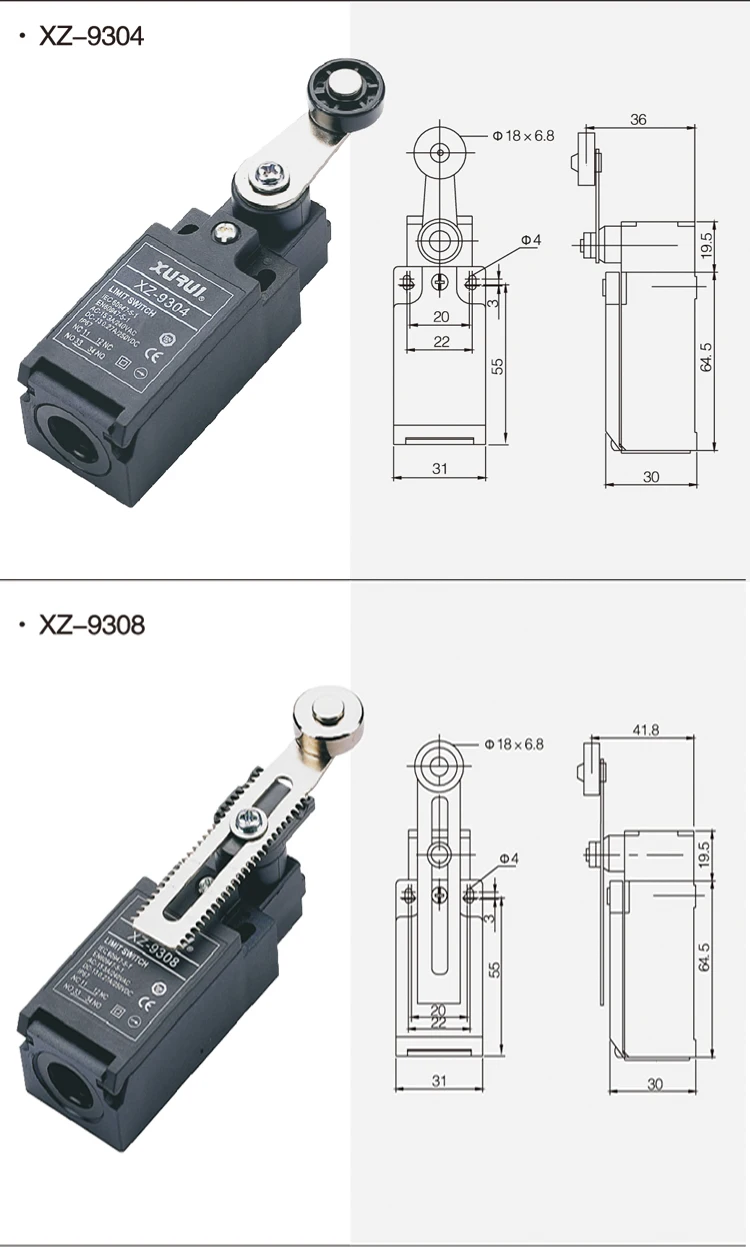

Dimensions & Operation Characteristics
ModelsXZ-9304XZ-9308
OF max.500g(4.9N)500g(4.9N)
RF min.50g(0.49N)50g(0.49N)
PT max.30°30°
OT min.40°40°
MD max.20°20°
TT80°80°
