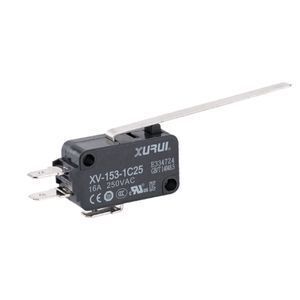

Honeywell micro switch V15 series, miniature snap action microswitch

Product details
Contact Form:SPDT 1C, SPST NC, SPST NO;Material Body:Thermosetting plastic;
Model Number:XV-153(154, 155, 156)-1C25;Port:Shanghai or Ningbo;
Packaging Detail:Carton Box: 1000PCS/CTN, Size 50.5*33.5*23 ;;Payment Terms:L/C,T/T,Western Union,PAYPAL;
Type:honeywell micro switch;Certificate:UL TUV CCC CE;
Package Preview:;Max. Current:20A;
Rating Load:16A 250VAC;Place of Origin:Zhejiang China;
Electrical Life:100,000 times above;Operating Temperature:-25~80C;
Max. Voltage:250VAC;Protection Level:IP40;
Brand Name:XURUI;OEM:Acceptable;
Supply Ability:20000.0 Piece/Pieces per Day;

General Property
  • Adopt thermosetting plastic or thermoplastic;
  • Small contact gap, snap action, high sensitivity and small operating travel;
  • Variety of levers;
  • Widely used in appliance, electronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc
Model & Meanings

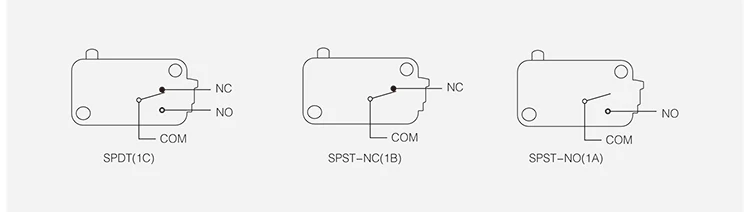

Contact Forms
Main Application

Item

Data

Operating speed

0.1mm-1m/s

Operating frequency

Mechanical

600 times/min

Electrical

30 times/min

Insulation resistance

100 MΩ above DC500V

Contact resistance

25 mΩ initial value

Withstand voltage

Non-connection wire

1000 VAC

Every terminal

1500 VAC

Vibration

Misoperation

10-55 Hz Amplitude 1.5 mm

Impact

Durable

1000 m/s²

Misoperation

300 m/s²

Life

Electrical

100,000 times above

Mechanical

1,000,000 times above

Protection degree

IP40

Operating temperature

-25~+80℃

Operating humidity

<85%

Rating
Ue(V) Ie(A) Ith(A)
AC-250 16 20
Mounting Hole Dimensions & Structure
Terminal Forms
Dimensions & Operating Characteristics
Models XV-153-1C25 XV-154-1C25 XV-155-1C25 XV-156-1C25
OF max. 70g(0.69N) 125g(1.23N) 200g(1.96N) 125g(1.23N)
RF min. 6g(0.06N) 14g(0.14N) 50g(0.49N) 14g(0.14N)
PT max. 6.0mm 2.8mm 1.2mm 3.0mm
OT min. 2.6mm  1.0mm 0.8mm 1.2mm
MD max. 2.0mm 0.8mm 0.5mm 0.8mm
OP 15.2±2.6mm 18.3±1.2mm 20.5±0.6mm 20.5±1.2mm
