operating temperature: | -10-70℃; | Operating Temperature: | -10-70C; |
Port: | Ningbo or Shanghai; | Electrical Life: | 100,000 times above; |
Material: | plastic PA66 outer shell; | Place of Origin: | Zhejiang China; |
TYPE: | elevator limit switch; | Supply Ability: | 1000 Piece/Pieces per Day; |
Mechanical Life: | 1,000,000 times above; | Rating load: | 10 (4) A /250VAC, 6 (2)A 380VAC; |
Packaging Detail: | One Piece packing each one box, 10pcs in middle box, 100pcs/carton; | Max. Current: | 10A; |
Brand Name: | XURUI; | Features: | Waterproof and Oil.; |
Model Number: | XZ-9110; | Package Preview: | https://sc02.alicdn.com/kf/HTB1XvHZc8aE3KVjSZLeq6xsSFXa5.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HTB11HfZc7WE3KVjSZSyq6xocXXaO.jpg_640x640.jpg; |
Max. Voltage: | 250V; | Protection Level: | IP65; |
contact form: | 1NC 1NO; | Payment Terms: | L/C,T/T,Western Union,Paypal; |
Certifications: | TUV CE; |

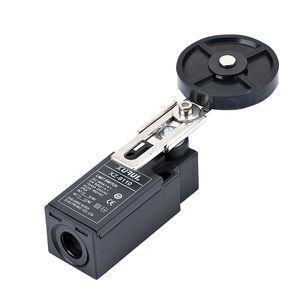

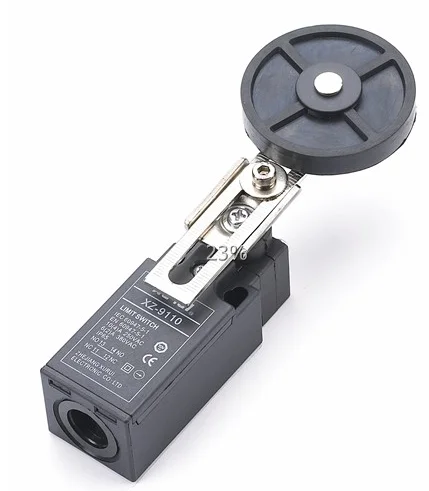

Elevator Limit Switch Product Description:
Economic plastic cast outer shell,strong structure and high mechanical strength;
Preventing oil,water and pressure;
Double-circuit form,quick action slow motion optional,line with direct opening action operation structure;
Variety of levers;
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
Specifications:
Item | Data |
Rating load | 10 (4) A /250VAC, 6 (2) A 380VAC |
Operation speed | 5mm-0.5m/s |
Operation frequency | Mechanical 120times/min |
Electrical 30 times/min | |
Contact resistance | ≤25mΩ initial value |
Insulation resistance | ≥100MΩ DC500V |
Withration voltage | Non-connection wire 1000VAC |
Every terminal 1500VAC | |
Operating life | Electrical 100,000 above |
Mechanical 1000,000 above | |
Protection degree | IP65 |
Operating temperature | -10°C-70°C |
Operating humidity | ≤85% |

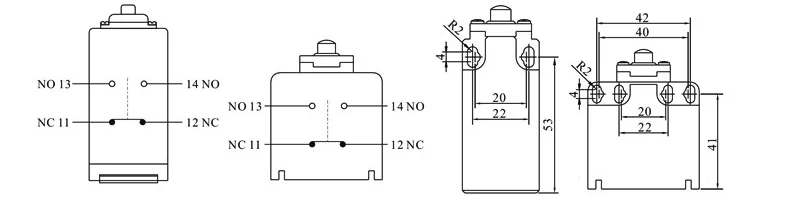

Contact Forms & Mounting Hole Dimensions:

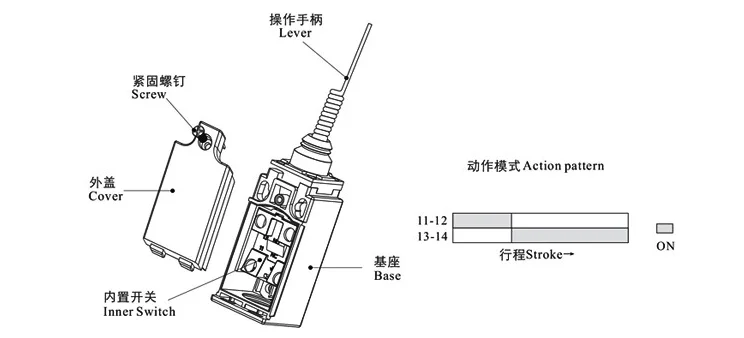

Product Structure:

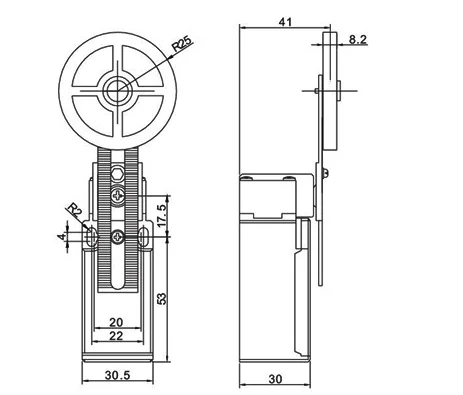

Outshape and Dimension Drawings:
OF MAX | 500g (4.9N) |
RF MIN | 80g (0.78N) |
PT MAX | 30° |
OT MIN | 70° |
MD MAX | 15° |
TT | 90° |

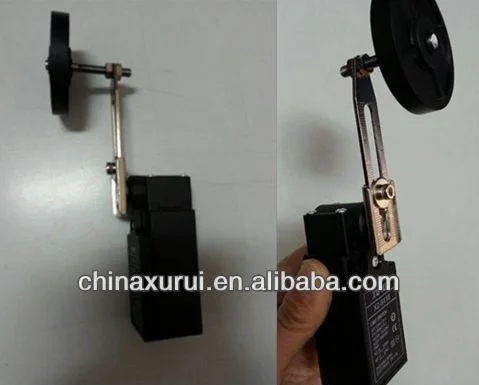

Adjustable Screw Limit Switch Model Detail :

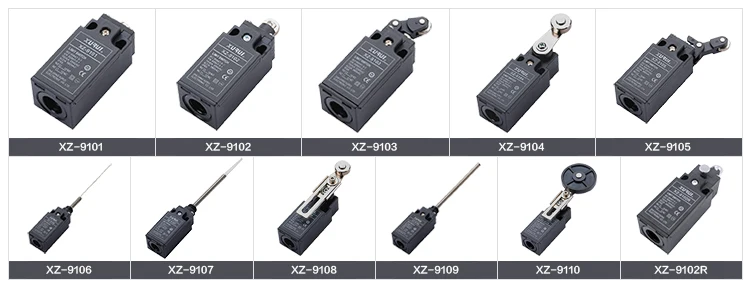

Our Rated Limit Switch Models:
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* 7*24 provides product use consultation
* We offer replacement if you receive defective or wrong items in 12 months from the shipping date
Zhejiang Xurui Electronic Co., Ltd is the vice precident of Electric Line Association, Technology Innovation Enterprise in Zhejiang province.
Xurui has won more than 30 kinds of national patents and three patents of invention.
Established in 2002, Zhejiang Xurui Electronic Co., Ltd is a factory specialized in the research, development and manufacture micro switch, limit switch, toggle switch, foot switch, solid state relay, reed switch, proximity switch and mercury switch.
We have attained many quality certifications like U L, T U V, C E, C C C and others by our strict quality management and perfect after-sale service system. Therefore, our products enjoy very high reputation in the market of America, Mexico, Brazil, Germany, UK, Spain, Turkey, the middle east, Southeast Asia, and other markets.
Our company is taking the quality first as the objective, the perfection as the policy.
It is our invariable purse to provide much better products and perfect service to our customers.
1. Factory supply directly and have competitive price.
2. Short delivery time: stock 2 days, order around 15-20days.
3. New packing design and new product reseach development.
4. Accept to customize products up to specification.
5. Provide prompt service and after-sale service.
FAQ:
1. Are you a factory or trading company ?
We are a factory founded in 2002 and have over 14 years OEM and international trade experience.
2. How do you control the products quality ?
100% Auto inspection machine and manual testing together before packing.
3. Do you have any certification of your company or products ?
We have ISO9001:2008, Products have UL TUV CE CCC ROHS and test report.
4. What is your payment term ?
T/T , L/C at sight, Samples cost can be paid by Paypal, Western Union, Money Gram.
5. Would you accept to use our logo ?
If you have good quantity, we can make OEM and ODM, customized specification.
6. Can I get a sample for reference ?
We are glad to send free samples for your testing, but you may need to pay the express cost.
7. What is your delivery time ?
Normally it take 15 working days for production.
8. What is your warranty time of the products ?
12 months from the shipment date. We will offer replacement if you receive defective or wrong items.
