Ryan Hydraulics manufacture high pressure hydraulic gear pump for agriculture and construction machines

Supplier: Shanghai Ryan Fluid Power Company Ltd.
Region: Shanghai, China
Contact: Mr Roc Zong
Price: $28.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Mechanical efficiency:	up to 93%;
Application:	Tractors,loaders,mini excavators;	Min Speed(r/min):	500;
Max speed(r/min):	3500;	Rated Speed(r/min):	2000;
Rated pressure(bar):	200;	Product name:	Ryan Hydraulics manufacture high pressure hydraulic gear pump;
Supply Ability:	50000 Piece/Pieces per Month;	Showroom Location:	None;
Port:	Shanghai, Qingdao, Ningbo Ports;	Local Service Location:	None;
Packaging Detail:	260 pieces package to 1 pallet. Ryan Hydraulic Gear Pump packaging process: 1.High density plastic wrap for Gear Pump 2.Environmental protection foam filler fixed position(special pumps) 3.Packing into quality cartons 4.Wrap the cartons around damp proof film 5.Strapping to reinforce cartons and pallets;	Place of Origin:	Shanghai China;
Brand Name:	Ryan Hydraulics;	Diaplacement (ml/r):	4cc/r-30cc/r;
After Warranty Service:	Video technical support,Field maintenance and repair service;	Warranty:	1 Year;
Type:	Hydraulic Pumps;	Volumetric efficiency:	up to 98%;

Product Description

Keep the concept seeking excellence, Ryan try our best to create more value for you with products and service.

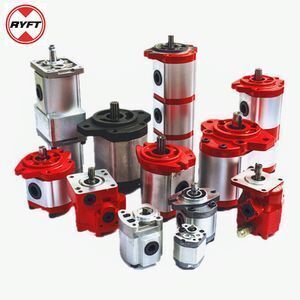

Ryan external gear pumps are produced in 9 different versions.
Pressure: Ryan offers three pressure ratings, E, F and G.
Efficiencies: volumetric efficiency up to 98%, mechanical efficiency up to 93%.

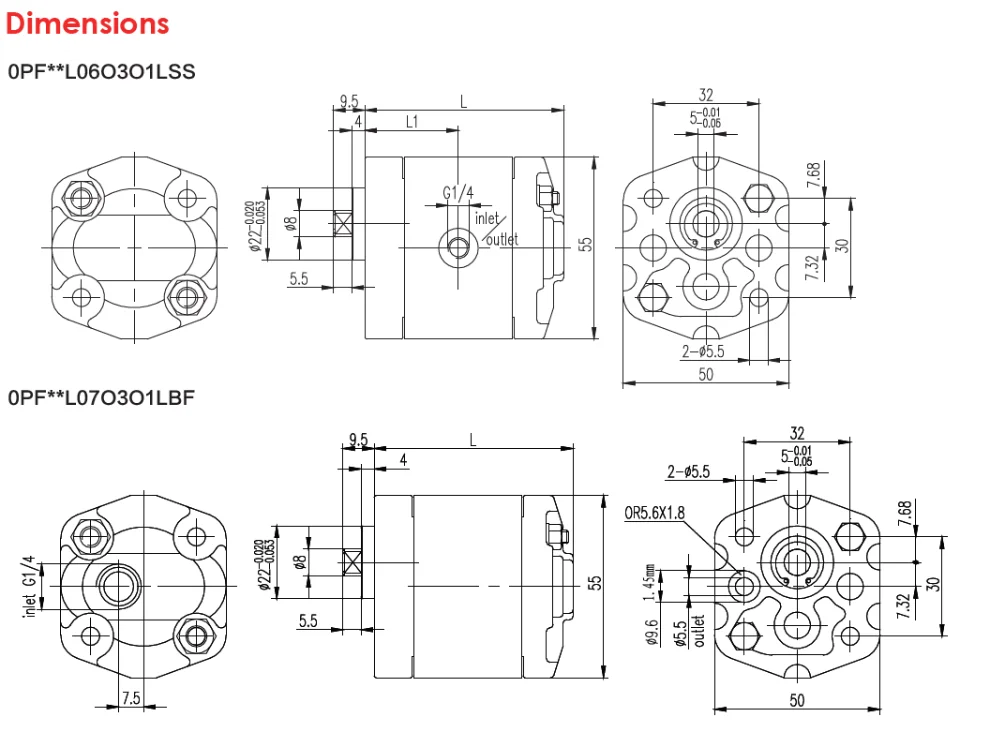

Mountings: flanges, shaft ends and ports.
Seals: viton, buna and EPR seals is available.
Integrate: all pumps can be odered with relief valve and check valve

Specifications for Ryan Gear Pumps

Model	Displacement (ml/r)	Pressure (bar)		Speed (r/min)
Model	Displacement (ml/r)	Rated	Peak	Rated	Max	Min
0PF	0.16-2.0	160-200	200-250	3000	4500-5000	800
1PF	1.1-1.3	160-200	200-250	3000	2100-6000	500-600
1.5PF	2.0-12	175-210	210-250	1500-3000	2000-3500	500
2PF	4.0-30	160-250	200-250	2000	2000-3500	500
2.5PF	20-40	160-200	200-250	1500-2000	2500-3000	500
2.8PF	6.0-45	170-250	190-280	1500-2000	2500-4000	400-800
3PF	22-89	140-250	180-300	1500-2000	2000-3000	400
3.5PF	22-115	120-200	200-250	1500-3000	2500-3600	400-600
4PF	66-199	180-210	210-250	1800	2200	600

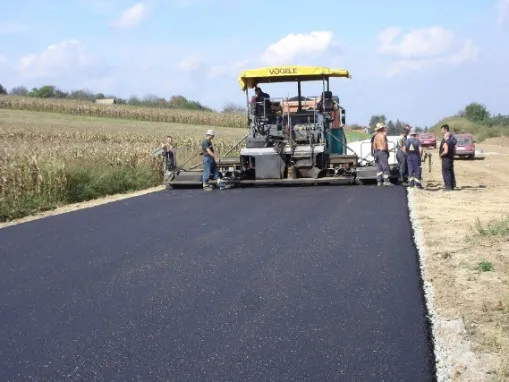

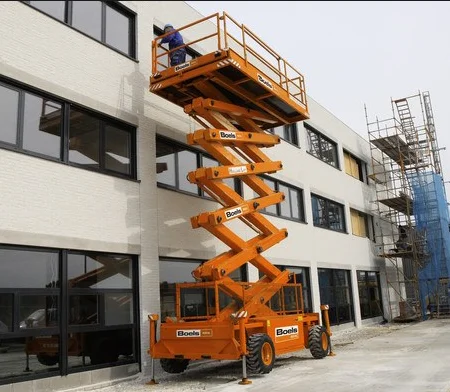

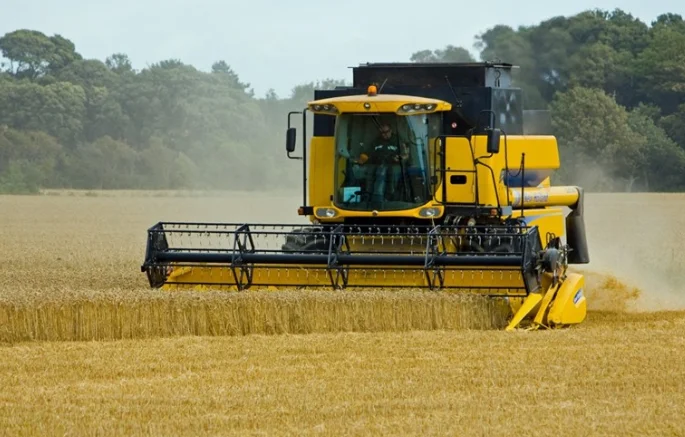

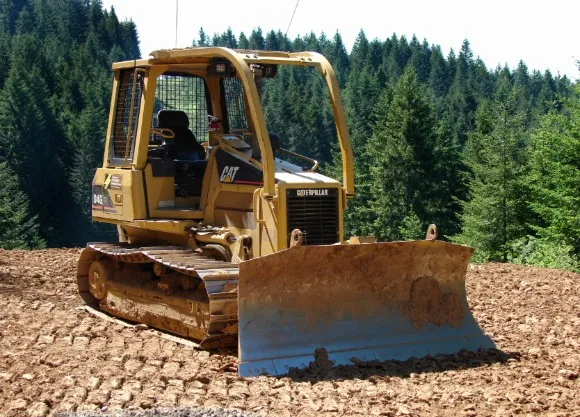

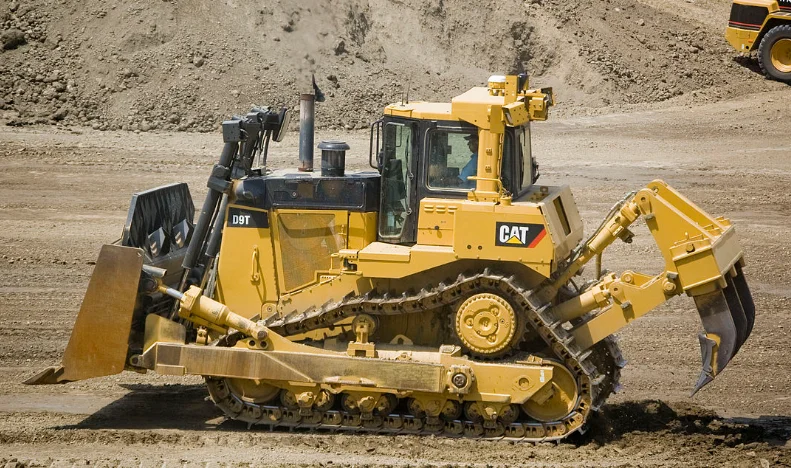

Application

Pacey Chen| Sales Manager

Telephone : +86 021-56626882 *8808
Mobile No: +86 13062766062 (WhatsApp/Wechat)

Mailbox: pacey @ryanhydraulic.com
Website: www.ryanhydraulic.com

Address: room 1703-2, Dong Xian Mansion, 33 Lane 1228, Jiangchang Road, Jingan District, Shanghai.
