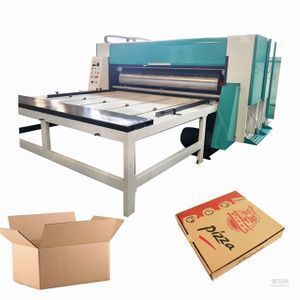

4 color chain feed flexo printing machine with slotter and die cutter

Supplier: Cangzhou Kingsun Imp.& Exp. Co., Ltd.
Region: Hebei, China
Contact: Ms linda liu
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	After Warranty Service:	Video technical support,Online support,Spare parts;
Brand Name:	Jinguang;	Suitable material:	carton box;
Anilox roller:	Steel Anilox Roller;	Supply Ability:	30 Set/Sets per Month;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company,Carton Box;	Local Service Location:	United States;
Printing speed:	50m/min;	Port:	tianjin;
After-sales Service Provided:	Engineers available to service machinery overseas;	Motor:	4KW;
Plate Thickness:	1.7mm;	Showroom Location:	Romania;
Key Selling Points:	Easy to Operate;	Warranty:	1 year;
Packaging Detail:	As customer requirement;	Function:	slotter flexo printing machine;
After-sales Service Provided:	Field installation, commissioning and training;	Weight:	5 ton;
Dimensions(LWH):	5*1.8>2m;	Type:	Flexographic Printer;
Place of Origin:	Hebei China;	Condition:	New;
Automatic Grade:	Automatic;	Product name:	flexo printing machine;
Voltage:	380V 220V;	Usage:	Paper Printer,Card Printer;
Application:	Printing;	Plate Type:	Screen Printer;
Color & Page:	Multicolor;	Certification:	CE ISO SGS;
Type:	Flexographic Printer;

4 color chain feed flexo printing machine with slotter and die cutter

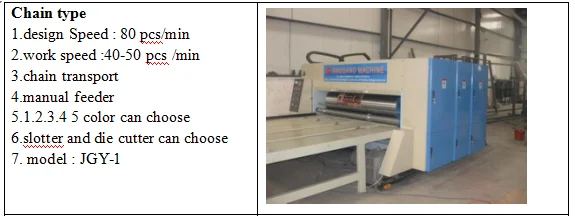

JGY-1 Machine Detail

Feeding department :

It adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products.

Printing department:

1the rinting roller diameter .400mm. 480MM 530mm

2,Adopt computer-digit phase controller ,input the digit adjustment phase directly

which adjusts quickly and precisely.

3,Auto rise the ink plate ,the inker turning to prevent ink dried.

4,Adopt electrically separation ,pneumatic locking and pneumatic bake

5Ink supplied by pneumatic diaphragm pump

6Main transmission gear made by 45# steel ,

it adopts helical gear driving and processed by high frequency quenching.

Auto sprinkle lubricating system ensures the machine precise and use life

8all the roller must be chrome –plating in order to increase the hardness

9.the auto count function.

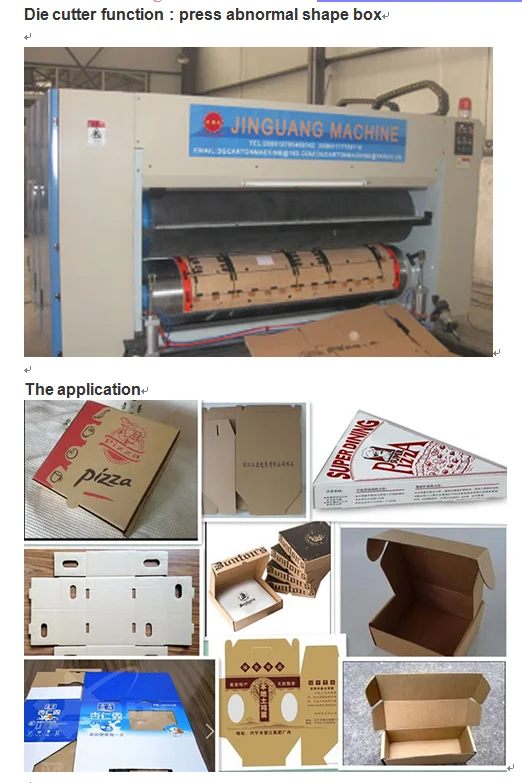

Die cutting part:

1,rubber cushion imported from Taiwan

2,Double-worm abrasire belt cushion correction facility

3,Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )

4,Speed difference self-compensating function

5,The axial adjustment of platen roller is hand-operated .Range:0-20mm(from middle to left or right)

6,Die cutting phase is adjusted by electric planet geas.Keyless junction.

Parameter:

Model	YSF 1200	YSF1450	YSF1650
Diameter of roller	400MM	480mm	530MM
The max speed	60PCS	60pcs/min
The max feeding size	1200X(2200-2800)	1450x(2200-2800)mm	1650X(2200-2800)
Slot Min feeding size	330X600MM	350X600mm	380X600MM
Effective printing size	1200X(2000-2600)	1450x(2000-2600)(mm	1650X(2000-2600)
The effective thickness	3.5.7ply (2-12mm)	3.5.7ply (2-12mm)	3.5.7ply (2-12mm)
Printing plate thickness	6±0.1	6±0.1	6±0.1
The max depth of slot	314	370	416

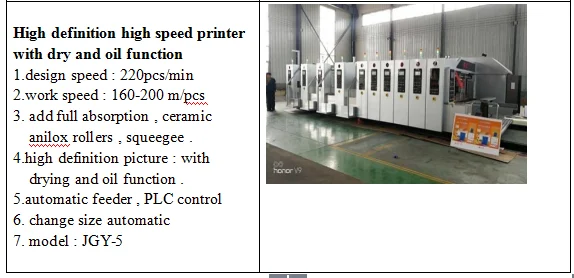

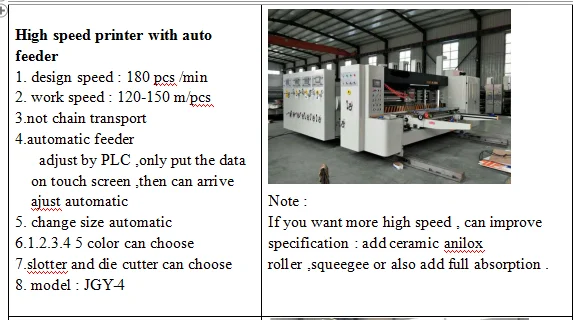

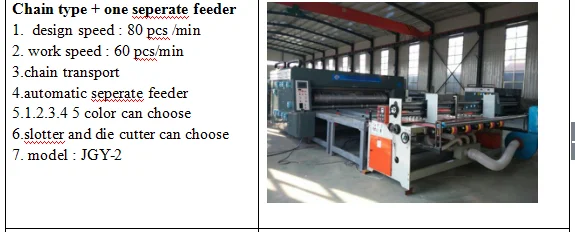

Printer Series

Company Information

Our company are professional supplier the carton box machinery in china , we located in hebei , the famous place for make box machine . we can supply A TO Z serial machineyr from roll peper make to the carton box machinery , every machine we choose the best supplier .,gurantee the quality . the machine have following , corrugated board making machine ,single facer group ( roll stand ,single facer ,sheet cutter ) , flexo printing slotter diecutter , rotary slotter ,rotarty diecutter , folder gluer machine , stiching machine , thin blade slitter , and so on , service is first ,quality is first is our aim .

we expecing can build business relationship with you ,and make friend with you !
