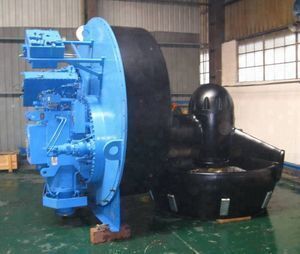

Azimuth thruster Z type propeller for marine propulsion system

Product details
Packaging Detail:wood palet;Diameter (mm):2000mm;
Certification:ISO9001:2000;Supply Ability:5 Set/Sets per Month;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Blades:3;
Port:China port;

Azimuth thruster with tube are a kind of Z type propulsion combined with tube propellers and steering gear function. The part under water can steer by 360 degree free rotating. all-directional propulsive force is formed. The device combines the highly efficiency of tube propellers and flexibility of azimuth thruster. The device is mainly used for varied engineering ships with high flexibility or with dynamic positioning demand, such as harbor tugs, undersea cabling working ships, floating crane barges, marine platform and platform supply ships, and others. The power range of the products is from 60HP to 3500HP.



Model

Power Rating
(HP)

Speed Rating
(r/min)

 Ratio

Dia of propeller
(mm)

Matching
Diesel Engine

Weight
(kg)

CFRP-W300

300

750

2.58

1100

6160

2300

CFRP-W400

400

1800

2.17

1150

NTA855-M350

2500

CFRP-W600

600

1800

3.34

1280

KTA19-M600

4200

CFRP-W1000

1000

1000

2.66

1600

XCW6200ZC-7

6700

CFRP-W1200

1200

1800

3.05

1750

KTA38-M1200

7000

CFRP-W1400

1400

1800

3.24

1850

KTA38-M2

8000

CFRP-W1600

1600

1000

3.23

2000

CW12V200ZC

14500

CFRP-W1800

1800

1000

2.51

2100

XCW12V200ZC

18000

CFRP-W2000

2000

750

2.54

2200

6250

21000

CFRP-W2400

2400

825

2.997

2480

LC8250ZLC-2

23000

CFRP-W2600

2600

1000

3.12

2500

8250

23500

CFRP-W3000

3000

775

3.27

2600

9L28/32

26000

CFRP-W3200

3200

800

3.25

2700

7L27/38

27500

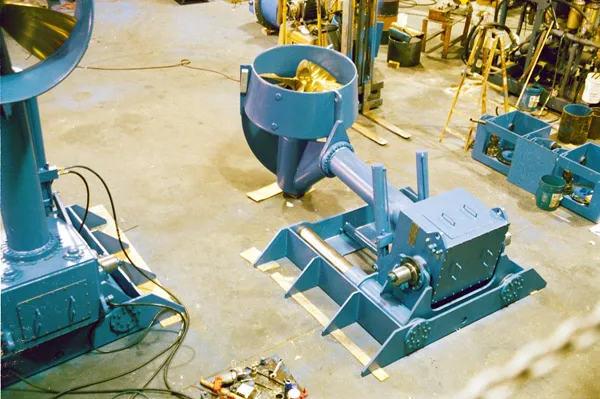

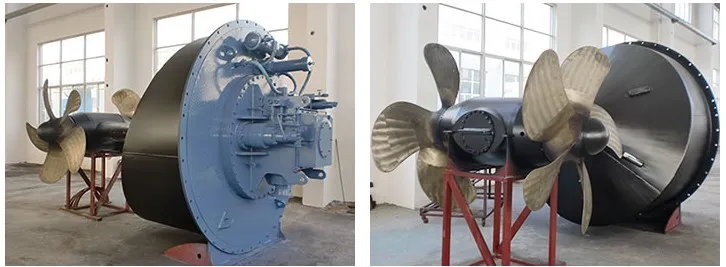

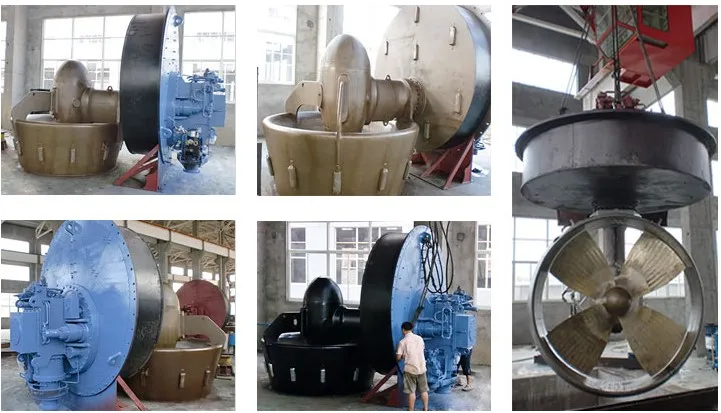

Factory work shop



New products development

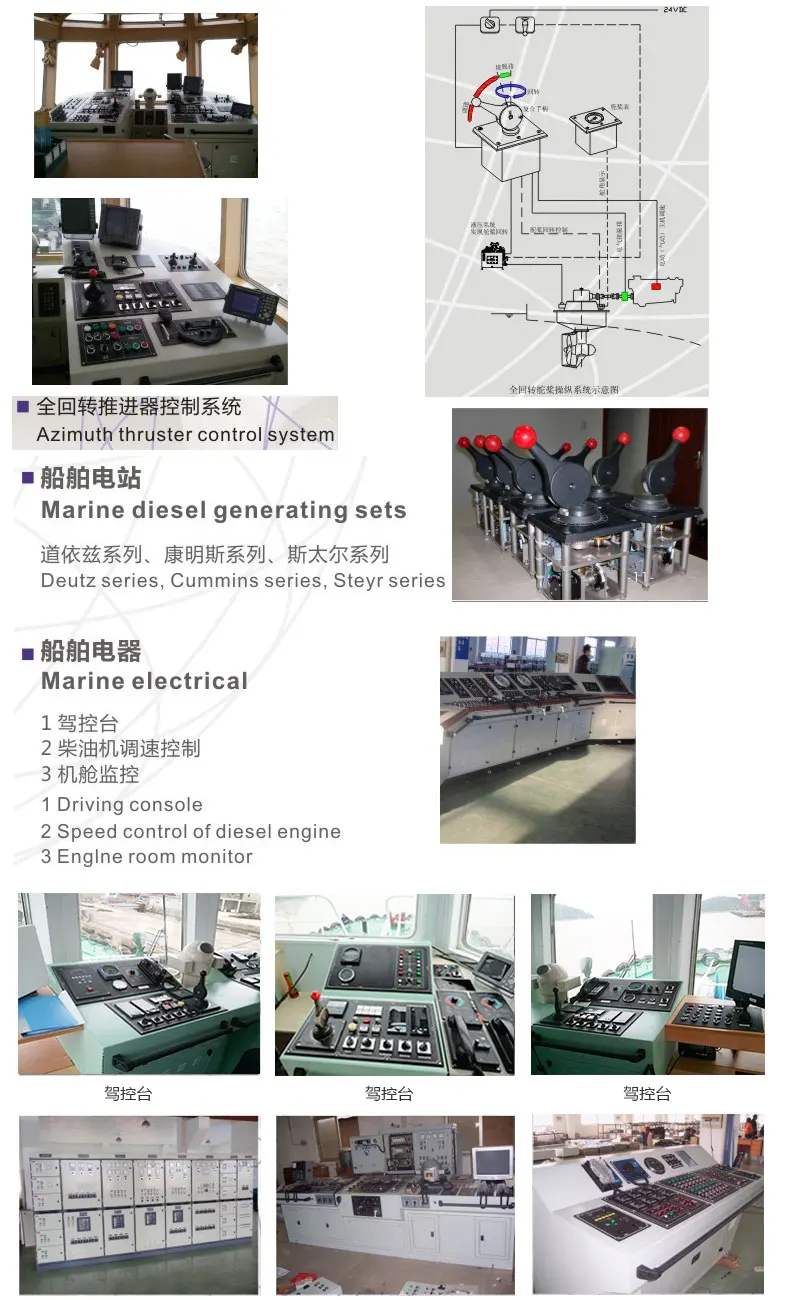

Azimuth control system.
