Factory Price Perfume Making Machine With Freezing Filter

Supplier: Yangzhou Zhitong Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr zhiyi sun
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers;	Warranty:	1 year;
Type:	Perfume machine;	keyword:	Perfume machine;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory;	Packaging Detail:	Plywood cases or customized;
Application:	Chemical;	Name:	Vacuum Emulsifying Machine;
Port:	Shanghai or customized;	After-sales Service Provided:	Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;
Material:	Stainless Steel;	Function:	Compressing;
Supply Ability:	80 Set/Sets per Month Perfume machine;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;

product details

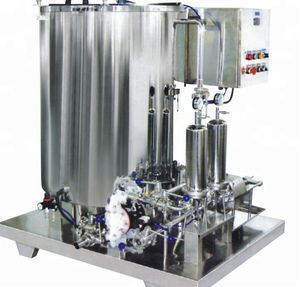

Factory Price Perfume Making Machine With Freezing Filter

The product company specially used for clarification and filtration of liquid such as cosmetics and perfume etc. after freezing. It is an ideal device for filtering cosmetics and perfume in cosmetic factories. The product is made of high quality stainless steel 304 or 316L. The pneumatic diaphragm imported from USA is adopted for pressure source to carry out positive pressure filtration.

The connecting pipes are sanitary polishing pipes, which completely adopt rapid installation type connection form, with convenient assembly, disassembly and cleaning.

Equipped with polypropylene microporous filtration film, it can be widely used in cosmetics industry, scientific research department, hospital and laboratory etc. for clarification. bacteria removal and filtration of small amount of liquid, or micro chemical analysis, which is convenient and reliable.

Standard Allocation

· Stainless steel heat preservation freezing tank and titanium metal coil pipe

· Freezing unit (place of origin France)

· Anticorrosive pneumatic diaphragm pump(place of origin USA)

· Polypropylene microporous filtration film

· Stainless steel moveable supporter

· Sealing type electric control system and sanitary pipe fittings and valves

Technical parameter

Model	ZT 3P-200	ZT 3P-300	ZT 5P-300	ZT 5P-500	ZT 10P-500	ZT 10P-1000	ZT 15P-1000
Freezing Power	3 P	3 P	5 P	5 P	10 P	10 P	15 P
Freezing Capacity	200 L	300 L	300 L	500 L	500 L	1000 L	1000 L
Filtration Precision	0.2um	0.2um	0.2um	0.2um	0.2um	0.2um	0.2um

form

Vacuum Emulsifying Mixer	Vacuum Emulsifying Mixer
	Vacuum Homogenizing Emulsifier
	Intemal And Extemal Circulation Vacuumhomogenizing Emulsifier
	Hydraulic Homogenizer Vacuum Emulsifying Machine(lower Homogenizer)
	Hydraulic Homogenizer Vacuum Emulsifying Machine(upper Homogenizer)
Storage Tank	Shampoo Blending Tank (single-tank)
	Shampoo Blending Tank (portfolio Lp)
	Liquid Agitator Kettle (portfolio Lp)
Filling Machine	Horizontal Self-suction Filling Machine
	Pneumatic Paste Filling Machine
	Fully Automatic Soft Tube Filling & Sealing Machine
	Automatic Ointment Filling Machine

Process of flowsheet

Guangzhou/Yangzhou Zhitong Machinery Co., Ltd. is a producer and seller specialized in research, development, production of cosmetic, food and distribution of cosmetic, food and pharmaceutical machinery, storage tanks, etc. With a registered capital of RMB 3 million Yuan and a land area of 13,200 m2, our company is a member of China Chemical Industrial Machinery Association. We have complete machining equipment, perfect process flow, powerful technical srength, excellent product development and dedign capability as well as rich production experience. Our company has been certificated to ISO9001:2000 international quality management system. Thanks to our excellent product quality and good afeter-sales service, our products have been exported far to USA, European Union, Asia, Southest Asia and other countries and areas.

1 Q: Are you a factory or trading company?

A: We are a factory.

2 Q: How long is the warranty period?

A: All of our products have one year warranty.

3 Q: What's the main market of your company?

A: We have customers all over the world.

4 Q: What's your delivery time and payment terms?

A: Normally, it need about 10-30 days. The exact time depends on your comoany quality. The payment terms always 70% deposits, 30% to be paid before shipment.

5 Q: Can we visit your machine operation in your company?

A: Welcome to our factory to see the machine operation.

6 Q: Where's your factory located? How can we visit there?

A: We are in Yangzhou industry Zone. Jiangsu province, China. You can take the plane to zhenjiang airport and we will pick you up there.

If you have any question,please feel free contact us.
