Small portable concrete mixer pump high performance cement mixing pump for sale

Supplier: Shandong Hengwang Group Co., Ltd.
Region: Shandong, China
Contact: Ms Eva Shao
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	As you need;	Maximum theor:	18MPA;
Motor power:	11KW;	Brand Name:	HW;
Weight:	400kg;	Maximum grain:	≤20;
voltage:	380V/220V;	Warranty:	12 Months;
Power Type:	Electric;	After-sales Service Provided:	Engineers available to service machinery overseas;
weight:	400KG;	Power(W):	7.5kw-11kw;
Power Type:	ELECTRIC;	Supply Ability:	500 Set/Sets per Month Small portable concrete mixer pump;
Port:	Qingdao /Shanghai;	Certification:	ISO CE;
Place of Origin:	Shandong China;	Condition:	New;
Dimension(LWH):	14506001650mm;	Theoretical disp:	8-10 m3/h;
Brand Name:	HW;	Condition:	NEW;
Packaging Detail:	Standard exported box Small portable concrete mixer pump high performance cement mixing pump for sale;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Product Description

Mini concrete pump hydraulic stone pump

High- floor cement mortar pump is a small fluid mixture conveying equipment, not only used for wet-mixed mortar pumping and wall plastering in high- floor buildings construction, but also for support lining construction in ground heating project, tunnels, mines and other underground engineering. HW could pump less than 25mm fine aggregate concrete with lower investment cost and operating cost, it is first choice ideal equipment for engineering construction.

It adopts S tube as distributing valve to meet large aggregate concrete pumping.
The hydraulic- driven mixing device can play the good role of secondary mixing conducive to pumping.
The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant and long service life.

The hydraulic system adopts independent three circuit electro-hydraulic control with high reliability. The electrical system control is fully functional with returning pressure control function eliminating pipe blocking failure.
Its elegant appearance and light weight is easy to transport.
Working with batching mixing equipment can achieve continuous pumping construction to improve construction schedule.

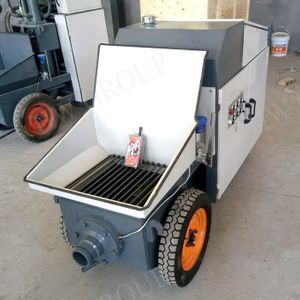

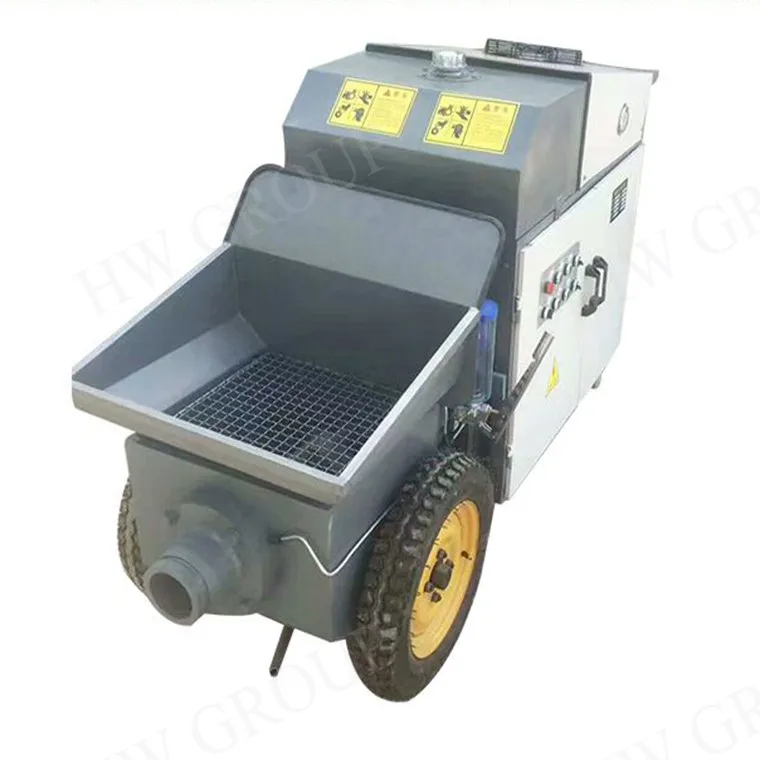

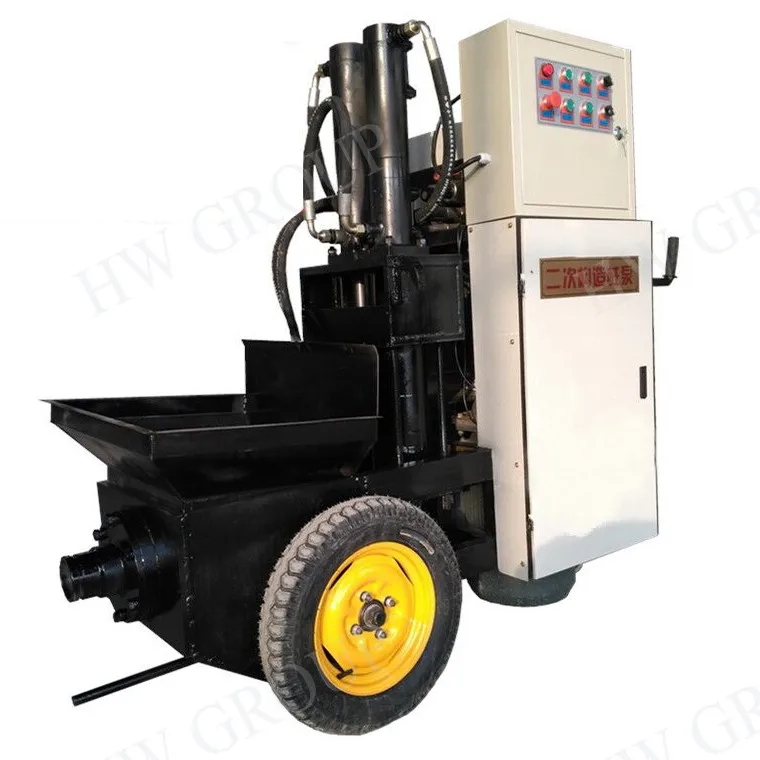

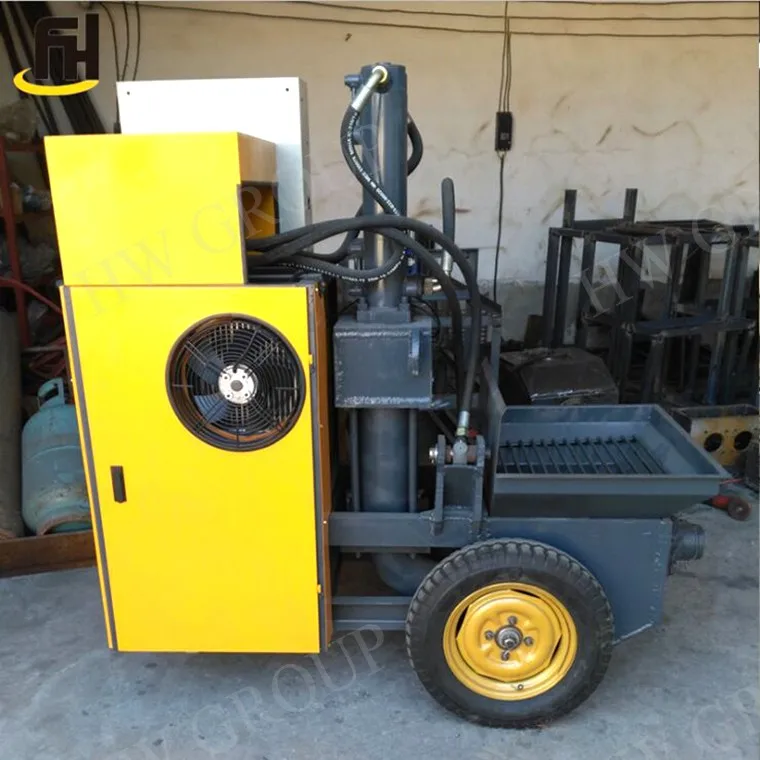

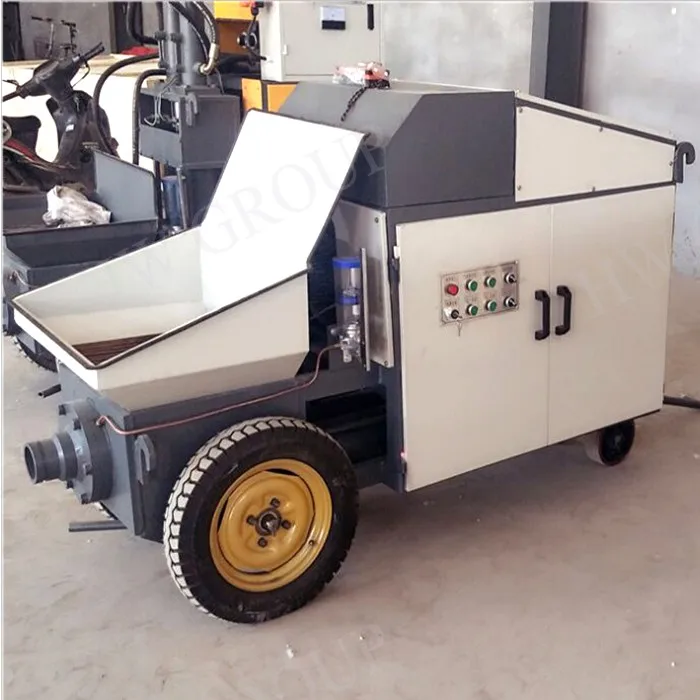

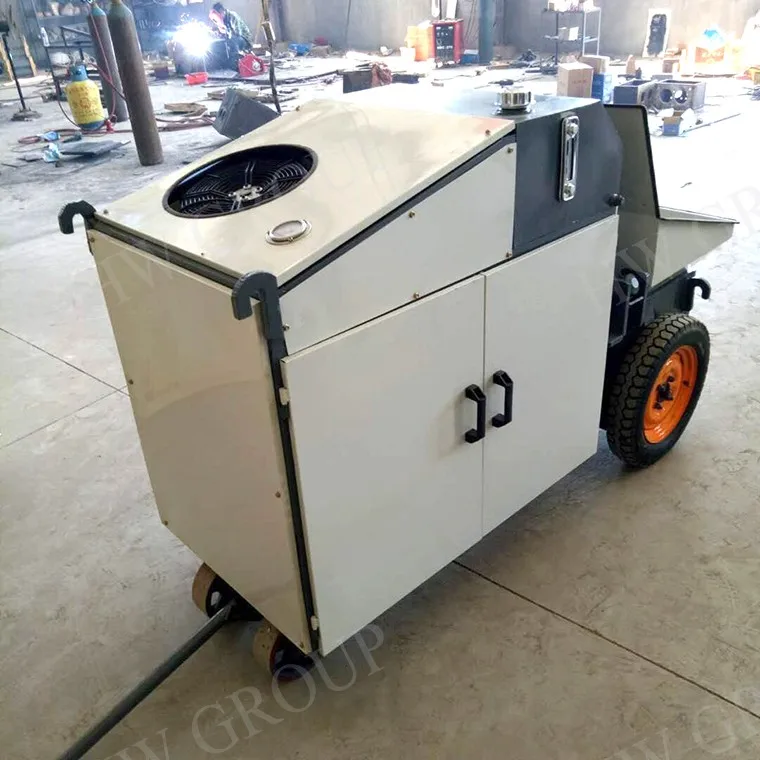

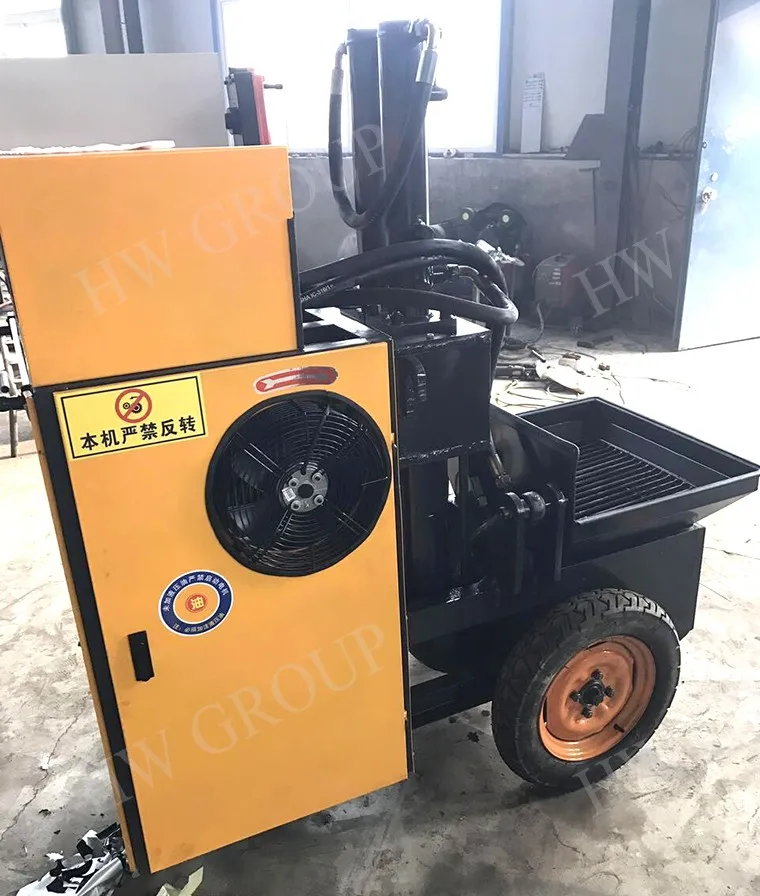

Detailed Images

The advantages of the special pump for the construction of the column:
(1) fully mechanized operation, it is the hundredfold of man-made concrete, shortened the construction period.
(2) the pump is concreted with good continuity, high efficiency and economical labor cost.
(3) this pump is small in size, convenient in construction and simple in operation, which can be poured directly into the floor and greatly reduces the intensity of labor.
(4) this pump is equipped with high quality, light weight, easy to move, easy to maintain, and low maintenance cost.
(5) the power of this pump is very low, considering the convenient problem of using electricity at construction site.

Item	Unit	Parameter
Theory of output	m3/h	5
Theoretical delivery pressure	MPa	15
Maximum aggregate diameter	mm	5-10
Motor power	kw	11
Conveying pipe diameter	mm	75
Overall dimensions	mm	14007501650
Weight	kg	800
Horizontal distance	m	30
Vertical distance	m	10

Our Company

Shandong Hengwang Group Co.,Ltd

Shandong Hengwang Heavy Industry co.,ltd is the professional manufacturer of Pile driver,Drilling rig,Road construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.

Certifications

Wall plastering machine

Shotcrete machine

Cement motar spraying machine

Putty sprayer machine

Rebar cutting machine

Rebar tying machine

Our Service

Contact information

FAQ

1.Q:What’s the MOQ?
A:1Set.
2.Q:Is it difficult to operate?
A:Hydraulic electric concrete stone pump is easy to operate, we can share how-to-use video with you and we will send you the detailed operation manual via email.
3.Q:What’s the usually delivery terms?
A:FOB, CNF, CIF, EXW will be OK.
4.Q:What’s the payment terms?
A:We accept Western Union, T/T, L/C,Paypal,Trade Assurance.
5.Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
