Air compressor stone mountain borehole drilling machine manufacturer

Supplier: Shandong Hengwang Group Co., Ltd.
Region: Shandong, China
Contact: Ms Eva Shao
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Engine power(kw)/speed(r/min):	26/3600;	Product name:	Air compressor stone mountain borehole drilling machine manufacturer;
Drilling speed(r/min):	0-135;	Payment Terms:	L/C,T/T;
(mm)Drilling diameter:	rock70-90,soil75-95;	Supply Ability:	800 Set/Sets per Month;
Packaging Detail:	standard packing;	Model Number:	HW-S30;
Drilling method:	Screwdrilling and mud drilling(alternative);	Condition:	New;
Working pressure(Mpa):	20;	Range of Spindle Speed(r.p.m):	3600;
After-sales Service Provided:	Video technical support;	Port:	Qingdao,shenzhen ,shanghai ect;
Drilling depth:	30m;	Weight:	110KG;
Flow(L/min):	0-60;	Warranty:	1 Year;
Brand Name:	HW;	Dimension(LWH):	280013001580;
Main engine power/speed(r/min):	26/3600;	Voltage:	20mpa;
Place of Origin:	Shandong China;	drill rod(Dia*Length):	60*1500;
Drilling Speed:	3600;	Power(W):	26KW;
Certification:	ISO9001:2000 SGS TUV etc.;

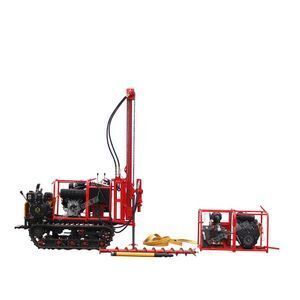

Air compressor stone mountain borehole drilling machine manufacturer

Product Description

Model			HW-S30
Drilling depth			30m
Drilling method			pneumatic hammer drilling
			Screwdrilling and mud drilling(alternative)
(mm)Drilling diameter	pneumatic hammer drilling		rock70-90,soil75-95
			75-90
drill rod(Dia*Length)	pneumatic hammer drilling(mm)		Φ60×1500
Power head	Torque(N.m)		800-900
	Drilling speed(r/min)		0-135
Drilling pressurization and lifting	Feed pressure(N)		5500-6000
	Lifting power(kN)		12-16
	Max lifting speed(m/s)		0.71-0.81
Main engine power/speed(r/min)			26/3600
hydraulic system		Flow(L/min)	0-60
		Working pressure(Mpa)	20
air compressor		Type/Quantity	Piston/1 unit	Screw
		Flow(m3/min)	3.5	3.8
		Pressure(Mpa)	0.8
		Engine power(kw)/speed(r/min)	26/3600

Our Exhibition

Shandong Hengwang Group Co., Ltd

Shandong Hengwang Group co.,ltd is the professional manufacturer of Pile driver,Drilling rigRoad construction machine . With more than 300 workers and 25 Senior engineers,high quality produts and best after sales service can both be guaranteed. main clients are around Southeast Asia,Mid East and South America. Welcome visit our factory and sent inquiry to us.
