5T electric mining locomotive tunnel diesel locomotive with best price

Supplier: Shandong Hengwang Group Co., Ltd.
Region: Shandong, China
Contact: Ms Eva Shao
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capacity:	308 or 330Ah;	Max. Traction:	6.13kN;
Track Gauge:	600, 762 or 900mm;	Brake Mode:	Mechanical;
Fuel Type:	Electric;	Traction:	2.55kN;
Port:	Qingdao;	Supply Ability:	30 Set/Sets per Month 5T electric mining locomotive tunnel diesel locomotive;
Min. Turning Radius:	5m;	Controller:	Resistance or Pulsing speed regulation;
Model:	CTY2.5/6,7,9G;	Packaging Detail:	Standard exported package 5T electric mining locomotive tunnel diesel locomotive with best price;
Adhesive Weight:	2.5 tons;	Speed:	4.54km/h;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Brand Name:	HW;
Place of Origin:	Shandong China (Mainland);	Speed (km/h):	4.54km/h;
Horsepower:	2.55kN;	Dimensions (L x W x H) (mm):	233012121550mm;

Product Description

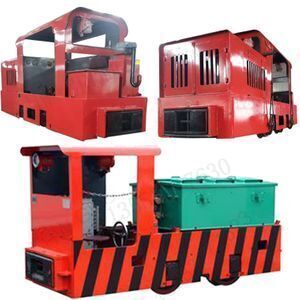

5T electric mining locomotive tunnel diesel locomotive

CTY Battery Locomotive is a kind of trolley locomotives which are designed for horizontal rail transport especially in mines and enclosed spaces, to the non-hazardous areas without explosion risks.

CTY Underground Mining Electric Locomotives are certified according to European safety standards and meet their requirements. Transmission of torque moment from the electric motors is through the axle gearbox to travel wheels. The chassis is of dual-axle type and travel wheels are secured with interchangeable rims. Suspension of locomotives is provided by elastic rubber-metal blocks of sagittal shape. The electric motors are maintenance-free, three-phase, asynchronous, with external cooling, and with power from 30kW to 2x75 kW. Speed and engine torque is controlled by the frequency converter. Trolleys and axle bus-bars/pantographs are fitted with carbon or aluminum strips. Engine and brake control is proportional by means of one lever in its entire range of travel speed.

Technical parameters

5T electric mining locomotive tunnel diesel locomotive parameters

2.5 Ton Battery Locomotive

Model		CTY2.5/6,7,9G
Adhesive Weight		2.5 tons
Track Gauge		600, 762 or 900mm
Traction		2.55kN
Speed		4.54km/h
Max. Traction		6.13kN
Power Supply Device	Voltage	48V
	Capacity	308 or 330Ah
Power		3.5kw*1
Size	Length	2330mm
	Width	914,1076 or 1212mm
	Height	1550mm
	Traction Height	320 mm
	Wheelbase	650mm
	Wheel Diameter	Φ460mm
Min. Turning Radius		5m
Controller		Resistance or Pulsing speed regulation
Brake Mode		Mechanical

CTY 5 TON Electric Locomotive

Model		CTY5/4G	CTY5/6,7,9G
Adhesive Weight		5 tons
Track Gauge		457mm	600, 762 or 900mm
Traction		7.06kN
Speed		7km/h
Max. Traction		12.26kN
Power Supply Device	Voltage	88V	88,90 or 96V
	Capacity	385 or 330Ah
Power		7.5kw*2
Size	Length	3050mm	3000,3020 or 3170mm
	Width	1062,1082 or 1220mm
	Height	1550mm
	Traction Height	210 mm
	Wheelbase	850mm
	Wheel Diameter	520mm
Min. Turning Radius		6m
Controller		Resistance,Silicon controlchopped wave or IGBT
Brake Mode		Mechanical

CTY 8TON Underground Battery Locomotive

Model		CTY8/6,7,9G or CTL8/6,7,9G
Adhesive Weight		8 tons
Track Gauge		600, 762 or 900mm
Traction		11.18Kn/h		12.83kN/h
Speed		6.2km/h		7.8 km/h
Max. Traction		19.62kN
Power Supply Device	Voltage	110V	132V	140V	144V
	Capacity	440Ah
Power		11kW*2		15kW*2
Size	Length	4470mm-4490mm
	Width	1062, 1212 or 1350mm
	Height	1600mm		1600mm
	Traction Height	320 or 430mm
	Wheelbase	1100mm		1150mm
	Wheel Diameter	Φ680mm		Φ680mm	Φ600mm
Min. Turning Radius		7m
Electromechanical Controller		Resistance, IGBT or Frequency Control
Brake Mode		Mechanical

CTY 12TON Mining Battery Powered Locomotive

Model		CTY12/6,7,9G(B)
Adhesive Weight(t)		12
Track Gauge(mm)		600,762,900
Traction(kN)		16.48	18.93
Max. Traction(kN)		29.43
Speed(km/h)		8.7	9.6
Power Supply Device	Voltage(V)	192	256
	Capacity(An)	560
Power(kW)		22×2	30×2
Size	Length(mm)	5100,5250
	Width(mm)	1050,1212,1350,1450
	Height(mm)	1600	1900
	Wheelbase(mm)	1200	1750
	Wheel Diameter(mm)	Φ680
Min. Turning Radius(m)		10	15
Controller		Resistance,IGBT or Frequency conversion
Brake		Mechanical,Electric or Air

CTY15TON Tunnel Battery Locomotive

Model		CTY15/9GB
Adhesive Weight		15 tons
Track Gauge		600, 762 or 900mm
Traction		18.93Kn
Speed		9.8km/h
Max. Traction		36.18kN
Power Supply Device	Voltage	260V
	Capacity62	0Ah
Power		30kW*2
Size	Length	5200mm
	Width	1500mm
	Height	1920mm
	Traction Height	320 or 430mm
	Wheelbase	1400mm
	Wheel Diameter	Φ680mm
Min. Turning Radius		15m
Electromechanical Controller		IGBT or AC Converter
Brake Mode		Pneumatic Mechanical Brake
