Application: | Refrigerator,cooler,ice cream maker; | Payment Terms: | L/C,T/T; |
Size: | 40*40mm,customized; | Port: | shunde/guangzhou /shenzhen; |
Place of Origin: | Guangdong China; | Model Number: | TEG1-127; |
Brand Name: | OEM; | Packaging Detail: | outer packing :corrugated export case.; |
Supply Ability: | 10000 Piece/Pieces per Month; | Material: | Wire,Se,Bi,Te,Sn,Sb; |
Type: | Thermoelectric module; | Certification: | ROHS,; |
Different size TEG mudlues, with different specification:
TYPE | Voc | Rin | Pmax | Dimensions (mm) | ||
(V) | (H) | (W) | Hot side | Cold side | Thickness | |
TEG1-127-1.0-1.5 | 9.4 | 7.9 | 2.8 | 30*30 | 30*30 | 3.7 |
TEG1-71-1.4-1.6 | 5.3 | 2.4 | 2.9 | 30*30 | 30*30 | 3.8 |
TEG1-127-1.4-1.6 | 9.4 | 4.3 | 5.1 | 40*40 | 40 * 40 | 3.8 |
TEG1-31-2.8-3.5 | 2.3 | 0.59 | 2.2 | 30*30 | 30*30 | 6.3 |
TEG1-127-2.8-3.5 | 9.4 | 2.4 | 9.2 | 62* 62 | 62*62 | 6.3 |
TEG1-49-4.5-3.0 | 3.6 | 0.31 | 10.6 | 62*62 | 62*62 | 5.8 |
TEG1-49-4.5-2.5 | 3.6 | 0.27 | 12.2 | 62*62 | 62*62 | 5.3 |
TEG1-241-1.0-1.3 | 17.8 | 12.2 | 6.5 | 40*40 | 40*45 | 3.6 |
TEG1-241-1.0-1.6 | 17.8 | 15.0 | 5.3 | 40*40 | 40*45 | 3.8 |
Performance Paraments
Performance Parameters | |
Hot Side Temperature (℃) | 250 |
Cold Side Temperature (℃) | 30 |
Open Circuit Voltage (V) | 9.6 |
Matched Load Resistance (Ω) | 5.0 |
Matched Load Output Voltage (V) | 4.8 |
Matched Load Output Current (A) | 1.0 |
Matched Load Output Power (W) | 4.6 |
Heat Flow Across the Module (W) | ≈92 |
Heat Flow Density (Wcm2) | ≈10.3 |
AC Resistance( 2.8±0.2) | 2.8±0.2 |

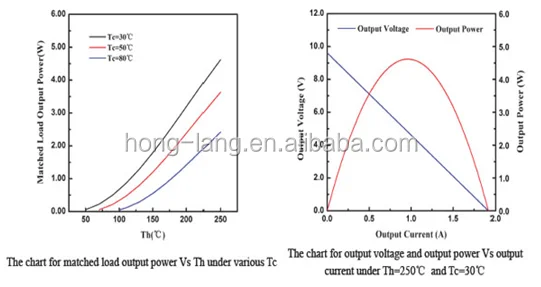

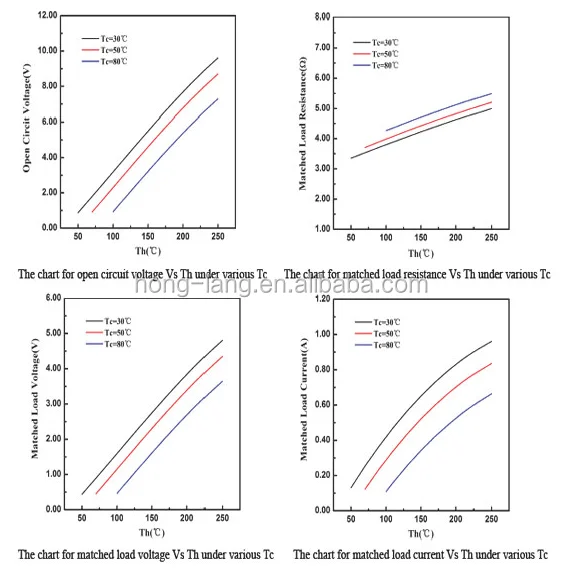

Sample show you the details datas

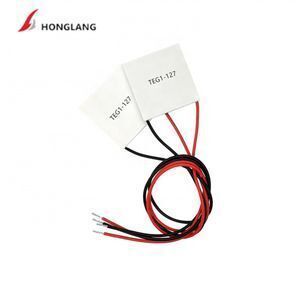

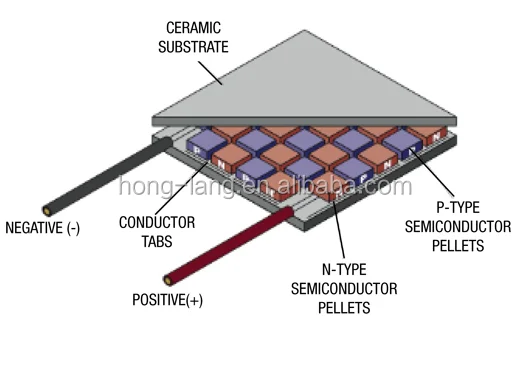

Thermoelectric power generator mudule

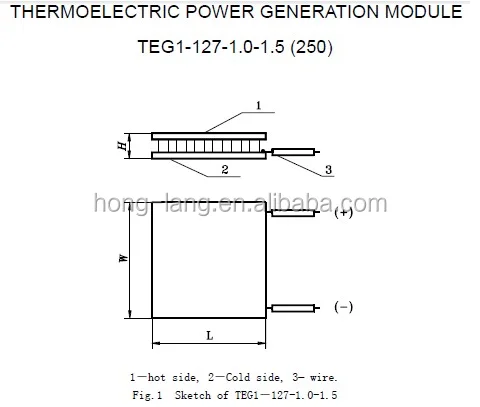

The hot side and the cold side
The Advantage of the TEG module
1.Can use conventional DC power.
2.No refrigerant, no pollution.
3.Small size, light weight, save space.
4.Can used be heater or cooler by changing the direction of current.
5.Fast colling,its speed can controlled by conditioning work power, easy to operation.
6.We have Professional product team, product line, experience technical experts who has more than ten years’ experience.
Our factory and company service you
1.our modules are made in no pollution factory.
2.Professional workers and advanced machine,which made good quality modules
3.Good service and reasonable price, safety package, which make our product are sold well in overseas.
4.Professional technicist can give you good technical guidance and can accept design as your special requirement.
5.Huge production 150000pcs/month
How to order
(1)Pick the items you want and tell us the quantity you need;
2) We will calculated the right and favorable price for you and make a PI for you;
3) Checking and confirm the PI for us, we will arrange the produce after payment received;
4) Give you the tracking number upon shipping and checking the items until you received it.
This is the simple model for selecting products, and need to be confirmed by further simulation and test.
If you need more detailed and accurate calculation and design, please contact us, we will provide professional and perfect support to you.
