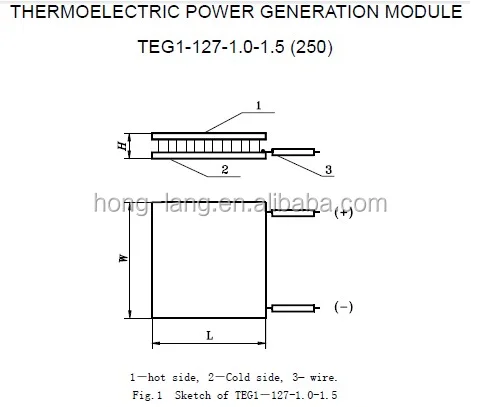

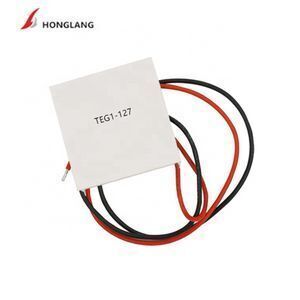

Type: | Thermoelectric module; | Model Number: | TEG1-127; |
Selling Units: | Single item; | Size: | 40*40mm,40*44mm/50*50mm,customized; |
Single gross weight: | 65.01 KG; | Single package size: | 60X40X80 cm; |
Certification: | ROHS; | Application: | Refrigerator,cooler,ice cream maker; |
Brand Name: | OEM; | Place of Origin: | Guangdong China; |
Packaging Detail: | outer packing :export case.; | Material: | Wire,Se,Bi,Te,Sn,Sb; |
Work principle

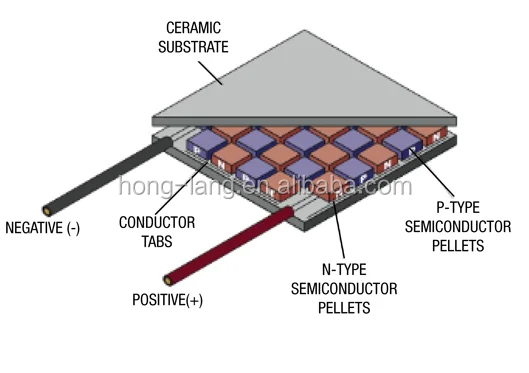

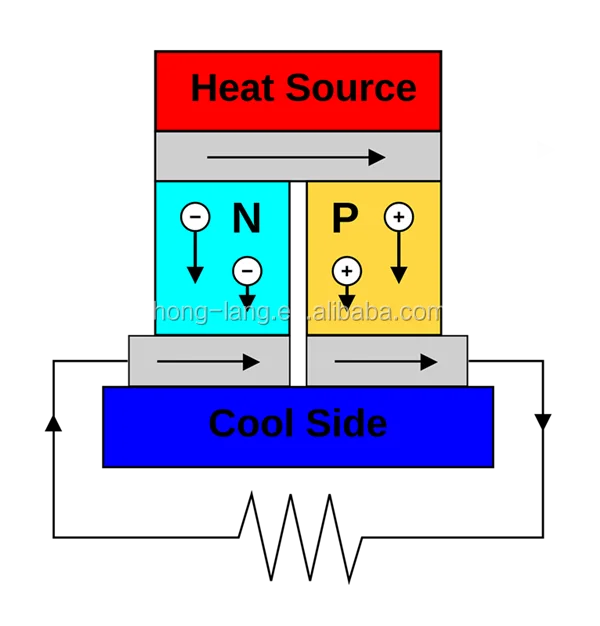

Temperature difference semiconductor power generation technology, its work principle is in two different set a
temperature difference on both ends of the semiconductor, and so on semiconductor created a dc voltage.Temperature
difference semiconductor power with no noise, long service life, stable performance, etc.To 40 degrees Celsius below zero
in cold environment quickly start, so get more and more widely used in practice.
thermoelectric power generation module
Temperature is a new way of generating, using plug bell effect to convert heat energy directly into electricity.
With semiconductor thermoelectric generator module manufacturing semiconductor generator, as long as there is a
difference in temperature is to generate electricity.At work, no noise, no pollution, the service life of more than ten years,
maintenance free, so it is a kind of widely used portable power supply.The semiconductor thermoelectric generators,
at present is mainly used in oil fields, field, military and other fields.Such as the United States Teledyne Inc.,
the development of the army, oil field special generator with annual sales of more than billion dollars.Another area of the
marketization of this project is used in solar, geothermal power generation device, the use of industrial waste can make
the heat directly into electricity.In addition, power semiconductor module of small size, light weight, easy to carry,
can be widely used in small home appliance manufacturing, instruments and meters, toys and tourism.
Different size TEG mudlues, with different specification:
TYPE | Voc | Rin | Pmax | Dimensions (mm) | ||
(V) | (H) | (W) | Hot side | Cold side | Thickness | |
TEG1-127-1.0-1.5 | 9.4 | 7.9 | 2.8 | 30*30 | 30*30 | 3.7 |
TEG1-71-1.4-1.6 | 5.3 | 2.4 | 2.9 | 30*30 | 30*30 | 3.8 |
TEG1-127-1.4-1.6 | 9.4 | 4.3 | 5.1 | 40*40 | 40 * 40 | 3.8 |
TEG1-31-2.8-3.5 | 2.3 | 0.59 | 2.2 | 30*30 | 30*30 | 6.3 |
TEG1-127-2.8-3.5 | 9.4 | 2.4 | 9.2 | 62* 62 | 62*62 | 6.3 |
TEG1-49-4.5-3.0 | 3.6 | 0.31 | 10.6 | 62*62 | 62*62 | 5.8 |
TEG1-49-4.5-2.5 | 3.6 | 0.27 | 12.2 | 62*62 | 62*62 | 5.3 |
TEG1-241-1.0-1.3 | 17.8 | 12.2 | 6.5 | 40*40 | 40*45 | 3.6 |
TEG1-241-1.0-1.6 | 17.8 | 15.0 | 5.3 | 40*40 | 40*45 | 3.8 |

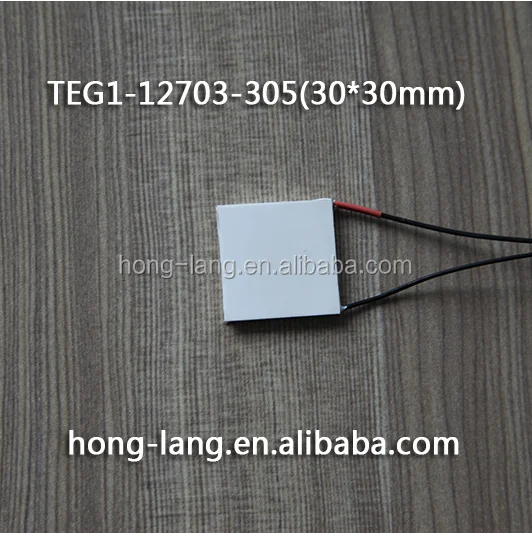

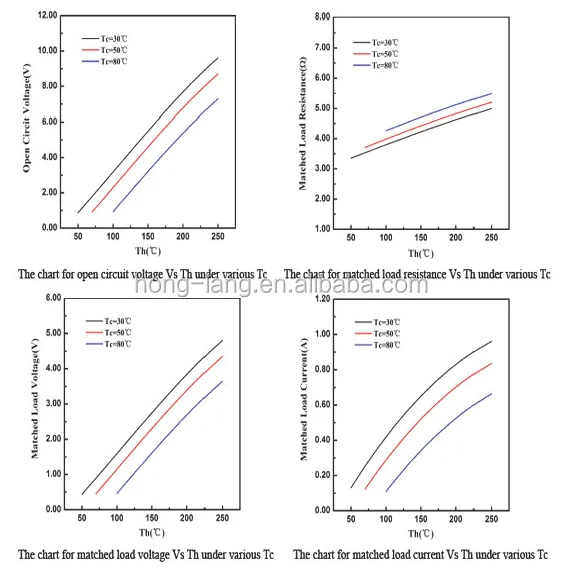

Performance Paraments
Performance Parameters | |
Hot Side Temperature (℃) | 250 |
Cold Side Temperature (℃) | 30 |
Open Circuit Voltage (V) | 9.6 |
Matched Load Resistance (Ω) | 5.0 |
Matched Load Output Voltage (V) | 4.8 |
Matched Load Output Current (A) | 1.0 |
Matched Load Output Power (W) | 4.6 |
Heat Flow Across the Module (W) | ≈92 |
Heat Flow Density (Wcm2) | ≈10.3 |
AC Resistance( 2.8±0.2) | 2.8±0.2 |
Sample shows you the details datas
Peltier thermoelectric power generation module
The hot side and the cold side module
The advantage of the TEG module
1.Can use conventional DC power.
2.No refrigerant, no pollution.
3.Small size, light weight, save space.
4.Can used be heater or cooler by changing the direction of current.
5.Fast colling,its speed can controlled by conditioning work power, easy to operation.
6.We have Professional product team, product line, experience technical experts
who has more than ten years’ experience.
Our factory and company service you
1.our modules are made in no pollution factory.
2.Professional workers and advanced machine,which made good quality modules
3.Good service and reasonable price, safety package, which make our product are sold well in overseas.
4.Professional technicist can give you good technical guidance and can accept design as your special requirement.
5.Huge production 150000pcs/month
How to order the generator module
(1)Pick the items you want and tell us the quantity you need;
2) We will calculated the right and favorable price for you and make a PI for you;
3) Checking and confirm the PI for us, we will arrange the produce after payment received;
4) Give you the tracking number upon shipping and checking the items until you received it.
This is the simple model for selecting products, and need to be confirmed by further simulation and test.
If you need more detailed and accurate calculation and design, please contact us, we will provide professional and perfect support to you.
Welcome to contact us to get more details
