Packing: | white box; | Color: | Metal Color; |
Service: | OEM Customized Services; | Packaging Detail: | industry packing; |
Weight: | 0.7kg; | Operating Angle: | Max Working Angle 45 Degree; |
Structure: | Single; | Applicable Industries: | Retail; |
Product Name: | High Quality 31*88 mm cross bearing Universal Joint; | Port: | Shanghai; |
Supply Ability: | 10000 Piece/Pieces per Month High Quality 31*88 mm cross bearing Universal Joint; | Name: | Corss Joint/Universal Joint; |
Material: | Gr15; | Application: | Automobile; |
Place of Origin: | China; | Size: | 31*88mm; |
Payment Terms: | T/T,Western Union,paypal; | Brand Name: | NTL; |
Stock: | Rich; | MOQ: | 100pcs; |

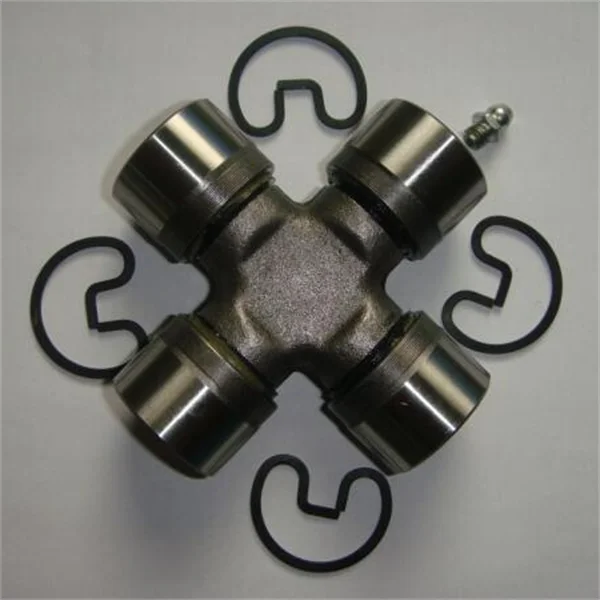

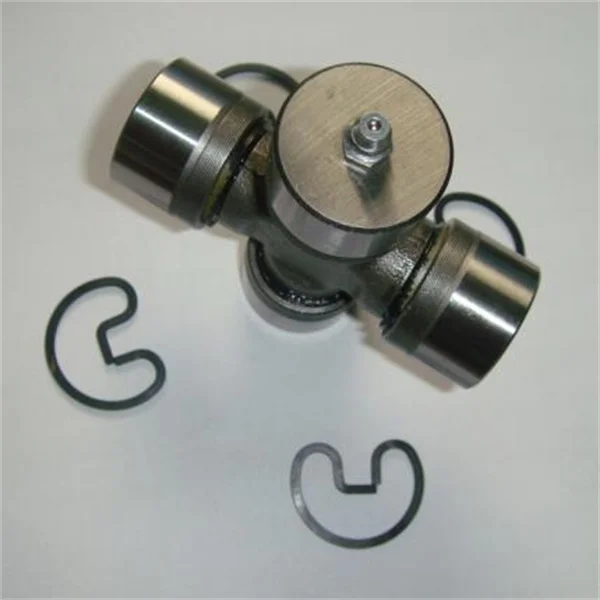

High Quality 31*88 mm cross bearing Universal Joint
1.Universal joint bearing, is part of the power transfer to realize variable Angle, used to need to change the location of the drive axis direction.It is the universal transmission device of car driving system of the "joint" part.
2.Universal joint and combination of transmission, known as the universal joint transmission device. On the front engine rear wheel drive vehicles, universal transmission device installed in the gearbox output shaft and drive axle of the main reducer input shaft between; And front engine front-wheel drive vehicles omit the transmission shaft. 3.Universal joint is installed in the steering system is responsible for driving and responsible for between front axle and half axle and the wheel.
FOR U.S. AND EUROPEAN VEHICLES IDENTIFICATION AND WEIGHT LIST | ||||
PART NO | D m/ | L m/m | N.WEIGHT | G.WEIGHT |
5-1X | 23.82 | 61.3 | 275 | 325 |
5-4X | 27.01 | 74.6 | 430 | 480 |
5-121X | 27 | 81.75 | 500 | 570 |
5-134X | 27 | 92 | 610 | 670 |
5-153X | 27 | 81.75 | 500 | 570 |
5-155X | 34.93 | 126.22 | 1350 | 1530 |
5-160X | 30.18 | 106.35 | 820 | 920 |
5-178X | 30.18 | 92.08 | 680 | 780 |
5-188X | 34.93 | 106.3 | 1150 | 1350 |
GU400 | 23.82 | 61.3 | 300 | 350 |
GU500 | 23.82 | 61.3 | 300 | 350 |
GU700 | 27 | 61.86 | 400 | 450 |
GU1000 | 27 | 81.75 | 500 | 600 |
GU1100 | 27 | 74.6 | 450 | 550 |
GU1700 | 22 | 55 | 200 | 280 |
GU2000 | 30.18 | 106.35 | 820 | 920 |
GU2200 | 30.18 | 92.07 | 680 | 780 |
GU2300 | 34.93 | 106.3 | 1120 | 1320 |
GU3000 | 39.69 | 115.95 | 1850 | 2050 |
GU3500 | 39.67 | 115.42 | 1850 | 2050 |
GU3800 | 44 | 126 | 2250 | 2450 |
GU3810 | 50 | 152.6 | 3400 | 3500 |
GU7280/4 | 24.09 | 74.55 | 400 | 500 |
GU7430 | 35 | 96.8 | 1000 | 1100 |
GU7440 | 38.03 | 105.6 | 1150 | 1300 |
GU7530 | 45.03 | 120.4 | 2300 | 2500 |
GU7560 | 52.1 | 133 | 3000 | 3300 |
GU7610 | 53 | 135 | 3100 | 3350 |
GU7620 | 48.05 | 125.8 | 2300 | 2500 |
GU7630 | 57.07 | 152 | 4300 | 4500 |
GUA21 | 41 | 118 | 2000 | 2100 |
GUA20 | 36.04 | 89 | 1000 | 1100 |
