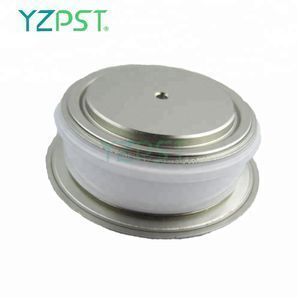

High power Standard rectifier diode 6000v

Click here to contact

Product details

Max. Reverse Voltage:	6000V;	IFSM:	19KA;
Selling Units:	Single item;	Package Type:	The packing of the rectifier diode : 1. Anti-electrostatic packaging 2. Carton box 3. Blister packaging;
IF(AV)M:	1363A;	Model Number:	YZPST-ZP1363A6000V;
Brand Name:	YZPST;	IF(RMS)M:	2142A;
Weight:	0.46Kg;	Work junction temperature:	-40 ~+150℃;
Place of Origin:	Jiangsu China;	Safety:	CE;
Type:	Standard rectifier diode;	Max. Reverse Current:	75mA;
VFM:	1.6V;	Single package size:	50X33X22 cm;
product name:	High power Standard rectifier diode 6000v;	IRRM:	7mA~75mA;
Package Type:	Plate crimp;	Max. Forward Voltage:	6100V;
Single gross weight:	10 KG;	Certification:	ISO9001:2015;

Standard Rectifier

ZP1363A6000V

Product Description

GENERAL PURPOSE HIGH POWER STANDARD RECTIFIER

Feature

. All Diffused Structure

. High Surge rating

. Soft Reverse Recovery

. Rugged Ceramic Hermetic Package

. Pressure Assembled Device

Typical Applications:

. Rectifier for Drives Applications

. Medium voltage converters

. Pulsed power applications

. Crowbar Applications

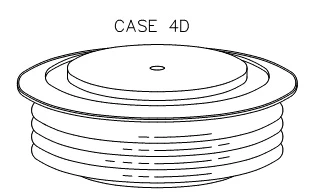

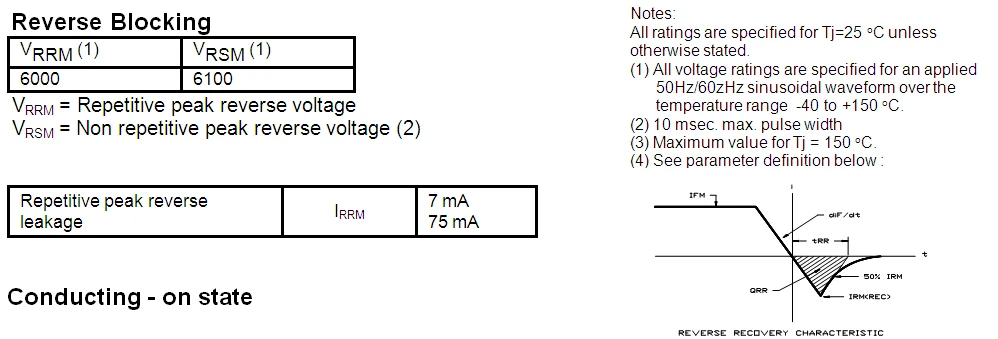

ELECTRICAL CHARACTERISTICS AND RATINGS

Parameter	Symbol	Min	Max.	Typ	Units	Conditions
Max. Average value of on-state current	I_F(AV)M		1363		A	Sinewave,180^oconduction,T_c=85^oC
RMS value of on-state current	I_F(RMS)M		2142		A	Nominal value
Peak one cycle surge (non repetitive) current	I_FSM		19		kA	T_j=25°C, V_R=0,8V_RRM, t_p=10ms
I square t	I²t		1.8×10³		kA²s	10 msec
Peak on-state voltage	V_FM		1.6		V	I_FM = 1500 A; Tj = 150^oC
Reverse Recovery Current (4)	I_RM(REC)		-		A	I_FM = 1000 A; dI_F/dt = 10 A/ms, Tj = 150^oC
Reverse Recovery Charge (4)	Q_rr		-		mC
Reverse Recovery Time (4)	t_RR		-		ms

* For guaranteed maximum values, contact factory

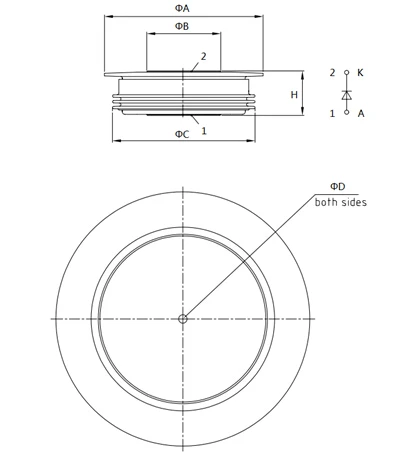

THERMAL AND MECHANICAL CHARACTERISTICS

Parameter	Symbol	Min.	Max.	Typ.	Units	Conditions
Operating temperature	T_j	-40	+150		^oC
Storage temperature	T_stg	-40	+150		^oC
Thermal resistance - junction to case	R_Q_(j-c)		20		K/kW	Double side cooled
Thermal resistance - case to sink	R_Q_(c-s)		5		K/kW	Double side cooled
Thermal resistance - junction to sink	R_Q_(j-s)		-		K/kW	Double side cooled
Mounting force	P	20	24		kN
Weight	W			0.46	Kg	about
