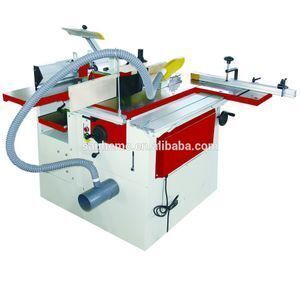

CM250wood planer and thicknesser with mortise / jointer/ table multi functional combined woodworking machine

Product details
Machine Type:Finger Joint Press;Warranty:1 year;
Supply Ability:100 Set/Sets per Month;Showroom Location:None;
Place of Origin:Shandong China;Payment Terms:L/C,D/A,D/P,T/T;
Key Selling Points:Easy to Operate;After Warranty Service:Online support;
color:white;After-sales Service Provided:Online support;
Brand Name:Sanhe;Port:Qingdao;
Local Service Location:None;After-sales Service Provided:No overseas service provided;
Weight (KG):377 KG;Applicable Industries:Garment Shops,Machinery Repair Shops,Retail;
Packaging Detail:wooden case;Condition:New;





Technical specifications







The motors are capable to run at HVF of 0.02. The limiting value for the peak voltage and the voltage gradient in continuous operation is respectively 358V and 1.12´105V/s.







Machine Length

mm

1235

Machine width

mm

1270

Machine height

mm

1135

Table height

mm

850

Table of planning machine

mm

1085X256

Table of thicknessing machine

mm

600X248

Sliding table

mm

400X250

Machine weight

kg

280

Rated voltage

V

230(±10%)

Rated frequency

Hz

50(±1)







Circular saw





max. saw disc Ø

mm

200

Saw disc spindle Ø

mm

30

Saw disc rotation speed at 50Hz

min-1

4750

Saw disc tilting



00-450

Max. cut height at 00

mm

50

Motor power output

kW

1.1







Moulding machine





spindle Ø

mm

30

Spindle rotation speed

min-1

6500

Clamping length of spindle

mm

80

Max. lift of the spindle

mm

80

Max. hole in the table

mm

144

Motor power output

kW

1.1







Planer and thicknessing machine





Cutter block Ø

mm

75

Cutter block knives number

pcs.

3

Cutter block rotation speed

min-1

4000

Feeding rollers Ø

mm

32

Max. planing width

mm

250

Max. depth of planning

mm

5

Angle of workpiece fence



00-450

Max. thicknessing width

mm

248

Max. depth of thicknessing

mm

2.5

Max. workpiece height of thicknessing

mm

190

Feeding speed

m/min

8

Motor power output

kW

1.5







Specifications concerning noise of the device



+

Level of noise A in the place of operation (LpAeq)

No-load

LpAeq =81.7 dB(A)

Load

LpAeq =89.5 dB(A)

Level of acoustic power A (LWA)

No-load

LWA = 94.5 dB(A)

Load

LWA = 103 dB(A)



Operating conditions for noise measurement comply with annex B of ISO 7960.
