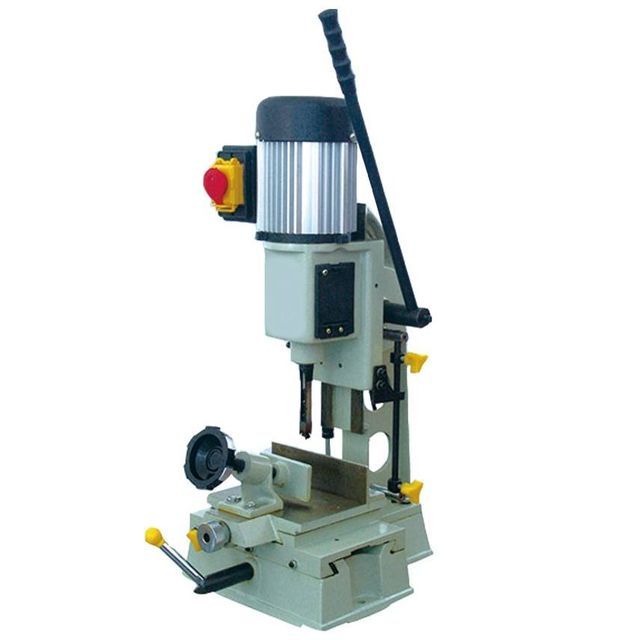

Vertical portable woodworking mortising machine, portable small mortising machine

  • Supplier: Laizhou Sanhe Machinery Co., Ltd.
  • Region: Shandong, China
  • Contact: Ms Carol Liu
  • Price: $242.00 / 1 - 9 sets
    $229.00 / 10 - 98 sets
    $202.00 / 99 - 499 sets
    $189.00 / >=500 sets
  • Min. Order: 1 set
Product details
Packaging Details:Carton or wooden case is also available as your request.Supply capacity:999 sets per month
Motor speed:1400(2800)After-sales service provided:online support
Maximum tenoning depth:76 mm (3 inches)Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies, carpentry
application:carpentryOver height:800/814 (MK361B)
Packing dimensions for one container:670*450*340Certification:CE
strength:370(550)Motor (input):370(550)
Chisel into the table:110mm (MS3816wh-140)Health status:new
port:Qingdao Ningbo Shanghai Guangzhou Shenzhen PortDrill diameter:1-13 mm
Unit/20'' (count):Chapter 420Spindle speed:1400(2800)
Automatic level:semi-automaticUnit/20'' (one counter):258
payment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGramOrigin:Shandong Province, China
brand:three riversDimensions (L*W*H):Base part: 440*3200*200/Part part: 500*375*620
Net/Gross:41/39Chisel capacity:6-16mm (1/4"-5/8")
Warranty:1 yearVoltage:220/380 volts
Product Description
Model
MS3816CE/MS3816HT/MS3816WH(MK361B)
chisel capacity
6-16mm
Mortise Depth
76 mm
Drill Chuck Capacity
1-13 mm
chisel to table
110 mm
over height
800 mm
motor (input)
370W (550W)
Spindle speed
1400(2800) rpm
Package size of a container
670*450*340mm
Net weight/Gross weight (machine)
41/39 kg
Pack size for two containers
A (basic parts)
440*320*200mm
net weight/net weight
21/20kg
B (column parts)
500*375*220mm
net weight/net weight
20/19kg
unit/20"
258 pieces (one cabinet)
