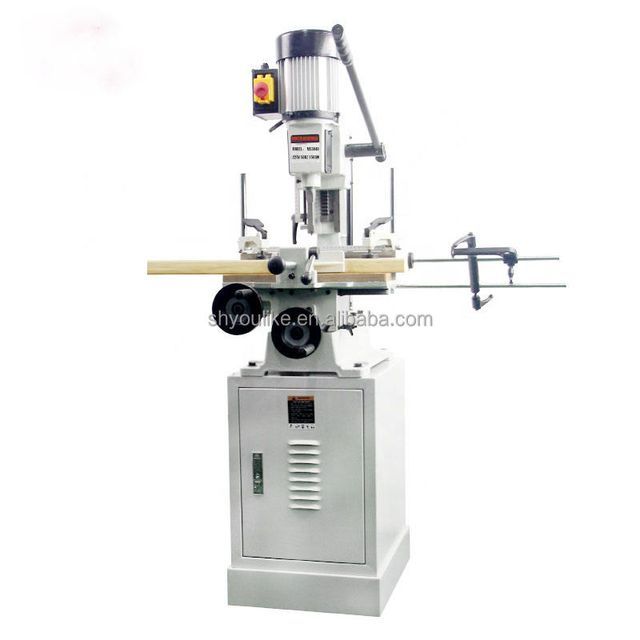

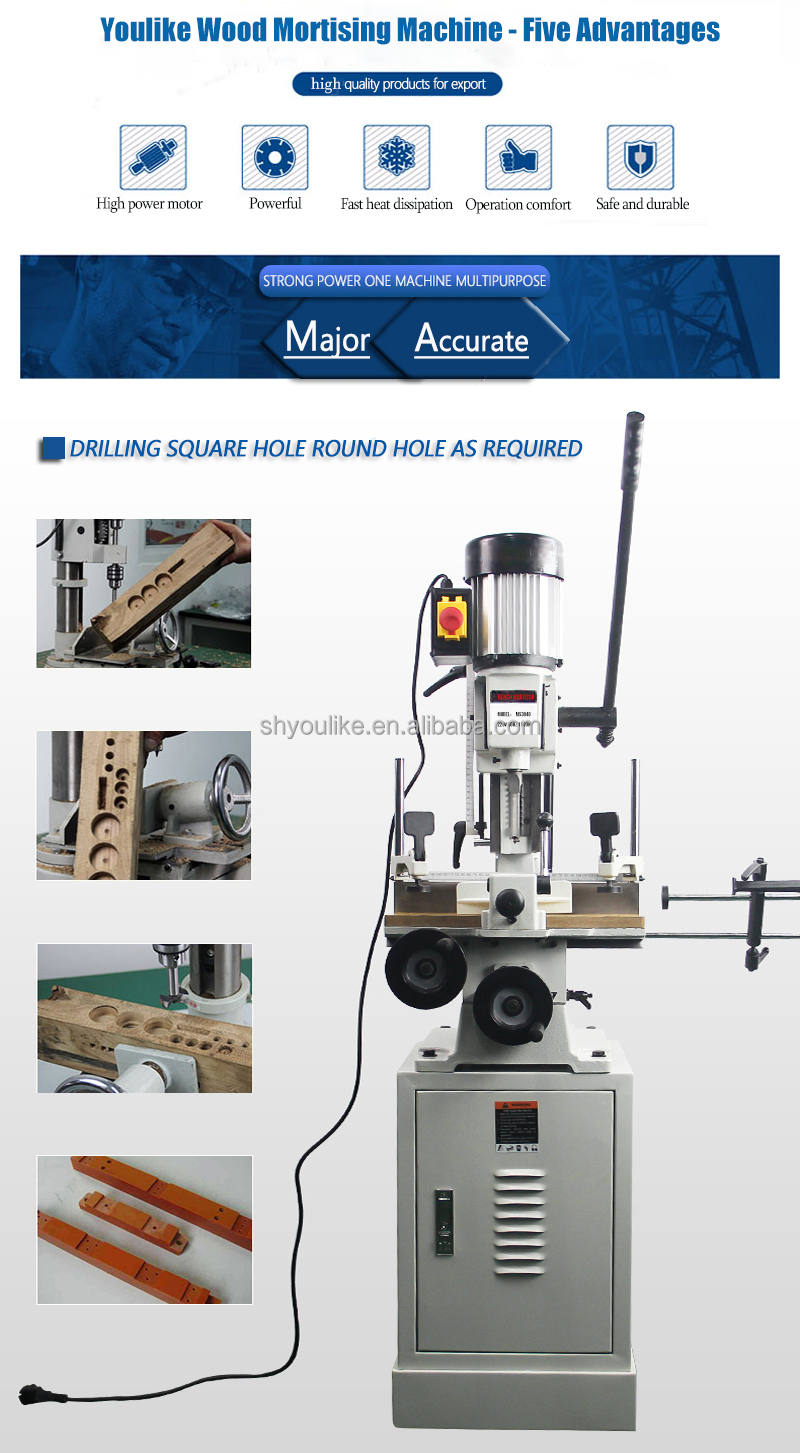

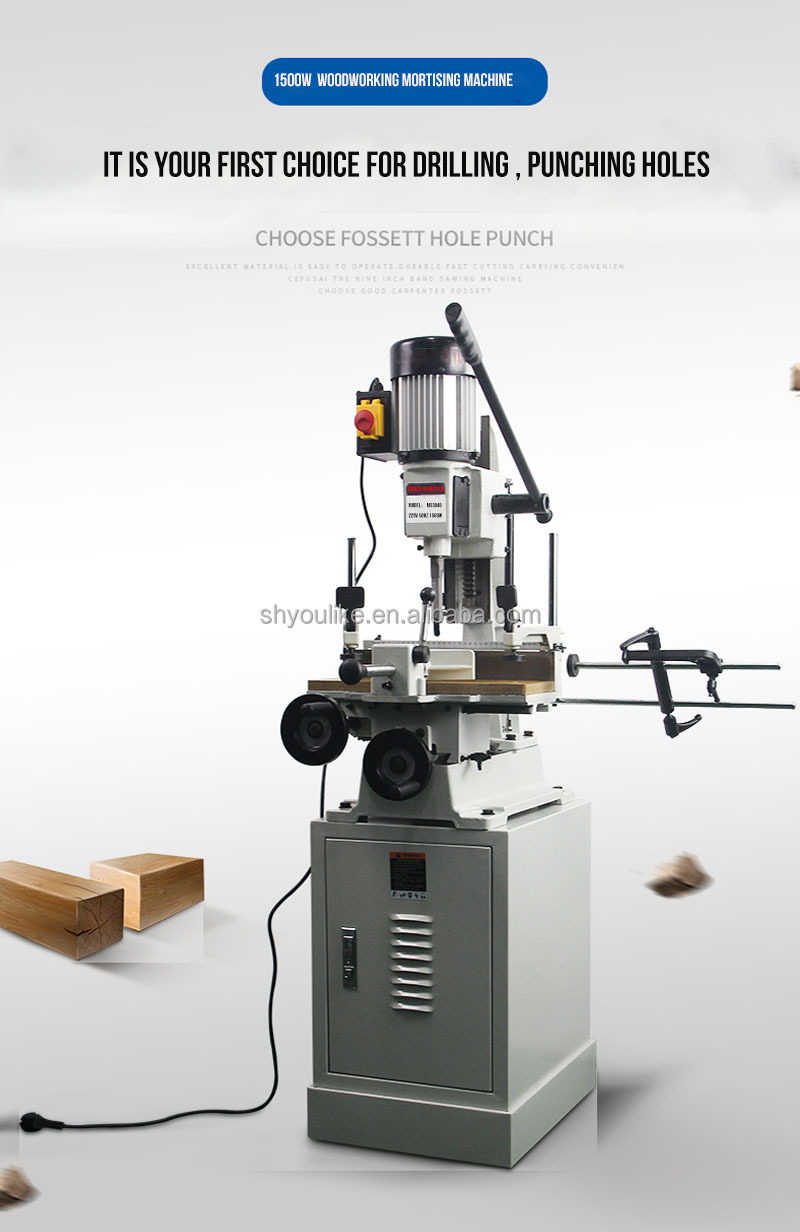

MS3840 Woodworking Woodworking Chisel Mortise and Tenon Machine Heavy Duty Mortise and Tenon Machine

Product details
product name:MS3840 Woodworking tenon machineLateral stroke:320mm
Model:MS3840application:carpentry
Weight (kg):110Warranty:1 year
maximum. Vertical travel:210mmtable size:400X150mm
Marketing Type:Hot Products 2020Drill Chuck Capacity:3-16mm
brand:you likeCore component warranty:1 year
Voltage:220VDrilling diameter:mm
vertical:145mmMechanical test report:if
payment terms:L/C, T/T, MoneyGramSpindle speed:1400 rpm
Motor speed:1400 rpmMain selling points:high rigidity
strength:1500W, 1500WHealth status:new
Origin:ChinaCore components:engine
Video shipment inspection:ifApplicable industries:Building materials store, manufacturing plant, household, retail, construction engineering, others, advertising agency, carpentry
Showroom location:not anyAutomatic level:manual
















Specification



Model
MS3840
chisel capacity
6-26mm(1/4″-1″)
maximum. Mortise Depth
76mm

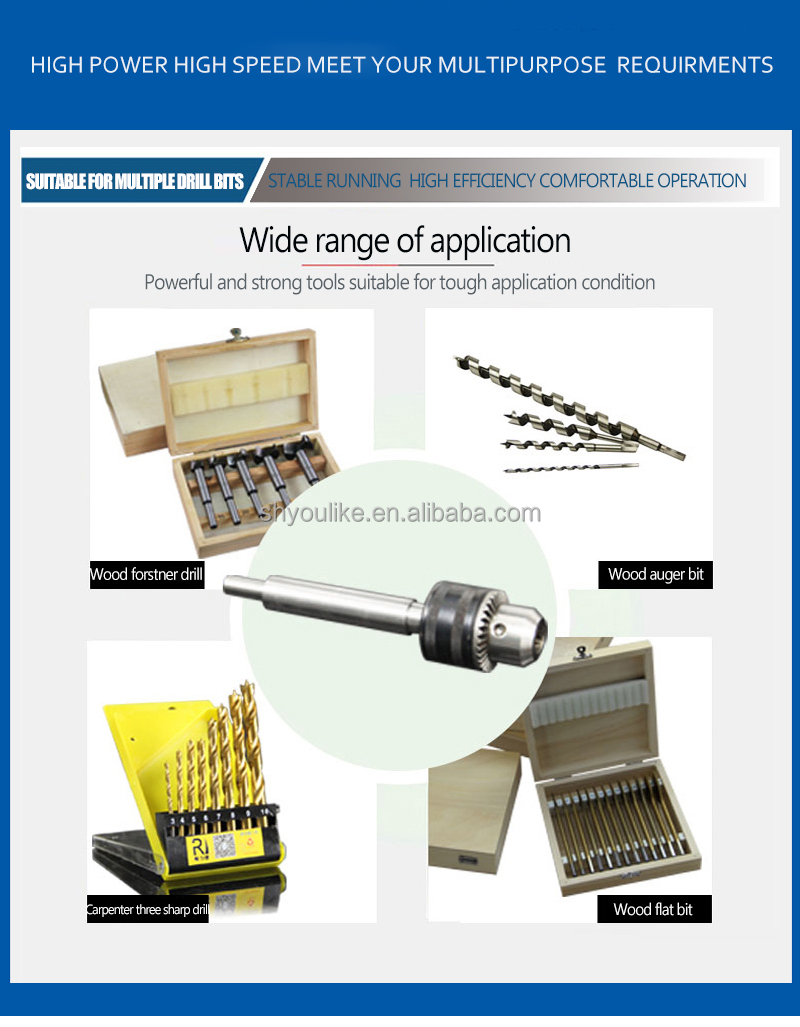

Drill Chuck Capacity
3-16mm
forward and backward
145mm
drive left and right
320mm
maximum. chisel travel
210mm
super high
1700mm
Motor Power
750w
Spindle speed
1400(50Hz) / 1720(60Hz)rpm
Spindle to fence (maximum)
140mm
table size
400×150mm
Package size (machine)
56×48×82cm
Package size (bracket)
50×40×63cm
Gross/Net Weight (Machine)
101/80kg
Gross/Net Weight (Brackets)
18/16 kg



Accessories









about Us



SHANGHAI YOULIKE has more than 15 years of experience in technology research and development, manufacturing and trading business. The factory has passed the ISO9001 quality management system certification, all products meet the safety requirements of international standards, and have obtained CE, EMC, SGS certification approved by TUV SUD. The products are sold to more than 100 countries and regions such as the United Kingdom, Hong Kong, France, the United States, and Austria, and are well received by customers.
We warmly welcome customers from all over the world to visit our factory and our office!



















FAQ

Q1: What certificate do you have?

A1: We have CE, COC, TUV, GS, ROHS certificates.


Q2: What is the MOQ policy?

A2: Sample order is possible. Customized color, print logo on items or customized packaging, please contact our sales department


Q3: wowt is your payment term

A3: For sample order, 100% payment will be paid in advance before delivery.

More than 50pcs: 30~50% prepayment, the balance should be paid by T/T/Credit Card, E-Checking, Visa, Paylater, etc. before delivery via Alibaba trader order.

It has the following advantages: First, it is safe, because your payment is paid to a third party (Ali), and we will not receive the payment until you receive the product; second, quality assurance, after you receive the product, if you are satisfied with our If you are not satisfied with the product or find that the product does not match the description in the quotation or have other quality problems, you can submit a return or other requirements to Ali. Third, you will be very clear about the status of your order from the time the order arrives until the product arrives in your hands.



Q4: Which countries will the products be sold to?

A4: Britain, Hong Kong, the United States, Germany, France, Australia, Ukraine and more than 100 countries and regions



If you have more questions, please feel free to contact us.
