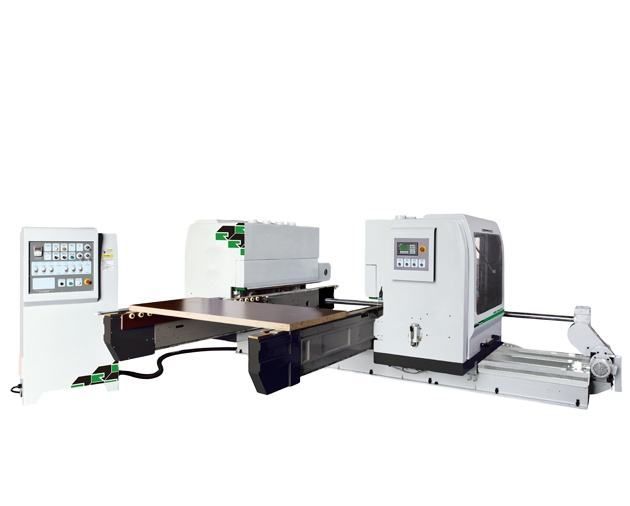

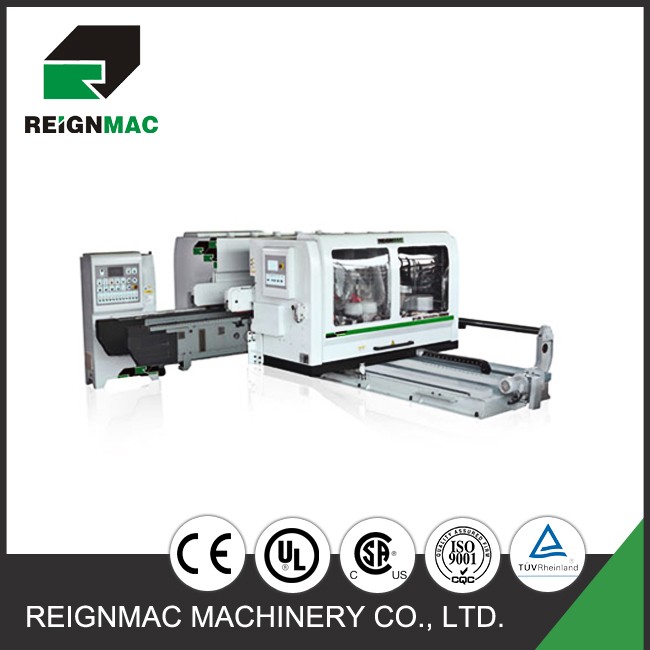

Wood double-end drilling machine Woodworking blind processing double-end tenoning machine

Wood double-end drilling machine Woodworking blind processing double-end tenoning machine

D120M excellent quality
1. The scribing saw and the first milling unit are equipped with jumping devices, which can effectively prevent tearing during processing.
2. The separate scribing saw and cutting saw design makes it convenient for customers to choose the upper shaft or lower shaft according to different product types.
3. The grinding device has a shock-absorbing function, and the grinding pad can automatically adjust its elasticity.
4. The unique polishing device can remove residual wood chips and other impurities to ensure that the surface of the workpiece is smooth and even.
5. Each spindle can be rotated to facilitate corner cutting, tenoning, grooving, etc.
6. Using widened high-precision linear track, the machine operates precisely and is wear-resistant. It ensures the accuracy when widening the working size and also ensures that your height requirements for setting the working width are met.
7. Track lubrication can reduce friction when the slider moves and improve the natural life of the track.
8. The cut-off saw is equipped with an 11KW motor and can be equipped with a crusher, which is very suitable for processing materials with large cutting volumes.
9. Rigid column and carriage design ensure the needs of heavy-duty cutting.
10. The extended chain belt design is more suitable for feeding large-sized plates.
11. The feeding belt is supported by roller bearings, which makes the movement more stable and reduces noise.
12. In order to ensure the high precision of each chain plate, we use high-hardness cast iron and undergo high-temperature treatment and CNC processing.
13. The upper pressure and lower conveyor are designed with two different speeds, which can realize standard feeding regardless of whether it is in front of or behind the fence point.
14. The independent transmission shaft seat structure makes the chain run more smoothly.
15. Each spindle is equipped with high-precision bearings, and the spindle speed of the milling unit reaches 7500r/min.
16. The height of the feeding fence is adjustable to better meet the benchmark positioning requirements of wooden boards of different thicknesses.
17. Each spindle is equipped with a reading device that can accurately display the spindle position.
18. The width between the two tracks of the machine base reaches 1105mm. The powerful spare parts effectively improve the stability of the machine.
19. Using variable frequency feeding, the feeding speed reaches 5~25m/min, improving productivity.
20. All parameters are set by PLC for easy viewing and control. Reduce labor and parameter setting time and effectively improve productivity.
21. Use high-quality electrical components to establish a complete electrical system to increase stability.
22. Through the automatic locking controlled by PLC, the linear track can be automatically locked. Not only can it reduce labor, but it can also ensure the stability of the machine base and improve the quality of the workpiece.
23. The pressure belt is made of high-quality materials and maintains good wear resistance.
24. Just input the working width and thickness values ​​into the PLC to control the width and thickness. The setting width accuracy is ±0.1mm. The workpiece is easy to position and easy to operate.
25. Equipped with discharging guide rollers.
26. The sealed safety enclosure is pneumatically controlled to reduce noise levels and improve extraction and operator safety.

 If you need more products and price list, please click here to send us an inquiry!

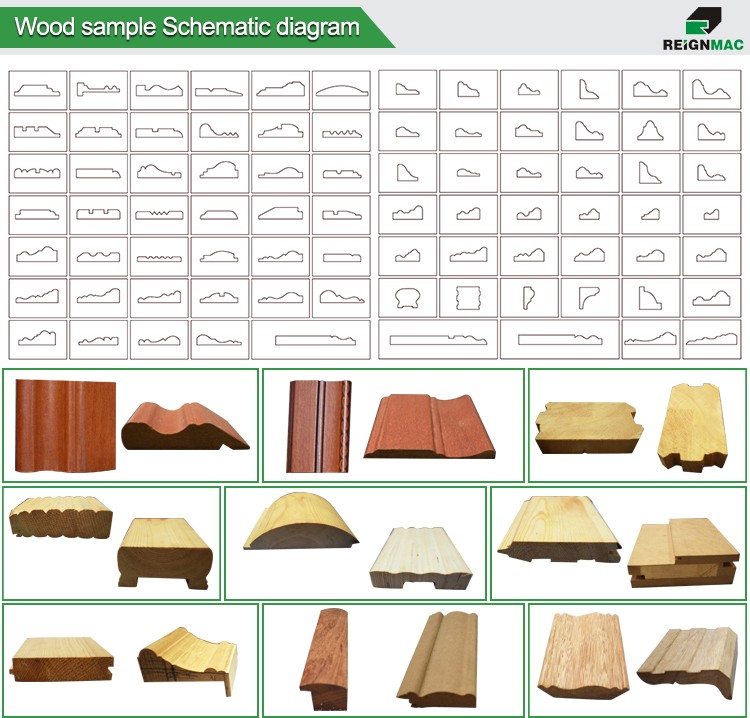

If you want to know more wood sample diagrams, please click here to contact us!
