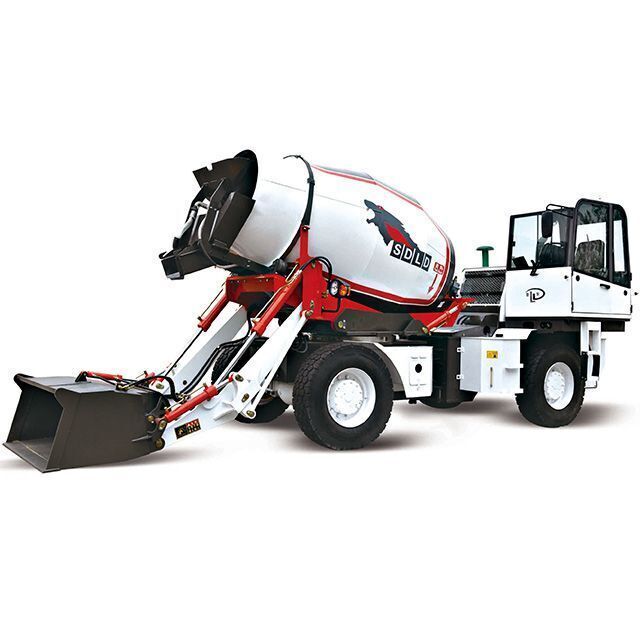

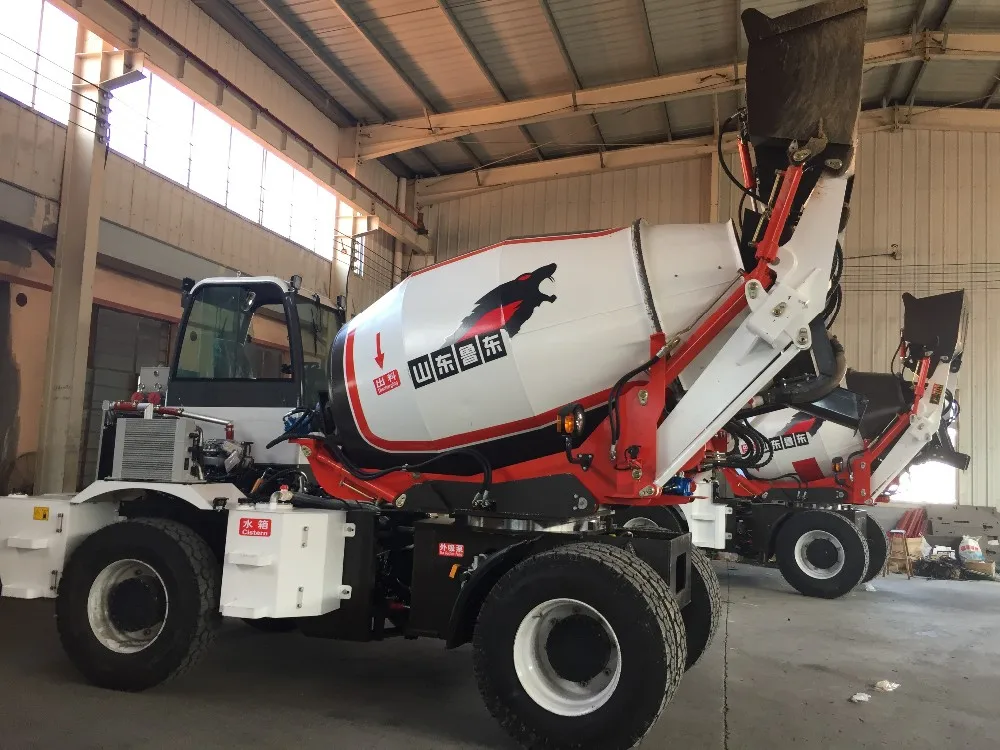

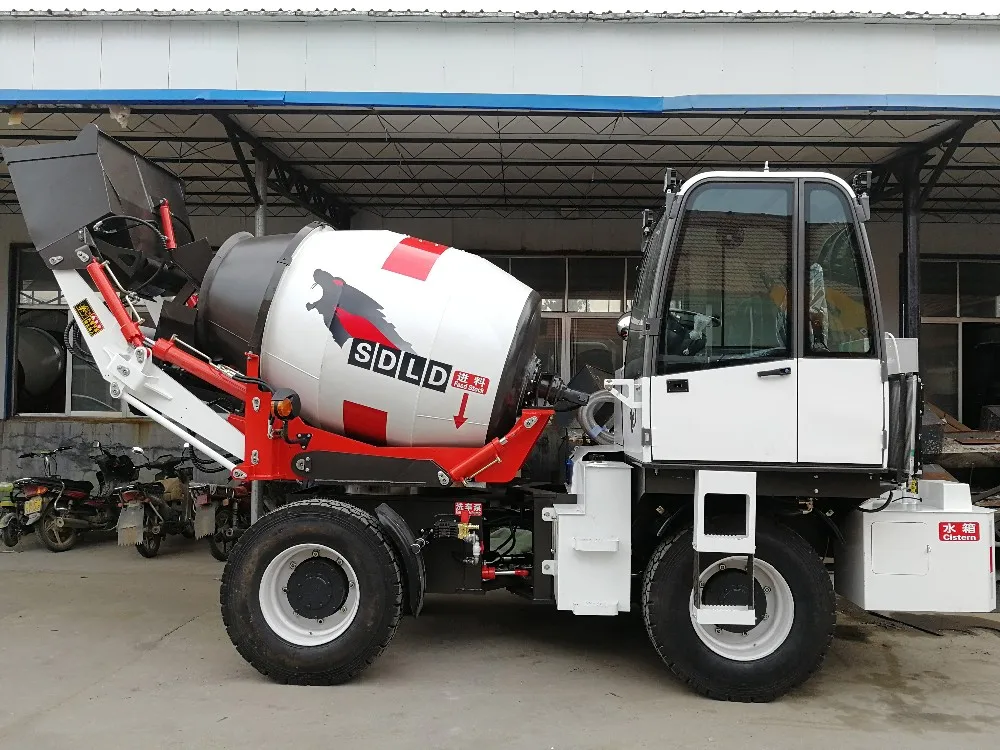

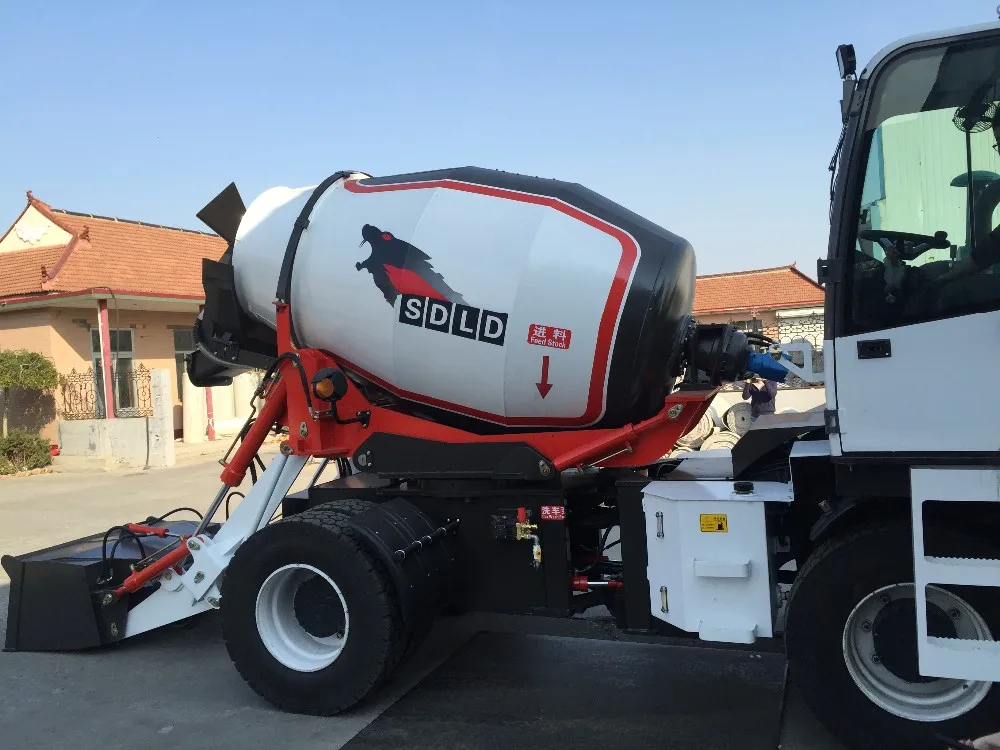

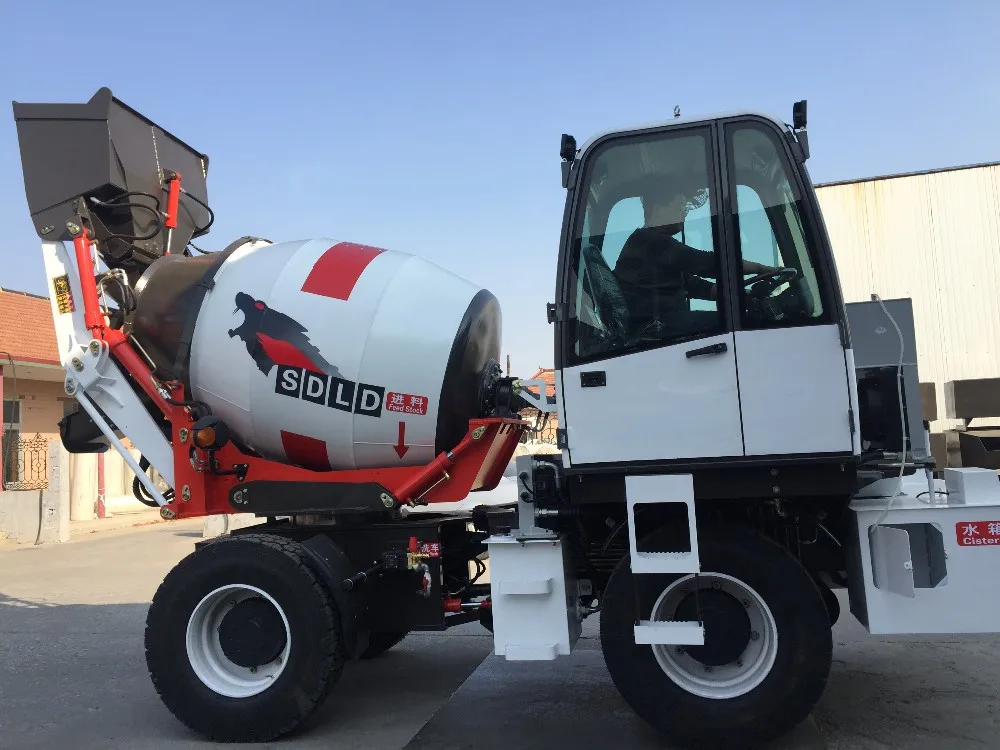

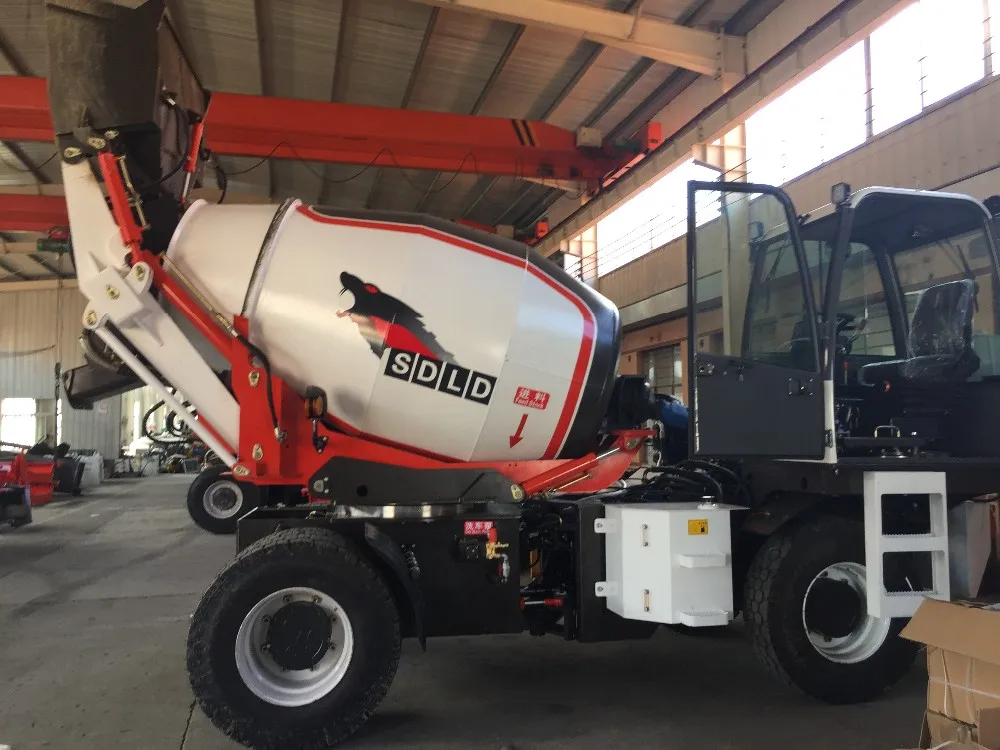

3 cubic meter self loading ready mix truck concrete mixer automatic loading transit mixer cement mixer truck

Loading system
1).Working principle: hydraulic system of cycloidal motor and gear pump

2).The cab operating table can be rotated, driving in both directions, no need to turn around, and it is convenient and quick to work; both the moving arm and the drum can be rotated horizontally 90° at the same time, a total of 180°.

3).The dumping function can make the unloading more thorough and faster.

4).Upgraded version of the bucket down function.

5).The concrete mixer is compact, easy to operate, with four-wheel drive,steering, and impressive off-road capability.

6).The material of the drum is manganese plate, which is more wear-resistant.

7).The pre-drive double-row high-pressure tires carry larger and safer loads.

8).Brake calipers improve braking performance.

9).Up and down hinged beaded bearings are more durable, 15 times more than traditional craftsmanship.

10).The front steering differential swing shaft, the larger tire (vacuum high pressure tire of five-layer steel wire), which has a bearing capacity of 10 tons, anti-tie.

   Front wheel (single wheel) can be equipped with two wheels explosion-proof.

11).Self-contained water tank, Water injection is quick and convenient

12).Car wash function: hydraulic high pressure car wash(150-200kgs pressure)

13).High-performance electronic fan radiator, not suitable for high temperature

Performance

1).working 24 hours a day with no stopping

2).4 - 6cans can be mixed in 1 hour

3).Top speed: 35 km / hour

4).Turning radius: 4.7 m

5).When fully loaded, the climbing ability is up to 30°.

Comfort and visibility

1).Pilot operation, flexible and convenient, the touch screen quantitatively adds water to make the mixing more uniform, more in line with the standard

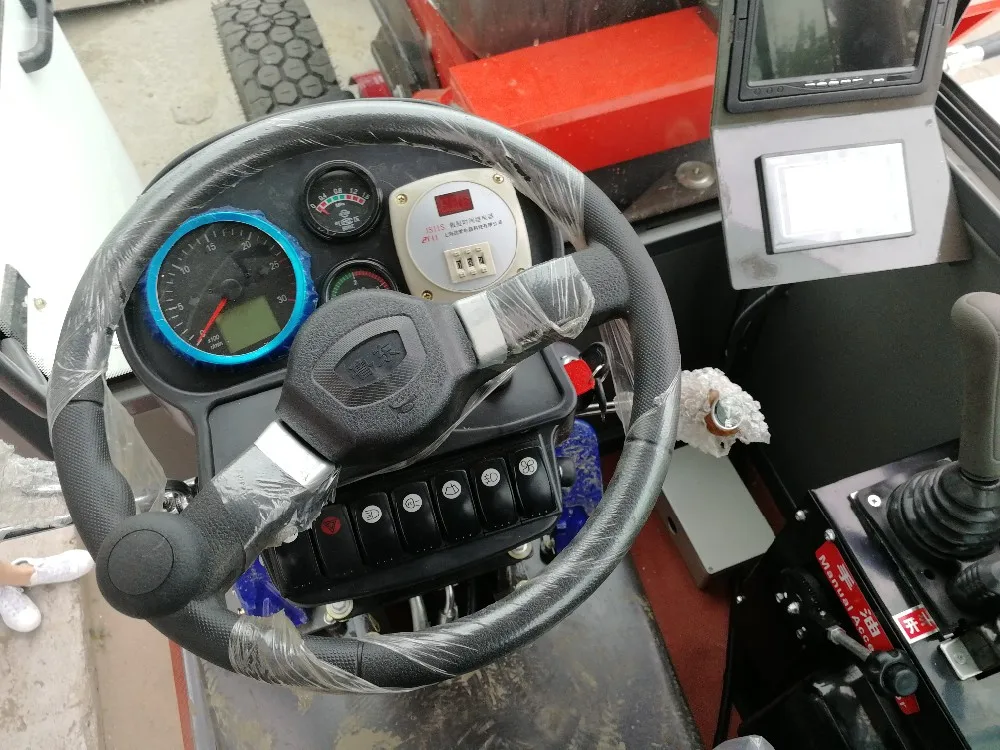

2).Multi-function joystick make operator easy to control.

3).The cab has fan, air conditioner (optional), comfortable and cool.

4).Reflector and camera, increases the range of vision,improves work efficiency, eliminates safety hazards and blind spots in the cab .

5).The spacious cabin windshield and specially designed loading arm greatly improve operational visibility.

Ergonomics and safety

Protecting the safety of workers is an obligation no organization can neglect nowadays. We are proud of this machine, which has been specially designed to provide full handling, the best ergonomic features for the driver and the latest safety devices available on the market. Our machines are in fact equipped with fan and air conditioner, with ergonomic controls and multi-function joystick, and with reversible driver's seat.Reflector and camera, increases the range of vision,help the operator observe the situation around .

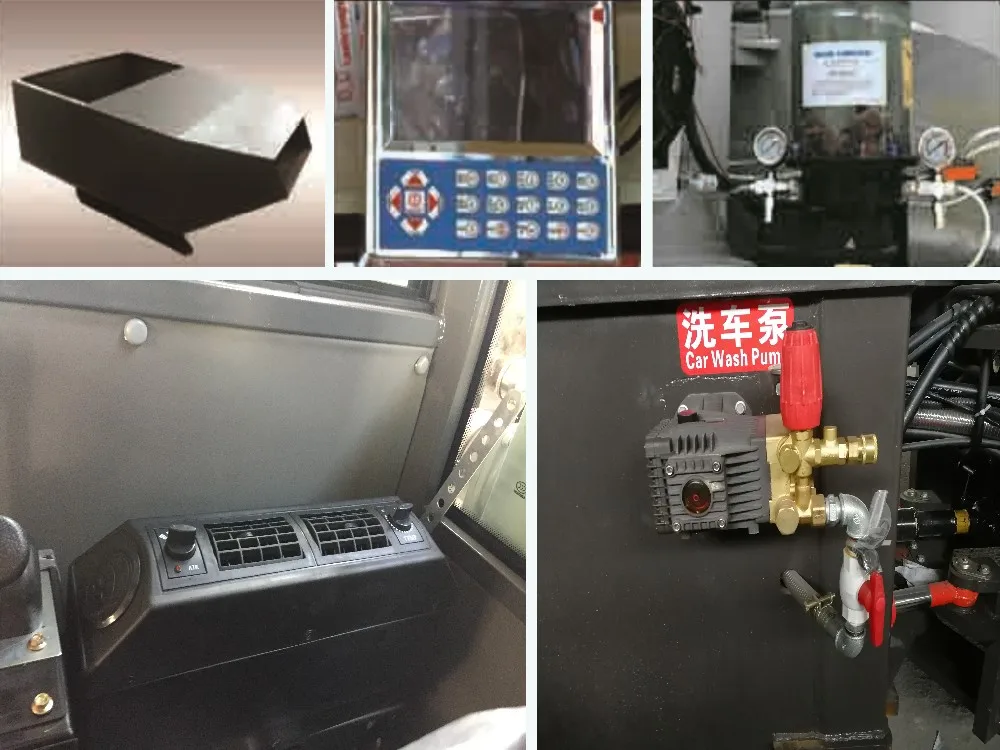

Standard

1).Cement hopper

2).air conditioner

3).High pressure car wash

Optional

1).lubrication management systems

2).Hydraulic electronic scale

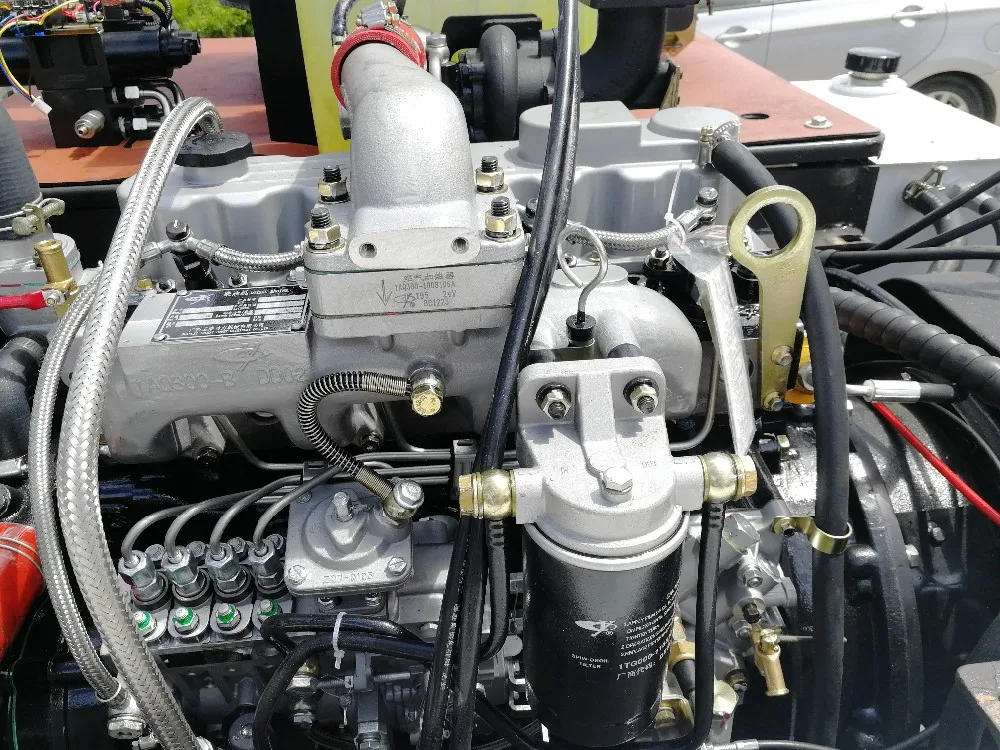

Engine

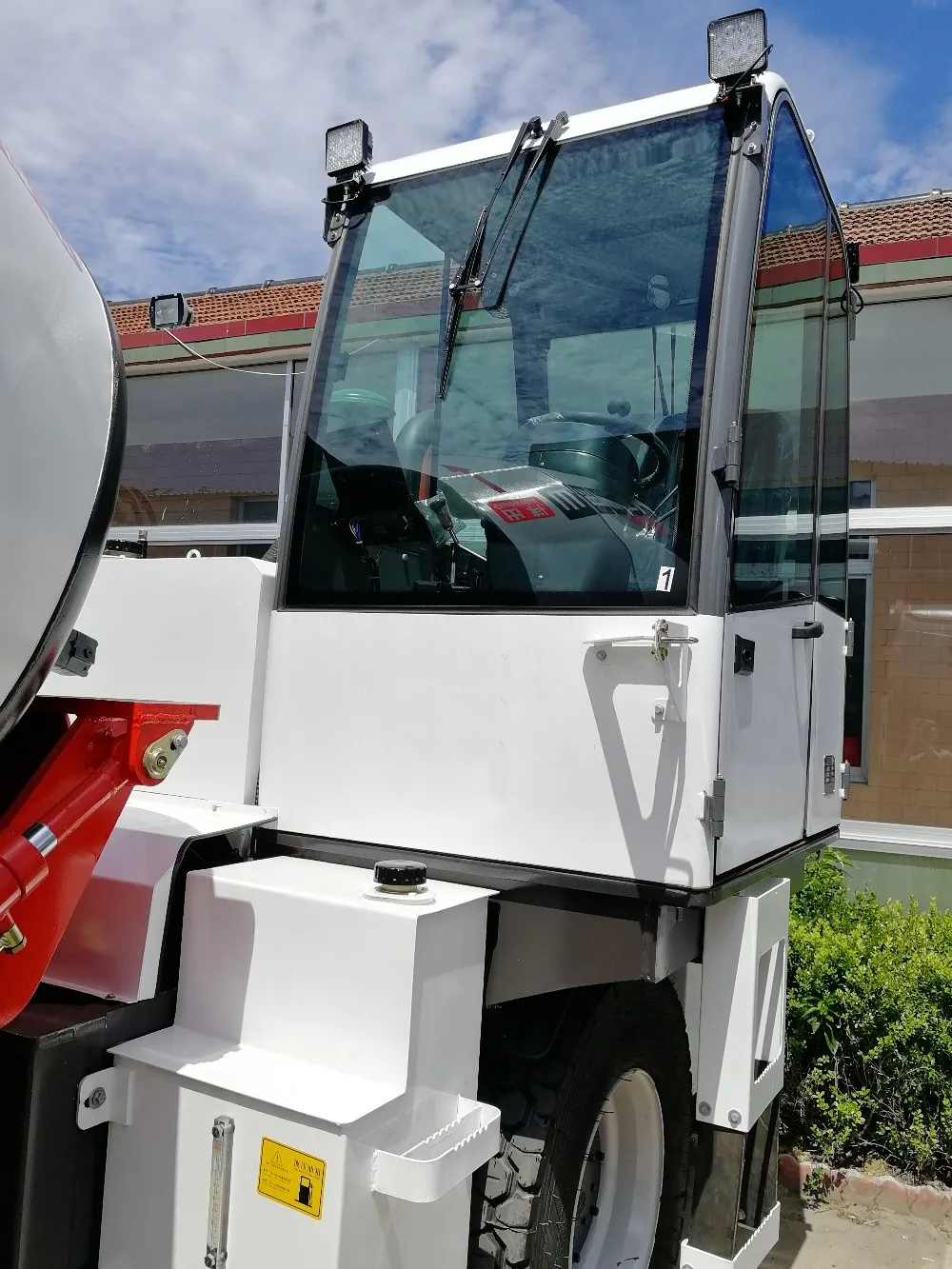

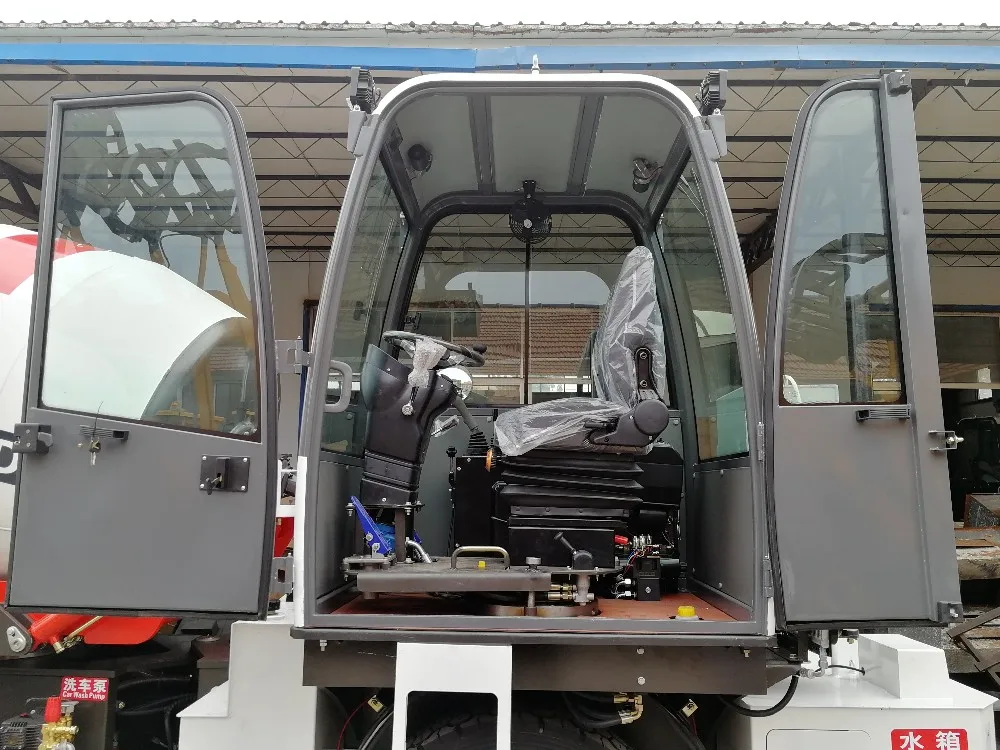

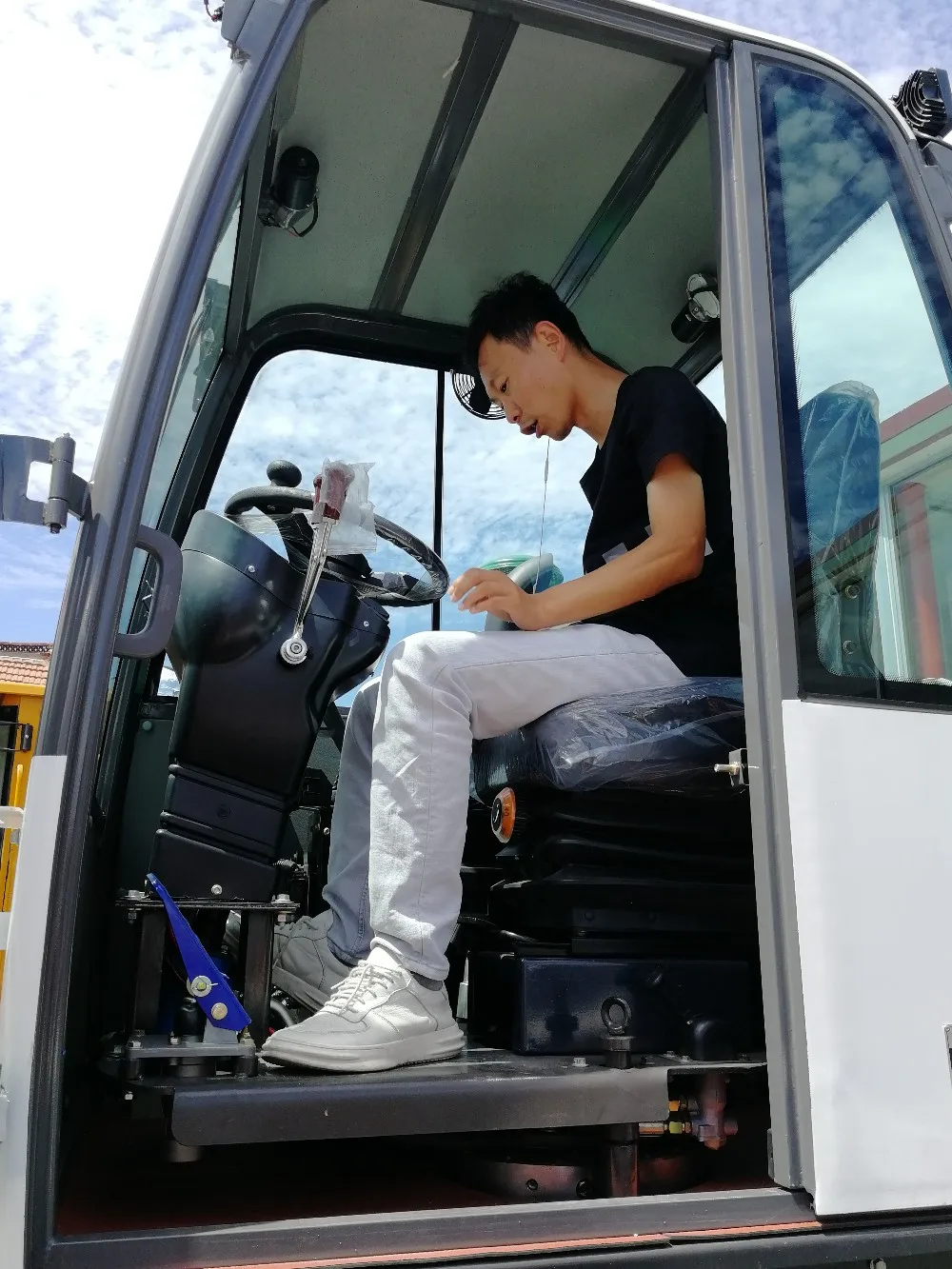

The rear-left cab(Bidirectional):

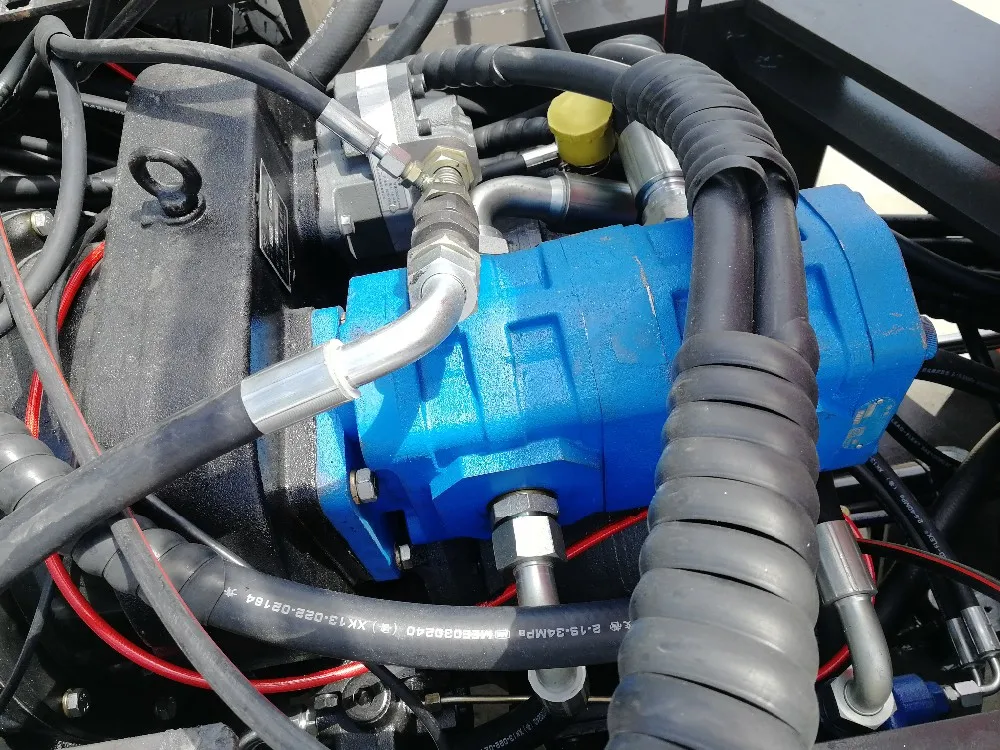

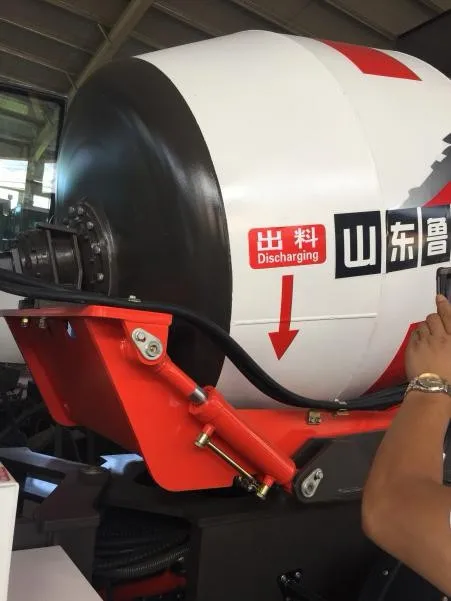

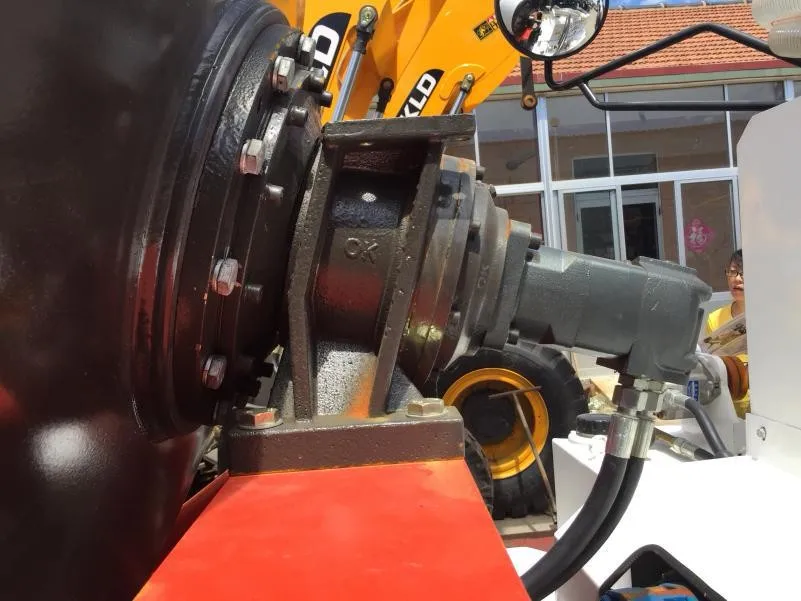

Drum, reducer, hydraulic motor

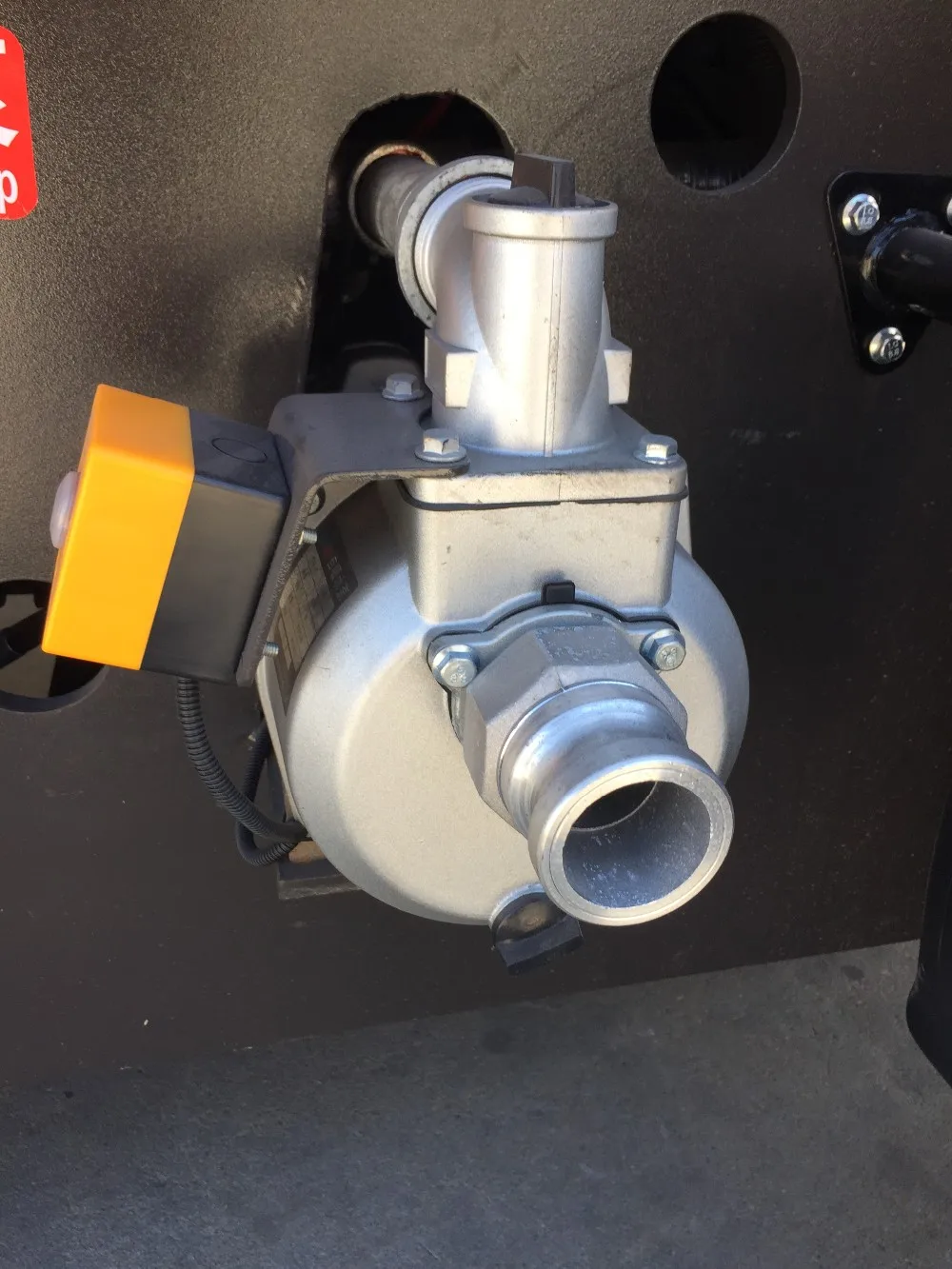

External suction pump

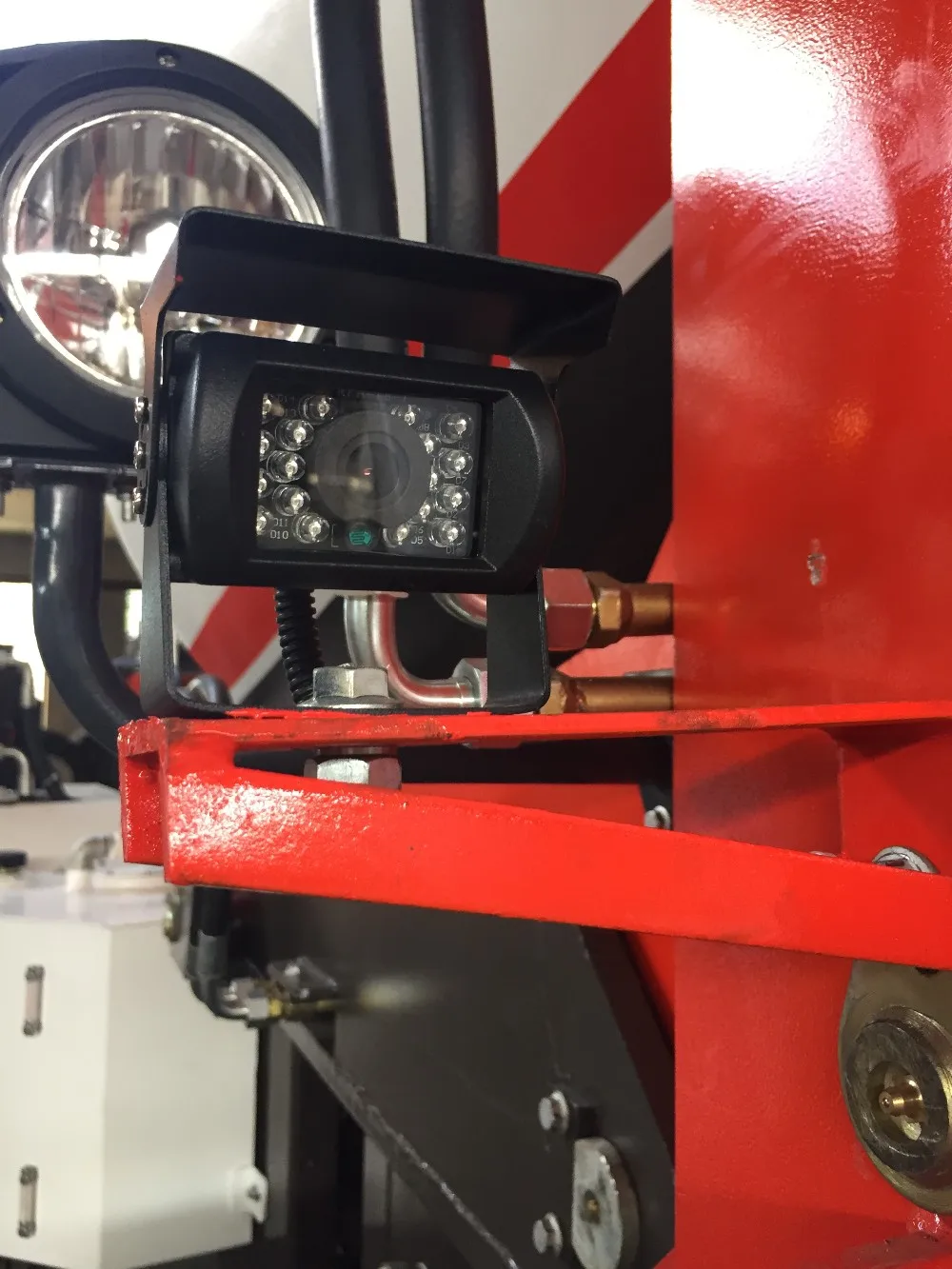

Reflector and Camera

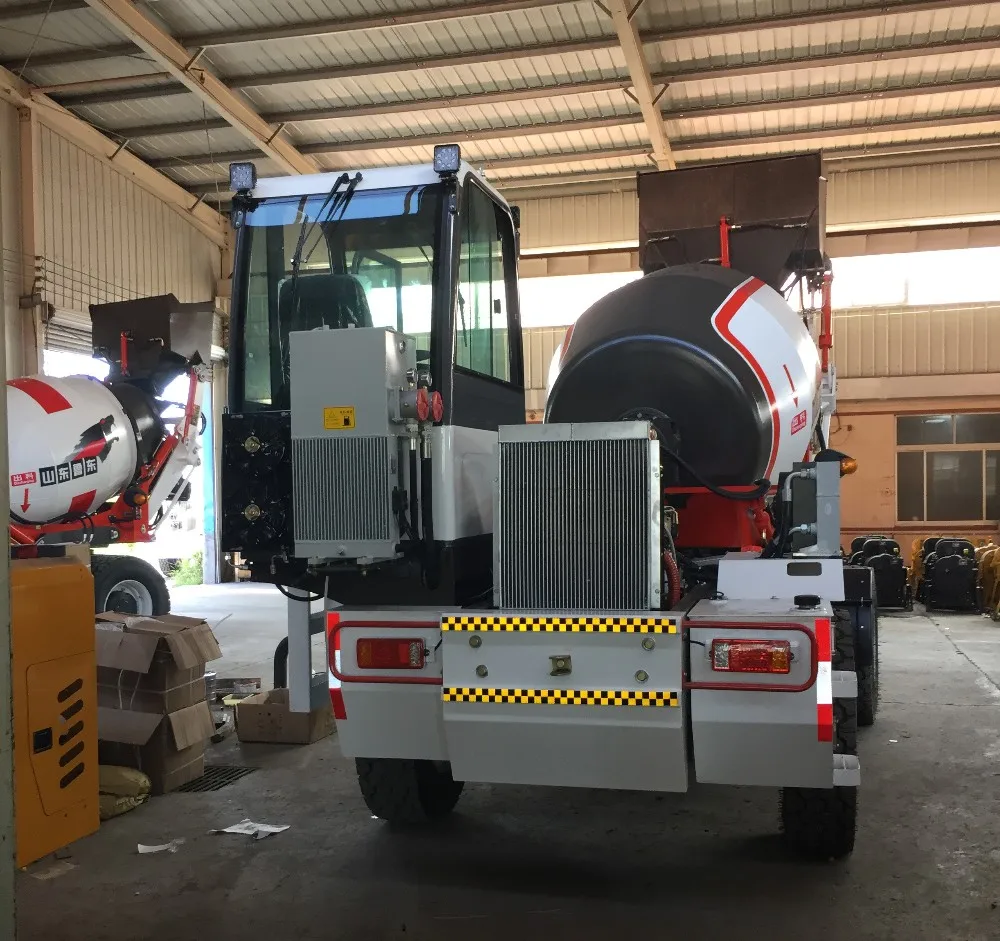

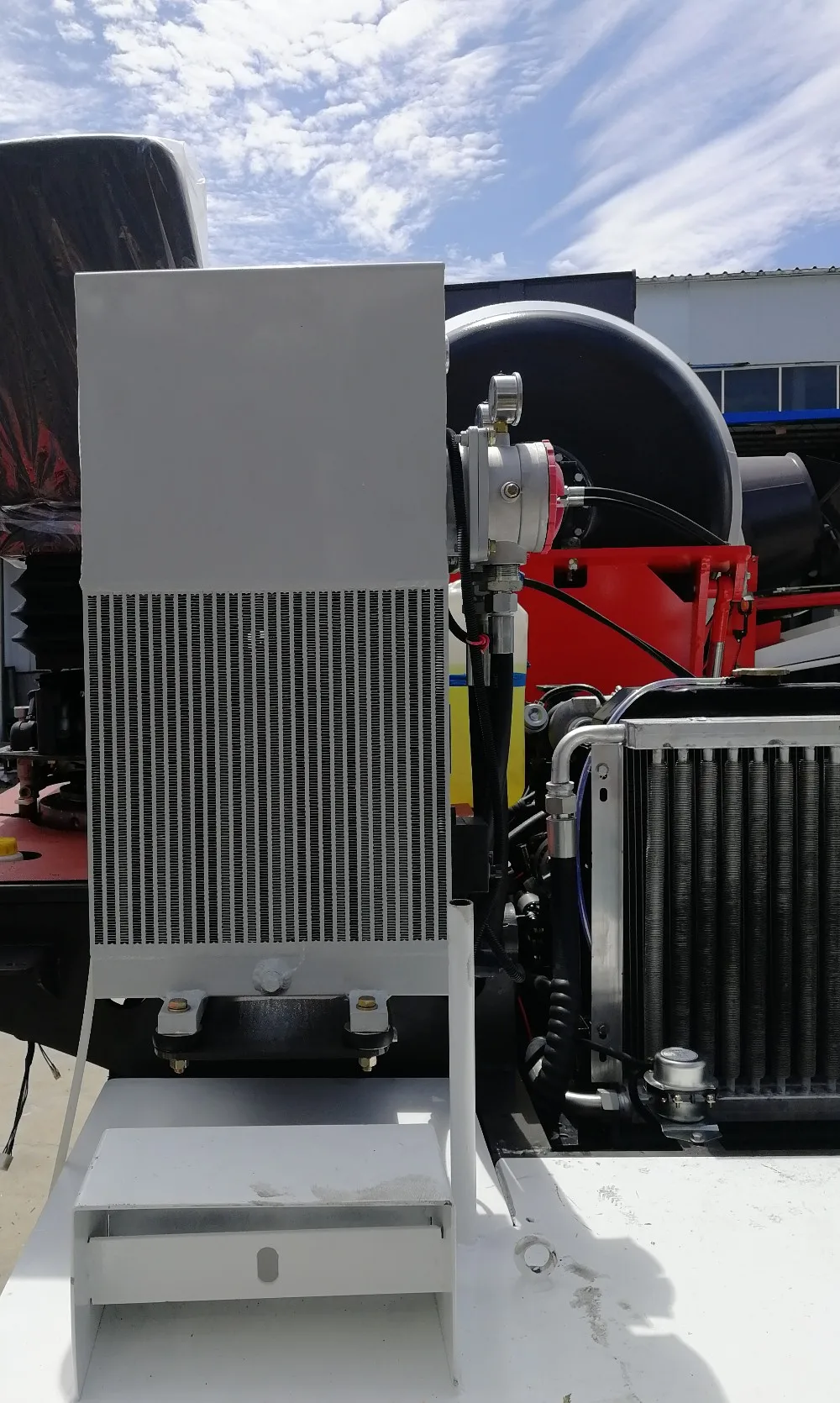

Hydraulic tank and heat sink

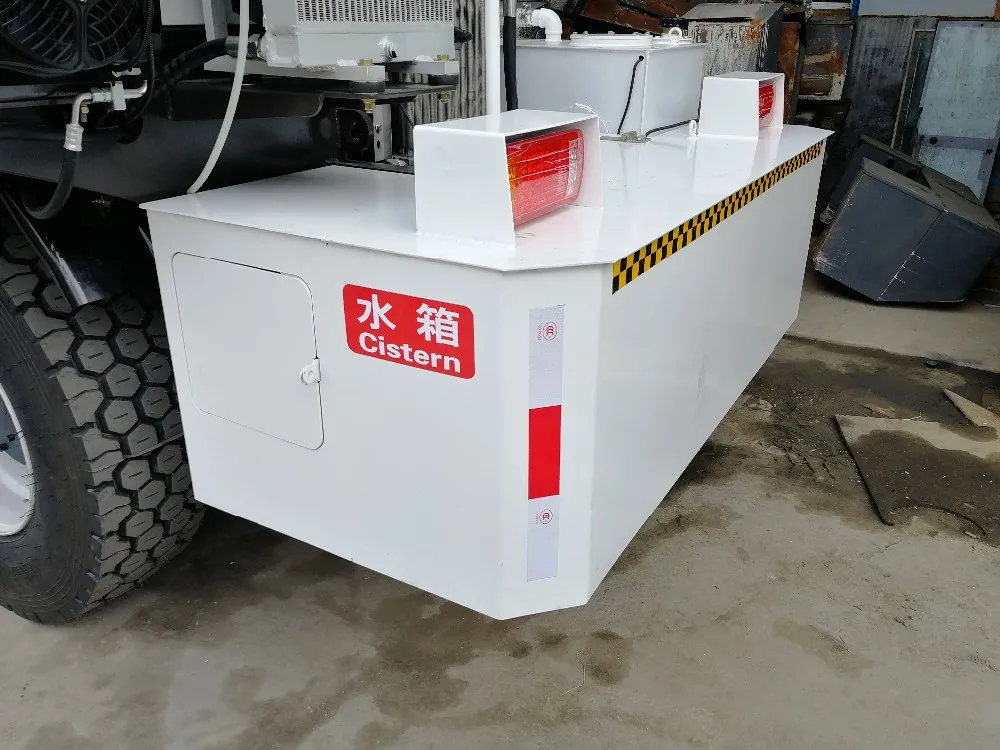

Water tank

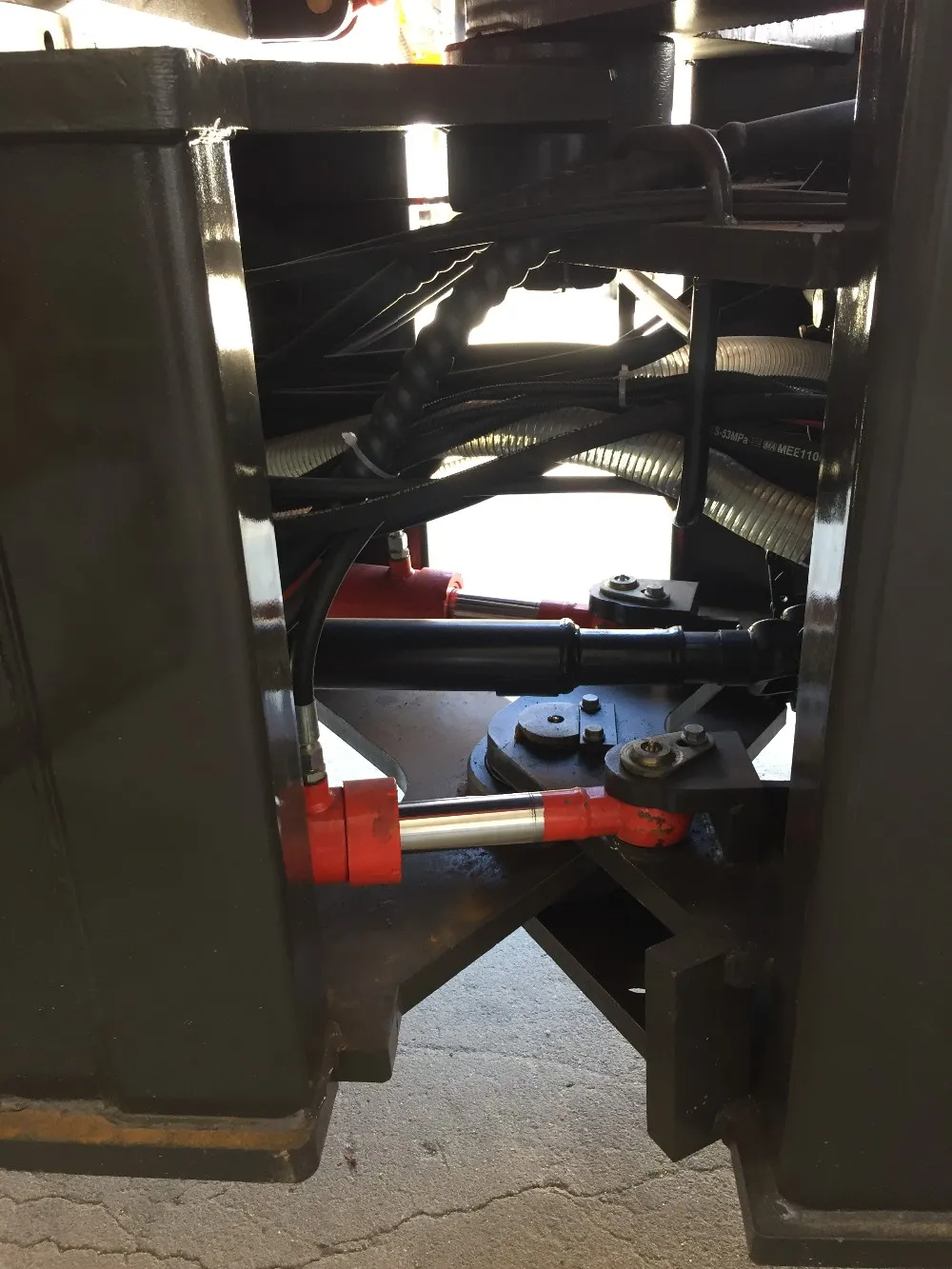

Upper and lower hinged ball bearings

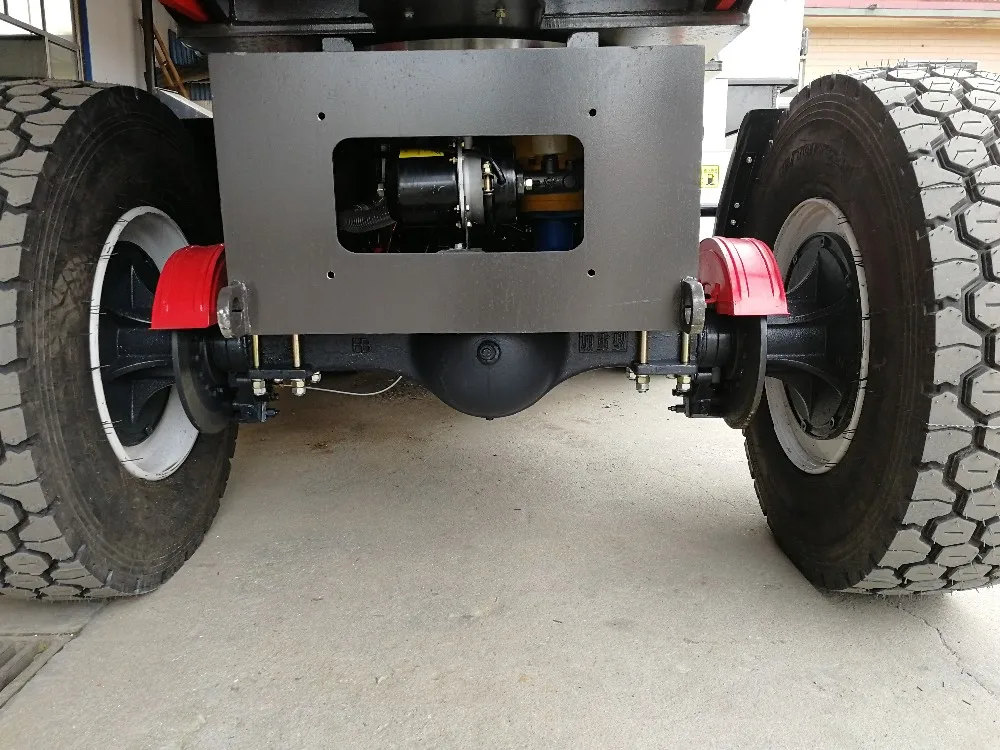

Service port and drive axle

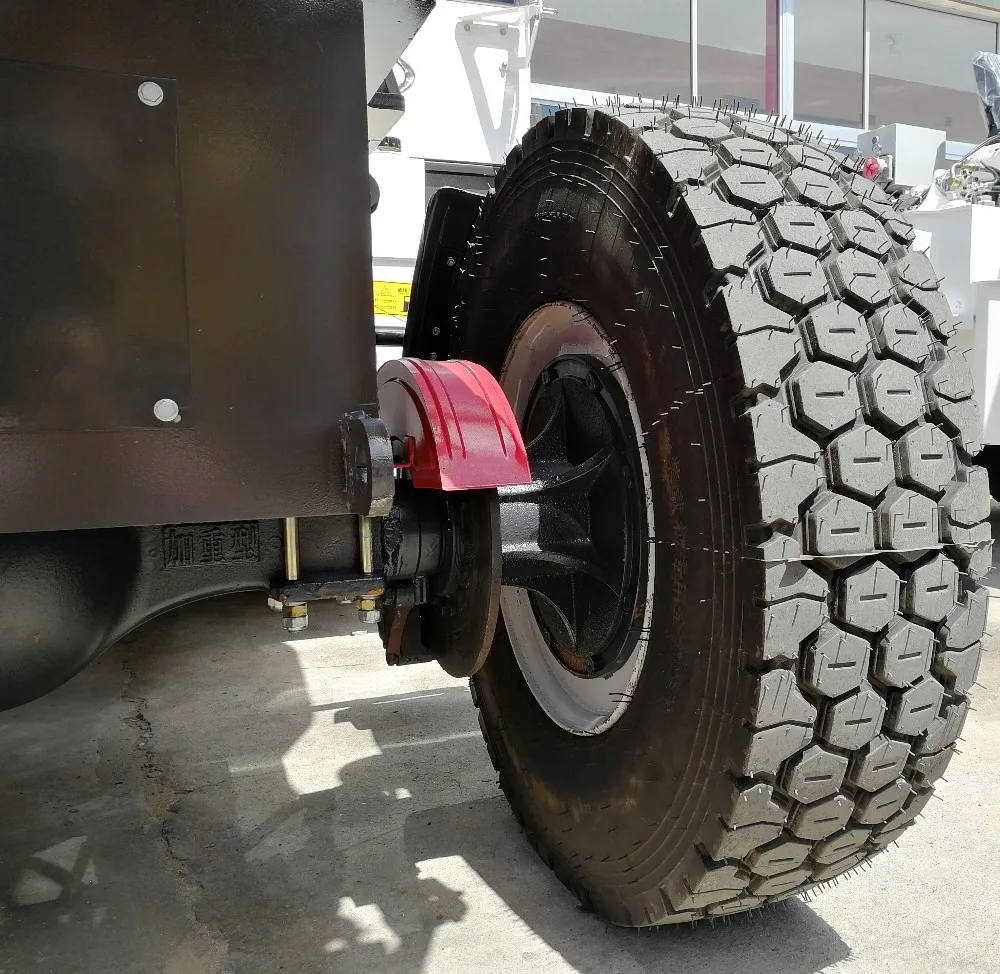

Tires

(vacuum high-pressure tires of five-layer steel wire), one tire has a bearing capacity of 10 tons, anti-barding and explosion-proof.

Air conditioner

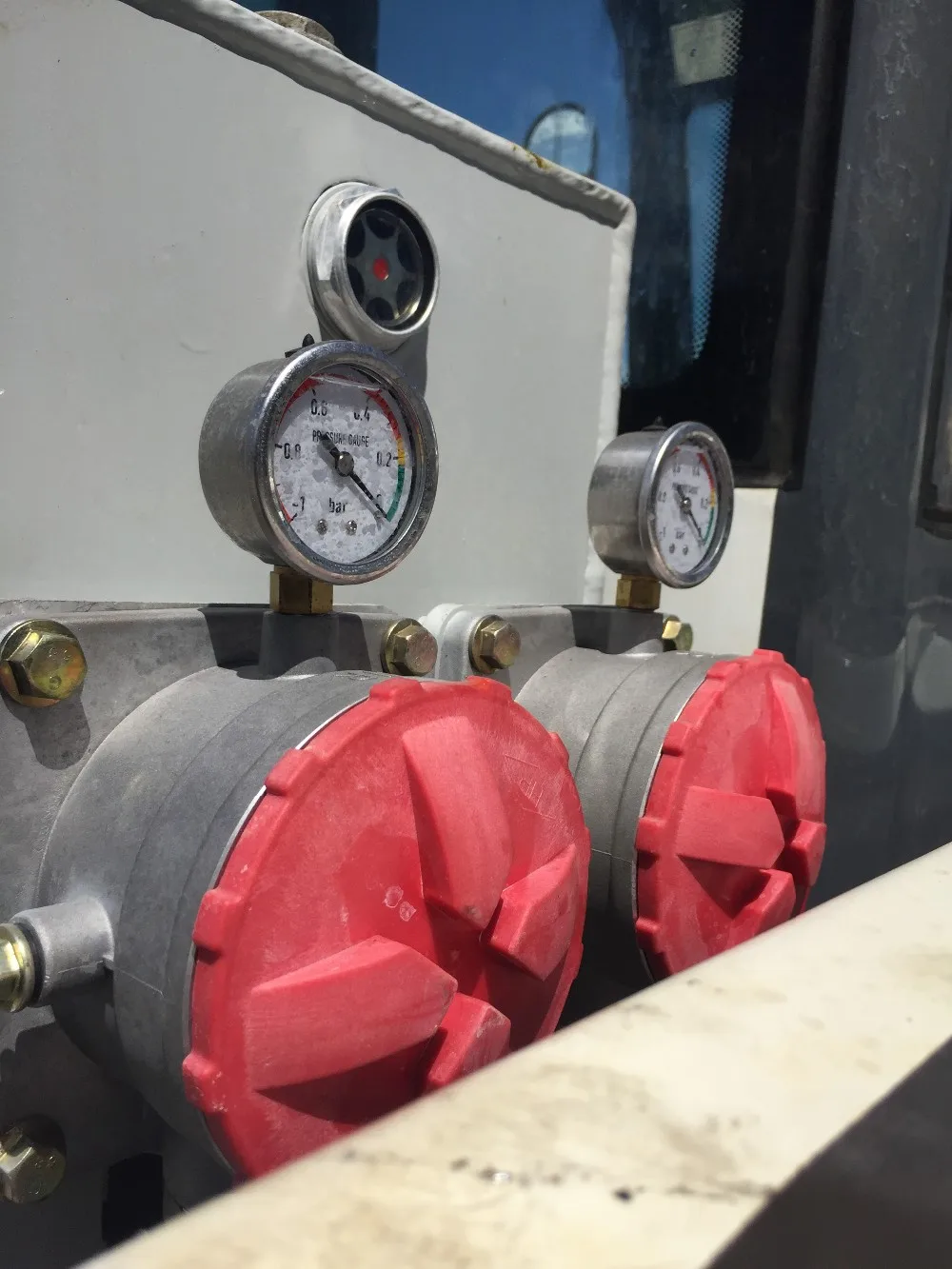

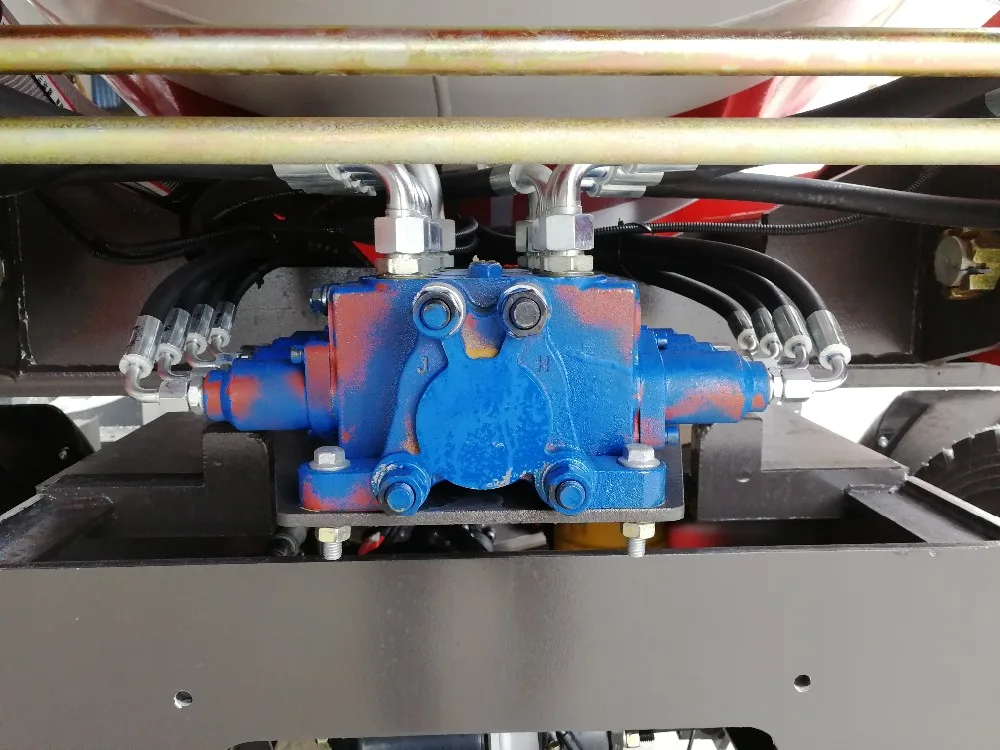

Hydraulic multi-way reversing valve

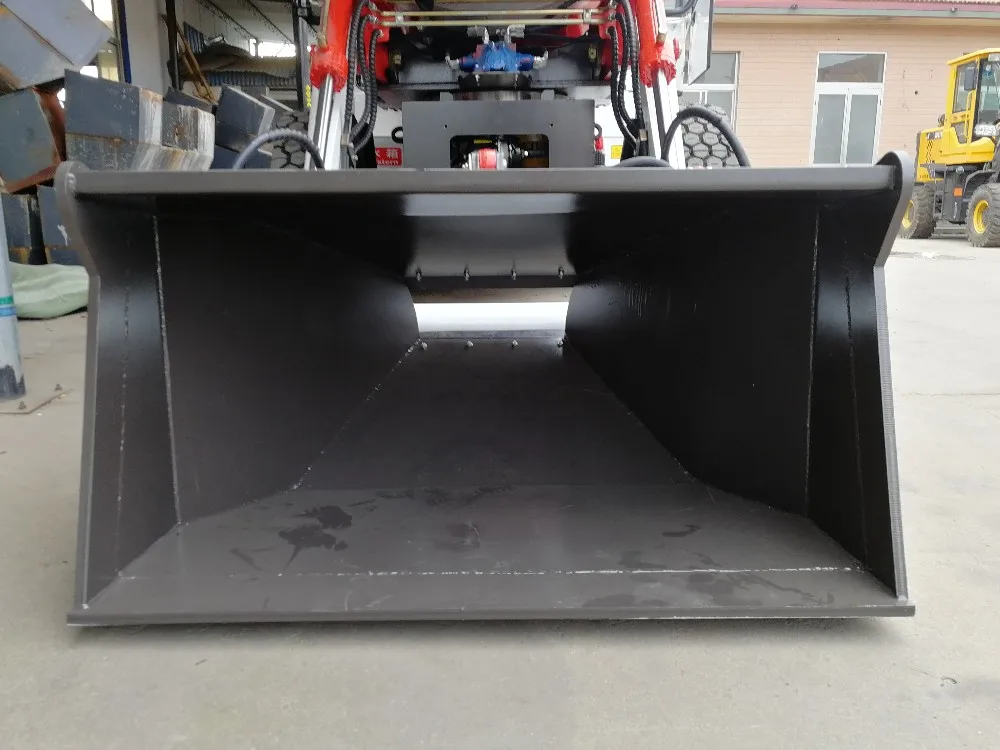

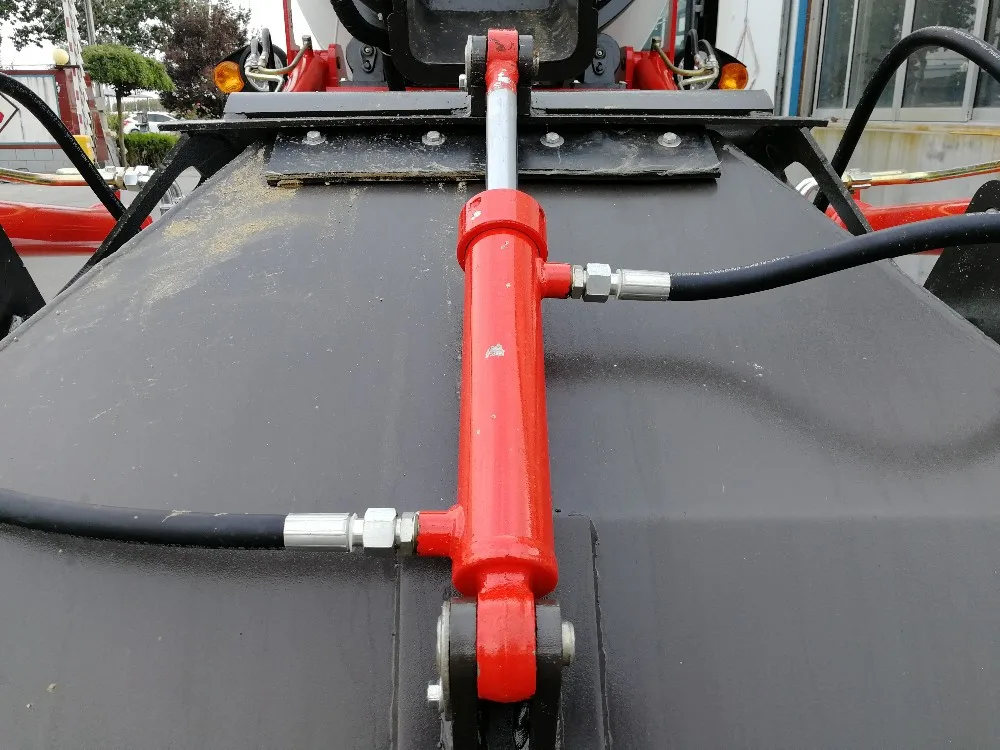

Bucket

Other details

1). Reduce the cost of consumption

No need to use a mixer, save 100 degrees every day, no concrete carrier, no loader loading, and save at least 3 workers per day!

2). One-piece feeding, convenient transportation and efficient production

It can replace transport, mixer and loader for superior handling, flexibility and autonomy.

3). Unloading is efficient

Tiltable unloading function for more complete discharge and faster speed

4). High-end configuration, superior performance and simple operation

The material of the drum is manganese plate, which is more wear-resistant.

Up and down hinged beaded bearings are more durable, 15 times more than traditional craftsmanship

Camera and mirror to increase line of sight and eliminate blind spots in the cab

Standard engineering tire, good air tightness, with certain safety and convenience

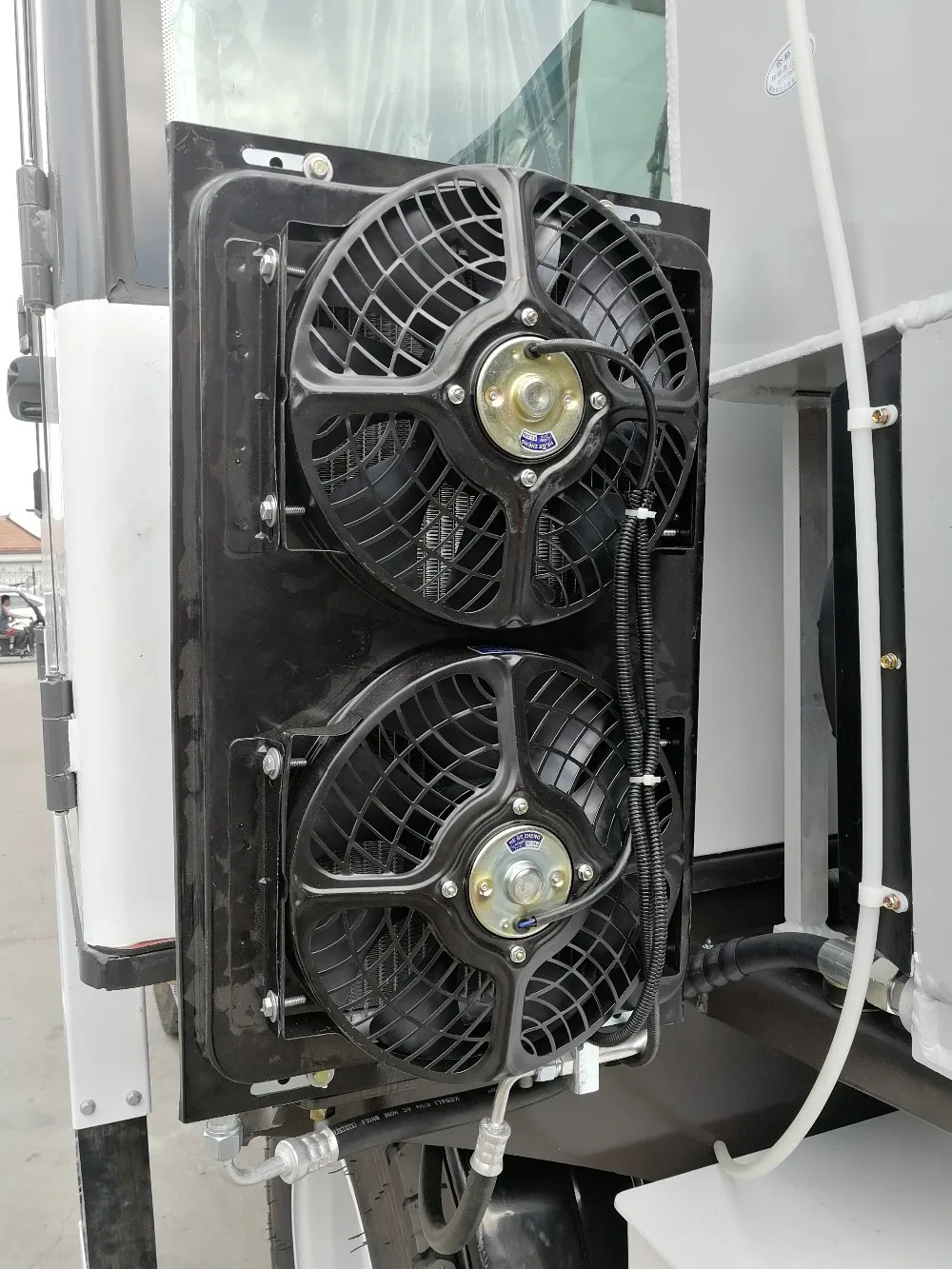

High performance electronic fan heater

Self-contained water tank, work water is quick and convenient

Self-contained car wash gun, easy to wash car

Self-contained fan, air conditioning (optional), refreshing and not stuffy during the whole work process

5). Factory direct sales

No middlemen make a difference
