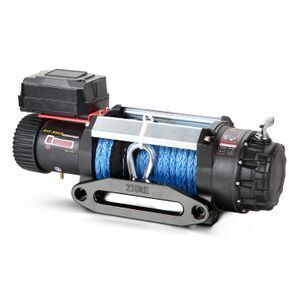

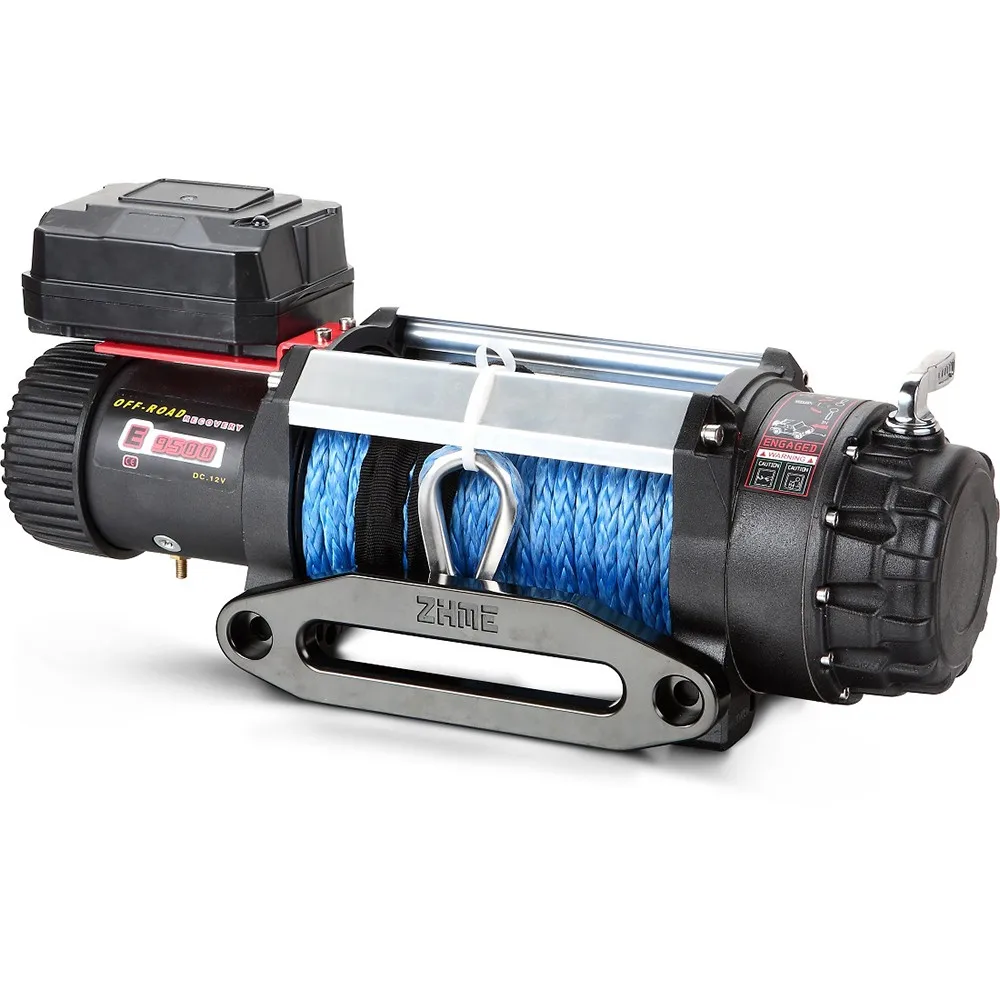

12500lbs pull capacity 4x4 application electric 12v power source cable winch with synthetic rope

Supplier: Ningbo Yinzhou Armor Import And Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Harold Wang
Price: $335.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Application:	Auto;	Power Source:	Electric;
Motor:	6.5hp /4.8kw,12V DC;	Braking system:	Automatic cam break system;
Capacity:	12500lbs;	G.W.:	31kgs;
Gear Train:	3 stage planetary 262:1;	Dimensions:	552mm x 170mm x 214mm;
Mounting bolt pattern:	254mm x 114.3mm;	Model Number:	E12500S;
Synthetic rope:	11mm x 24m;	Place of Origin:	Zhejiang China;
Single package size:	62X36X26 cm;	Brand Name:	ARMOR;
Selling Units:	Single item;	Capacity:	12500Lbs(5670kgs)single line;
Item:	E12500S;	Package Type:	strong export carton then on the pallet;
Package Preview:	https://sc01.alicdn.com/kf/HLB1N.4cRQvoK1RjSZFDq6xY3pXap.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1PBpdRFzqK1RjSZFoq6zfcXXag.jpg_640x640.jpg;	Single gross weight:	31 KG;

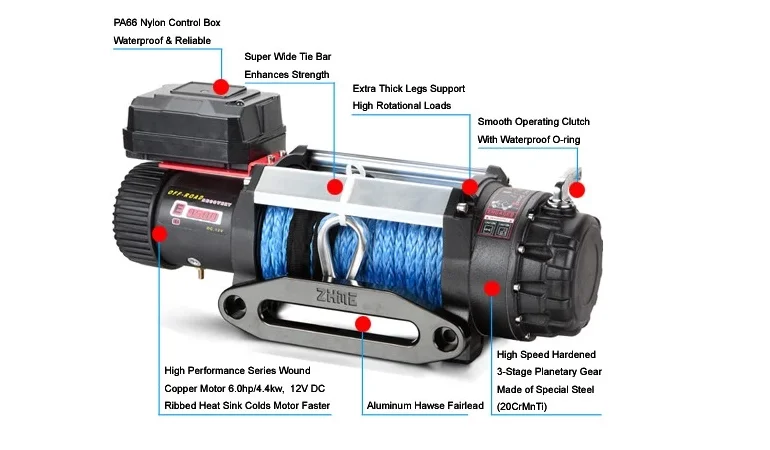

Product Detail

Specification

Specification
Rated line pull	12500Lbs(5670kgs)single line.
Motor	Series wound 6.5hp /4.8kw,12V DC 8.1hp/6.0kw,24V
Gear Train	3 stage planetary
Gear ratio	262:1
Cluth	Sliding Ring gear
Braking action	Automatic in the drum
Fairlead	Roller fairlead for wire rope, Aluminum fairlead for synthetic rope

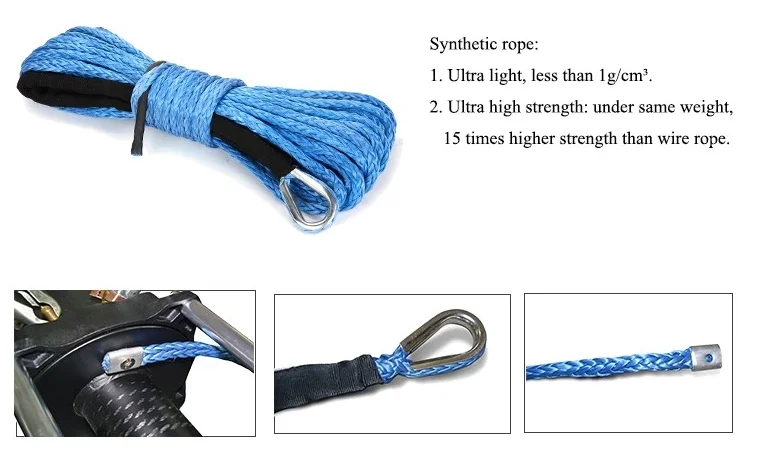

Rope	Wire rope 9.5mm ×25m ,Synthetic rope 11mm×24m
Drum size	2.5''x9.0''(63mmx224mm)

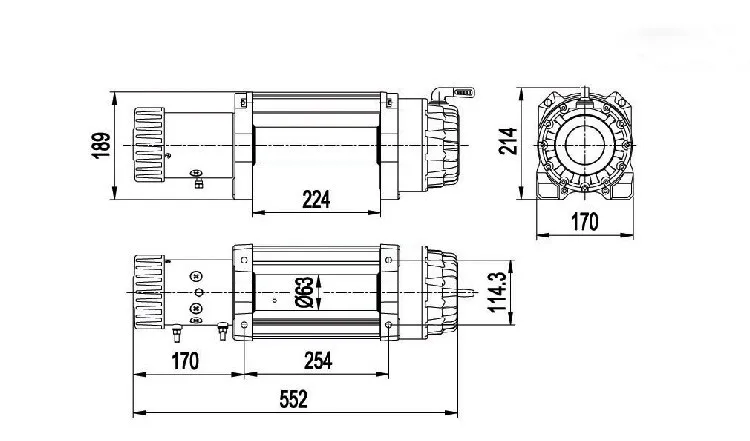

Dimensions	23''x6.7''x8.4''(552mmx170mmx214mm)
Mounting bolt pattern	10''x4.5''(254mmx114.3mm)
Battery	Recommended 650 CCA minimum for winching 25 square mm,72''(1.83)
N.W	93lbs(42kgs)
Packing	620mmx200mmx390mm (400pcs per 20' container)

Line speed and motor current(first layer)
Line pull	Lbs	0	2000	4000	8000	12500
Line pull	Kgs	0	907	1814	3629	5670
Line speed	FPM	25.6	12.5	8.9	7.3	6
Line speed	MPM	7.8	3.8	2.72	2.24	1.8
Motor current	Amps	65	100	130	200	290

Line pull and cable capacity
Layer of cable		1	2	3	4
Rated line pull per layer	Lbs	12500	10750	9460	8040
Rated line pull per layer	Kgs	5670	4876	4290	3647
Cable capacity per layer	Ft.	15.75	36.4	61.3	85.3
Cable capacity per layer	M	4.8	11.1	18.7	26

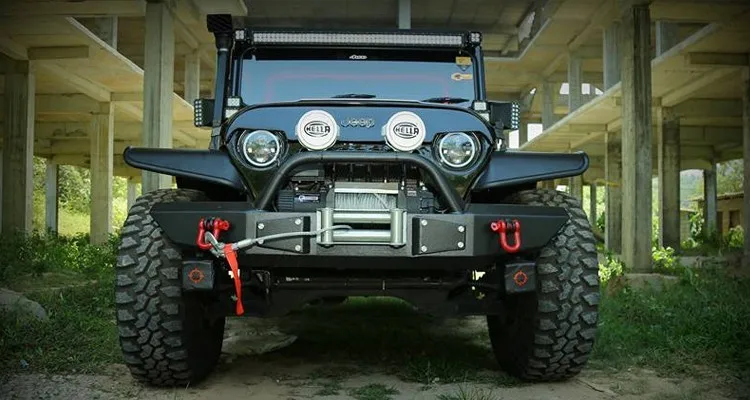

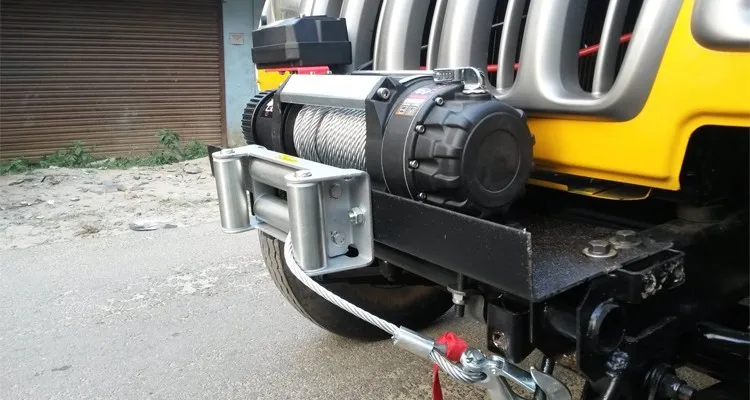

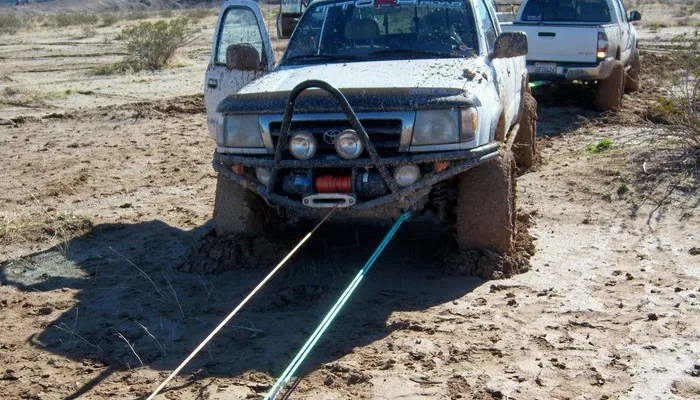

Application

Warranty

Mechanical Parts Warranty

Two years warranty of mechanical parts including gears, drum, supports, brake, but rope is out of warranty.

Electrical Parts Warranty

One year warranty of electric parts including motor, relay, remote, wireless remote, etc..

Production Ability

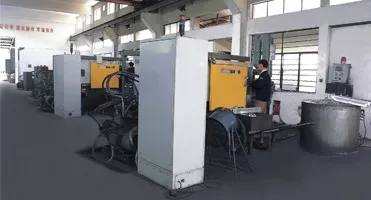

Die Casting Workshop

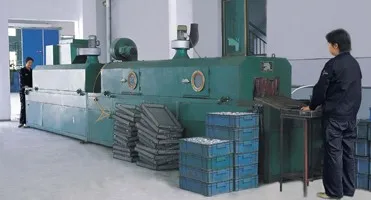

Cleaning Line

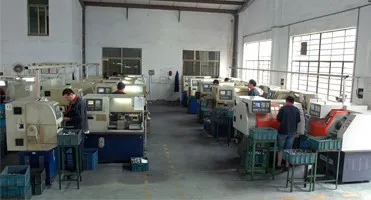

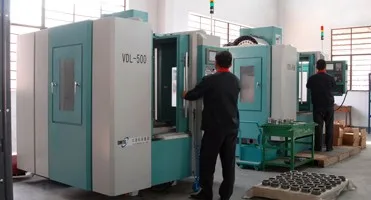

CNC Machines

CNC Center

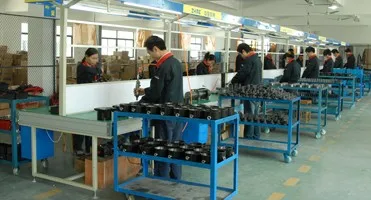

Assembly Lines

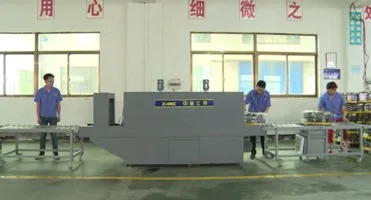

Auto Packing Line

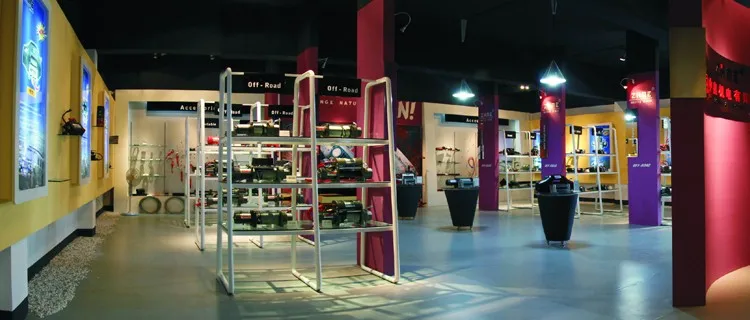

Showing Room

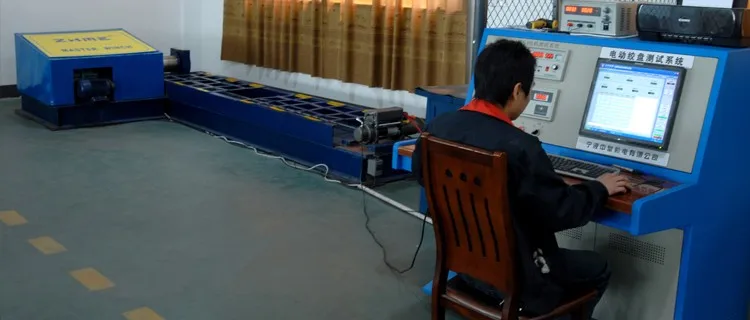

Testing

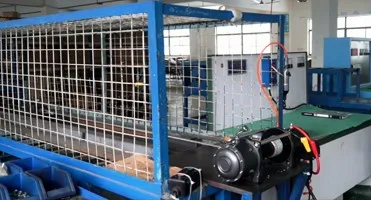

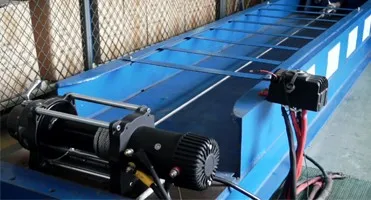

Integrative Testing of Winch

Voltage & Current Testing

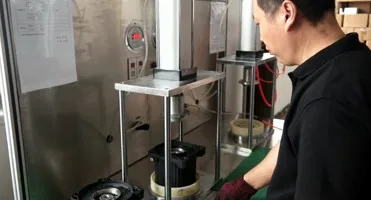

Brake System Testing

Waterproof Testing

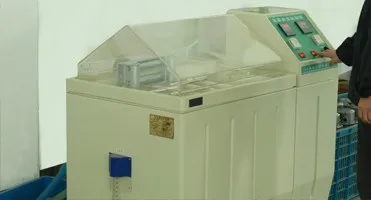

Salt Spray Testing
