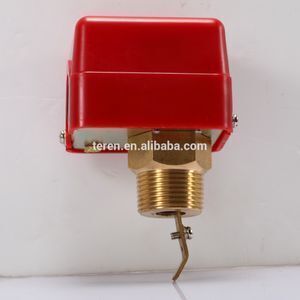

Paddle type low water flow control switch for controlling the flow rate of water

Supplier: Shenzhen Teren Control Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Lucy Zhang
Price: $8.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Media Type:	Liquid;	Packaging Detail:	one unit in one paper box;
Operating Temperature:	5~55℃;	Place of Origin:	Guangdong China;
Port:	Shenzhen, Hongkong;	Medium connection:	Brass, 1"NPT;
Working pressure:	1.0MPa;	Cover materials:	ABS;
Payment Terms:	L/C,T/T;	Brand Name:	TEREN;
Electrical connection:	Screw terminals;	Environment temp:	5~50℃;
Contact:	SPDT, 10A/250VAC;	Weight:	0.5KG;
Flow Rate:	1-30L/min;	Switch body materials:	steel;
Supply Ability:	1000 Piece/Pieces per Week;	Model Number:	WFS;
Contact cycle:	500K;	Paddle materials:	Stainless Steel;

Product Description

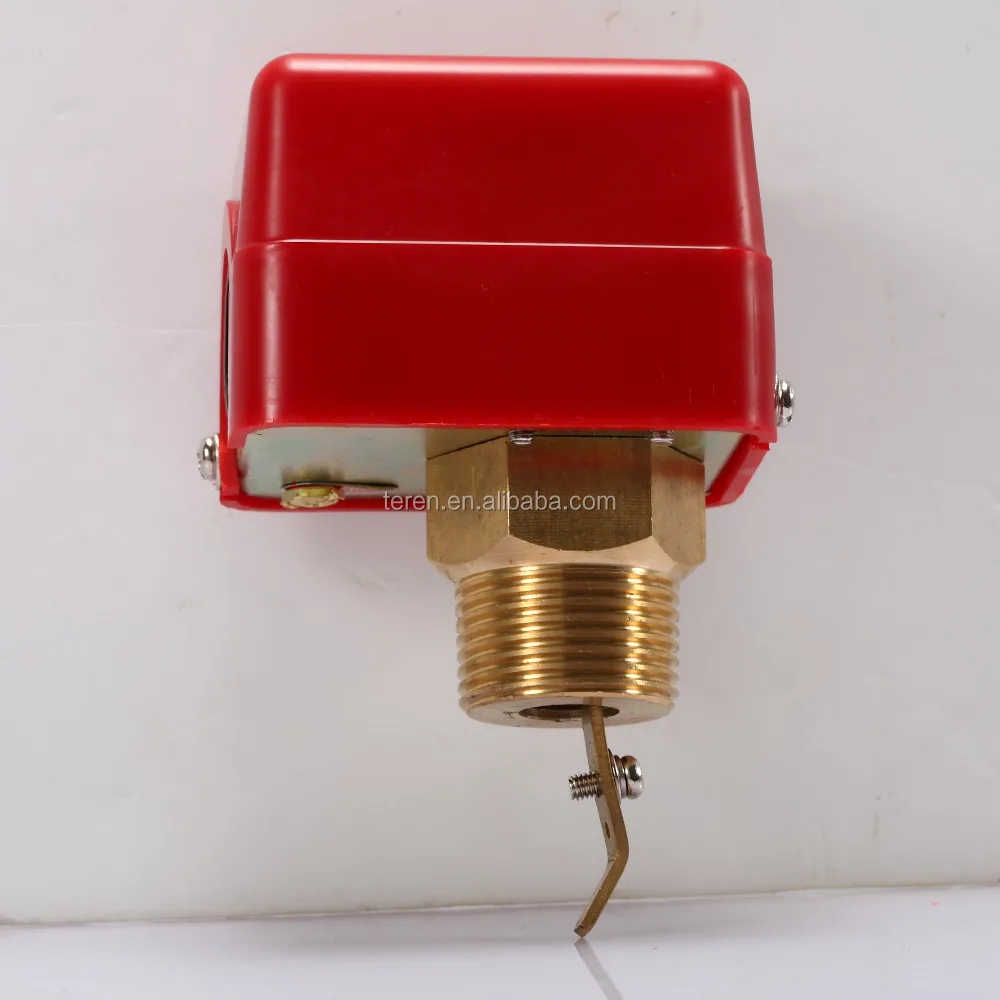

WFS Water Flow Switch

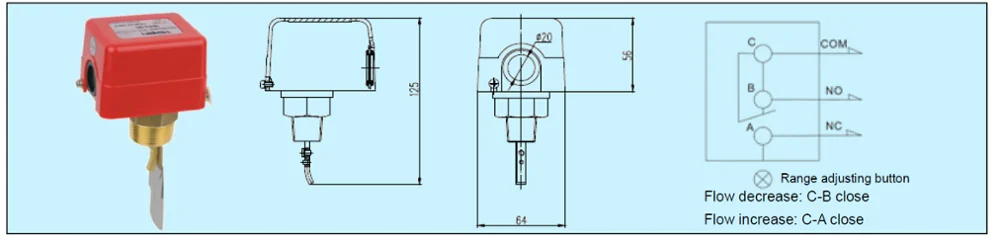

WFS Water Flow Switch as below

Applications & Features

The paddle type WFS is designed to control the flow rate of water, chilled water, cooling water or other liquid system.

Specifications

Contact: SPDT, 10A/250VAC
Paddle materials: Stainless Steel
Medium connection: Brass, 1¡± NPT
Electrical connection: Screw terminals
Switch body materials: steel
Cover materials: ABS
Contact cycle: 500K
Environment temp.: 5~50¡ãC
Medium temp.: 5~100¡ãC
Working pressure: 1.0Mpa (Max pressure: 1.6Mpa)
Weight: 0.5Kg

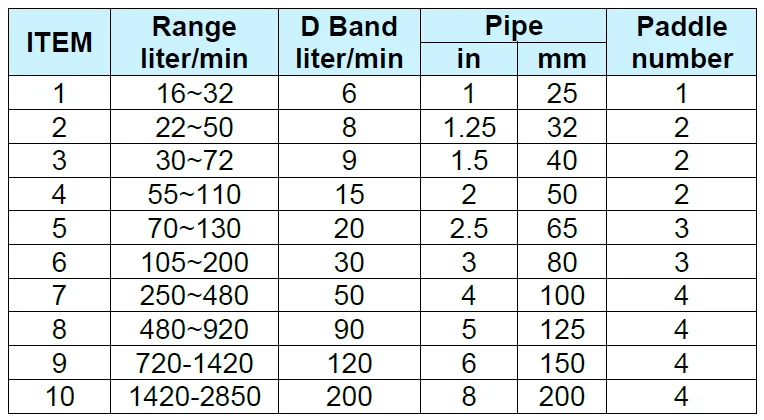

Paddles Selection

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Our Services

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Company Information

We focus on the HVAC and BAS industry and supply various measurements and control instruments over 13 years.

We have very experienced technical R&D team. As a goal of becoming a qualified brand, we will continue to satisfy more customers all over the world. We are also the biggest distributor of Dwyer in China. At the same time, we are the supplier of Dwyer on the PCB of humidity instruments.

We are located in Shenzhen and are ISO9001 certificated factory with hundreds of workers. In 2016, we had a turnover of RMB 100 million.
