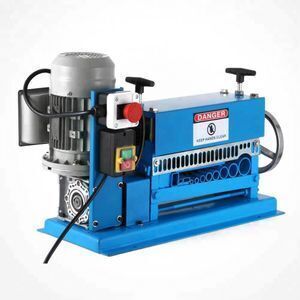

220V Portable Powered Electric Wire Stripping Machine Scrap Cable Stripper

Product details
keyword:Electric Wire Stripping Machine;Package Type:common packing;
Single package size:65X32X42 cm;Usage:Stripping;
Single gross weight:44 KG;Selling Units:Single item;
Place of Origin:Shanghai China;Name:Wire Stripping Machine;
Brand Name:VEVOR;Model Number:HXSMS-038BXJ;

220V Portable Powered Electric Wire Stripping Machine Scrap Cable Stripper







This machine is easy to operate and convenient to carry, can process single core copper wire, twin cores copper wire.

Operation

1.Comparing the wires’diameters with the feeding holes on the machine, feeding the wires one piece at one time. Before feeding the wires, please cut off the head of the wires, to avoid gaps caused to the blades.
2.On the output side, if the cuts on the wires are too deep, please check below points:
Please adjust the handles on the input side, screw down or loose them. (M12 handles)
Check whether the wires on the right position as you feeding them.
Make sure the blades are sharp, if not, polish them with the oil stone.
3.On the output side, if see the plastic(PVC)has been stripped, but the copper wires can not been disgorged, please check below 4 points:
Polish the axis of the upside with the oil stone.
Check whether the springs are loose,if yes, screw down to make them tighten.
The diameter of the wires are too small, please adjust the space between the two axises to 0.3-0.6mm.
If the wires you want to strip are hot, also can not get the copper wires stripped out.
4.If the wires were blocked in the axises, please check below points:
If the springs on the press wheels are too tight, loose them.
There are too much oil on the cables/wires, please wipe it.
5.If see the blades tilted:
Check whether the center adjuster was loosed.
Centering adjustment and adjust the screws of two sides of it.

Note

Make sure the wires’diameter are similar with the feeding holes,large wires in large feeding holes,small wires in small feeding holes, flat wires in flat feeding holes.



Features



  • 11 holes and 10 blades for easy access to any kind of cable or wire from the smallest to the largest
  • The professional device works even where conventional grip procedures fail
  • 11 different guides guarantee the machining of all types of cable with variable diameter from 1 mm to 40 mm
  • Do not waste time with other models of slotting machines where you need to adjust the blade every time you change the diameter of the cable
  • This machine automatically adjusts itself
  • Among these guides we have the ability to work flat and rigid cables
  • This machine is also ideal for industrial use
  • The blades and rollers rotate together at the same time by means of the gear so that the cable does not slip
  • The springs are adjustable to give the right cutting pressure

Technical



  • Power: 0.37kw
  • Voltage: 220V - 50Hz
  • Net weight: 38kg/84lbs
  • Dimensions: 58X28 X37cm/23X11X14.5inch
  • Cable diameter: DA 1.5 mm - DA 38 mm/DA 0.06inch - DA 1.5inch
  • Cutting speed: 15 m/min
  • Packing size: 65X32X42cm/26X13X17inch
  • G.W.: 44kg/97lbs
