CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter

Product details
Condition:New;Voltage:220V;
Marketing Type:Ordinary Product;Warranty:1 YEAR;
Package Preview:;CNC or Not:Normal;
Type:HORIZONTAL;Spindle Bore(mm):32;
Dimension(L*W*H):77*32*29cm;Local Service Location:none;
Place of Origin:Jiangsu China;Warranty of core components:1 YEAR;
Max. Turned Length (mm):100;Machinery Test Report:Provided;
Packaging Detail:wooden box package;Width of bed:75;
Machining Capacity:Light Duty;Weight (KG):45 KG;
Single gross weight:45.0 KG;After Warranty Service:Online support;
Certification:CE;Power(W):550W;
Max. Swing Diameter:180;Key Selling Points:Competitive price;
After-sales Service Provided:Online support;Model Number:CJ18ACCZJXK000001V2;
Max. Length of Workpiece (mm):100;Core Components:other;
Power (kW):550w;Machine Type:Horizontal Normal Lathe;
Video outgoing-inspection:Provided;Automatic Grade:Semi-automatic;
Single package size:77X32X29 cm;Max. Swing Diameter (mm):180;
Showroom Location:none;Applicable Industries:Machinery Repair Shops;
Selling Units:Single item;Brand Name:vevor;

CJ18A 7x14 Mini Lathe Blue Accessory Package Tooling Bench Top Cutter



Product Description



Premier quality CJ18A mini lathe with accessory package for sale! This set will be a perfect choice for anyone starting to set up a workshop or if you are new to metalwork as this set includes the main items you’ll need.

This listing includes the following accessories:

Fixed and traveling steadies, tail stock chuck, live centre, quick change tool post,

100mm independent chuck, 9 piece indexable Tin coated lathe tools (high quality) & 4pc engineers' measuring kit (including caliper and outside micrometer).

Features

  • 100mm (4") chuck.
  • 350mm (14") between centers, 550W powerful motor.
  • Digital readout of spindle speed, tailstock lever lock.
  • Brand new machine and accessories from manufacturer.
  • Ideal for both professionals and green hands.
  • With purchasement of this lathe set, you will get a superb workhouse with brilliant after sales service.
  • Specifications should be treated as a guide as there can sometimes be a small variance from the quoted details.


Feature


  • 350mm (14") between centers, 180mm (7") swing over bed.
  • Digital readout of spindle speed, tailstock lever lock.
  • Brand new machine and accessories from manufacturer.
  • Ideal for both professionals and green hands.
  • Good quality, brilliant after sales service.
  • 2-year free warranty.

Specifications


  • Power: 550W, 220V
  • Distance Between Centers : 350mm (14")
  • Swing Over Bed: 180mm (7")
  • Swing Over Cross Slide: 110mm (4.3")
  • Taper: MT3
  • Tailstock Taper: MT2
  • Chuck Diameter: 100mm (3.9")
  • Spindle Speed: 50-2500rpm
  • Spindle Bore: 20mm (0.8")
  • Cross Slide Travel: 65mm (2.6")
  • Chuck Diameter: 100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
  • Range of Metric Threads: 0.5-2.5mm (0.02"-0.1")
  • Range of Imperial Threads: 12-52 TPI
  • Spindle Accuracy: 0.01mm
  • Actual Lathe Dimensions: 77*32*29cm (30"*13"*12")

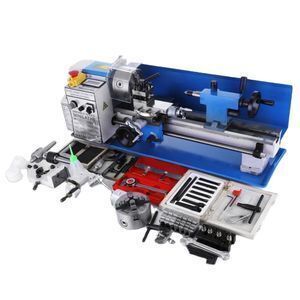

Package Content


  • 1 X CJ18A Mini Lathe
  • 1 X Set of External Jaw
  • 9 X Indexable Tin Coated Lathe Tools
  • 1 X Rear Splash Guard
  • 1 X Set of Hex Keys
  • 1 X Set of Spanner
  • 1 X Oil Can
  • 1 X Set of Accessories Shown on Pictures
  • 1 X Operation Manual
