300 KG Steel Magnetic Lifter Heavy Duty Crane Hoist Lifting Magnet 660lb

introduction

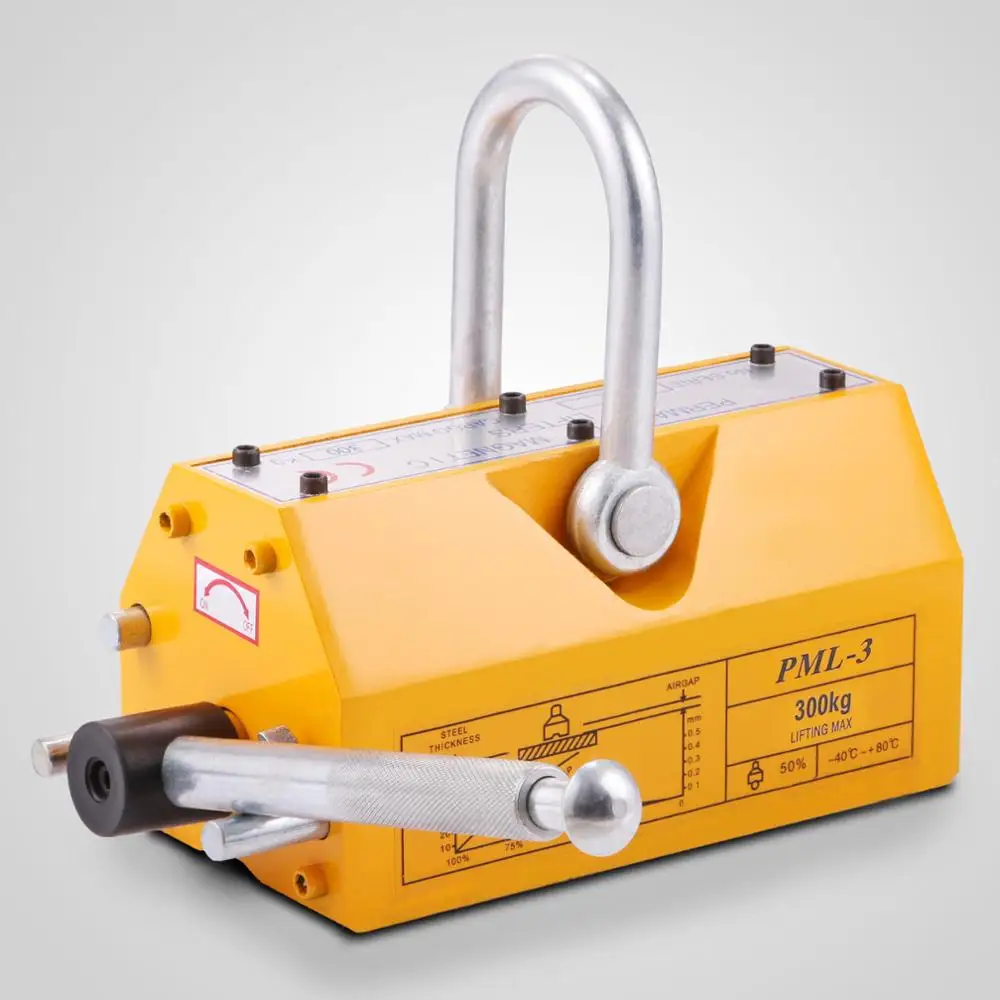

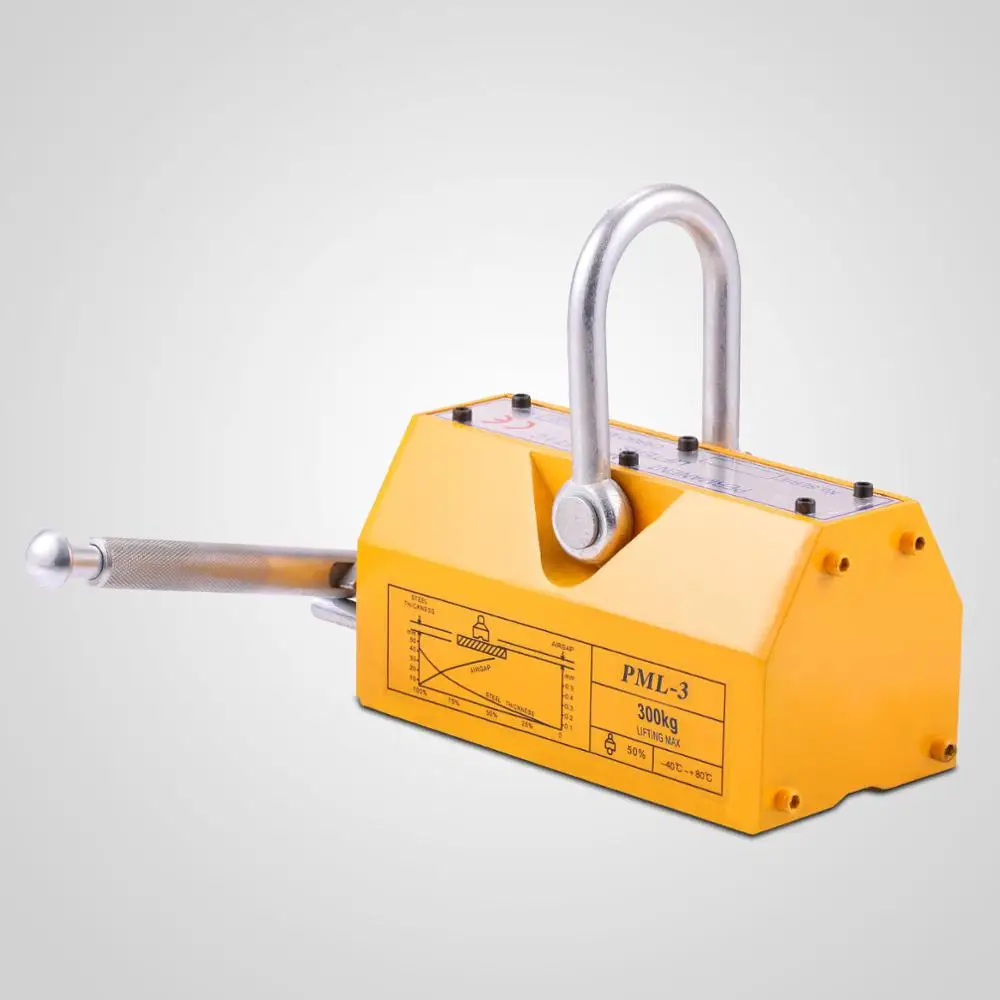

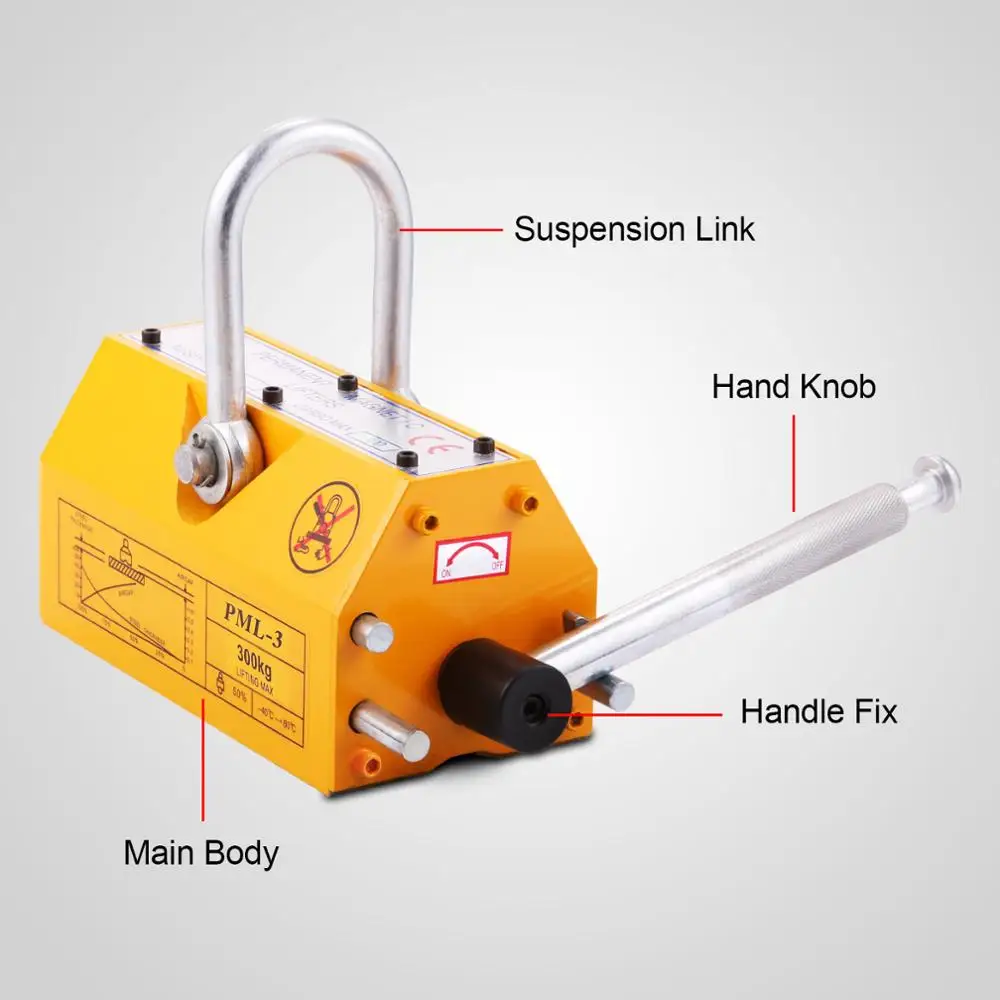

This magnetic lifter is made with neodymium magnets which are used for lifting steel sheets, blocks, rods, cylinders and other magnetic materials. The handle on the magnet features a lock-on/lock-off mechanism that requires the operator to manually switch between the two states. The V slot on the bottom is ideal for flat or round loading surfaces. The U-loop shackle hook allows for the easy attachment of slings and low residual magnetism for rapid handling.

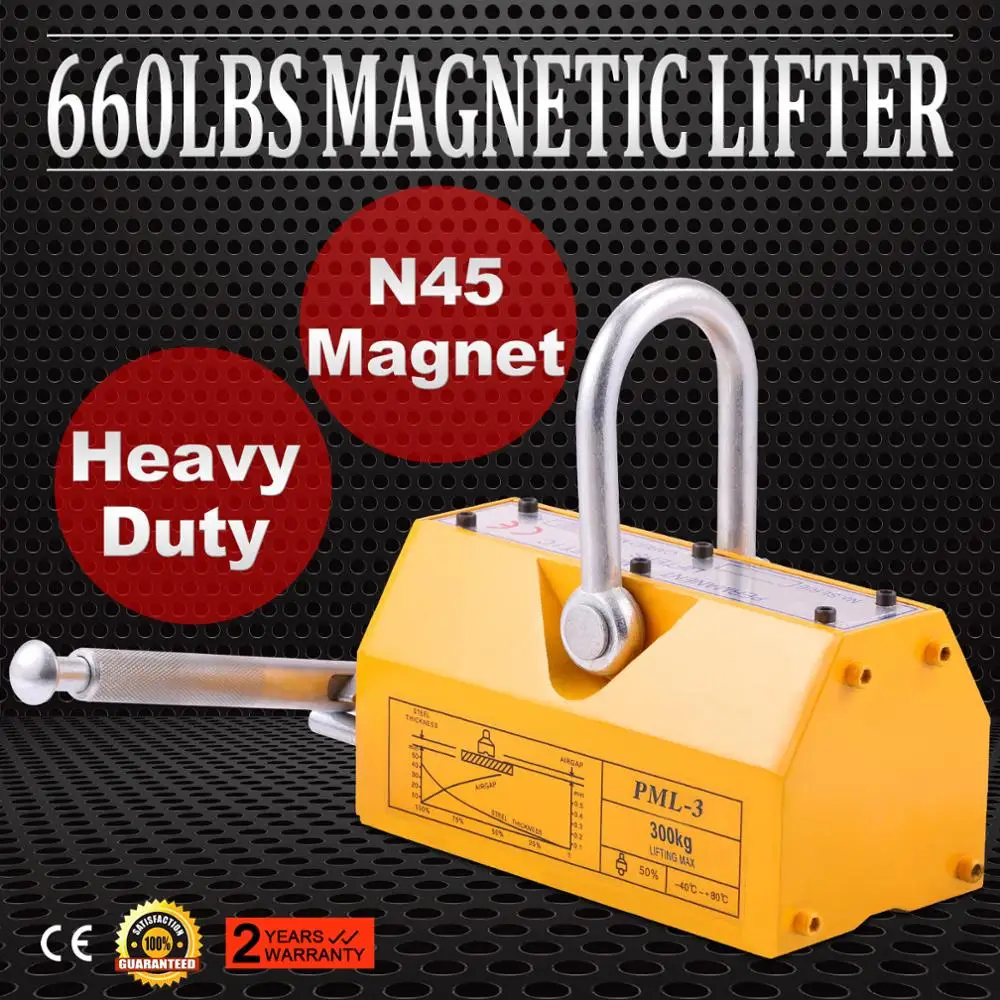

We use advanced N45 Magnet Material to provide superstrong magnetism for you, and its max pulling power equals to 300kg/660lbs with safety factor of 3.5, while most of our competitors use N42/N45 magnet material whose safety factor is between 2 to 2.5. Our N45 Magnet is stronger, lasts longer and can attach rough or round surface. We guarantee you a safer and more efficient working environment.

Moreover, the magnetic lifter is made with super strong neodymium magnets, which is used for lifting steel sheet, block, rod, cylindrical and other magnetic material. It requires no electricity, which is widely used in the industrial world for making steel projects move more efficiently. Each item must be tested qualified before they are sent out of the factory.

Note: Please clean the surface of the steel sheet before using it; Prohibit standing under the steel sheet when the steel sheet is lifted; Please do not control the handle when there is no any steel sheet under the magnetic lifter; There are more magnets in our magnetic lifter, so the magnetism is stronger.

features

• N 42-45 Magnet material
• Forging material and machining technical
• Baking paint
• Stainless steel handle and ring
• Titanium alloys board
• Double safety guaranteed handle

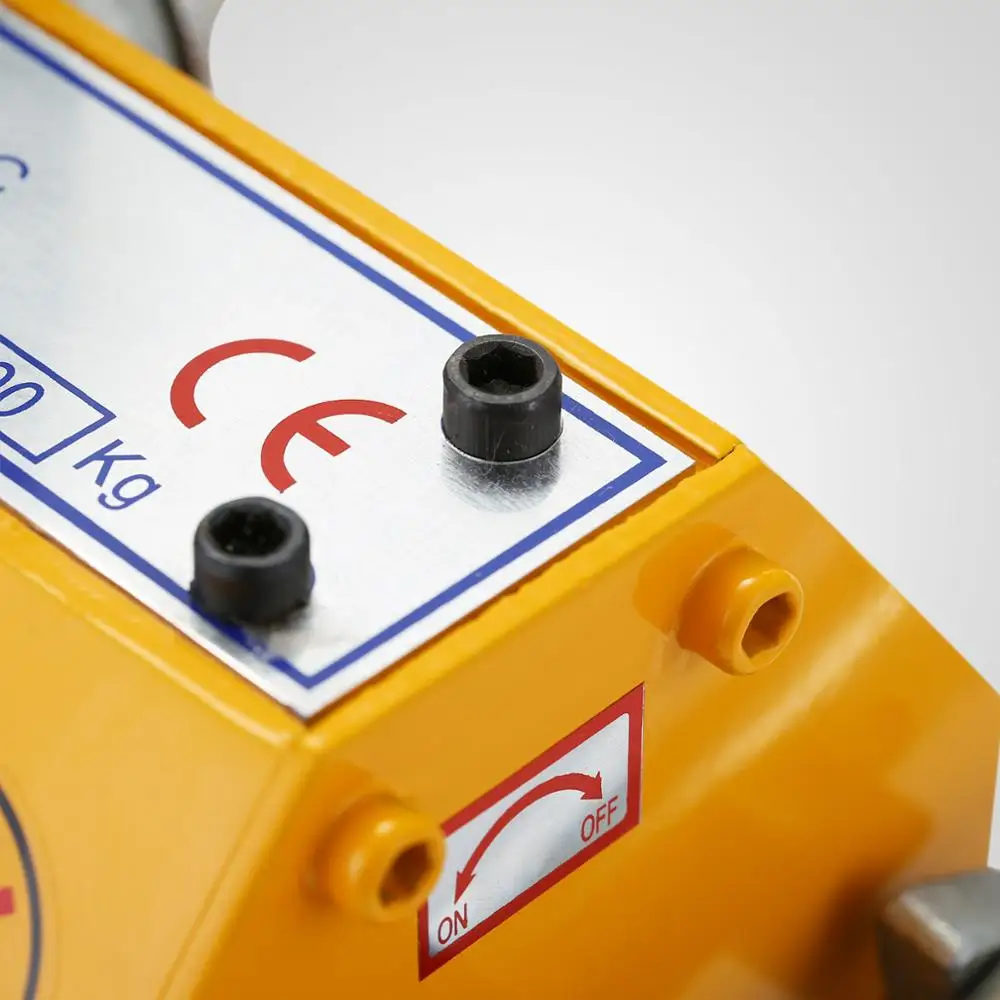

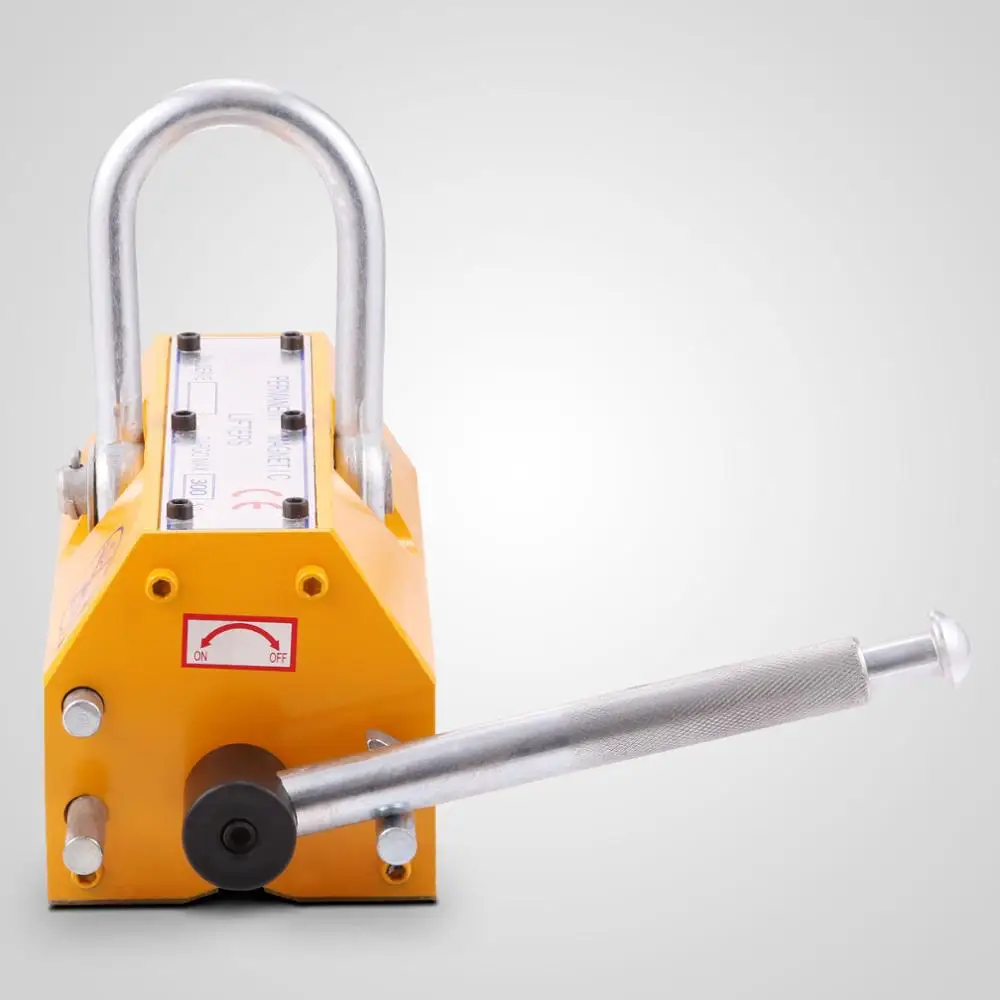

• Easy use: handle with on/off control - attach or detach material
• V slot of bottom lifting face - lift round and flat material
• Low residual magnetism for rapid handling

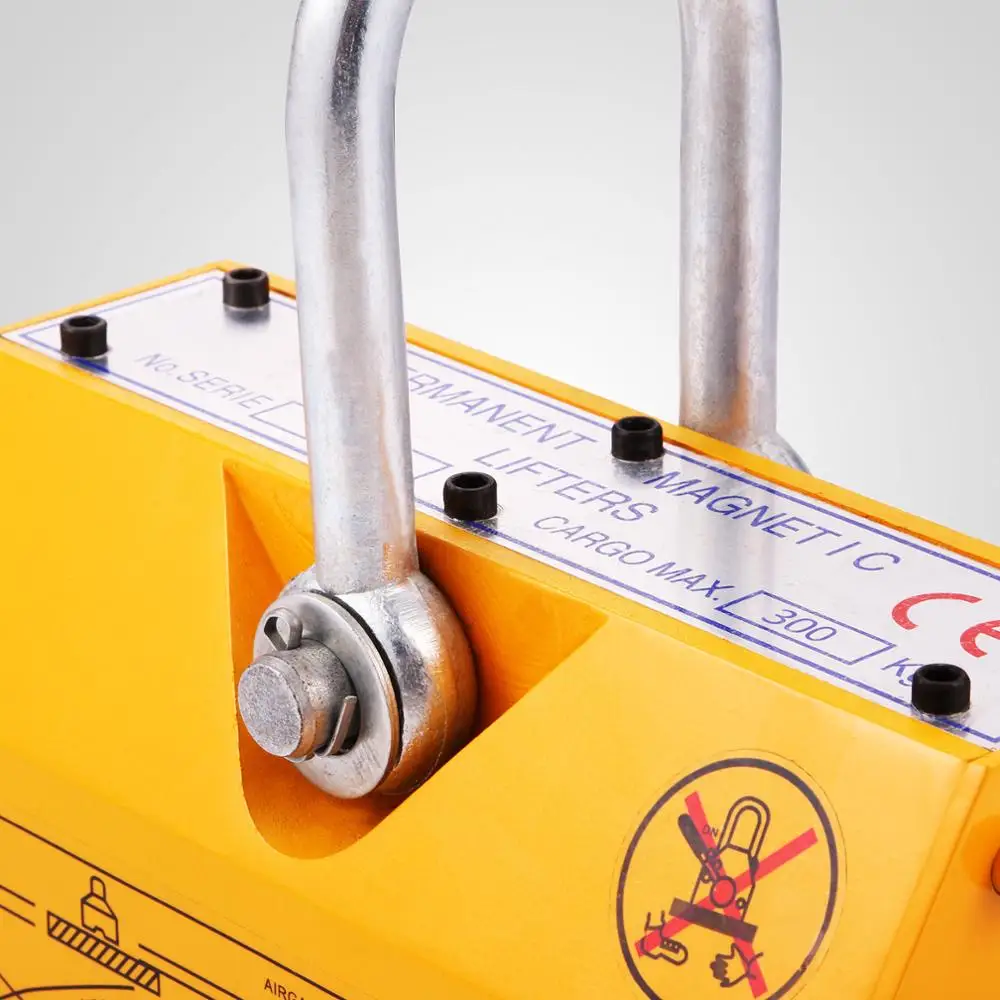

• Large U-loop shackle hook allows easy attachment of slings

technical

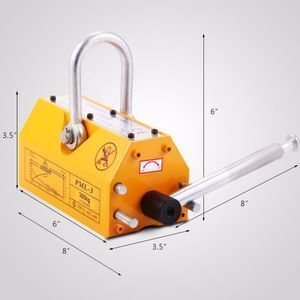

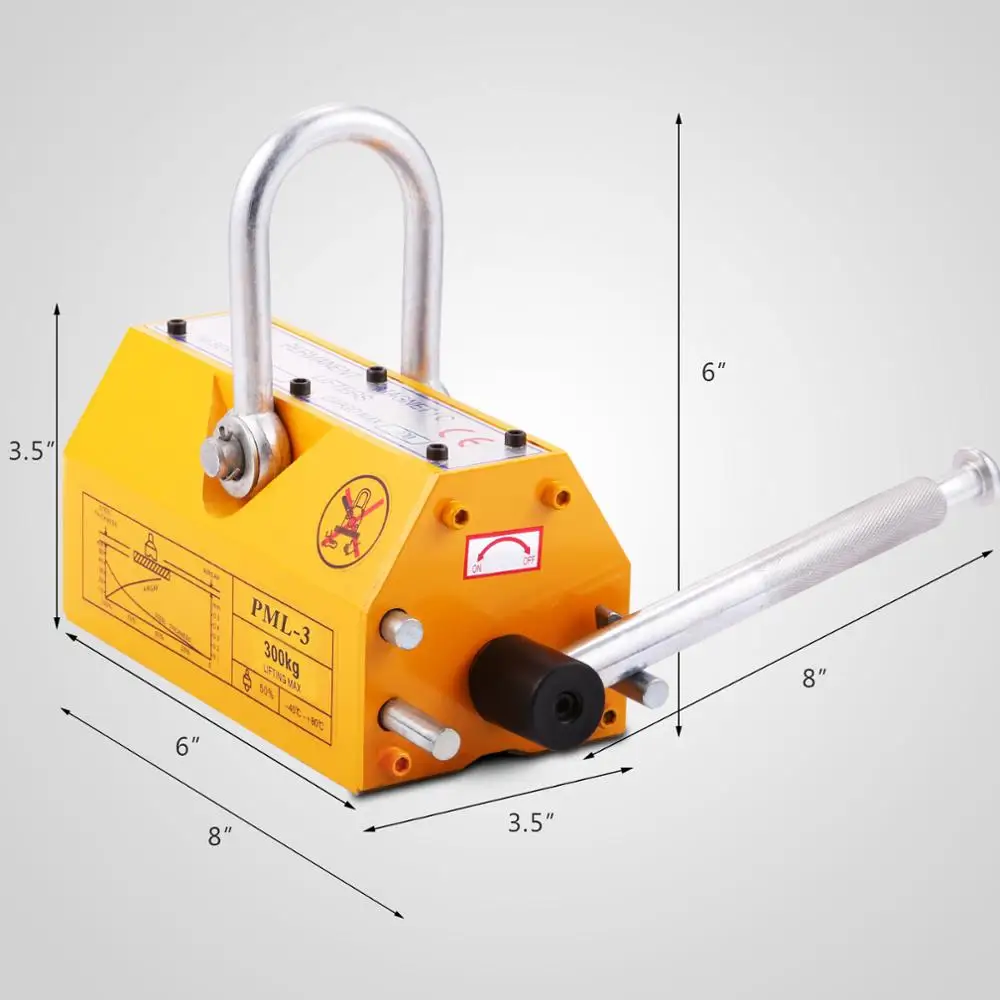

• Model: PML-3
• Item net weight: 10kg(22 lb)
• Operating temperature: <=80℃
• Maximum weight capacity: 300kg(660 lb)
• Max pulling power: 750kg(1650 lb)
• Safety factor: 3.5
• Maximum weight for curved surface/vertical lift: 100-150kg(220-330 lb)

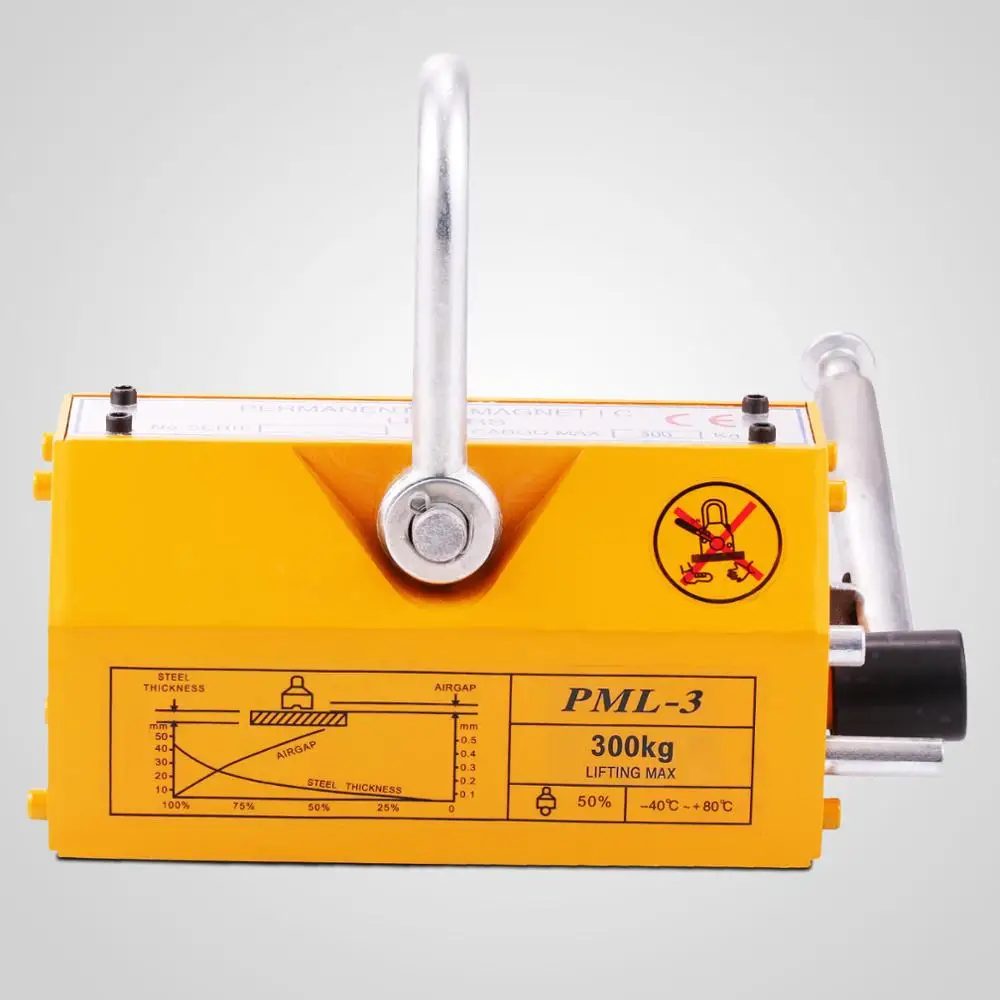

• Steel plate thickness: >=5MM (the thicker the steel plate,the stronger the suction)

package

• 1 x Main Unit
• 1 x Hexagon wrench
• 1 x English manual
