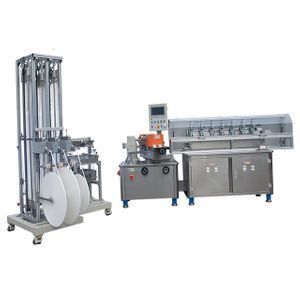

[JT-MC51B]New design 70m/min high speed machine to make paper straws

Product details
After Warranty Service:Online support,Field maintenance and repair service;Brand Name:Jeta;
Power(W):3kw;Supply Ability:20 Set/Sets per Month;
Condition:New;Automaticity:Automatic;
Port:NingBo or ShangHai for Paper straw making machine;Warranty:One Year;
Local Service Location:None;Voltage:380V;
Name:Paper straw making machine;Payment Terms:L/C,T/T;
Dimension(L*W*H):3000*1400*1450mm;Place of Origin:Zhejiang China;
Certification:CE;Showroom Location:None;
Applicable Industries:Manufacturing Plant,Printing Shops;Packaging Detail:Plastic wrap film or wooden case for Paper straw making machine;
Weight:1500kg;After-sales Service Provided:Engineers available to service machinery overseas;
Product Description

 Machine to make paper straws

Feature:

  • New design 70m/min high speed machine to make paper straws.
  • The machine is designed according to the minimum space, which maximizes the user's production workshop.
  • Simple, no rough shape, simple shape, all motors are deployed inside the machine, easy to clean external sanitation.
  • Safety, the machine is designed according to the best operation of human body, and the transmission part has been made safe.
  • Stable, with the simplest transmission principle, in order to avoid the maintenance concept design, to minimize the user maintenance frequency..
  • High speed, designed with feeding paper speed of 100 meters per minute, the maximum output speed can reach 75 meters per minute.
  • Network, product collection industrial 485 bus, industrial Ethernet bus, wireless wifi network, 4G network, distributed control system.
  • Intelligent, centralized monitoring, the monitoring center monitors the running status of all equipment in the workshop in real time. Production data can be introduced into the user ERP system to facilitate production data collection
  • The smart device can be used to monitor the machine's operating status in real time. When the equipment is faulty, the factory engineer is automatically notified, and the engineer performs remote diagnosis and repair.
  • With online multi-cut blades, no need secondary cutting, save labor and time.

Specifications:



Model

PAPER STRAW MAKING MACHINE JT-MC51B

Technical parameter

Control system

Number of paper

3 plies

PLC Controller

Delta

Max-diameter

20mm

Man-machine interface

Weinview colorful touch screen

Min-diameter

5mm

Program edition

JS—NC5.0

Max-thickness

1mm

Servo system

Delta

Min-thickness

0.5mm

Actuator

CHNT

Min-length

90mm

Max-length(Two blades)

1200mm

Output speed

3-60m/min

Signal component

Omron

Rewinding noses

Two noses with one belt

Pneumatic  component

Airtac

Cutting way

7blades,pneumatic cutter

synchronism control

Timing belt drive

Gluing way

Double sides

synchronism tracking cutting system

Servo Synchronized Tracking System

Fixed length way

Encoder

Outfit assemble

operator

1 person

Tube holder

Have

Way of fixing shaft

Pushing

Belt angle adjusting

Hand wheel adjustment

Speed control

Servo

Belt tension adjusting

Hand wheel adjustment

Power input

3x380V

Stop when paper without

Have

Size (mm)

Auto giving glue

Diaphragm pump

Mainframe size:

L*W*H

Pending

Feeding lubricating

Electric roller lubricating

Area space: L*W

16000*6000mm

Paper Tension control

Constant tension control

Wheel hub diameter

215mm

Paper  reel stand

Integral with follow-up paper function

Wheel hub height

125mm

Belt

sailcloth

Min-tread

320mm





Max-tread

500mm

Enclosed component

Total weight

Pending

Shaft

1 pc

Drive system

Belt

1pc

Main power

3.0KW(Servo motor)

Useful tool

Have

Max rotate speed of wheel hub

200r/min

Air compressor

Can choose

Output torque

68N.m



 Drive of wheel hub

2 wheel drive





Bearing

HRB
