Micro Video Encoder for broadcast cameras

Product details
Port:Shenzhen;T-Flash Card:128G;
Media Transmi:RTMP/RTSP;Protocol:H.264/H.265;
Packaging Detail:Suitcase;Video Resolution:1920x1080,1280x720,960x54;
Model Number:Mine-Q7;Supply Ability:1000 Piece/Pieces per Month;
Brand Name:Mine;Audio Encoding:AAC(48K);
Battery Capaci:4000mAh;Place of Origin:China;
Supported Inte:3G/4G LTE/Wi-Fi;Payment Terms:T/T,Western Union,Paypal;
Working Duratio:4-6 hours;

Micro Video Encoder for broadcast cameras

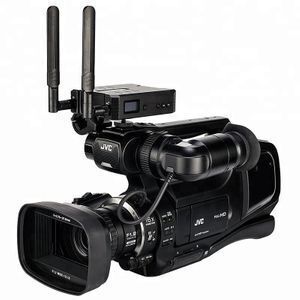

Mine Tech offers the smart telecaster range of solutions that include H264/H265 HEVC video transmission unit for streaming live video for outside broadcast, such as for live new gathering and live sports contribution. Mine-Q7 is a device that can be mounted on camcoders or cameras and can encode and stream over standard 3G, 4G LTE and Wi-Fi solution, with a very low latency.Let your audience become part of your story with high-quality and flawless live video.



 Video

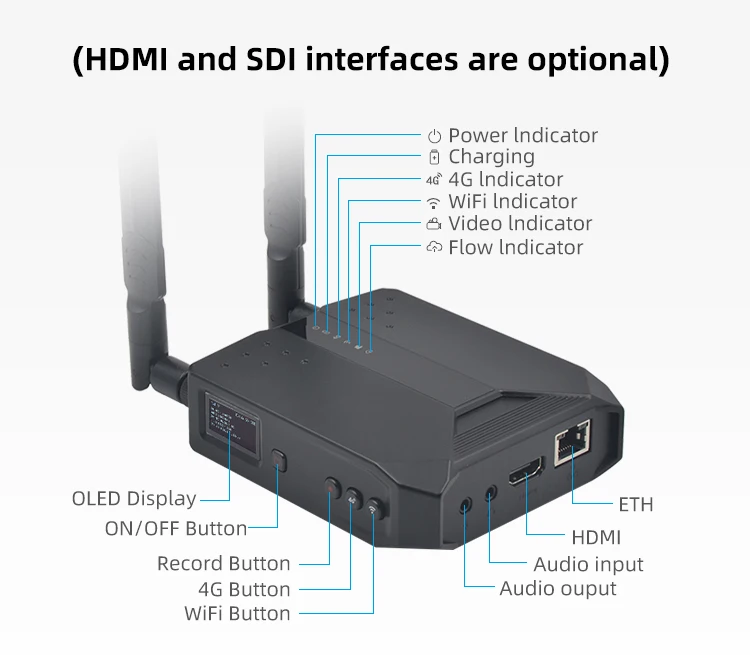

 Video Input HDMI/SDI
 Supported Video Resolution 1080P/720P@24/25/30/50/60fps 1080i@50/60fps
 Encoding Protocol H.264 ( Encoding ) & H.265 ( Recording )
 Encoding Level H.264/AVC High / Main / Baseline Profile
 Stream Resolution 1920x1080 1280*720 960*540 848*480 640*360 480*270
 Encoding Video FPS 15-30FPS
 Encoding Video Bitrate adjustable
 Bitrate control VBR / CBR
 TS Protocols

 RTMP

 Audio
 Input HDMI Audio or 1*3.5mm Mic
 Sample Rates 32kHz 44.1 kHz, 48.0 kHz
 Encoding AAC (48K)
 Network
 SIM Slot 4G TD-LTE / FDD-LTE (Modules are optional for different telecom operators)
 Wi-Fi 2.4G IEEE 802.11 a/b/g/n
 WLAN 100Base-T Ethernet interface
 System

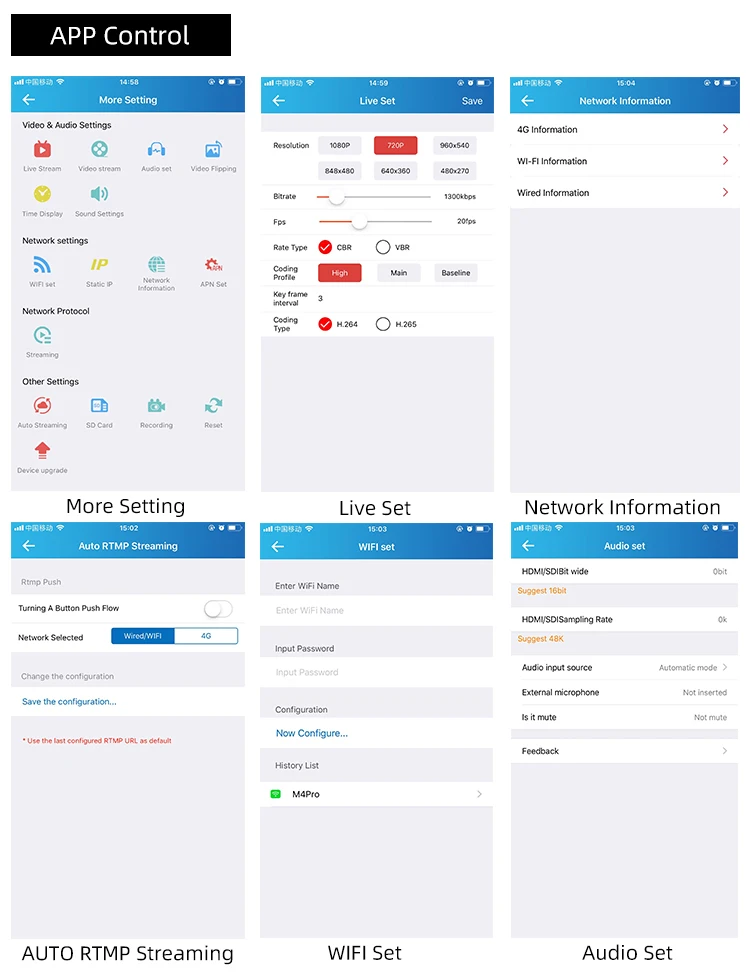

 Control Panel iOS / Android APP
 Firmware Update supports
 Remote management supports
 Working environment
 Operating temperature -20 to 80 ℃
 Storage temperature -40 to 90℃
 Humidity 5% to 90% non-condenation
 Dimension & Accessories
 Dimension 122mm*94mm*31mm
 Weight 386g
 Battery 3.7V 4000mAh
 Power adapter DC 5V 2A





Q1. Are you manufacturer or trade company?

A1: We are manufacturer. All of our video encoder hardware is our own brand "MINE". We are dealer of "Magewell" capture card.



Q2  How long to deliver the tools?

A2: All products can be delivered within 2-3 days.



Q3: Can I get some Samples?
A3: Yes, we are honored to offer you samples, but those would be charged for its high values.



Q4: Do you support OEM/ODM ?
A4: Surely yes.We provide the service of replacing your logo and company name on box and software interface of the
device .



Q5:How can i pay for the product?

A5: We accept PayPal, western union, bank transfer, or credit card online paying through alibaba /aliexpress.



Q6. Do you offer warranty and technical support?

A6: We offer 1 year warranty, technical support without limited time.





Q7:How fast can i get the quotation after sending inquiry?

A7: We normally quote within 12 hours after getting your inquiry. If you need urgently, please contact us by mob or whatsApp.
