4 SIM 4G Mobile Connectivity Solution for External Encoder Transmission Signal Strength

Product details
type:wirelessLAN port:2
Warranty:1 yearbrand:mine
Standards and Protocols:Wi-Fi 802.11ac, Wi-Fi 802.11g, Wi-Fi 802.11noperating hours:8-10 hours
interface:4 x SIM, 3 x RJ45, 2 x Wi-FiProduct Size:240 x 145 x 30 mm
Encryption type:WPA2, WPASales unit:single product
Function:VPNSingle package size:35X34X12 cm
OLED screen:YesPackaging Preview:
Binding downlink/uplink speed:80Mb/sWired transfer rate:10/100/1000Mbps
2.4G Wi-Fi transfer rate:300MbpsWi-Fi supported frequencies:2.4G & 5G
With modem function:Yesbattery capacity:9600mAh
application:outdoorProduct Weight:1.2kg
product status:newplace of origin; place of origin:Guangdong, China
WAN/LAN rate:1000Mb/smaximum. LAN data rate:1000Mbps
Gross weight per piece:4.000 kgWi-Fi transmission standard:802.11ac

4 SIM 4G Cellular Bonded Router for Outdoor Encoder Streaming Signal Strength

M4 Mini Instructions

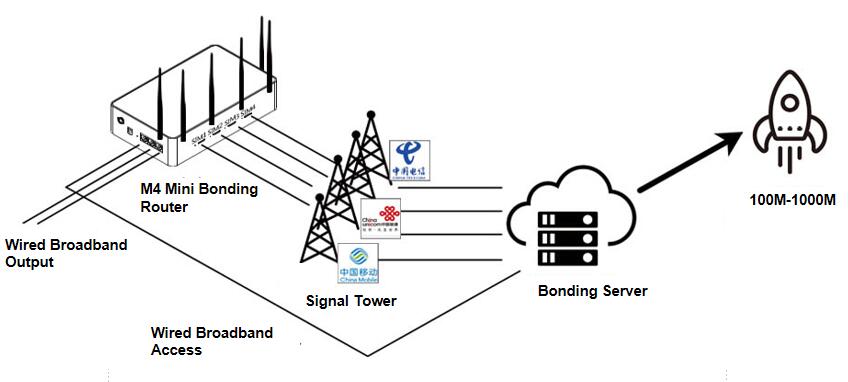

M4 Mini Cell Bonded Router, Aggregate 4*4G Sim Card, 1 WAN and Wi-Fi to create a single pipe for transmitting video or data



1.feature
* Bond up to 253 3G/4G/LTE/Wi-Fi connections

* Low bitrate requirement

* low latency

* Constant search for the best mobile network

* Remote (web-based) management

* Integration with social media live streaming



2.Product highlights are as follows

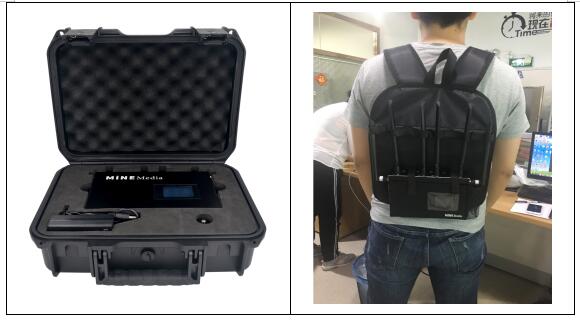

* Smaller size, more portable, bags are available.

* Cooling improvements, built-in fan.

* The technical method of SIM card hot-swappable product enters the CNC process, and the precision is higher.

* Waterproof explosion-proof box







product

Model#

Mine - M4 MINI

cellular network mode

TDD-LTE,FDD-LTE,DC-HSPA+/HSPA+/HSPA/UMTS,TD-SCDMA

nodal band

Depends on customer requirements

LAN rate

1000Mb/s

WAN rate

1000Mb/s

WiFi frequency

2.4GHz, 5.8GHz

LCD screen

Indicates cellular speed

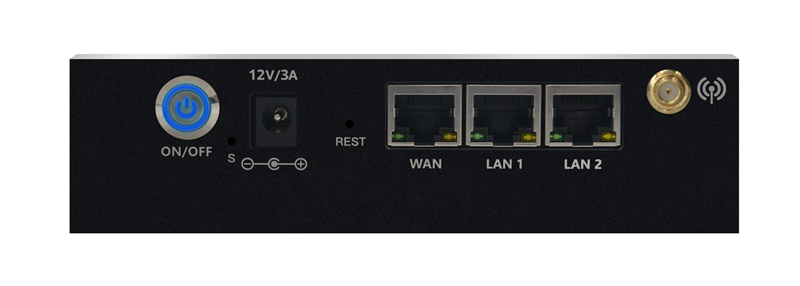

interface

4xPCI-E, 3xRJ45, 4xSIM

Wifi

Wifi

802.11b/g/n 300Mb/s

WIFI range

30 meters

strength

voltage and current

12V DC 2A

energy consumption

5W

Lithium battery capacity

9000MA

operating hours

5-6 hours

Other specifications

protocol

TCP/IP, UDP, FTP, HTTP, etc.

manage

network

net weight

1.2kg

Product Size

240*145*30mm

Operating temperature

-10°C~~~40°C

Storage temperature

-40°C~~~70°C

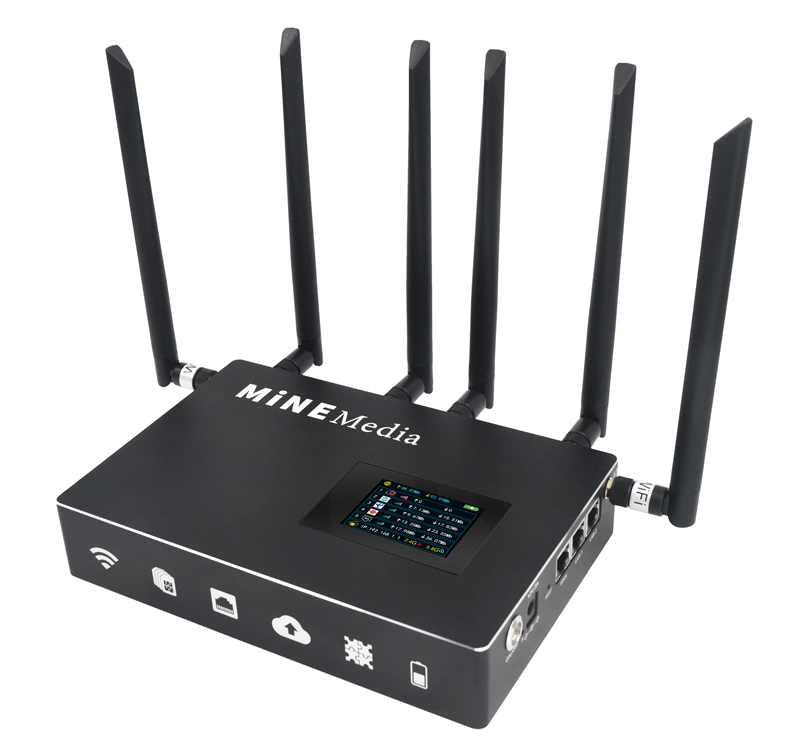

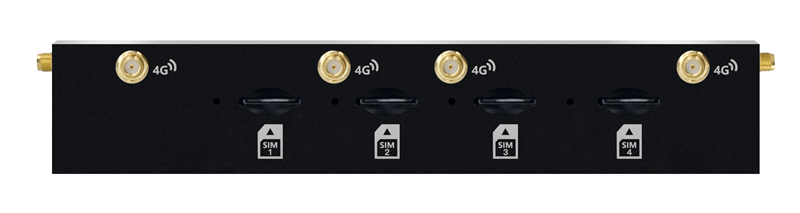

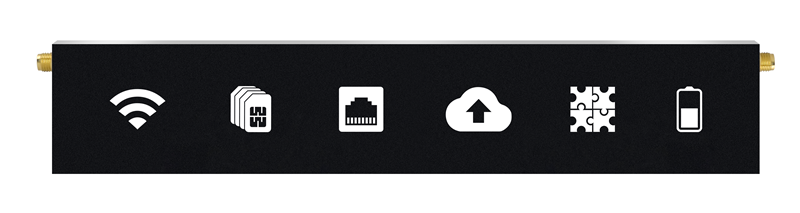

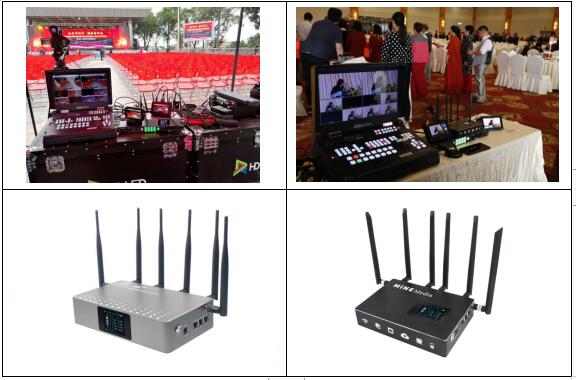

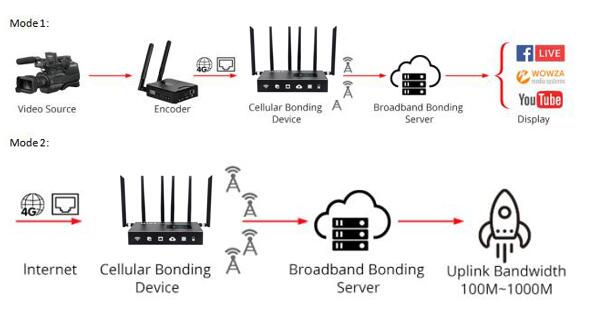

M4 PRO & M4Mini pictures and application example pictures







M4 PRO vs M4 MINI

project#

M4 PRO

M4 mini

SIM card hot swap

Profile process

CNC machining, more precise

equipment weight

1.5 kg; 3.30 lbs

1.12Kg; 2.65 lbs

Equipment size

240*145*54mm

9.45*5.70*2.12 inches

206*140*​​40mm 8.11*5.51*1.57 inches

cool down

Not applicable

Built-in fan

Battery

18000mAh built-in

9000mAH built-in

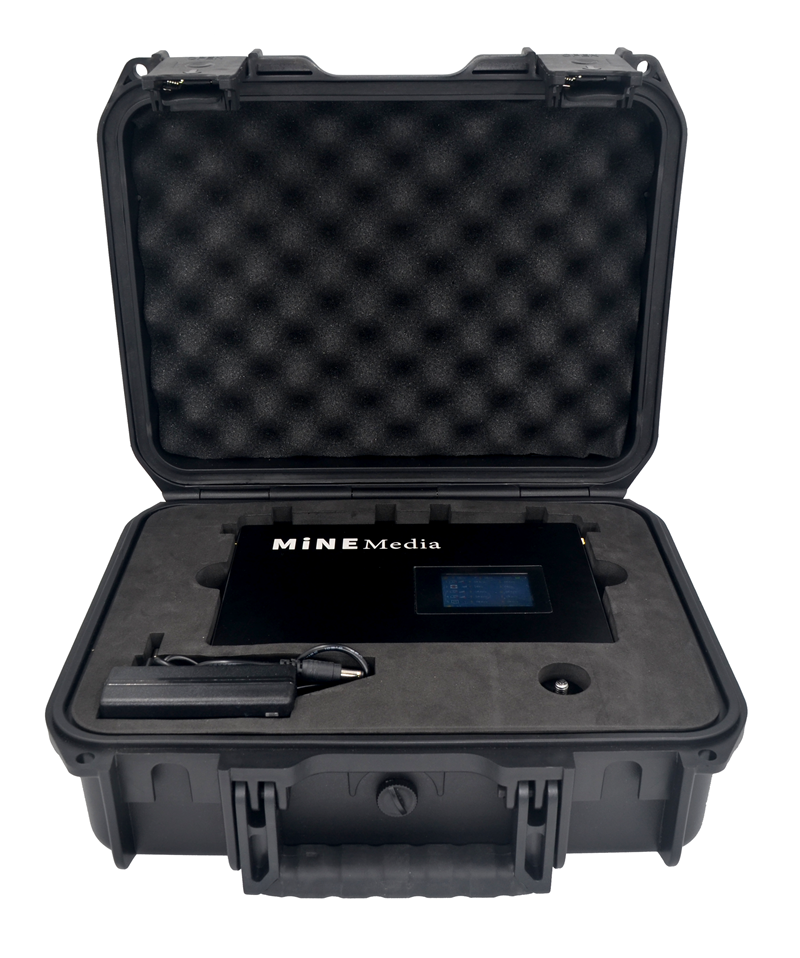

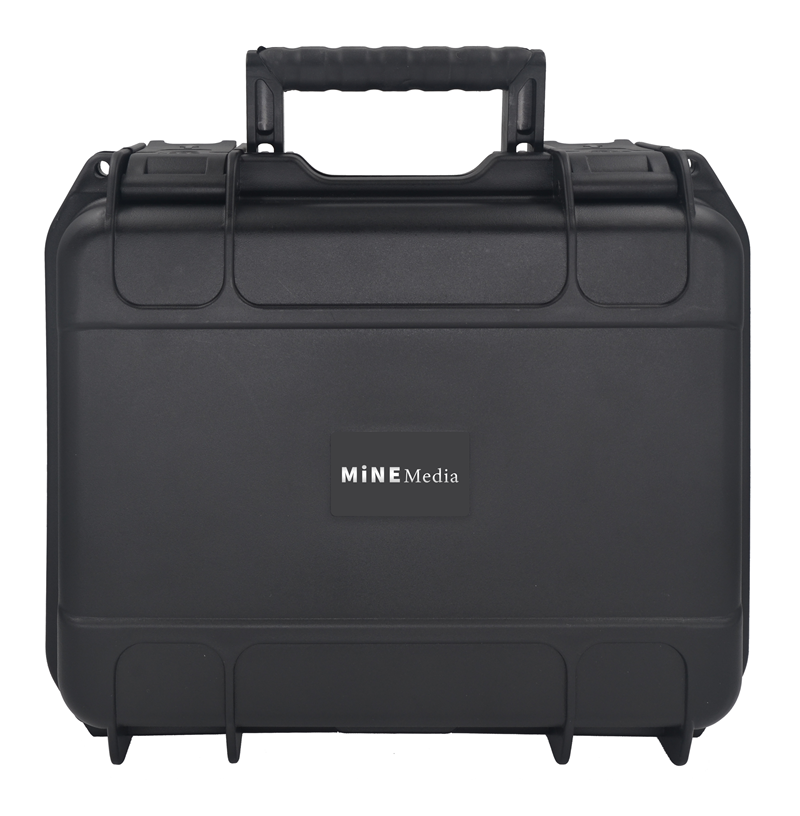

pack

The only case

case; optional package

operating hours

8-10 hours

5-6 hours
