Model Number: | 86HSE12N-BC38; | voltage: | 2.7v; |
Package Type: | carton; | Single gross weight: | 7 KG; |
diameter: | 86mm; | Single package size: | 26X26X15 cm; |
Brand Name: | JSS; | Current / Phase: | 6A; |
length: | 156mm; | Selling Units: | Single item; |
resistance: | 0.45; | inductance: | 6; |
Type: | Hybrid; | lead wire No.: | 4; |
Phase: | 2; | Package Preview: | https://sc01.alicdn.com/kf/HTB191pEemSD3KVjSZFKq6z10VXam.jpg_640x640.jpg; |
Place of Origin: | Jiangsu China; | Certification: | CE,ISO; |
Hybrid Easy Servo System:
1. Position error correction and never lose steps
2. High torque at high speed
3. Quick response and perfect acceleration
4. Automatic current adjustment based on load, lower temperature rising.
5. high dynamic performance at acceleration and deceleration, No vibration from high speed to zero speed.
6. Pulses response frequency can reach 200KHZ
7. 16 kinds microsteps choice, highest 51200microsteps/rev.
Motor Eelctrical Parameters:
Model | Step angle | Current | Resistance | Inductance | Holding torque | Motor length | Total length | Suitable driver |
57HSE2N-D25 | 1.8° | 4.2A | 0.5±10%Ω | 1.8±20%mH | 2.0N.m | 76mm | 97mm | HSS57 |
60HSE3N-D25 | 1.8° | 5.0A | 0.45±10%Ω | 1.8±20%mH | 3.0N.m | 88mm | 109mm | HSS60 |
86HSE4N-BC38 | 1.8° | 6.0A | 0.45±10%Ω | 3.7±20%mH | 4.5 N.m | 82mm | 103mm | HSS86 |
86HSE8N-BC38 | 1.8° | 6.0A | 0.44±10%Ω | 3.7±20%mH | 8.0 N.m | 118mm | 139mm | HSS86 |
86HSE12N-BC38 | 1.8° | 6.0A | 0.45±10%Ω | 5.2±20%mH | 12.0 N.m | 156mm | 177mm | HSS86 |
Motor drawing:

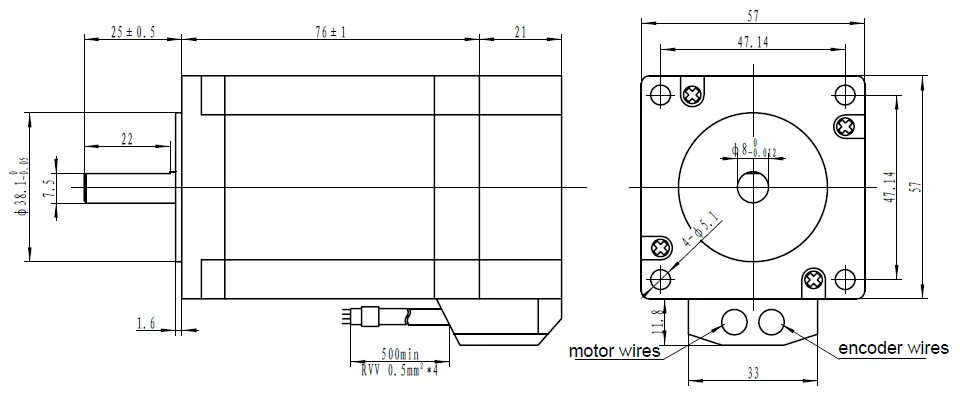

57HSE2N-D25:

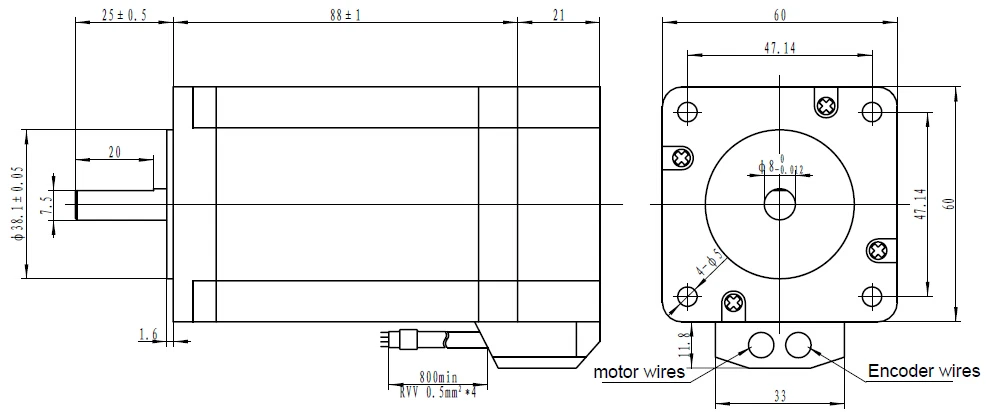

60HSE3N-D25:

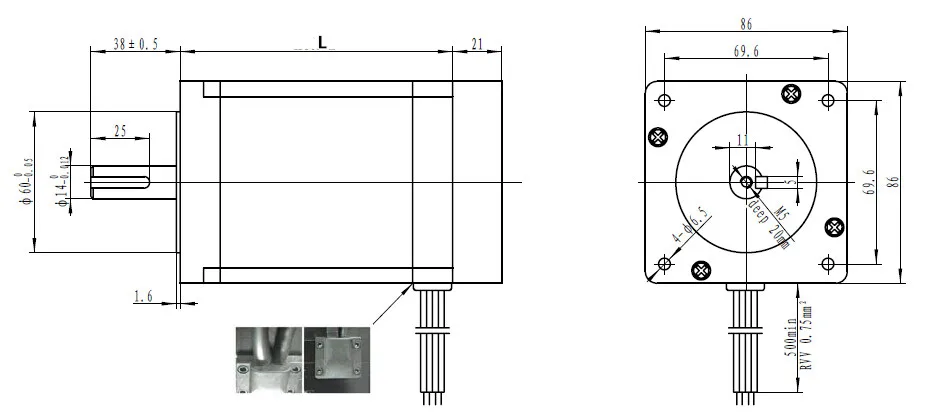

86HSE4N-BC38, 86HSE8N-BC38, 86HSE12N-BC38:

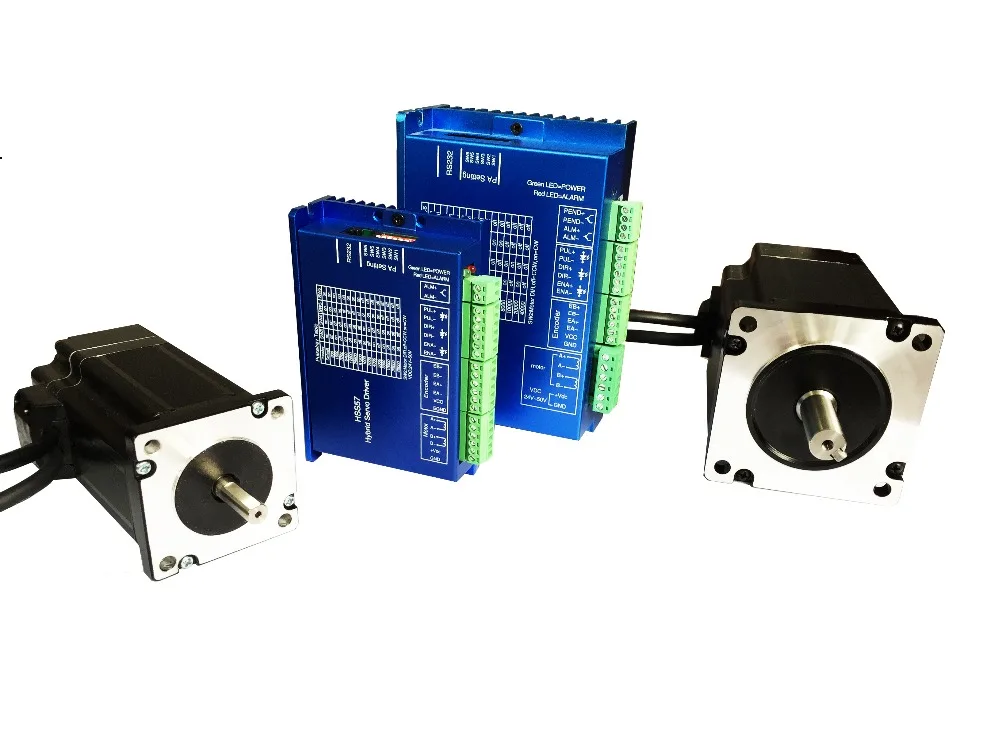

Drivers for the motors:
HSS57/HSS60 voltage range: DC24-50V, peak current: 6A
HSS86 voltage: AC20-80V / DC30-110V, peak current: 8A
Microstep setting:
Micorstep/rev | SW3 | SW4 | SW5 | SW6 |
Default(400) | on | on | on | on |
800 | off | on | on | on |
1600 | on | off | on | on |
3200 | off | off | on | on |
6400 | on | on | off | on |
12800 | off | on | off | on |
25600 | on | off | off | on |
51200 | off | off | off | on |
1000 | on | on | on | off |
2000 | off | on | on | off |
4000 | on | off | on | off |
5000 | off | off | on | off |
8000 | on | on | off | off |
10000 | off | on | off | off |
20000 | on | off | off | off |
40000 | off | off | off | off |

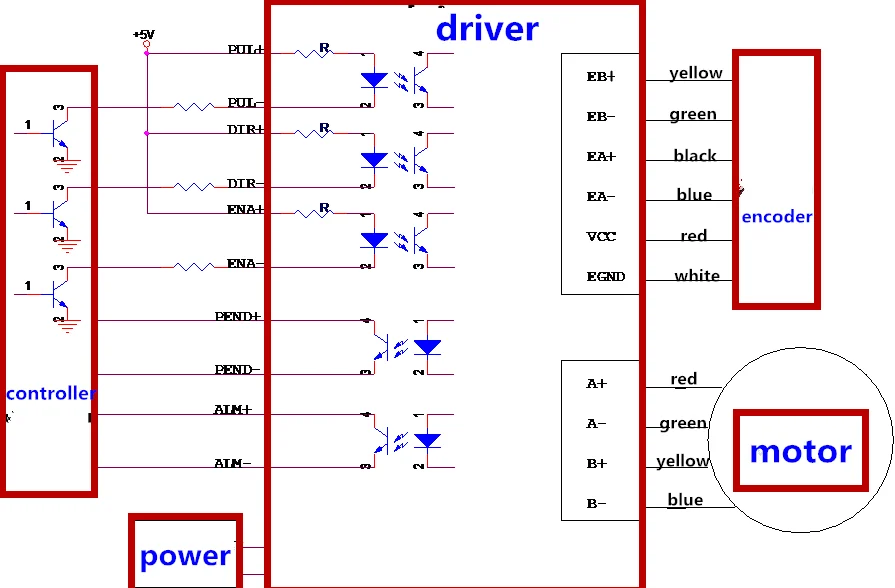

Wiring Diagram:
(we will provide the cables for the encoder, usually have 2meter, 3 meters, 5 meters, and 8 meters for choice)

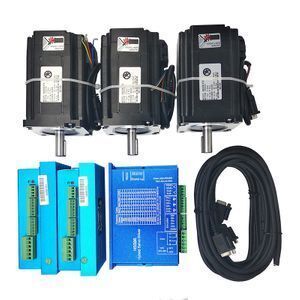

Hybrid Easy Servo System (closed loop stepper motor and driver)
Lower cost then servo system, but higher performance than stepper motor
The best Choice for engraving machine, cnc router, plasma cutting machine and other automatic equipment
