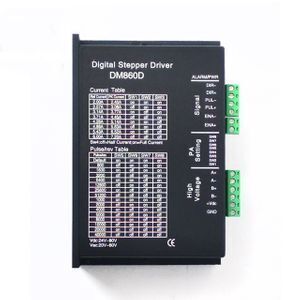

DM860D dc stepper motor driver features:
1. high performance
2. over current, over voltage, under voltage, over heating, autmatic semi-flow prection fuctions
3. anti-noise, low vibration
4.dimensions: 150mm × 99mm × 48mm
5. drive all the 2 phase, curret under 6.0A stepper motor
6. Working environment: temperature: 15-40, humidity <90%
Dimensions(mm)
Current selection
REF | Peak | SW1 | SW2 | SW3 |
2.00A | 2.40A | ON | ON | ON |
2.57A | 3.08A | OFF | ON | ON |
3.14A | 3.77A | ON | OFF | ON |
3.71A | 4.45A | OFF | OFF | ON |
4.28A | 5.14A | ON | ON | OFF |
4.86A | 5.83A | OFF | ON | OFF |
5.43A | 6.52A | ON | OFF | OFF |
6.00A | 7.20A | OFF | OFF | OFF |
Microstep selection
Pulse/REV | SW5 | SW6 | SW7 | SW8 |
Default | ON | ON | ON | ON |
800 | OFF | ON | ON | ON |
1600 | ON | OFF | ON | ON |
3200 | OFF | OFF | ON | ON |
6400 | ON | ON | OFF | ON |
12800 | OFF | ON | OFF | ON |
25600 | ON | OFF | OFF | ON |
51200 | OFF | OFF | OFF | ON |
1000 | ON | ON | ON | OFF |
2000 | OFF | ON | ON | OFF |
4000 | ON | OFF | ON | OFF |
5000 | OFF | OFF | ON | OFF |
8000 | ON | ON | OFF | OFF |
10000 | OFF | ON | OFF | OFF |
20000 | ON | OFF | OFF | OFF |
40000 | OFF | OFF | OFF | OFF |
Default: The pulse can be customized according to customers’ requirements.
Driver functions descriptions
Driver function | Operating instructions |
Output current setting | Users can set the driver output current by SW1-SW3 three switches. The setting of the specific output current, please refer to the instructions of the driver panel figure. |
Microstep setting | Users can set the driver Microstep by the SW5-SW8 four switches. The setting of the specific Microstep subdivision, please refer to the instructions of the driver panel figure. |
Automatic half current function | Users can set the driver half flow function by SW4. "OFF" indicates the quiescent current is set to half of the dynamic current, that is to say, 0.5 seconds after the cessation of the pulse, current reduce to about half automatically. "ON" indicates the quiescent current and the dynamic current are the same. User can set SW4 to "OFF", in order to reduce motor and driver heating and improve reliability. |
Signal interfaces | PUL+ and PUL- are the positive and negative side of control pulse signal; DIR+ and DIR- are the positive and negative side of direction signal; ENA+ and ENA- are the positive and negative side of enable signal. |
Motor interfaces | A+ and A- are connected to a phase winding of motor; B+ and B- are connected to another phase winding of motor. If you need to backward, one of the phase windings can be reversed. |
Power interfaces | It uses DC power supply. Recommended operating voltage is 24VDC-80VDC, and power consumption should be greater than 350W. |
Indicator lights | There are two indicator lights. Power indicator is green. When the driver power on, the green light will always be lit. Fault indicator is red, when there is over-voltage or over-current fault, the red light will always be lit; after the driver fault is cleared, if re-power the red light will be off. |
Installation instructions | Driver dimensions:150×98×51mm, please refer to dimensions diagram. Please leave 10CM space for heat dissipation. During installation, it should be close to the metal cabinet for heat dissipation. |
Driver Catalog:
Model No. | current range | voltage range | microstep/pulse | dimension (mm) | suitable motor |
M415D | 0.21-1.5A | 18-40VDC | 1-64 mirostep | 86x55x20 | nema 17, nema 15 |
M430D | 0.9-3.0A | 18-40VDC | 1-64 mirostep | 117x71x35 | nema 23, nema 17 |
M545D | 1.5-4.5A | 24-48VDC | 2-256 mirostep | 117x71x35 | nema 34, nema 23 |
M860D | 2.0-6.0A | 36-80VDC | 2-256 mirostep | 150x99x48 | nema 34, nema 23 |
M660A | 2.0-6.0A | 24-60VAC | 2-256 mirostep | 150x99x48 | nema 34, nema 23 |
M1160A | 0.38-6.0A | 80-110VAC | 1-256 mirostep | 170x94x66 | nema 43, nema 34 |
DM422 | 0.5-2.2A | 20-40VDC | 1-256 mirostep | 66x56x20 | nema 23, nema 17 |
DM542 | 1-4.2A | 18-50VDC | 1-256 mirostep | 118x75x32 | nema 34, nema 23 |
DM556D | 2.1-5.6A | 24-50VDC | 1-256 mirostep | 118x75x32 | nema 34, nema 23 |
DM860D | 2.4-7.2A | 24-80VDC | 1-256 mirostep | 150x99x48 | nema 34, nema 23 |
DM860A | 2.4-7.2A | 60-80VAC | 1-256 mirostep | 150x98x51 | nema 34, nema 43 |
2DM2280 | 4.5-8.0A | 80-240VAC | 1-256 mirostep | 198x130x76 | nema 43, nema 34 |
3DM683 | 3.2-8.3A | 24-60VAC | 800-51200 pulses | 118x75x32 | 3 phase nema 34, nema 23 |
3DM860D | 2.4-7.2A | 24-80VDC | 800-51200 pulses | 150x98x51 | 3 phase nema 34 |
