ball screw set: 1605 ballscrew 1000mm 1050 1100 1150mm with BK12BF12 end machined + nut SFU1605+ nut housing+ supporter

Supplier: Changzhou Jinsanshi Mechatronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ivie Zhai
Price: $30.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	sample order will be packed by cartoon batch order will be packed by wooden box;	Nominal diameter:	16 mm;
Model No:	1605;	Flange type:	d<=32;
Material:	steel;	Port:	shanghai;
Static load:	12.8;	Number of cycles:	2(Double head);
Brand Name:	JSS;	Nominal guide:	10;
Payment Terms:	T/T,Western Union,MoneyGram;	Dynamic load Ca:	7.36;
Applicable Industries:	Router machine;	Length:	950mm-1150mm;
Place of Origin:	China;	Steel ball diameter:	2.78;
Manufacturing Process:	Rolled Thread;	Supply Ability:	100 Set/Sets per Day;

Product Description

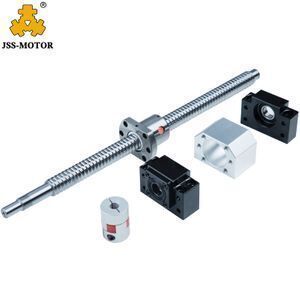

Package includes:

Ball screw 1605 with BKBF12 end machining L950 / 1000 / 1050 / 1100 / 1150mm, 1pc;

Ball screw nut SFU1605, 1 pc;

Ball screw supporter BK12BF12 with lock nut, 1 set;

Ball nut housing DSG16H, 1pc;

Coupling XB25-30-6.35*10mm ( inner hole can be as your needs )

Note: We can cut the length of ball screw as your request;

We can process end machining as your drawing too;

Below is the end machining for BK12BF12;

If you need other sizes or quantities, please contact us!

The more the quantity is, the lower the price will be.

Machine Drawing

Product Specificaiton

Specification model	Nominal diameter	Nominal guide	Steel ball diameter	Flange type	Number of cycles	Nut mounting connection size								specified load
Specification model	Nominal diameter	Nominal guide	Steel ball diameter	Flange type	Number of cycles	D(g6)	D1	D2	D3	L	B	G	H	Dynamic load Ca	Static load
SFU01204-3	12	4	2.38	d<=32	3	22	42	32	4.8	35	8	M6	30	4	6.7
SFU01604-3	16	4	2.38	d<=32	3	28	48	38	5.5	36	10	M6	40	4.35	9.2
SFU01605-3	16	5	3.18	d<=32	3	28	48	38	5.5	42/44	10	M6	40	7.65	13.2
SFU01605-4 (Waist type)	16	5	3.18	d<=32	4	28	48	38	5.5	50	10	M6	40	7.65	13.2
SFU01610-4	16	10	2.78	d<=32	2(Double head)	28	48	38	5.5	42/44	10	M6	40	7.36	12.8
SFU02005-3	20	5	3.18	d<=32	3	36	58	47	6.7	42/44	10	M6	40	8.6	17.1
SFU02510-3	25	10	4.76	d<=32	3	40	62	51	6.8	85	15	M6	44	8.7	20.5
SFU02510-4 (Waist type)	25	10	4.76	d<=32	4	40	62	51	6.8	85	15	M6	48	8.7	20.5
SFU03205-3	32	5	3.18	d<=32	5	50	80	65	9	52	12	M6	62	16.9	51
SFU03205-4 (Waist type)	32	4	3.18	d<=32	4	50	80	65	9	52	12	M6	62	16.9	51
SFU03210-3	32	10	6.35	d<=32	3	50	80	65	9	74	12	M6	62	26.1	53.1
SFU03210-4 (Waist type)	32	10	6.35	d<=32	3	50	80	65	9	90	12	M6	62	26.1	53.1
SFU04005-5	40	5	3.18	d>=40	5	63	93	78	9	55	14	M6	70	19	66.2
SFU04005-4 (Waist type)	40	4	3.18	d>=40	4	63	93	78	9	55	14	M6	70	19	66.2
SFU04010-3	40	10	6.35	d>=40	3	63	93	78	9	71	14	M8	70	30.1	71
SFU04010-4 (Waist type)	40	10	6.35	d>=40	4	63	93	78	9	93	14	M8	70	30.1	71
SFU04020-3	40	20	6.35	d>=40	3(Double head)	63	93	78	9	94 144	14	M8	70	40.3	98.4
SFU05010-4	50	10	6.35	d>=40	4	63	110	93	11	95	16	M8	85	53.1	155
SFU04005-5	40	5	3.18	d>=40	5	63	93	78	9	55	14	M6	70	19	66.2
SFU04005-4 (Waist type)	40	4	3.18	d>=40	4	63	93	78	9	55	14	M6	70	19	66.2
SFU04010-3	40	10	6.35	d>=40	3	63	93	78	9	71	14	M8	70	30.1	71
SFU04010-4 (Waist type)	40	10	6.35	d>=40	4	63	93	78	9	93	14	M8	70	30.1	71
SFU04020-3	40	20	6.35	d>=40	3(Double head)	63	93	78	9	94 144	14	M8	70	40.3	98.4
SFU05010-4	50	10	6.35	d>=40	4	75	110	93	11	95	16	M8	85	53.1	155
SFU06310-5	63	10	6.35	d>=40	5	90	125	108	11	97	18	M8	95	60.7	206
SFU08010-5	80	10	6.35	d>=40	6	105	145	125	13.5	101	20	M8	110	66.6	265

Packaging & Shipping

Generally, we will ship your order within 7 working days after receiving your payment, but delay delivery would happen as our storage changes every moment, if you need it urgently, please contact us in advance to check the stock.
If you don't find the shipping method you like, please contact us freely. I will choose a more suitable shipping method for your order.
Your package will be shipped to your order address, so please make sure your address and telephone number are correct.
