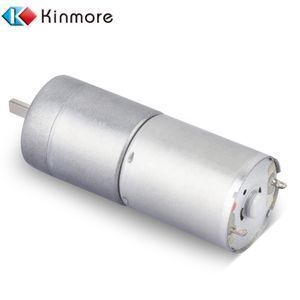

25MM 6V DC Water Fountain Mini Electric Motors
-
Supplier: Shenzhen Kinmore Motor Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Candy Qin -
Price: $3.80 / >=5 pieces -
Min. Order: 5 pieces
| Shaft extension process: | D-cut is available; | Motor casing: | SECC; |
| Screwhole: | M3*2 depth:3.5mm max.; | Packaging Detail: | B3B corrugated carton box; |
| Gear box diameter: | 25mm; | Supply Ability: | 5000000 Piece/Pieces per Month; |
| Place of Origin: | Guangdong China; | Reduction Ratio: | 1/20~1/478; |
| RF-370 end cap: | Metal one; | Operating Voltage: | 3~12V; |
| Port: | Shenzhen or Hongkong; | Gear box length: | 19~27mm; |
| Brand Name: | Kinmore; | Usage: | vending machine,Auto Curtain; |
| Positive pole: | Marked in red; | Payment Terms: | L/C,T/T,T/T or L/C at sight; |
25MM 6V DC Water Fountain Mini Electric Motors
21 years' motor design and production experience
90 million-piece annual capacity
Auto motors are almost entirely produced on automated lines
Advanced equipment from Sodick, Hexagon,Mitutoyo, Magtrol and Votsch
10% sales revenue invested in R&D and automatic equipment every year
Customer PPM: auto motors s 30;general motors s 3,000
Gear box diameter:25mm
Assembling DC motor: RF-370(diameterxlength=24.4 x 30.8mm )
1.MEASURING CONDITIONS
1.1.Rated voltage: 6 V DC
1.2.Motor Position: To be measured with motor horizontally held.
1.3.Environmental temperature:25±10°C.
1.4.Environmental humidity:65%±20%RH.
2.ELECTRICAL CHARACTERISTICS(At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 78 ±12%rpm
2.1.2.Current: 0.13 A(max 0.26A)
2.2.At On load
2.2.1.Torque: 3.1 kg.cm
2.2.2.Speed: 60 ±12%rpm
2.2.3.Current: 0.94 A (max 1.4A)
2.3.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.)
3.MECHANICAL CHARACTERISTICS
3.1.Dimension drawing: See
3.2.End Play:0.5mm MAX
33.3.Operating Temperature:-10 ~ + 60°C
Remark:The above technical datasheets only for reference,we are capable of meeting the sourcing needs of diverse buyer.
Kinmore The most complete DC motor supplier.
Q:1.What kind of motors you can provide?
A: For now, we mainly provide permanent magnet brushed dc motors (including vibration motors, low voltage dc motors and high voltage dc motors) with diameter range in 6~80mm and also Dia10~80mm size gear motors.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
-
