Large torque high speed 40 v induction juicer electrical appliance motor

  • Supplier: Shenzhen Kinmore Motor Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Candy Qin
  • Price: $7.00 / 10 - 4999 pieces
    $5.00 / >=5000 pieces
  • Min. Order: 10 pieces
Click here to contact
Product details
Package Preview:;Payment Terms:L/C,Western Union,T/T,MoneyGram,Paypal;
Certification:RoHS;Packaging Detail:The packing: B3B corrugated Carton Box Our standard shipping mark for each model is as below Q'ty: pcs N.W.: kgs G.W.: kgs Meas.: L*H*W cm.;
Supply Ability:90000000 Piece/Pieces per Year Free samples considerable;Brand Name:Kinmore;
Net Weight:340g;Place of Origin:Guangdong China;
Enameled Wire Class:F Class magnet wire;Shaft End Play:0.05~0.55mm;
Port:Hongkong / Shenzhen;Warranty:3months-1year;
Testing Ambient Condition:25±10℃;Customized Parts:Output shaft;
Product Name:induction juicer motor;Main Application:Coffee Grinder,Hand Blender,Mixer;

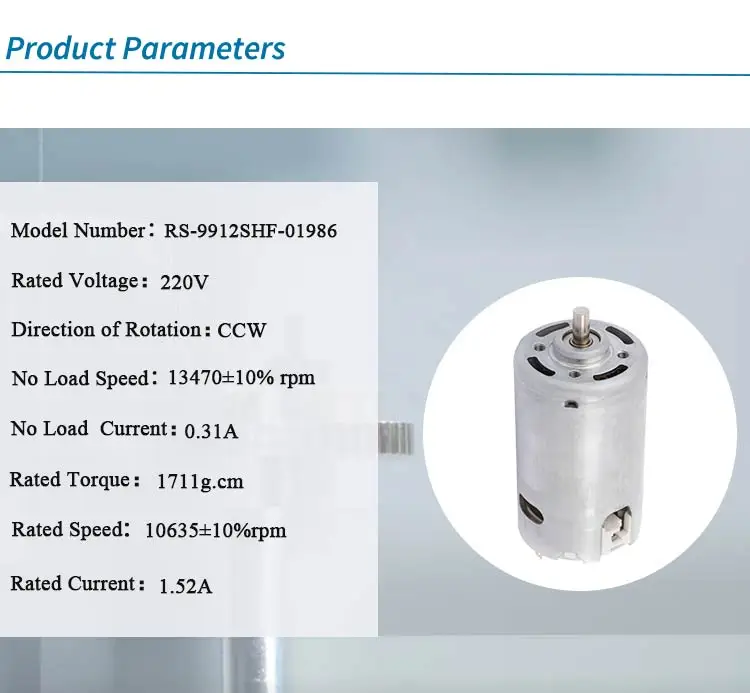

Rated voltage:220-230V AC;Model Number:RS-9912SHF-01986;
Max Efficiency:64%;Motor Housing Size:Length 66mm, Diameter 45mm;
Product Description
Unit Conversion
Unit
gf.cm
kgf.cm
N.m
mN.m
N.cm
Ib.in
oz.in
gf.cm
1
0.001
0.000098
0.098
0.0098
0.000888
0.013889
kgf.cm
1000
1
0.098
98
9.8
0.868
13.889
N.m
10200
10.2
1
1000
100
8.85
141.64
mN.m
10.2
0.0102
0.001
1
0.1
0.00885
0.142
N.cm
102
0.102
0.01
10
1
0.0885
1.42
Ib.in
1152
1.152
0.113
113
11.3
1
16
oz.in
72
0.072
0.00706
7.06
0.706
0.0625
1
FAQ
1. What kind of motor do you supply?
Kinmore specializes in making DC motors & gear motors with the diameter ranging from 6mm-80mm; automotive motors and vibration motors are our strength area, too; we also provide brushless motors.

2. What's the lead time for samples or mass production?
Normally, it takes 15-25 days to produce samples; about mass production, it will take 35-40 days for DC motor production and 45-60 days for gear motor production.

3. Could you mind sending the quotation for this motor?
For all of our motors, they are customized based on different requirements. We will offer the quotation soon after you send your specific requests and annual quantity.

4. Do you offer some kinds of accessories like encoder, PCB, connector, soldering wired for the motor?
We specialize in motors, instead of accessories. But if your annual demand reaches a certain amount, we will apply to the engineer for offering the accessories.

5. Are your motors certificated with UL, CB Tüv, CE?
All of our motors are UL, CB Tüv, CE compliant, and all our items are making under REACH and ROHS. We could provide motor's exploring drawing and BOM for your products UL certificated. We also could make motors built-in filters based on your EMC directive for your EMC passing.
