DOL Magnetic Motor Starter

Supplier: Shanghai Ebasee Electric Co., Ltd.
Region: Shanghai, China
Contact: Mr David Dong
Price: $7.80 / >=50 pieces
Min. Order: 50 pieces

Click here to contact

Product details

Brand Name:	EBASEE;	Supply Ability:	50000 Piece/Pieces per Month OEM available dol magnetic starter;
Main Circuit Rating Current:	9~95A;	Electricity Type:	AC;
Main Circuit Rating Voltage:	110V, 220V, 380V;	Number of Pole:	3;
Phase:	Single phase/ Three phase;	Payment Terms:	L/C,D/P,T/T,Western Union,Paypal;
Model Number:	EBSE1;	Packaging Detail:	Standard export cartons;
Port:	Shanghai, Ningbo;	name:	dol magnetic starter;
Place of Origin:	Shanghai China;

Rated Products

Packaging & Shipping

Company Information

1. About Us

Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.

EBASEE factory locates in Shanghai,China, covering an area of 5000m².There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.

QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.

2. Why us

3. Certification

4. FAQ

5. Contact Us

Product Description

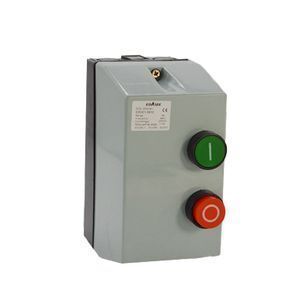

DOL Starter

Function

EBSE1 DOL magnetic Starter mainly applies to circuit if AC 50 or 60Hz, voltage up to 550V for remote making and breaking circuit and frequently starting and controlling motor .

Technical Parameter

Model Name		EBSE1 Dol starter
Standard		IEC60947-4-1 IEC60439-1
Voltage of coil		P 230V; U 240V; Q 380V
Rated current(A)		9 12 18 25 32 40 50 65 80 95A
Rated insulating voltage		690V
Material		Plastic and metal
Protection level		IP65
Connection		Pre-wired power and control circuit connections

Features

n EBSE1 DOL Starter features small volume light weight, low power consumption, high efficiency, safe and reliable performance etc.

n One starter can be installed with different setting current thermal relay to control different power motor and protect overload,the relay has to be ordered separately.

Applicable Working

Ambient temperature		-5~+40℃, the average value cannot exceed to +35℃ within 24h
Altitude		≤2,000m
Relative humidity		≤95%
Pollution level		III.
Installation category		3
