Rated Current: | 9A-95A; | Port: | Shanghai or Ningbo in China; |
No. of auxiliary contacts: | 1NC/1NO/1NO+1NC; | Coil Voltage: | 24v-660v; |
Number of Pole: | 3; | Electrical life: | 1000000 times; |
Main Circuit Rating Voltage: | 24V~380V; | Standard: | IEC60947-4; |
Mounting: | 35mm din rail; | Product Name: | Magnetic AC Contactor; |
Supply Ability: | 120000 Piece/Pieces per Day OEM available for BC1D AC Contactor; | Model Number: | LC1D; |
Payment Terms: | L/C,D/P,T/T,Western Union,paypal; | Packaging Detail: | BC1D: 50/ctn Carton Size: 44.5*27*21cm3 G.W/N.W: 17/18kgs; |
Place of Origin: | Shanghai China; | Frequency: | 50/60Hz; |
Website: | www.ebasee.com; | Rated voltage: | 220V/240V/380V; |
Electricity Type: | AC; | Phase: | 3; |
Brand Name: | EBASEE; | Main Circuit Rating Current: | 9~95A; |

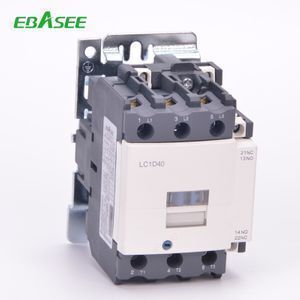

Application
BC1D series ac contactor is suitable for using in the circuits up to the rated voltage 660V ac 50Hz or 60Hz, rated current up to 780A, for making, breaking, frequently starting & controlling the AC motor. Combined with the
auxiliary contact block, timer delay& machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 standard.
Function and features.
1.This BC1D AC contactor with a dust cover for protection and more pretty.
2.With the thermal relay ,it combined into the electromagnetic starter.
4.Full set accessories
5.Auxiliary contact group Top hung/side hung
6.Time-delay auxiliary contact
Technical Parameter
Product name | AC magnetic contactors |
Standard | IEC60947-4 |
Rated current | 9-95A |
Rated voltage | 220V/240V/380V |
Poles | 3P |
Frequency of coil | 50Hz,60Hz,50/60HZ |
Voltage of coil | 230V,240V,380V |
Mechnical Life | 10000000 times |
Electricity Type | AC type |
Auxiliary contact | 11/02/20 |
1. About us
Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.
EBASEE factory locates in Shanghai,China, covering an area of 5000m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
