CA10S generator change over switch

Product details
Place of Origin:Shanghai China (Mainland);Website:www.ebasee.com;
Max. Voltage:690V;Port:Shanghai;
Max. Current:160A;Color:bule;
Model Number:CA10S;Standard:GB14048.3 IEC60947-3;
Payment Terms:L/C,D/A,T/T,Western Union,Paypal;Supply Ability:100000 Piece/Pieces per Month;
Mechanical Life:60*1000;Packaging Detail:Standard Export Packing;
Brand Name:EBASEE;Rated Operation Voltage Ue (V):400V;



Related Product





Product Description



Universal Changeover Switch

Function

CA10 series control and load switches offer a solution for most cam switch operations. Different types can be used as control switches, switches to be installed in equipments and switches for motor control according to IEC60947-3.

Technical Parameter

Model Name

CA10 Universal changeover switch

Standard

IEC60947-3

Poles

2P 3P 4P

Rated power

3-phase AC motor

Rated current In(A)

20~160Amp

Rated voltage Un(V)

120V 240V 440V 660V

Rotation angle code

30°45°60°90°





Classifications

n Classified by utilization,control and load switch,motor switch,control switch

n Classified by operation limited movement spring return,limited movement with spring return

n Classified by contact system switch with limited movement has 1-12poles(63A only have 8poles), switch with spring return has 1~3poles,motor control switch has 1-6poles

n Classified by rotation angle: 30°45°60°90°etc

n Classified by panel square panel,rectangular panel, circular panel (only 20A)

n Classified by handle R type, I type, F type, B type, S type, L type, P type, K type.



Applicable Working

Ambient temperature

-5~+40℃, the average value cannot exceed to +35℃ within 24h

Altitude

≤2,000m

Relative humidity

≤95%

Pollution level

II.

Installation location

Mount on the place where has no obvious vibration or impact

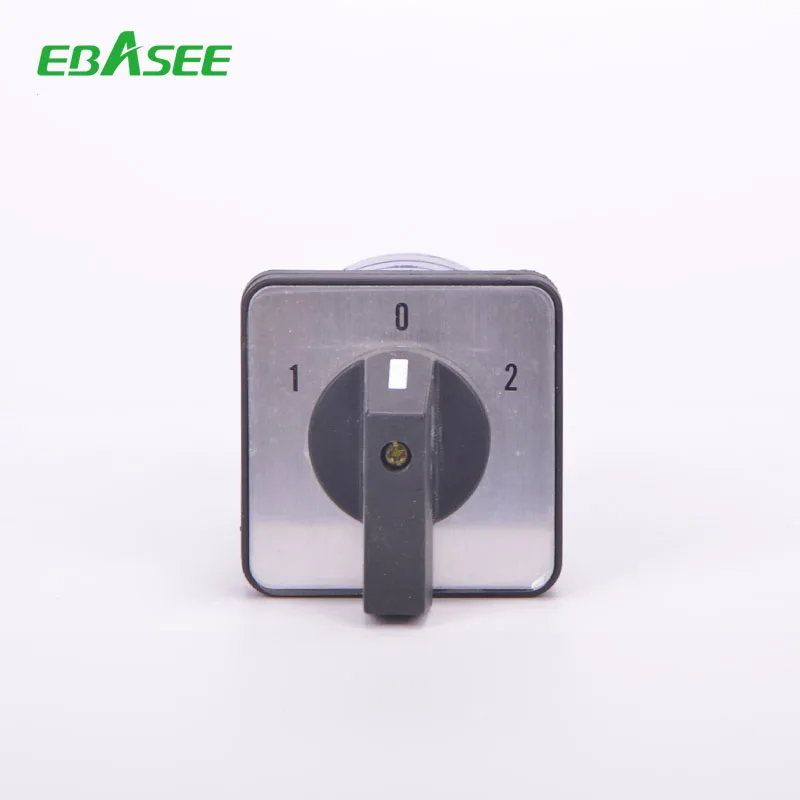

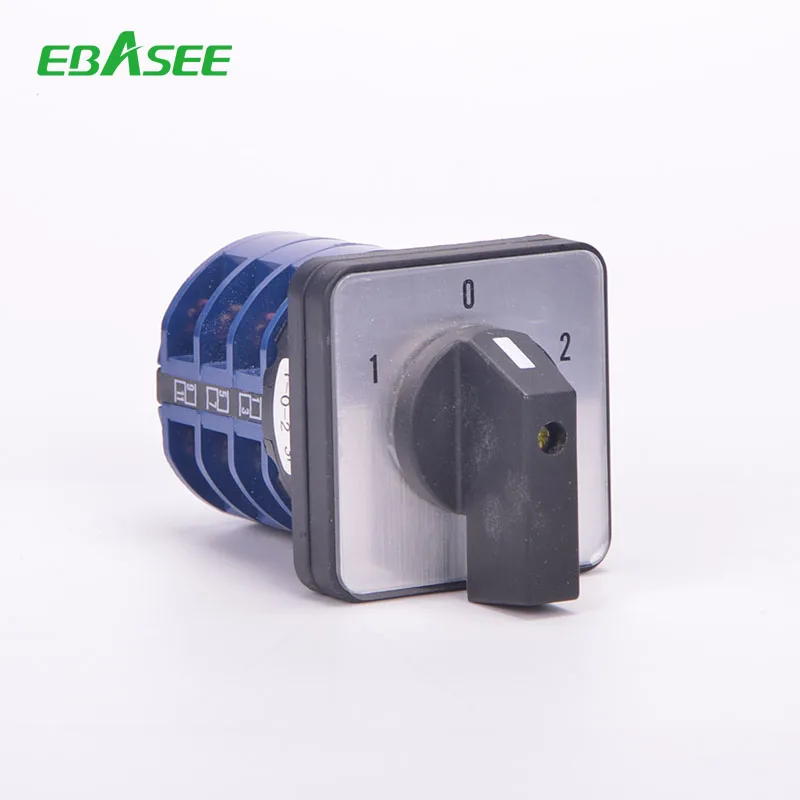

Detailed Images



Packaging & Shipping





Company Information

1. About us

Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.

EBASEE factory locates in Shanghai,China, covering an area of 5000m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.



QUALITY is our CULTURE.  With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
