USA Hotsale 3L low temperature recirculating cooling chiller

Supplier: Shenzhen Haocheng Instrument Co., Ltd.
Region: Guangdong, China
Contact: Mr Steven Liu
Price: $49.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions(WxHxD):	415x533x497mm;	Cooling capacity:	500w;
Manufacturer:	yes;	Application:	Industrial Cooling Solutions;
Type:	Water-Cooled;	Port:	shenzhen,shanghai,qingdao,tianjin;
Dimension(LWH):	415x223x497mm;	Power(W):	500w;
Warranty:	2 Years;	Place of Origin:	Guangdong China (Mainland);
Temperature range:	-20 to 20;	Brand Name:	haocheng;
Supply Ability:	1000 Set/Sets per Year;	Warranty:	2 years;
Product name:	USA Hotsale 3L low temperature recirculating cooling chiller;	weight:	35KG;
Certification:	CE;	Voltage:	110v,220v;
After-sales Service Provided:	Free spare parts;	Voltage:	220V,110V;
Weight:	35KG;	Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal;
Packaging Detail:	wooden box for USA Hotsale 3L low temperature recirculating cooling chiller;	Condition:	New;
Compressor:	Imported;

Product Detail

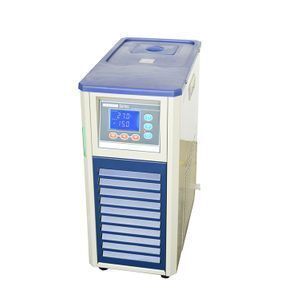

USA Hotsale 3L low temperature recirculating cooling chiller

Model:HC3/20

Introduction

Cooling chillers are suitable for temperature control of externally connected applications. It can be combined with the rotary evaporator, glass reactor and other instruments to proceed kinds of chemical reactions.

Feature

Used imported famous cooling compressors Brand -- Embraco compressors and can work for a long time
Combine with Rotary Evaporator and Vacuum Pump to form a complete small experimental facility.
Digital LCD display make the temperature setting simple and reasonable design and delicate figure to save space
Stainless steel reservoir facilitate user friendly operation and simple maintenance

Product Description

Specification

Model	HC3/10	HC3/15	HC3/20
Compressor	Refrigerant: R404A Cooling capacity at 0°C/32°F: 350 W	Refrigerant: R404A Cooling capacity at 0°C/32°F: 400 W	Refrigerant: R404A Cooling capacity at 0°C/32°F: 400 W
Recirculating Pump	Output: 15 watts Pumping speed: 17 L/min or 4.5 gallon/min
Overall Power(W)	450	500	500
Temperature Controller	Digital Microprocessor PID Controlled,Temperature Accuracy: +/- 2°C
Temperature Range(°C)	-10 to 20	-15 to 20	-20 to 20
Reservoir	Capacity: 3 liters or 0.8 gallons
Temperature Sensor Type	Pt100
Voltage	220V/110 Optional
Weight	35KG
