Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Showroom Location: | None; |

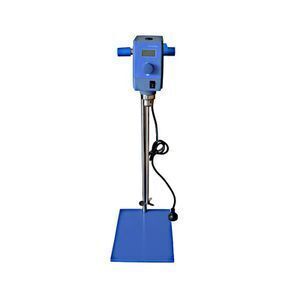

Product name: | liquid detergent mixer 20l laboratory overhead stirrer; | Additional Capabilities: | COATING; |
Stir display: | Digital display,blue bright, Digital mechanical overhead stirrer; | Max. Loading Capacity: | 20L; |
Marketing Type: | New Product 2020; | Max. Loading Volume (L): | 20 L; |
Video outgoing-inspection: | Provided; | After Warranty Service: | Video technical support,Online support,Spare parts; |
Barrel Volume (L): | 20; | Packaging Detail: | Carton box; |
Machinery Test Report: | Provided; | Stir and heat volume: | up to 20L; |
Port: | shenzhen; | Standard stir rod: | PTFE material or Stainless steel304,L300mm,Dia8mm; |
Place of Origin: | Guangdong China; | Supply Ability: | 500 Set/Sets per Month; |
Key Selling Points: | Long Service Life; | Core Components: | Motor; |
Range of Spindle Speed(r.p.m): | 60 - 1500 r.p.m; | Model Number: | HM-100S; |
Warranty of core components: | 2 years; | Local Service Location: | None; |
Stir power: | 50W; | Usage: | Mixing Liquid Detergent; |
Mixing or stirring material: | liquid like chemical , mechanical; | Material for machine: | stainless steel 304; |
Warranty: | 2 years; | Dimension(L*W*H): | 600*300*400mm; |
Condition: | New; | Weight (KG): | 11 KG; |
After-sales Service Provided: | Online support; | Certification: | CE Certificate; |
Product Type: | Soap; | Payment Terms: | T/T,Western Union,MoneyGram,Paypal; |
Power (kW): | 50 kW; | Brand Name: | haocheng; |
Voltage: | 220V/110V; | Mixer Type: | Paddle; |
Application: | Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing,Viscous Fluid; | Stir speed: | 60- 1500rpm,+/- 1 rpm; |
Main Features
• Brushless DC motor drive , penetration type stirring shaft .
• MCU closed -loop control , constant and stable rotational speed .
• Digital display and speed setting ,rotary encoder operation.
Note:
We have four different series about Overhead stirrer (HM-S,HM-T,HM-C,HM-P ).
The features as below:
HM-S series
|
Digital LED display stirring speed, Round plate. (15L 40L 80L 100L) |
HM-T series
|
Digital LCD display stirring speed and timer ,speed control with closed MCU control, Max timer set: 9999 min, Round plate. (15L 40L 80L 100L) |
HM-C series |
Digital LED display stirring speed,speed control with closed MCU control, Rotary encoder operation,Square plate,Constand stir speed. (20L 50L 80L 100L) |
HM-P series |
New model,digital display stirring speed and time,Micro-processor(Programmable)control ,FWD time 1 REV time 3 interval time Max 255sec (Max timer set: 9999 min) , Round plate,laboratory chemical overhead stirrer. (15L 50L 80L 100L) |
Model |
HM-50C |
HM-100C |
HM-150C |
HM-250C |
Motor Power |
50W |
100 W |
150 W |
250W |
Motor Type |
Brushless DC Motor |
|||
Motor Torque |
200 m N.M |
450 m N.M |
600 m N.M |
1 N.M |
Voltage |
220V +/- 10%,or 110V +/- 10% |
|||
Rotational Speed Range |
60- 1500rpm / 60- 2000rpm |
|||
Stir Capacity |
50ml - 18 L |
50ml - 50 L |
50ml - 80 L |
50ml - 100 L |
Stir speed |
Digital display .LED |
|||
Stir Rod Length |
350mm |
350mm |
350mm |
350mm |
Stir Rod Material |
PTFE |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Holder Length |
700mm |
700mm |
700mm |
700mm |
Chuck Clamping Range |
Ø1.5-10 |
Ø1.5-10 |
Ø1.5-13 |
Ø1.5-13 |
Product Dimension (mm) |
390 x 93x 160 |
390 x 93x 160 |
390 x 93x 180 |
390 x 93x 180 |
Gross weight (KG ) |
8.4 |
12.1 |
12.5 |
13 |
1.Why choose US? |
A:We are the leading manufactuer in lab furniture and lab equipment, and we are a factory. |
2 .Where is your company location ? How can i visit there ? |
A :We are in shenzhen , welcome to visit us ! |
3.What the material of your products ? |
A: superfine ceramic for top plate for all of our stirrers ,metal shells , can be customized as your requests |
4. How does your company do regarding to the products quality control ? |
A : Quality is the most important. BV Intertek ,SGS authentication |
5.How can i get some sample ? |
A. We are honored to offer sample for your evaluation |
